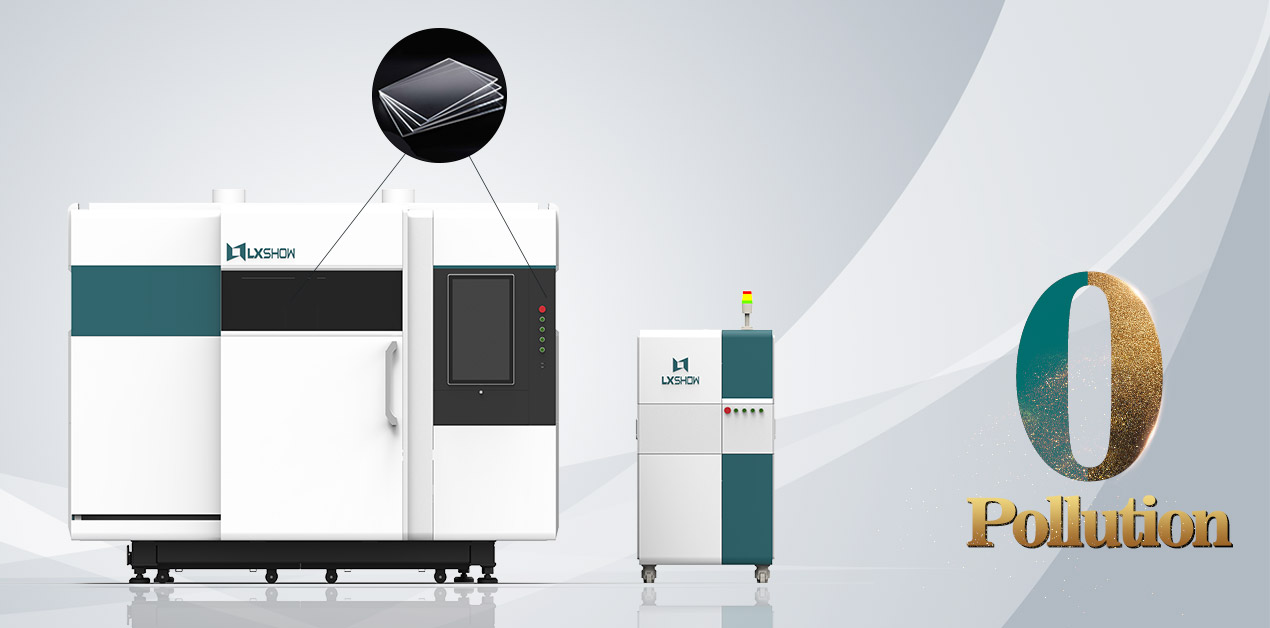

SAFETY AND ENVIRONMENT PROTECTION
With a fully enclosed design;
The observation window adopts an European CE Standard laser protective glass;
The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
EXCHANGE TABLE
Faster: Dual platform automatic exchange system (two work surfaces). 10-15 seconds to complete the switch
More efficient: Rapid exchange between two platforms greatly improves work efficiency.Platform exchange is controlled by the system.

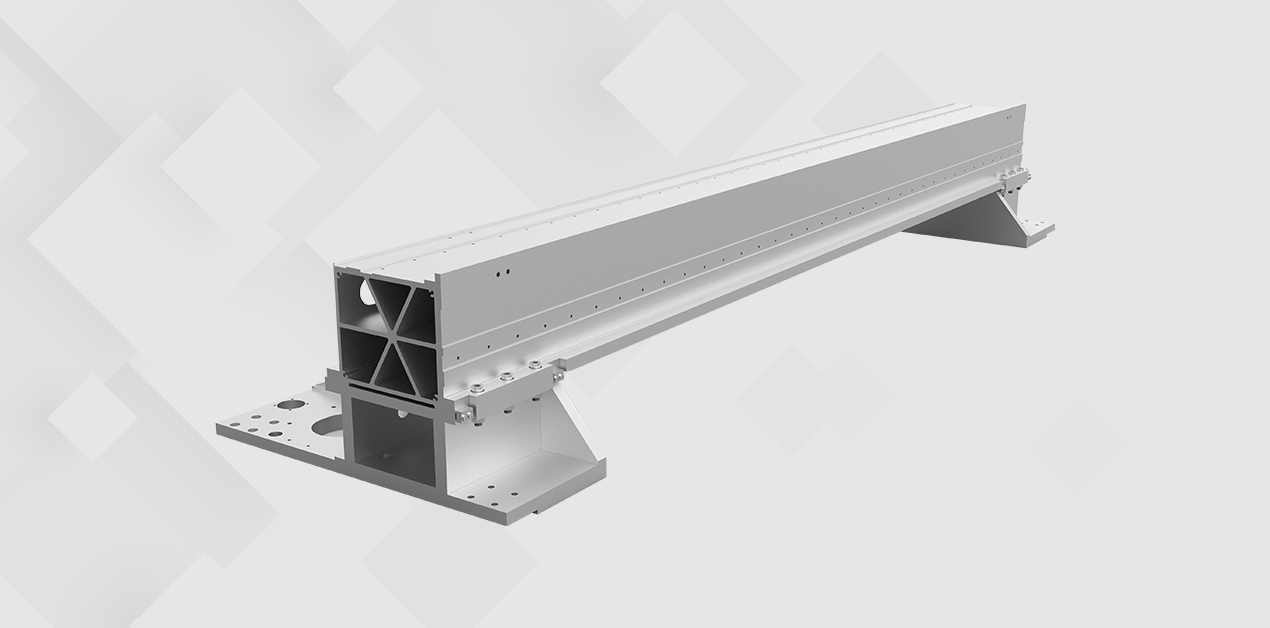

THE 4TH GENERATION AVIATION ALUMINUM BEAM
Select 6 series aviation aluminum alloy, light-weight and good dynamic performance of beam
Honeycomb compressive structure design in accordance with aerospacecraft design standards
Extrusion molding process adopted, no air or sand hole, high strength
CONTROL SYSTEM
●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force
●Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.
GENERATOR USING LIFE
The performance of the generator is stable and the service life (theoretical value) is 10,00000 hours. That means if you use it 8 hours a day, it can last about 33 years.

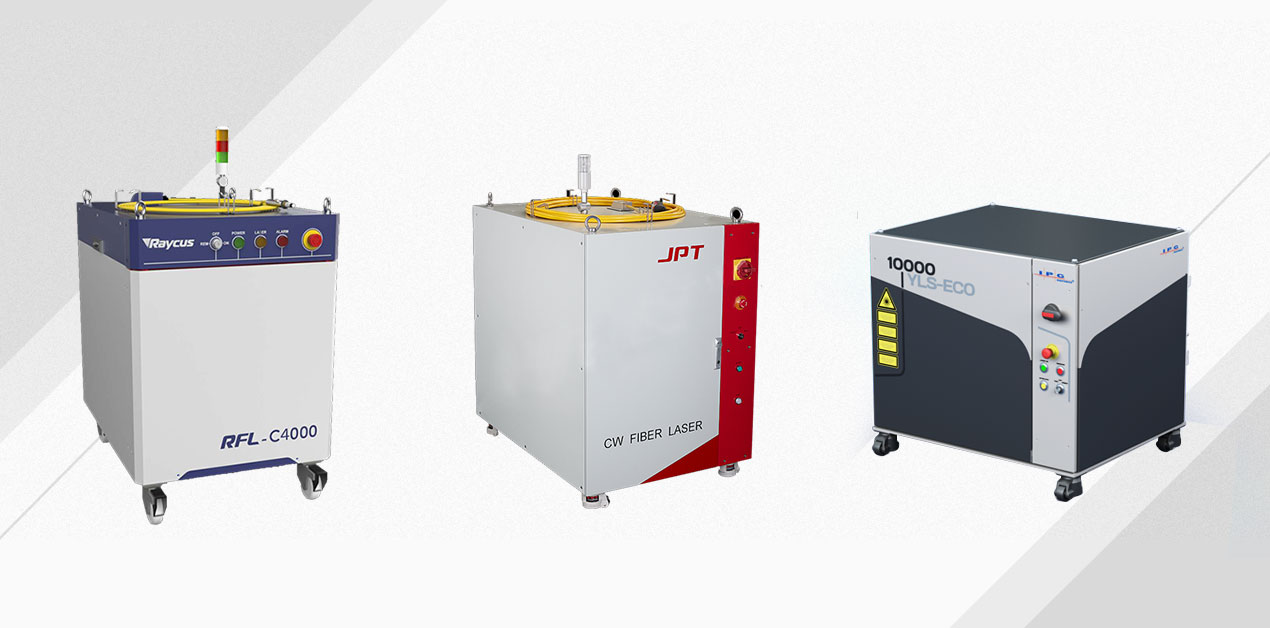

World-renowned generator brands
Five brands to choose from: JPT/Raycus/IPG/MAX/Nlight
INTELLIGENT AUTO FOCUS LASER CUTTING HEAD
Auto focus
The laser cutting head automatically adjusts the focusing lens through software without manual intervention, and the focusing speed is 10 m/min, which is 10 times that of manual focusing.
High-speed cutting: The pre-punching time of 25mm carbon steel sheet is <3s@3000w, which greatly improves the cutting efficiency.
long lasting: Both the collimating mirror and the focusing mirror are equipped with water-cooled heat sinks, which can effectively reduce the temperature of the cutting head and prolong the service life of the laser cutting head.
Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.
TRANSMISSION AND PRECISION
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

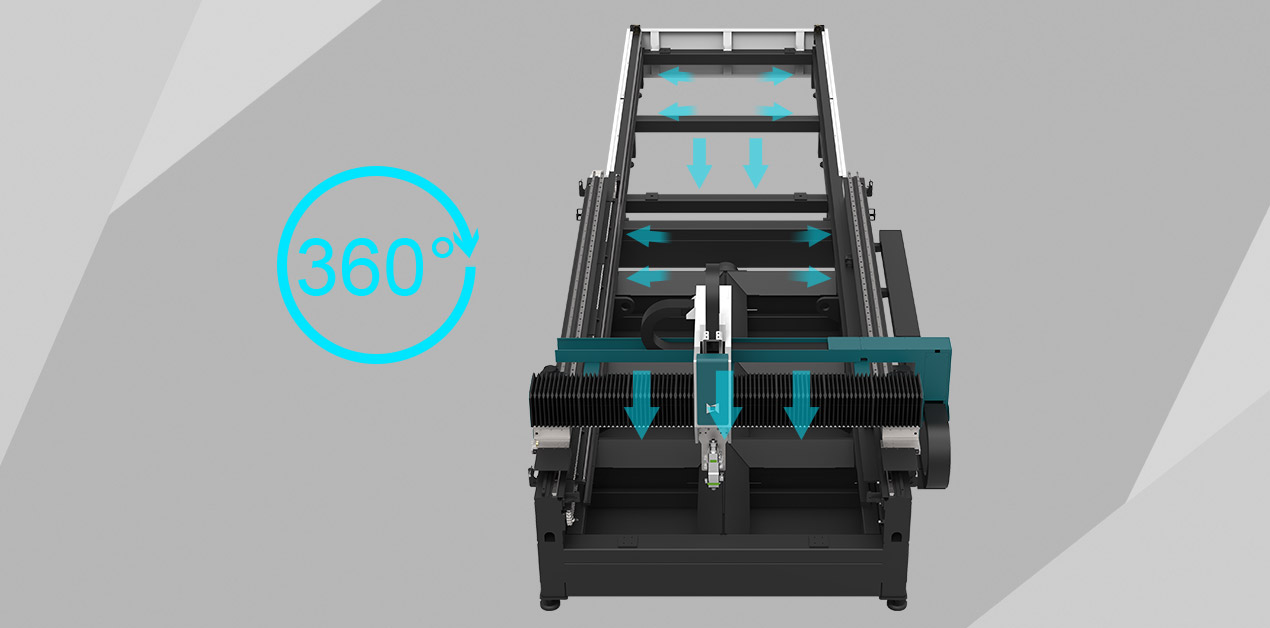

FULL COVERAGE, SUPER SUCTION
Adopt the latest cutting-edge tobacco control technology, Each section of the bed has a smoke exhaust device.
Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position
Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

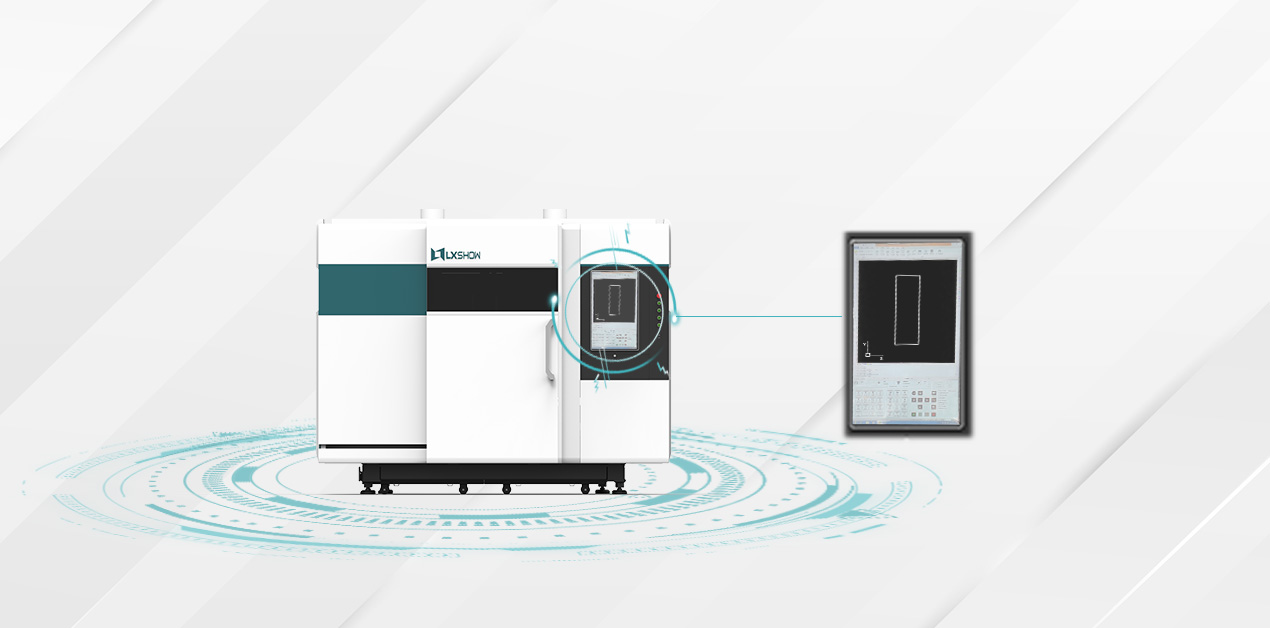

MONITORING SYSTEM
Real-time observe the machine running through the panel
Model Number: LX3015P/4015P/6015P/4020P/6020P/6025P/8025P
Lead time: 15-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: (About)
Exchange table Machine size: 5200*3000*2400mm
Water chiller +Controller: 1830*920*2110mm
Machine weight: 7000KG
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
|
Machine Model |
LX3015P/4015P/6015P/4020P/6020P/6025P/8025P |
|
Power of Generator |
3000/4000/6000/8000/10000/12000W（optional） |
|
Dimension |
2850*8850*2310mm/3350*10800*2310mm (About) |
|
Working Area |
3000*1500mm/4000*1500mm/6000*1500mm/4000*2000mm/6000*2000mm/6000*2500mm/8000*2500mm |
|
Repeated Positioning Accuracy |
±0.02mm |
|
Max Running Speed |
120m/min |
|
Max Acceleration |
1.5G |
|
Specified Voltage And Frequency |
380V 50/60HZ |
LX3015F 2000W 4000W 6000W 1200W CNC OPTICAL METAL SHEET PLATE FIBER LASER CUTTING MACHINE APPLICATION
Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
