LX62THA Automatic Loading and Unloading Metal Square and Circle Tube Fiber Laser Pipe Cutting Machine 1000 1500 2000 3000 4000 6000 8000 watt

LX62THAPC3
LX62THAPC2
LX62THAPC1
LX62THA-3
LX62THA-1
LX62THA-2
LX62THA Automatic Loading and Unloading Metal Square and Circle Tube Fiber Laser Pipe Cutting Machine 1000 1500 2000 3000 4000 6000 8000 watt

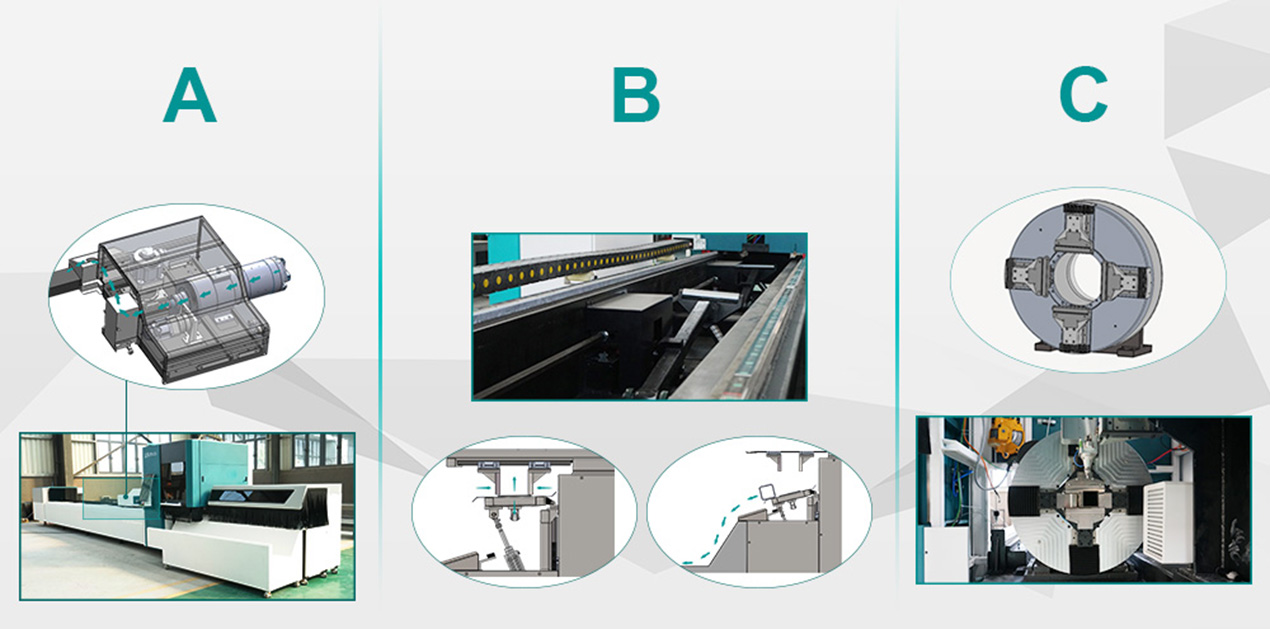

A. Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing. The rear chuck equipped with a waste collection system.
B. Follow-up support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation. The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.
C. The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G

xyy
xy

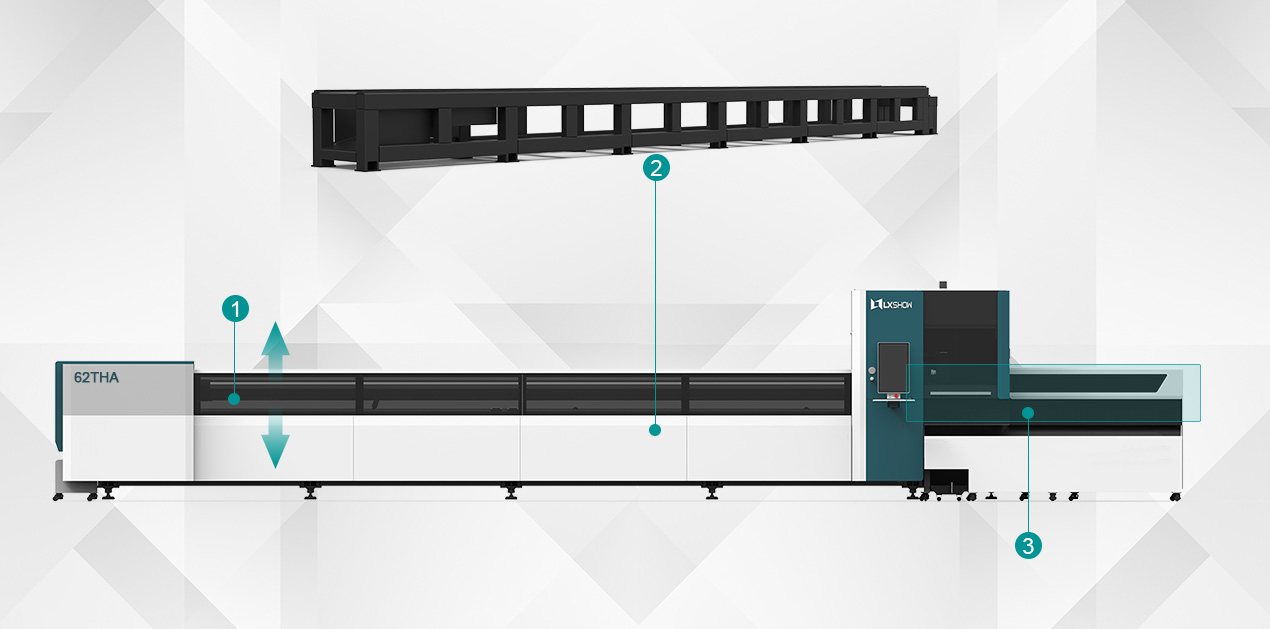

1.Semi-enclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers
2.Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking
3.The front end of the machine is surrounded by design to improve the dust removal effect

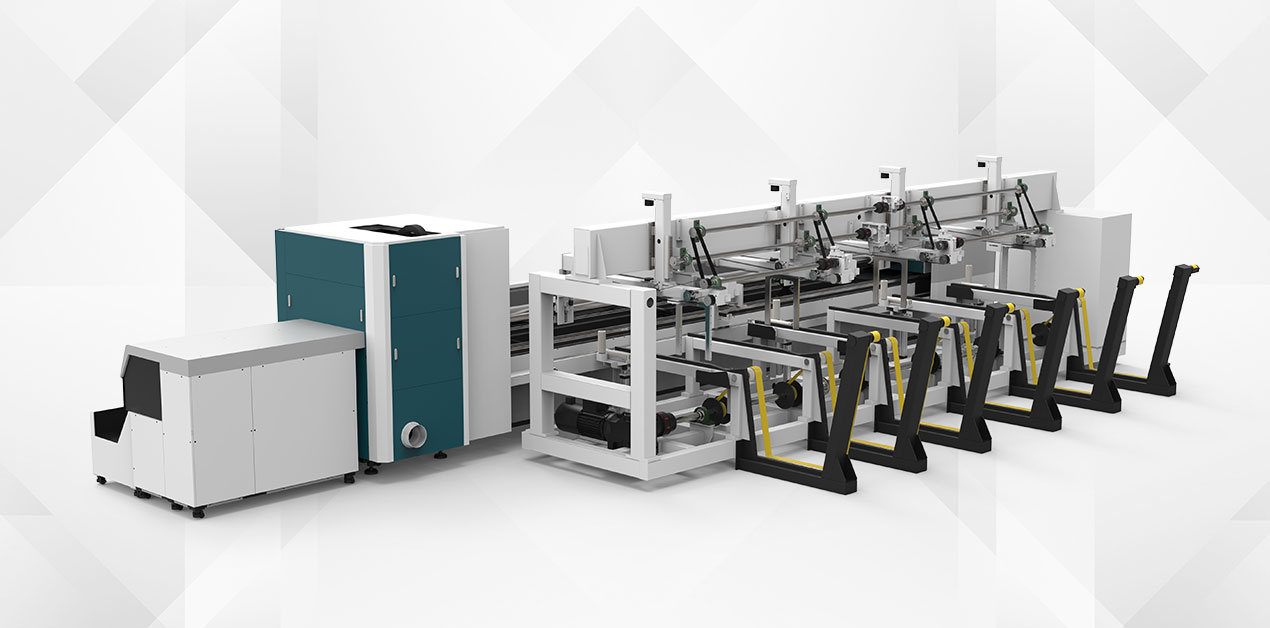

Loading: After the whole bundle pipes were put on the feeding device, these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time

Unloading: Finished material is automatically unloaded to the parts silo, double rollers auxiliary support long parts; materials can be automatic prepared during processing time, shorten the feeding time. Automatic unloading, parts and scraps are automatically separated, reducing sorting, saving labor, improving machine production efficiency

3
cs

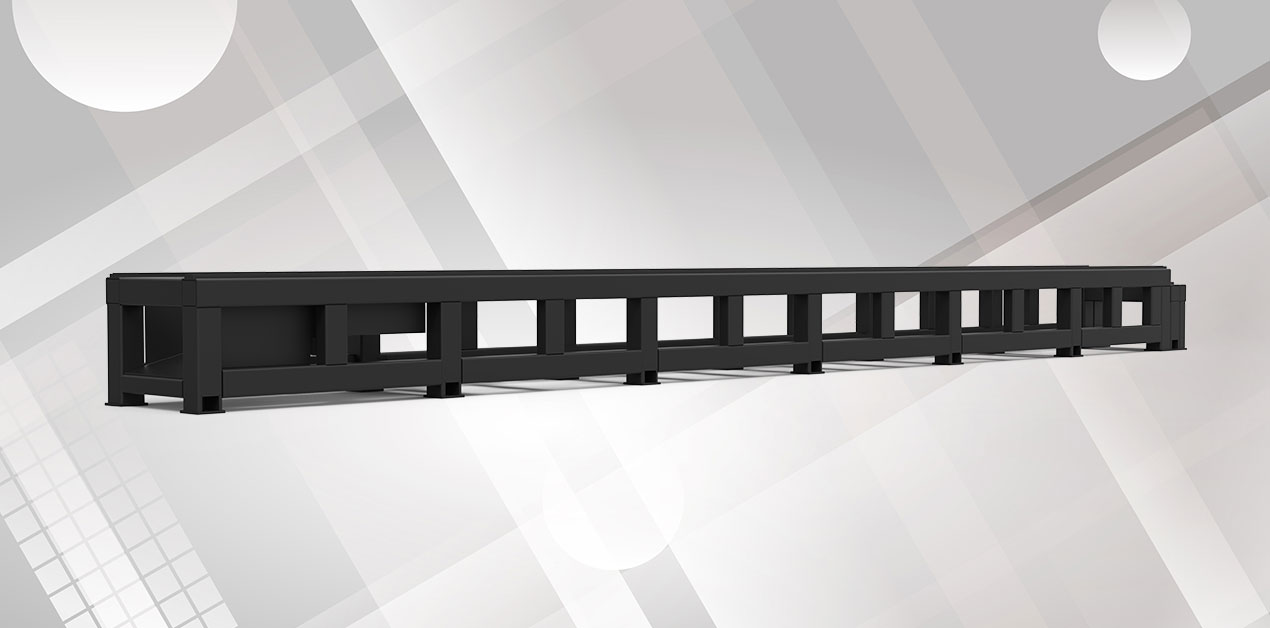

THE SEGMENTED RECTANGLE LASER TUBE WELDED BED

Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance;

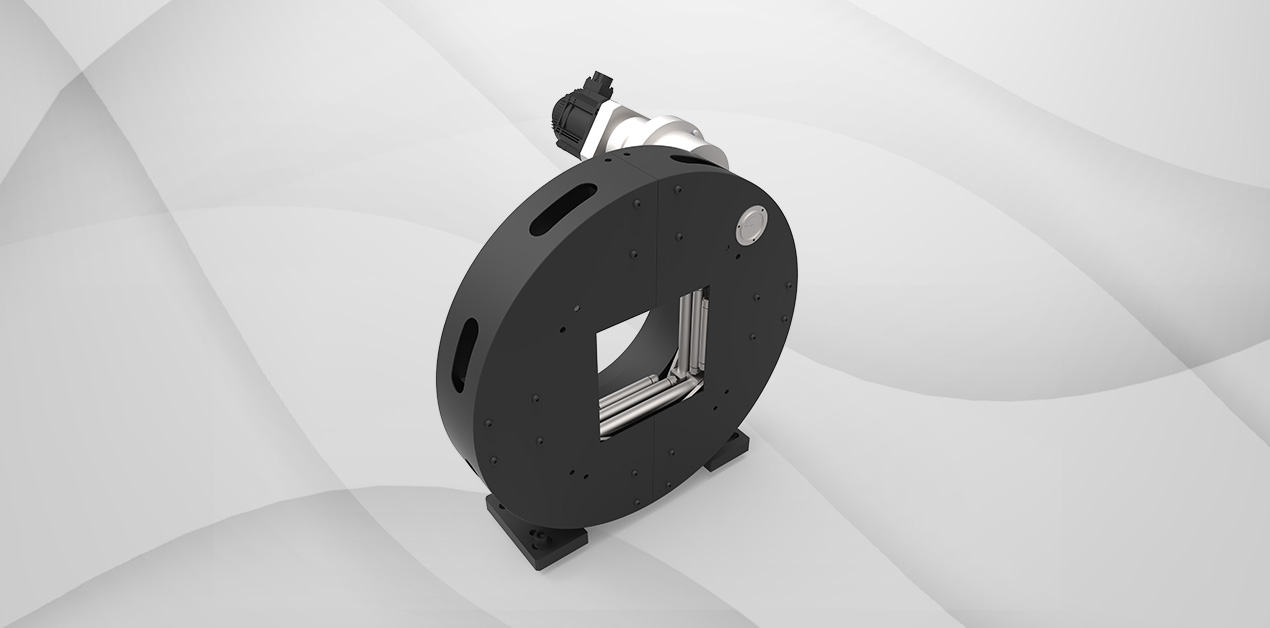

PNEUMATIC CHUCK CLAMPING DESIGN

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

kp
zcj

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

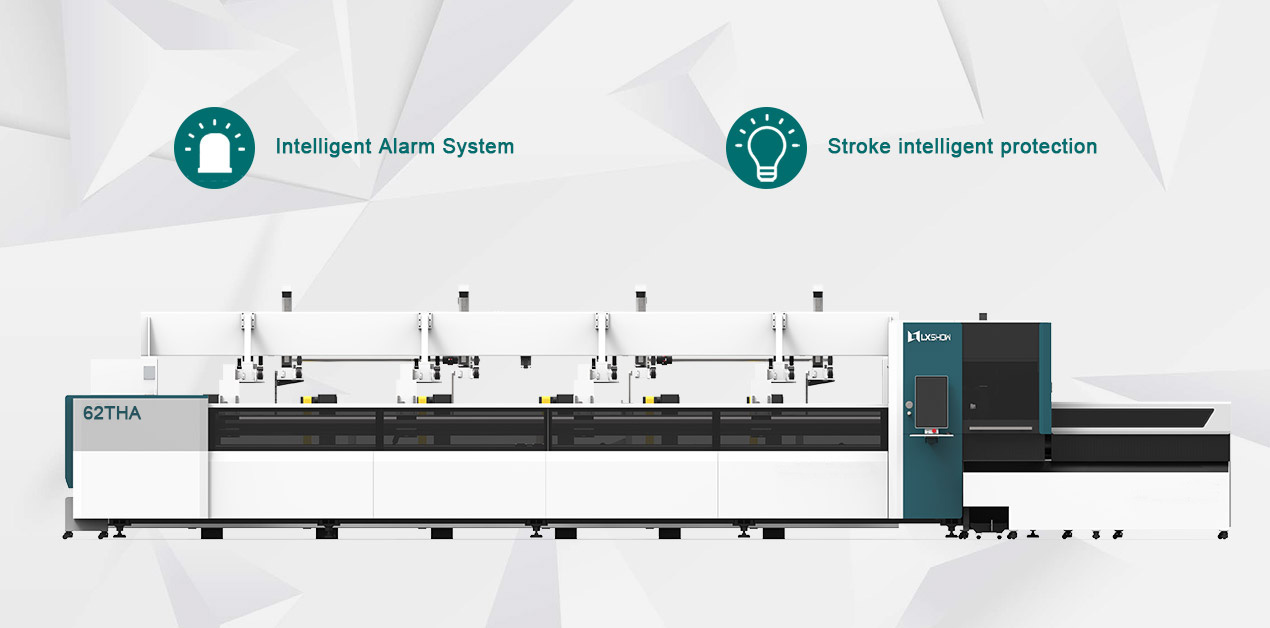

Intelligent Alarm System: It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

Stroke intelligent protection: Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

aq
ccc

THE ABSOLUTE VALUE SERVO MOTOR

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.

GENERATOR USING LIFE

The theoretical life of the generator is 10,00000 hours. That means if you use it 8 hours a day, it can last about 33 years.

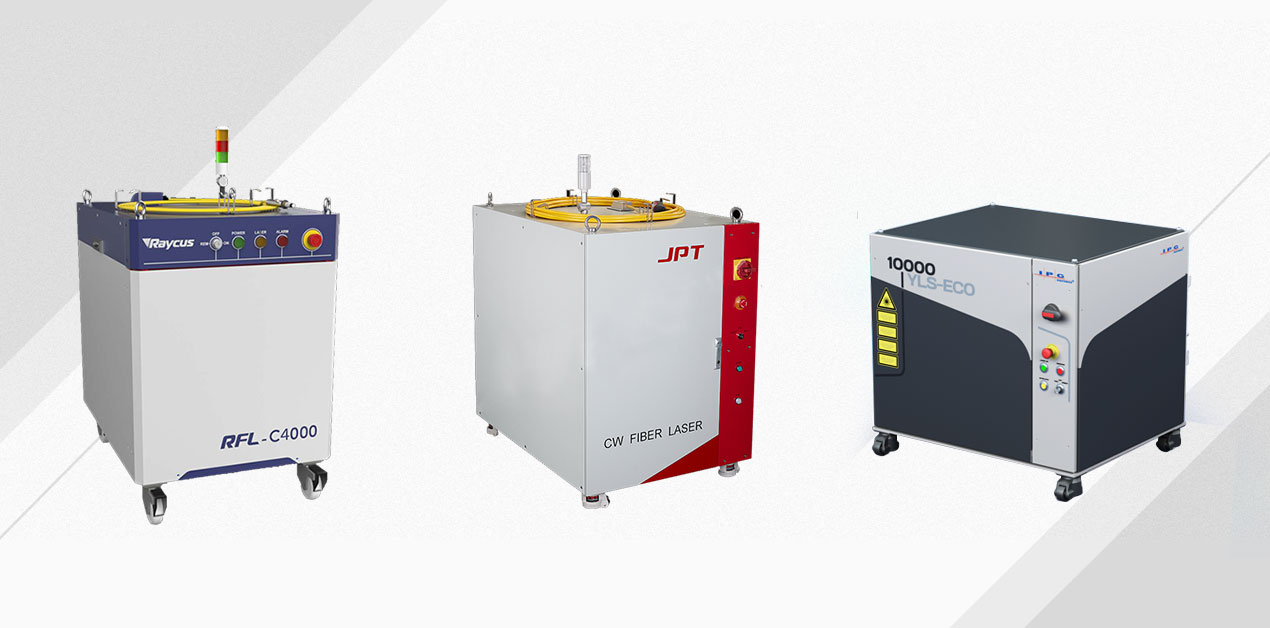

Various brands of generators are available: JPT/Raycus/IPG/MAX/Nlight

Languages supported by the system: English, Russian, Korean, Simplified Chinese, Traditional Chinese (other languages can be selected for a fee)

fsq
qgt

INTELLIGENT AUTOFOCUS

The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

Model Number: LX62THA
Lead time: 20-35 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: (About)12000*5000*2450mm

Machine weight: 13000KG(About)
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

LX62THA

LX63THA

Effective Tube Cutting Length 6500mm/9200mm 6500mm/9200mm
Laser Output Power 12000w/10000w/8000w/6000w/4000w/3000w/2000w/1500w/1000w
Effective Round Tube Cutting Diameter

Φ20-230mm

Φ20-330mm

Effective Square Tube Cutting Diameter

□20*20mm-□160*160mm

□20*20mm-□235*235mm

MAX Weight of chunk

170KG

400KG

Rectangular tube Edge Length

20-170mm

20-270mm

Outer Circle Diameter

≤230mm

≤330mm

X/Y-axis positioning accuracy

0.03mm

X/Y-axis repositioning accuracy

0.02mm

X axis maximum speed

100m/min

Y axis maximum speed

95m/min

Chunk speed

100r/min

Chunk type

pneumatic

Weight of whole machine(About)

8000KG

Weight of whole machine include loading equipment

13000KG

Machine size

12000*3100*2450mm

Machine size include loading equipment

12000*5000*2450mm

LX62THA 1000 1500 2000 3000 4000 6000 8000 watt

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
