Features

•Complete steel-welded structure, with sufficient strength and rigidity;
•Hydraulic down-stroke structure, reliable and smooth;
•Mechanical stop unit, synchronous torque, and high precision;
•The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;
•Upper tool with tension compensating mechanism, In order to guarantee high precision of bending;
•TP10S NC system

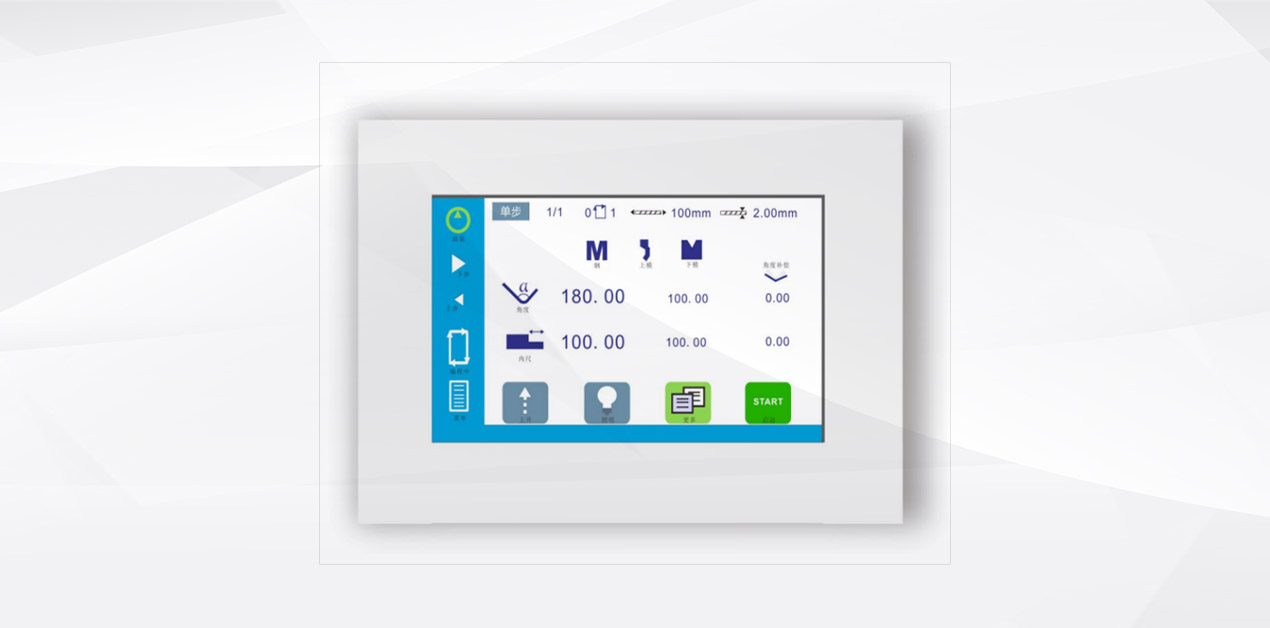

CNC System

• TP10S Touch screen
• Support angle programming and depth programming switching
• Support settings of mold and product library
• Each step can set opening height freely
• The shift point position can be freely controlled
• it can realize Multi-axis expansion of Y1、 Y2、 R
• Support mechanical crowning workingtable control
• support large circular arc automatic generate program
• Support top dead center, bottom dead center, loose foot, delay and other step change options, it improve processing efficiency effectively
• Support electromagnet simple bridge
• Support fully automatic pneumatic pallet bridge function
• Support automatic bending, realize unmanned bending control, and support up to 25 steps of automatic bending
• Support time control of valve group configuration function, fast down, slow down, return, unloading action and valve action
• it has 40 product libraries, each product library has 25 steps, large circular arc supports 99 steps.

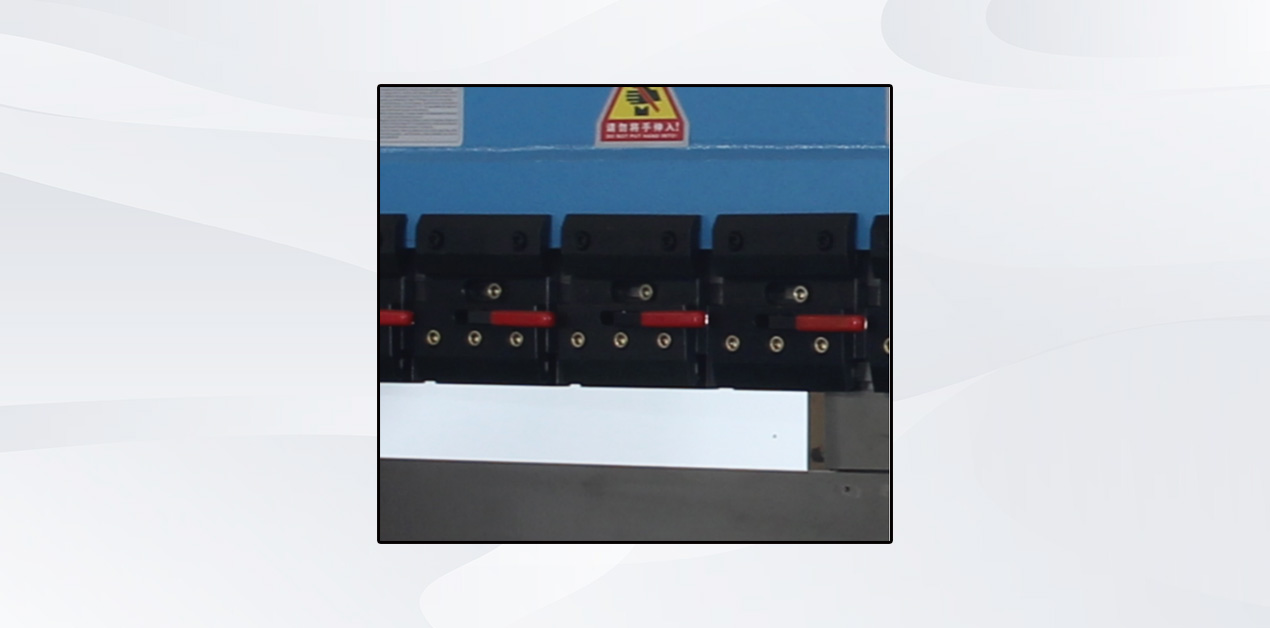

Upper Tool Fast Clamp

·Upper tool clamping device is fast clamp

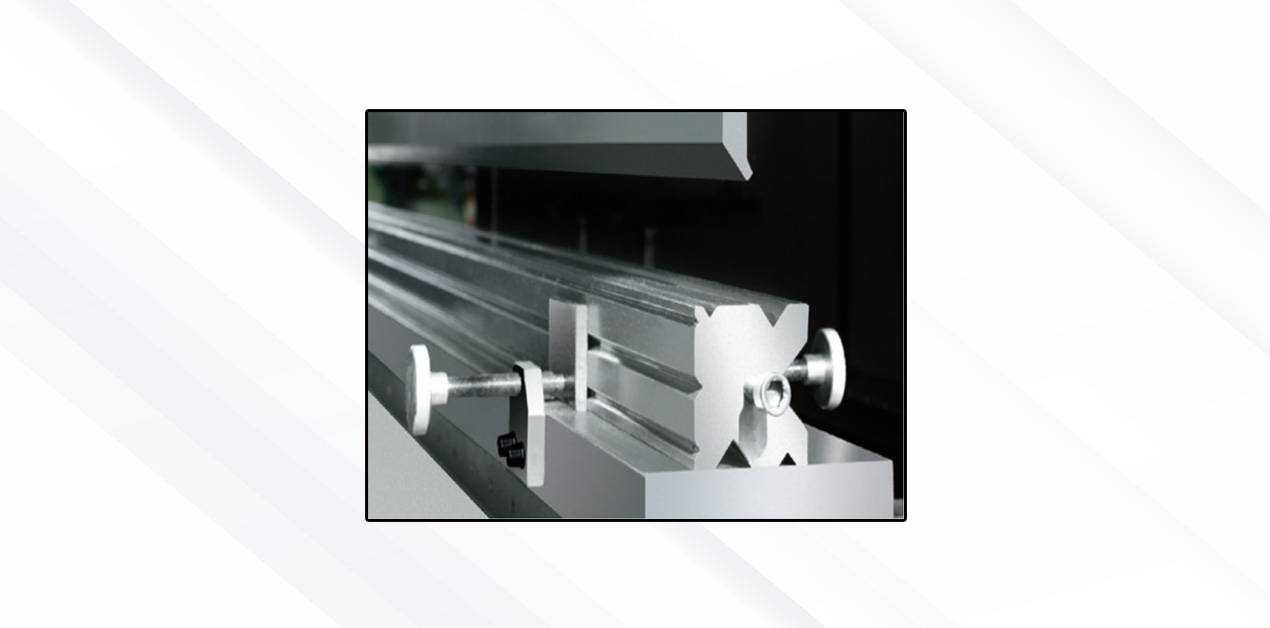

Multi-V Bottom Die Clamping(option)

·Multi-V bottom die with different openings

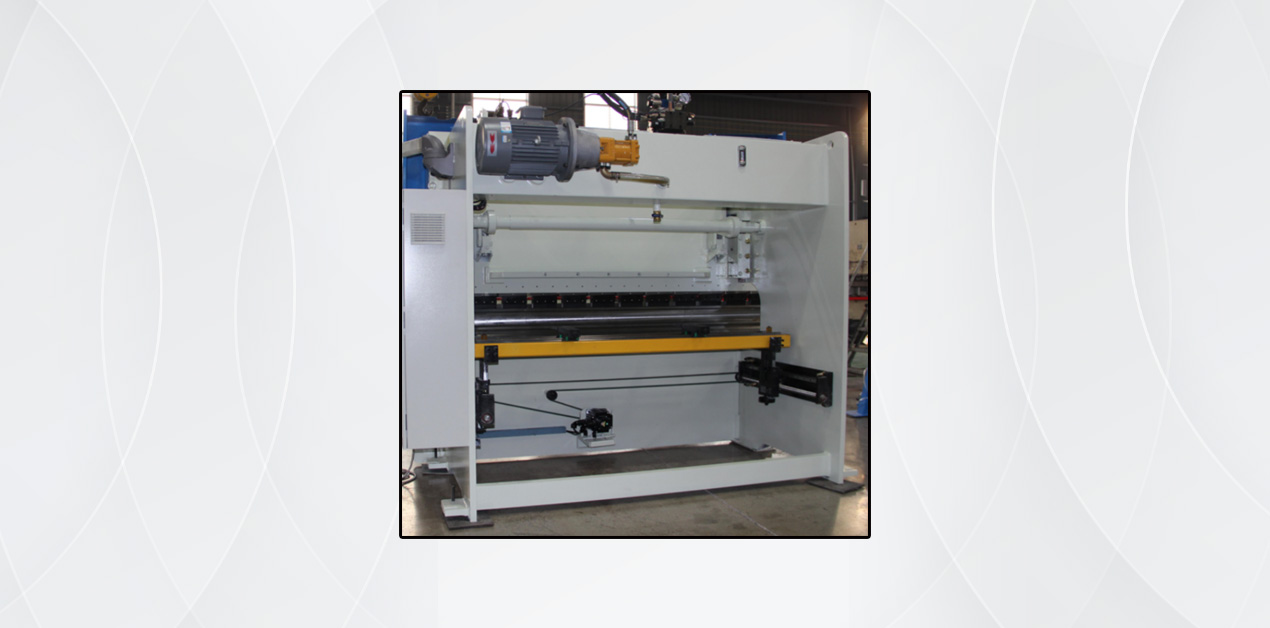

Backgauge

·Ball screw/liner guide are high precision

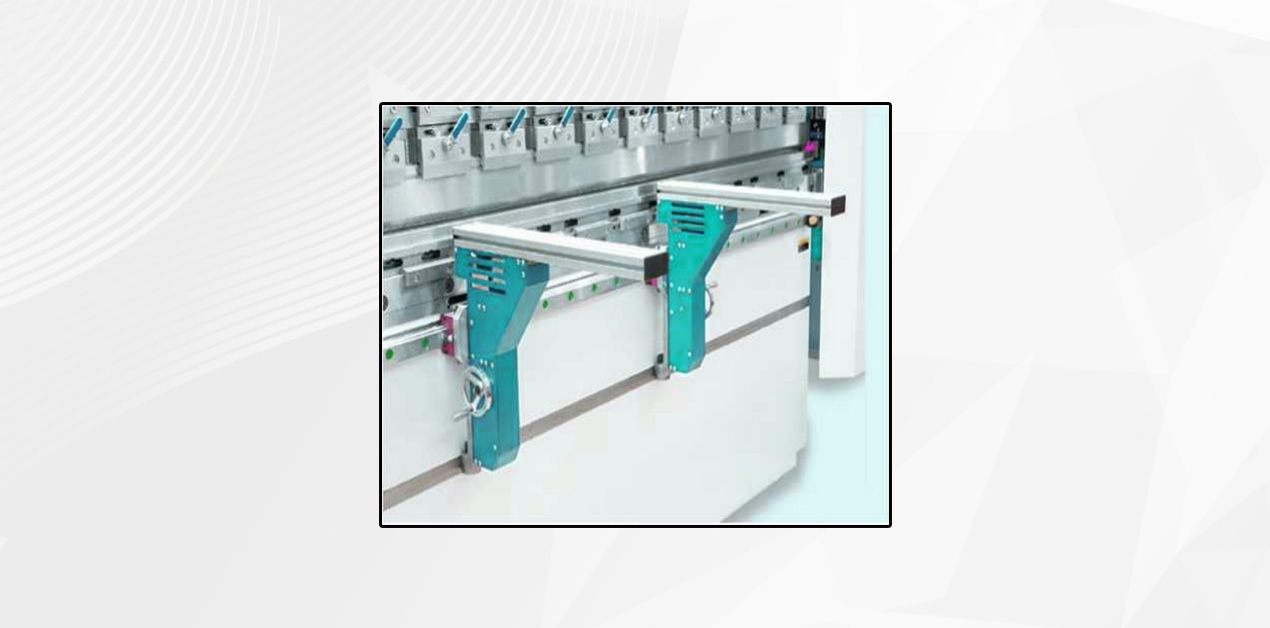

Front Support

·Aluminium alloy material platform ,attractive appearance,and decrease scratch of workpicec.

Optional

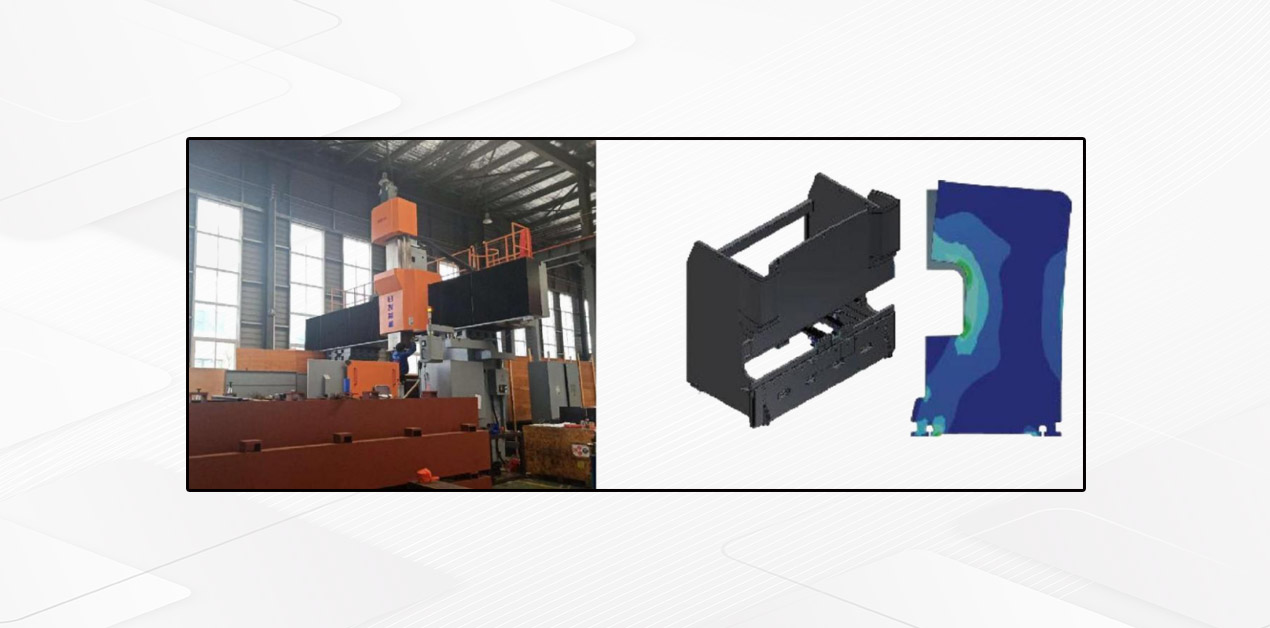

Crowning Compensation for Worktable

· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.

·The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

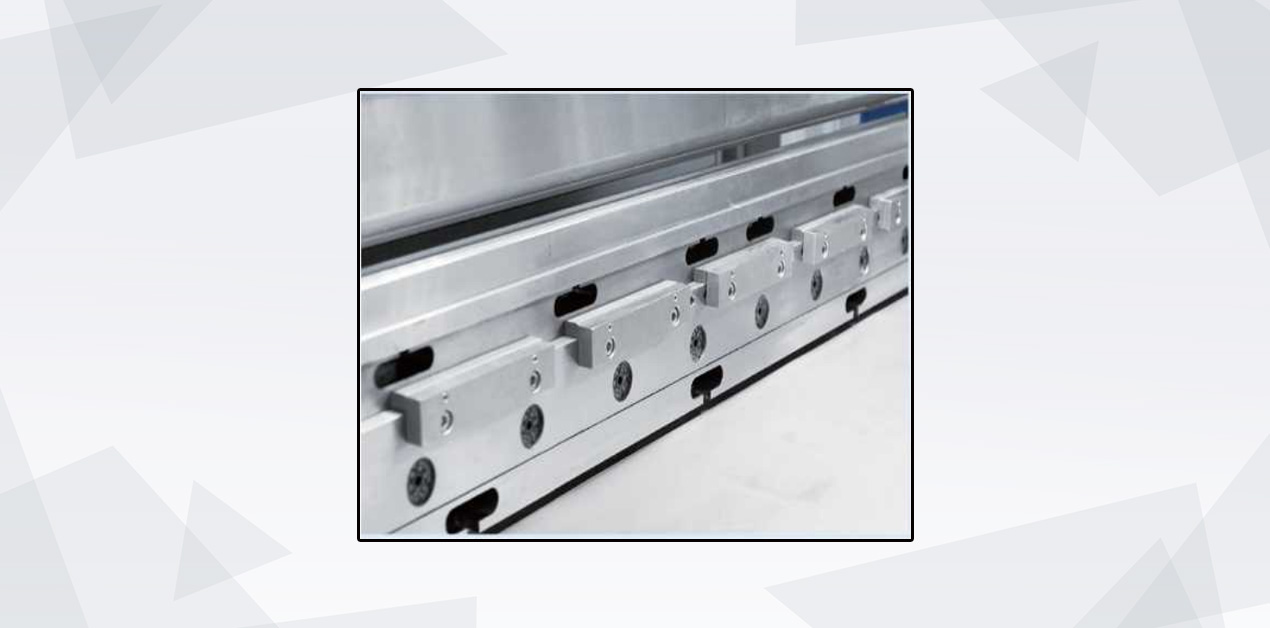

Quick Change Bottomm Die

·Adopt 2-v quick change clamping for bottom die

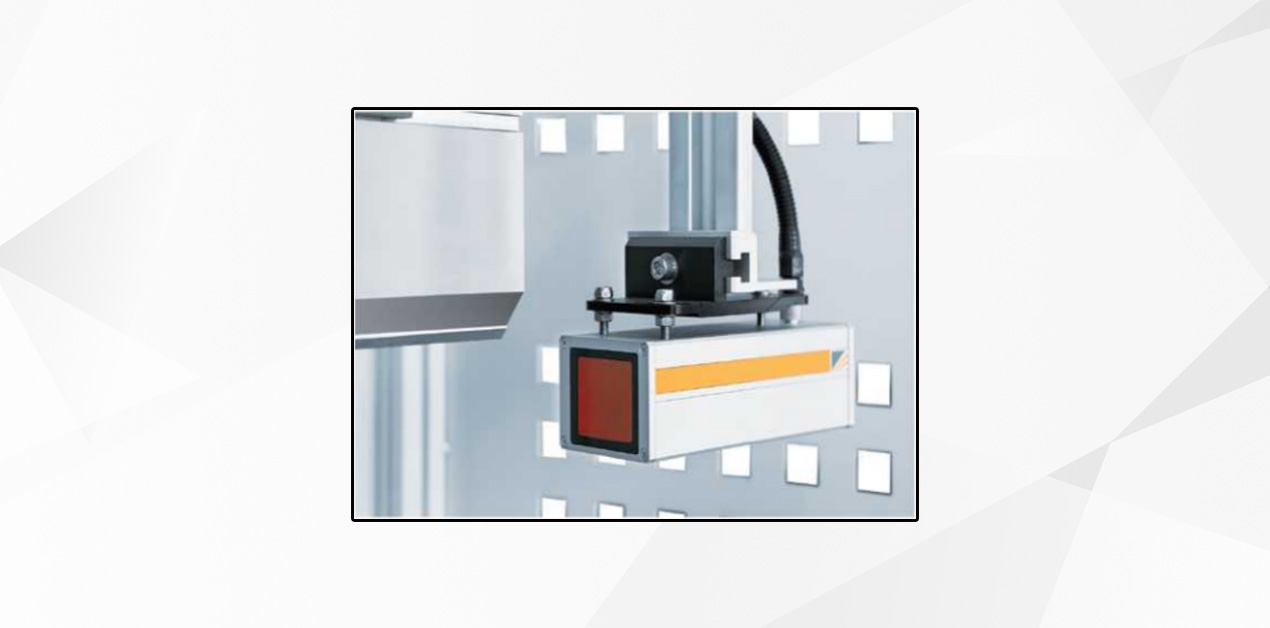

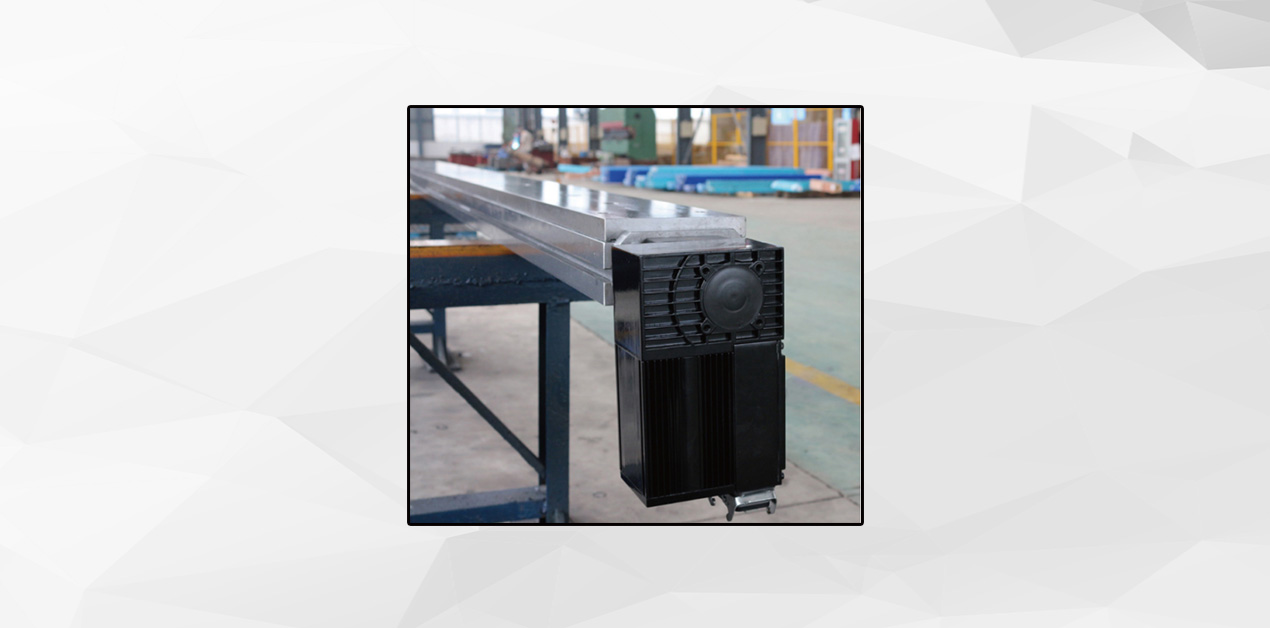

Lasersafe Safety Guard

·Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module

· Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers；three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.

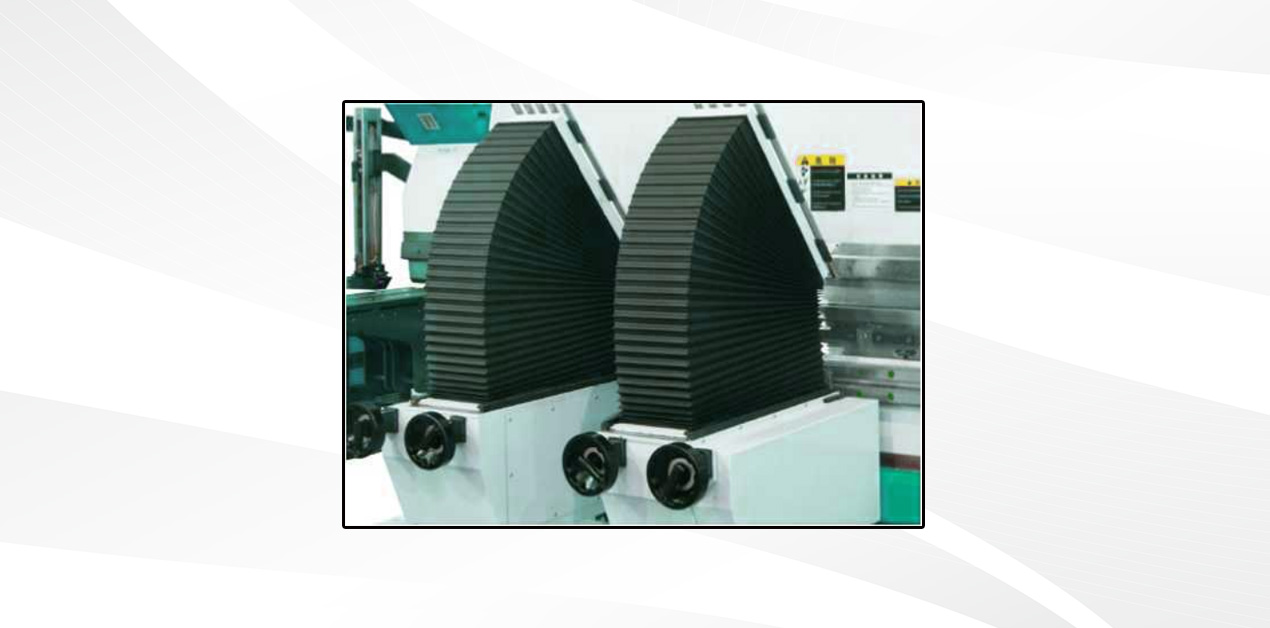

Mechanical Servo Bending Help

· When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.

· Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning

·Support platform can be brush or stainless steel tube ,according to workpiece size,two supports linkage movement or seperate movement can be chosed.
