LX3015C-O China Best Metal Plate Enclosed CNC Fiber Laser Cutting Sheet Machine Stainless Steel Carbon Steel Iron Aluminum Price

3015C-O-800PC1
3015C-O-800PC2
3015C-O-800PC3
3015C-O-800-1
3015C-O-800-2
3015C-O-800-3
LX3015C-O China Best Metal Plate Enclosed CNC Fiber Laser Cutting Sheet Machine Stainless Steel Carbon Steel Iron Aluminum Price

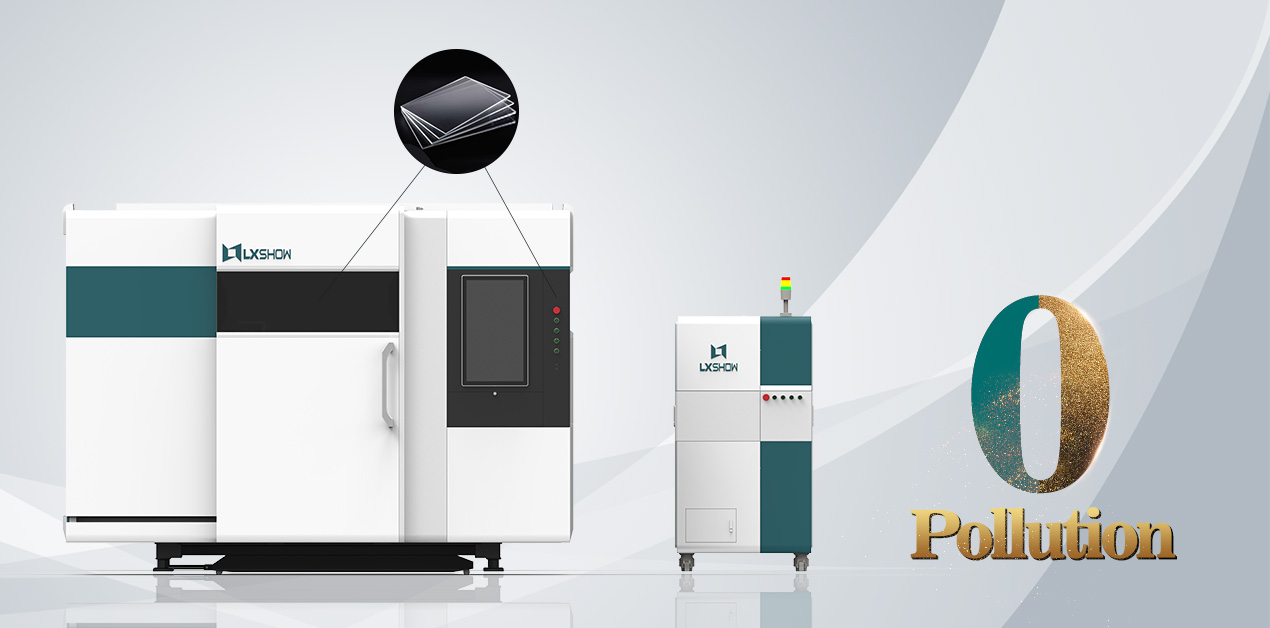

SAFETY AND ENVIRONMENT PROTECTION

With a fully enclosed design;

The observation window adopts an European CE Standard laser protective glass;

The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

bh
hl

AVIATION ALUMINUM GANTRY

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

THE SEGMENTED RECTANGLE LASER TUBE WELDED BED

The Segmented Rectangle laser Tube Welded Bed, The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rai so as to effectively avoid the deformation of the bed.

jht
xsq

BOCHU SYSTEM

● Easyto operate evenby green hands
● Match with 20000 process data on its graphical programming interface
● Compatible with multile graphic files, incl. DXF DWG, PLT and NC code
● Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts
● Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.

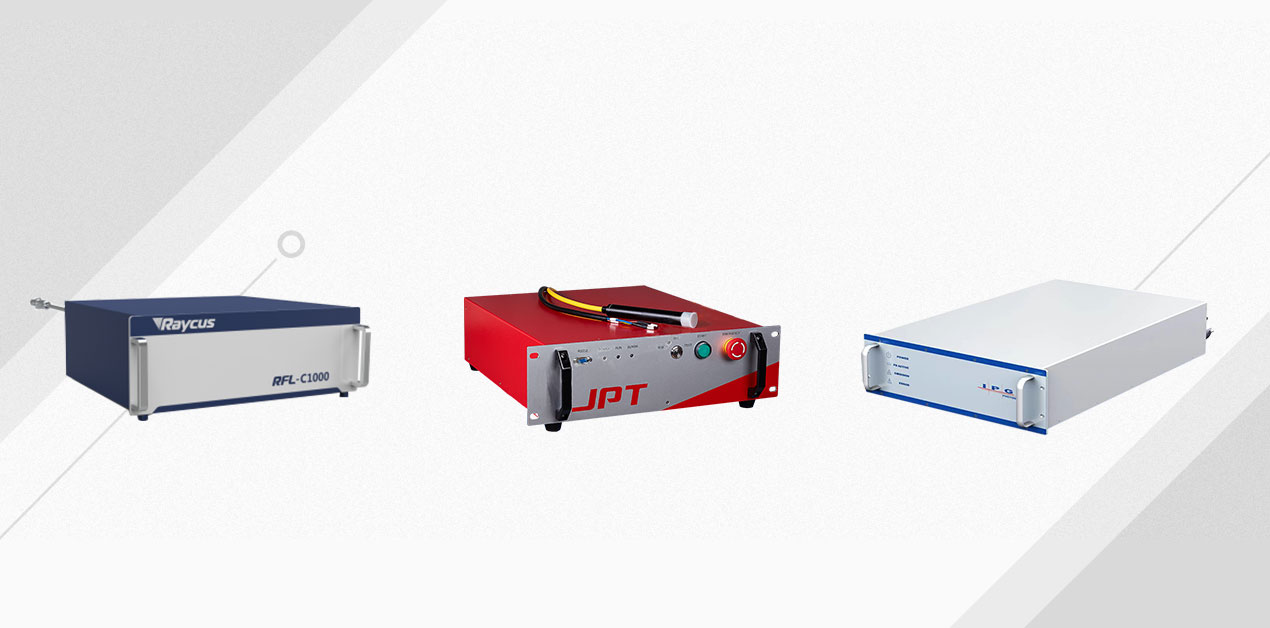

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

fsq
qgt

INTELLIGENT AUTOFOCUS

1. Auto focus, no manual operation required;
1. Double-layer protective lens, drawer installation, easy to replace;
3. Compatible with a variety of fiber lasers;
4. Optimized optical design, water cooling, sealing, more durable and more stable;
5. Rotary adjustment, convenient and efficient;

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

cdfs

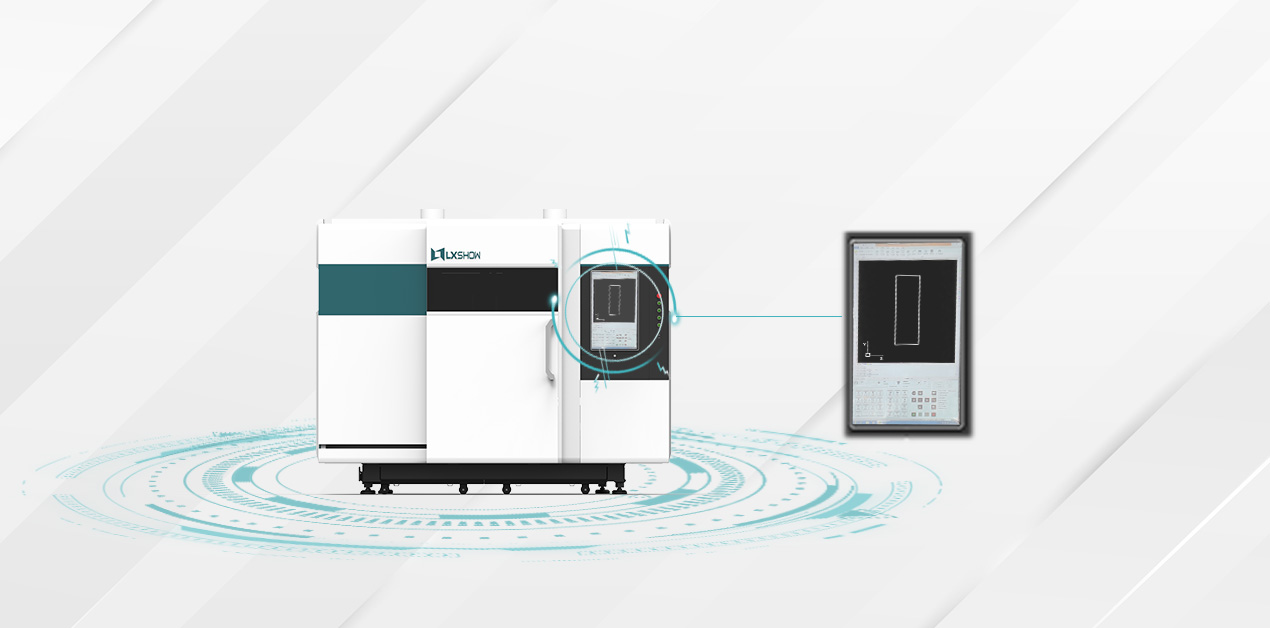

MONITORING SYSTEM

Real-time observe the machine running through the panel

cy

Model Number: LX3015C-O
Lead time: 10-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C

Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model LX3015C-O
Power of Generator 1000-2000W
Dimension 2876*4626*2440mm
Working Area 1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy ±0.02mm
Max Running Speed 120m/min
Max Acceleration 1.5G
Specified Voltage And Frequency 380V   50/60HZ

LX3015C-O 2000W 4000W 6000W 1200W CNC OPTICAL METAL SHEET PLATE FIBER LASER CUTTING MACHINE APPLICATION

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
