Wholesale LX-350T-1250 Full Electrical Serve Bending Machine Price Near Me CNC Supplier and Manufacturer

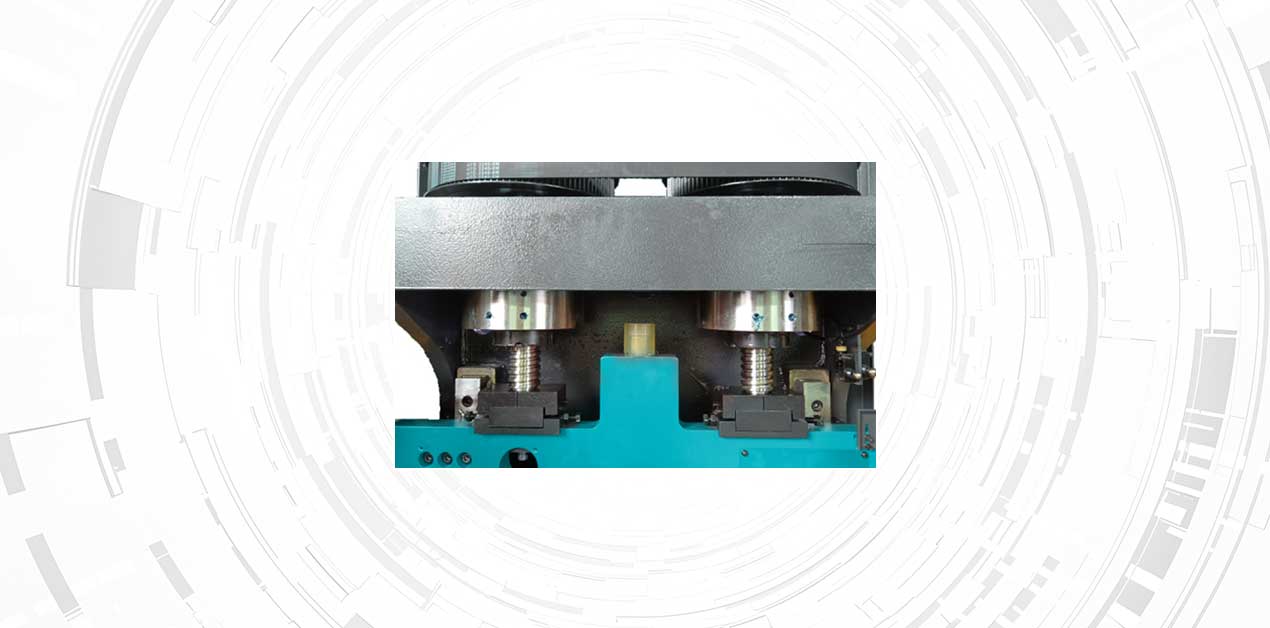

All-electric-servo-control-system

Adopt all-electric servo pump control system,energy saving and environmental protection,full closed-loop control,the same design concept as Japanese bending machines.

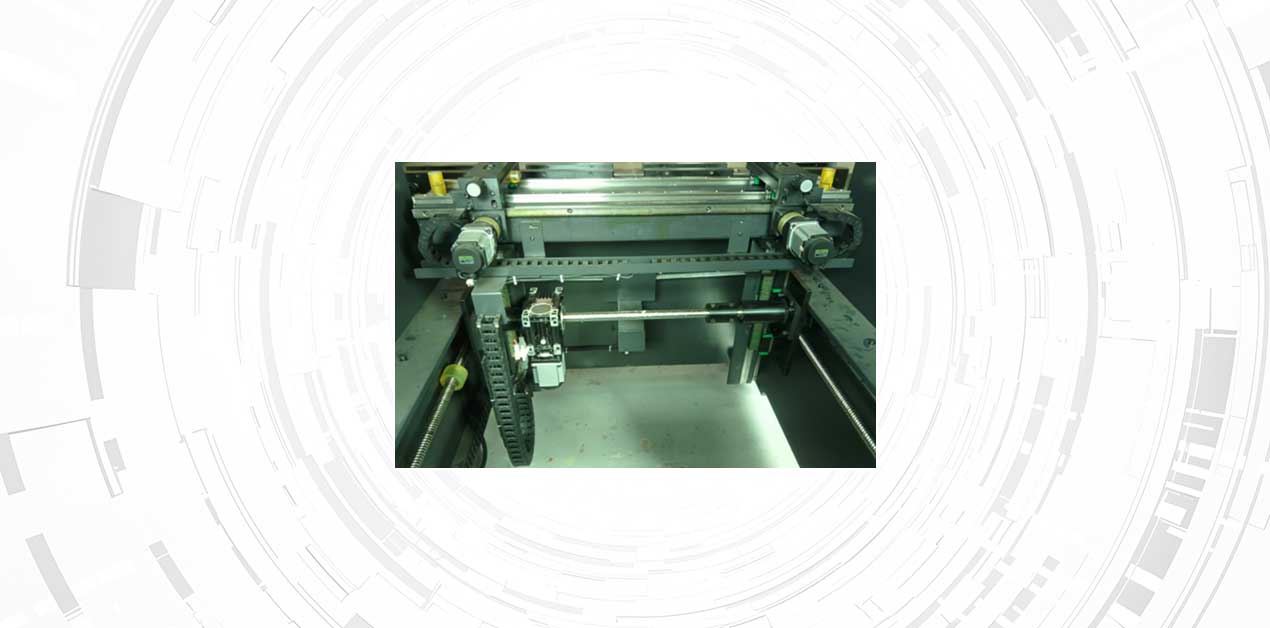

Back-barrier-Back-gauge

- 1)Ball screw/liner guide are high precision
2)High durability, high precision, high reliability

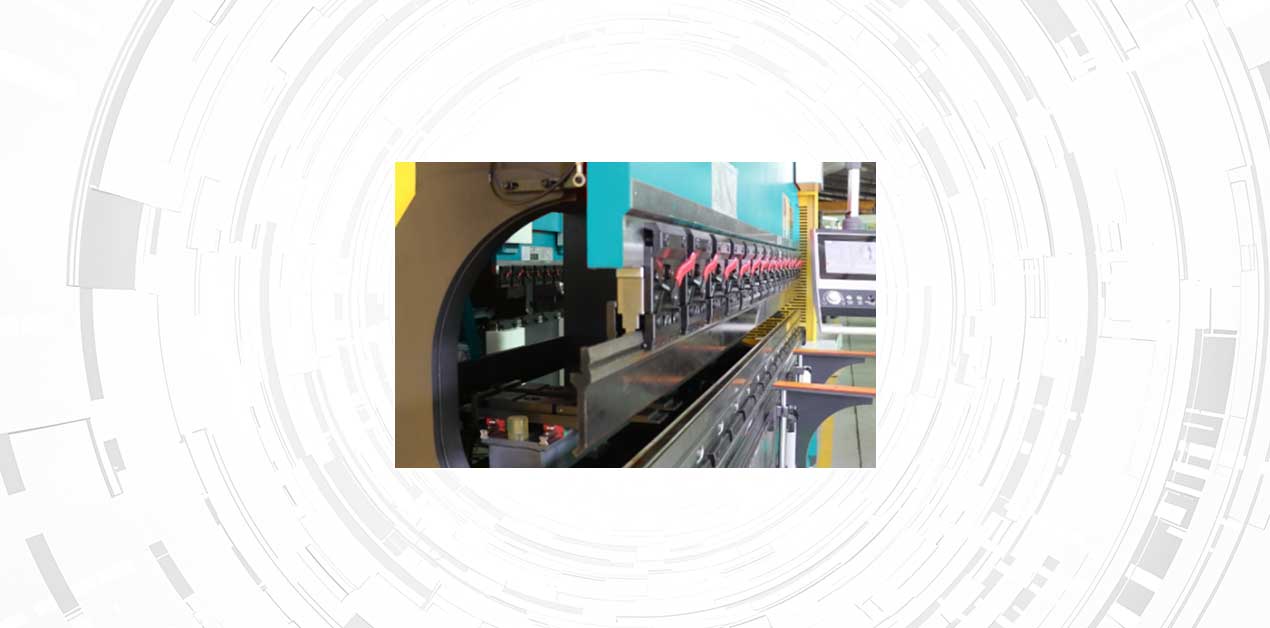

Bending-mold

1)Upper and lower tooling can be installed with multiple short molds splicing or the whole length mold installation,with high precision,good interchangeability,easy assembly and disassembly.
2)It is completely universal and interchangeable with the molds used in the bending machine produced by AMADA company

CNC-operating-system

· The syntec of pure electric 4+1-axis bending machine is suitable for this machine. Y1Y2,X,R,Z1,W

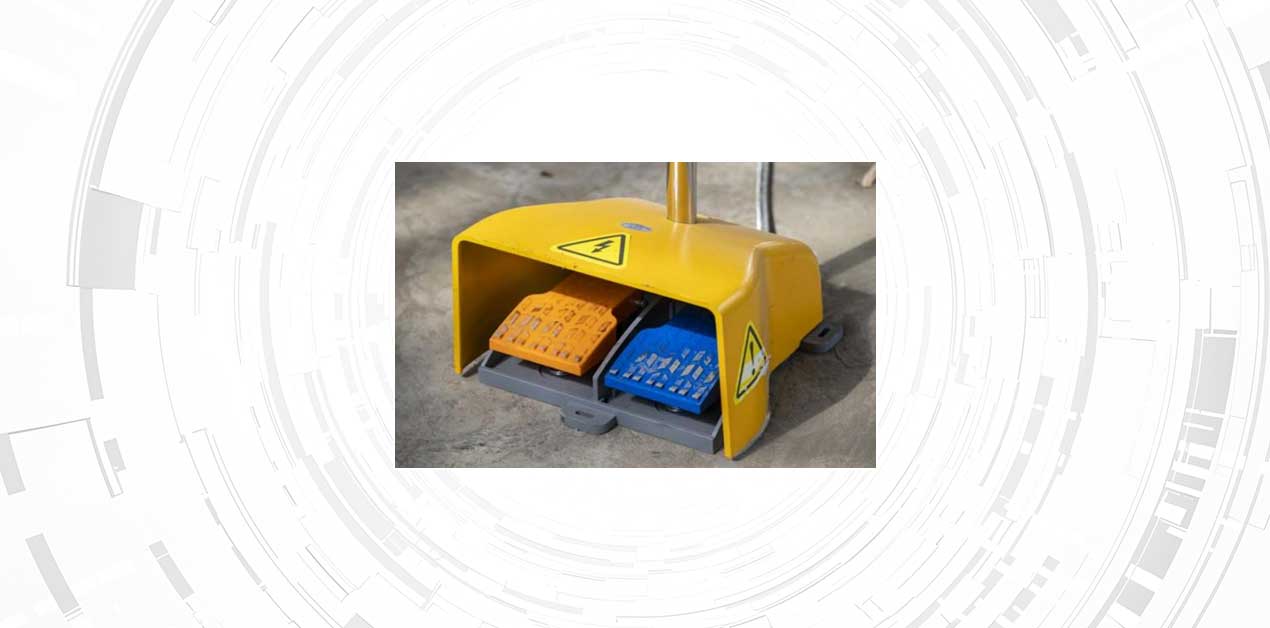

Foot-pedal-switch

Control the start and stop of the bending machine to achieve precise control of the bending process

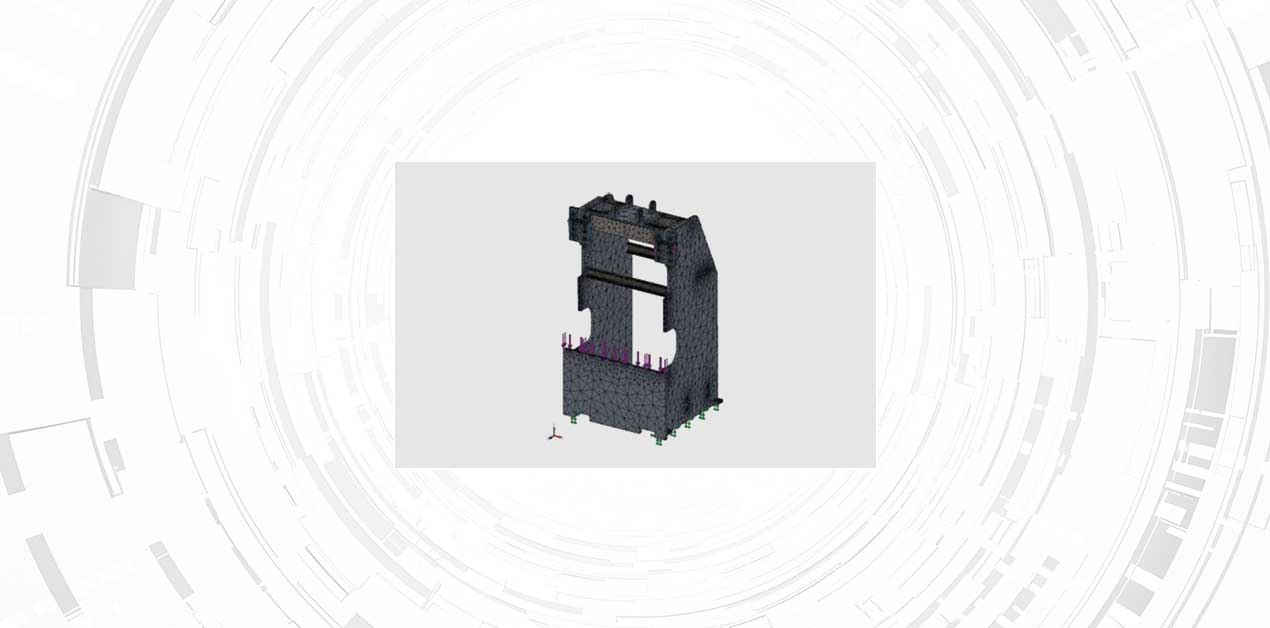

Machine-frame-processing

1)The frame is welded by the left and right side panels,lower panels,with strength and rigidity.
2)After strict heat treatment to eliminate stress annealing welding internal stress,so the machine bed has high precision and good stability.
3)The production process of the frame is all operated by the company itself, which can strictly control the quality.

Main-motor

Servo motors are high quality,innovative and efficient.

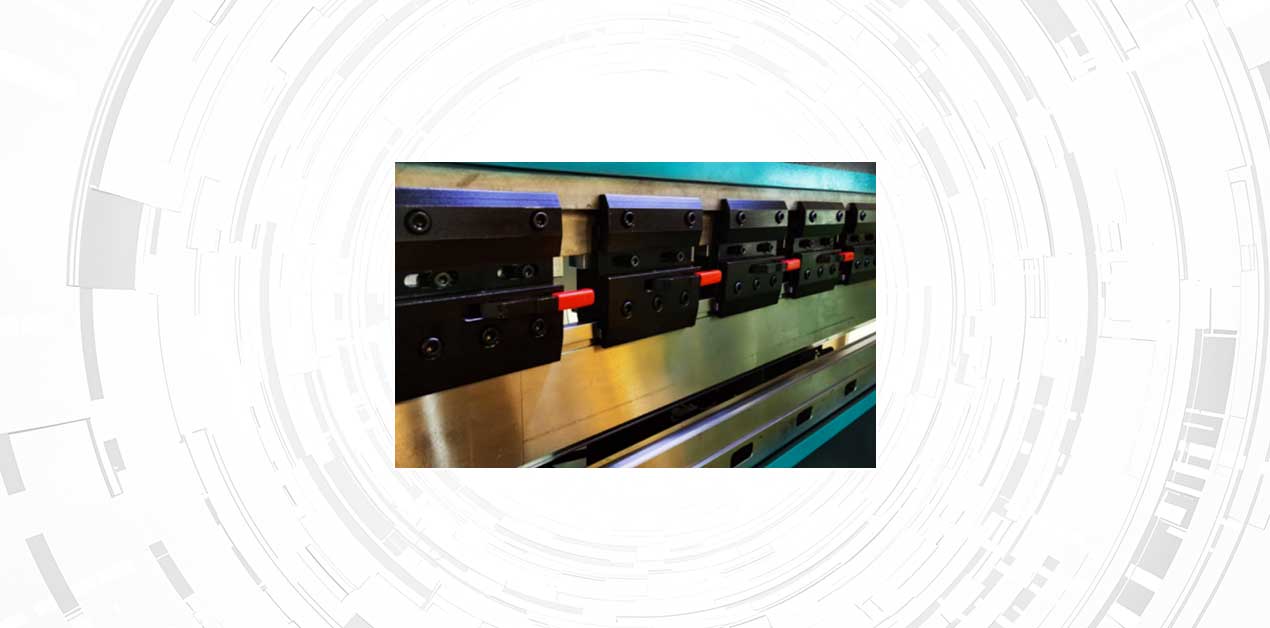

Quick-Clip

1)Upper tool clamping device is fast clamp
2)The inner side of the CNC quick fixture is equipped with wear-resistant rubber strips, which are easy to clamp when installing the bending machine mold, without loosening, and do not drop the tool, which greatly shortens the adjustment time for clamping the upper mold.

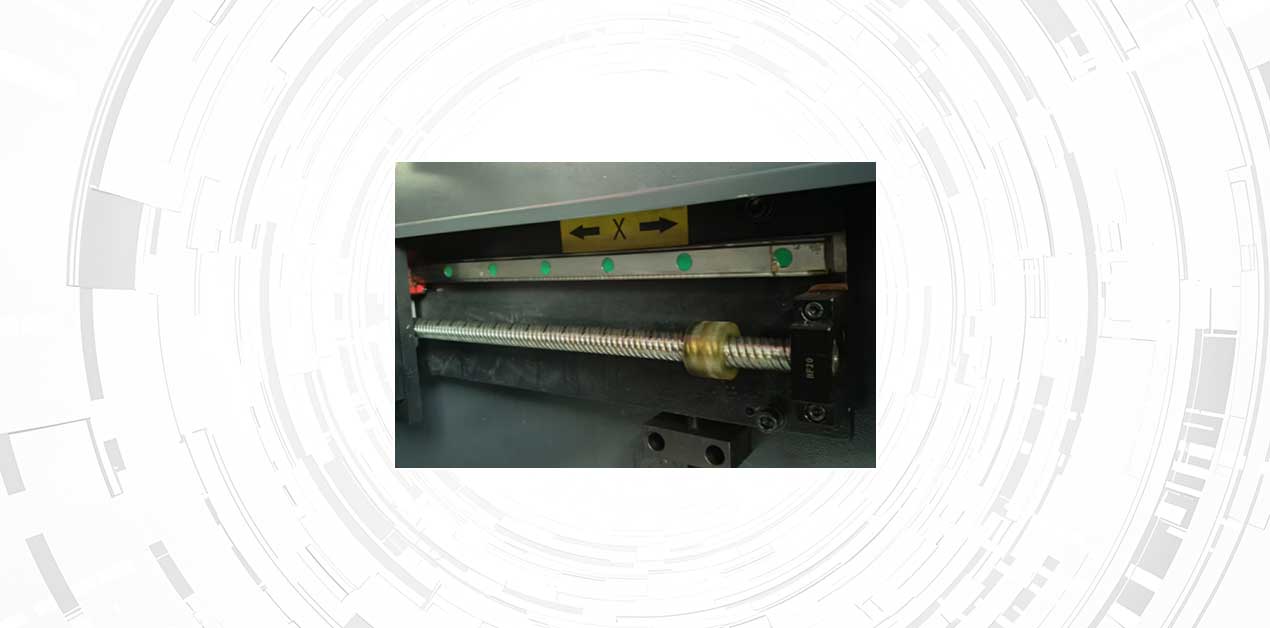

X-axis-Linear-Rails-and-Ball-screw-transmission

To guarantee running precision.

Main Technical Parameters

Nominal force (tons)	350
Bending length (mm)	1250
Slider stroke (mm)	200
Height of opening between top and bottom (mm)	500
Column spacing (mm)	970
Back gauge X-axis travel (mm)	400
Control Axis	Y1Y2,X,R, Z1,Z2
Standby power consumption (KW/H)	0.25
Main motor power (KW)	2*7.5 KW
Post positioning repeat accuracy (mm)	±0.01
Top table position repeat accuracy (mm)	±0.005
Bending angle accuracy	±0.3°
Speed of rise (mm/s)	200
Descent speed (mm/s)	200
Bending speed (mm/s)	0-40
Machine weight (Ton)	2.8

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

FAQ

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you.

Q: How about warranty?

A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be

changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.

Q: Do you have any other machine style?

A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.
