LX12025F High Power Sheet Metal Fiber Laser Cutting Machine Stainless Steel Carbon Steel 4kw 8kw 12kw 16kw 20kw
LX12025F (1)

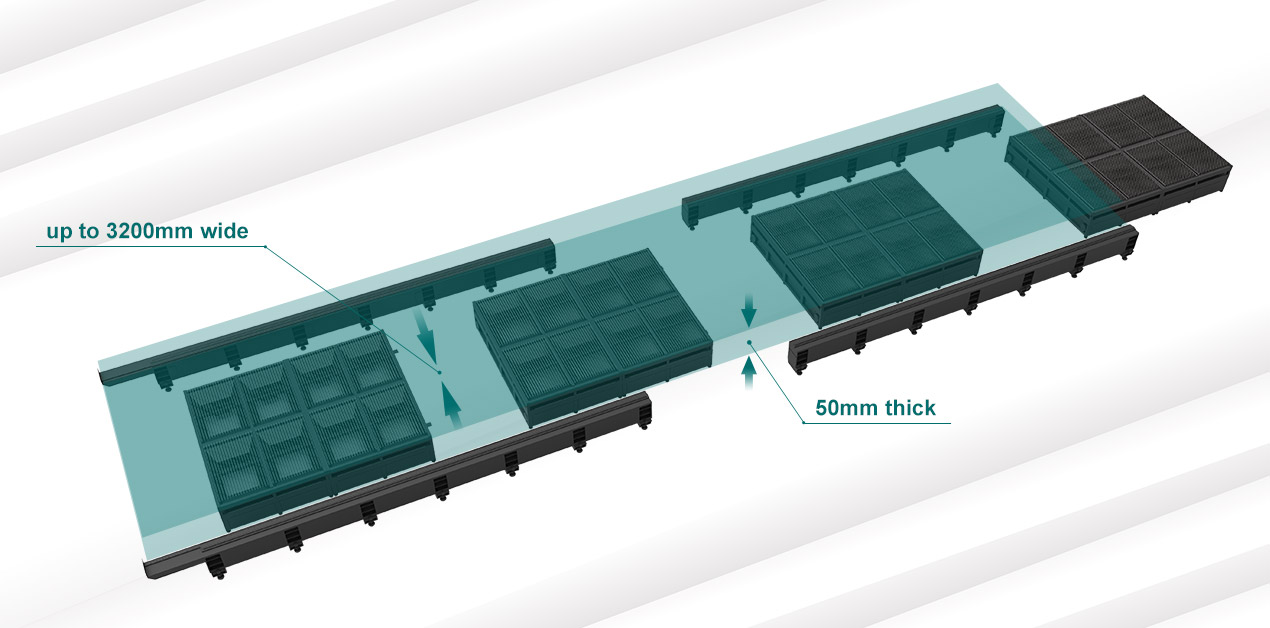

Customize the processing format at will

LXSHOW provides the flexibility to deal with ultra-large-format thick plates, segmented splicing bed, and the format can be customized on demand.

The separate design of the bed and worktable ensures the high dynamic performance of the machine tool and the service life of the machine tool. It can adapt to workpieces up to 3200mm wide and 50mm thick.

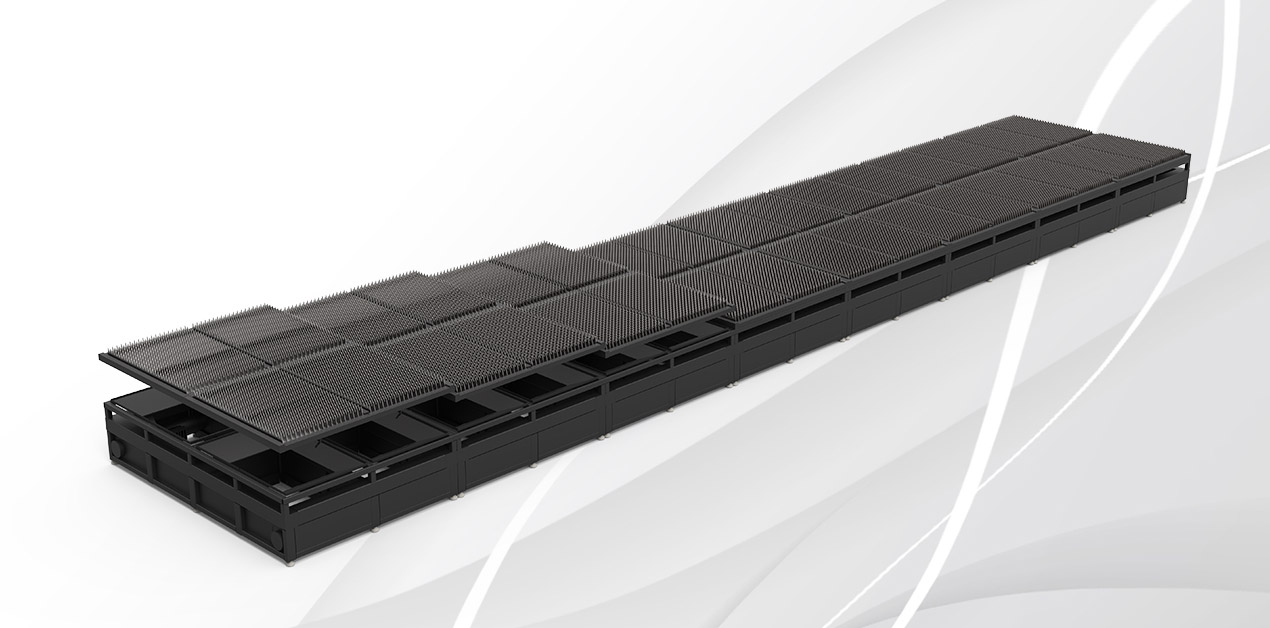

Innovative Four Slings Working Bed

For reducing damage to the work bed during laser working, LXSHOW Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled.

LX12025F (2)
LX12025F (3)

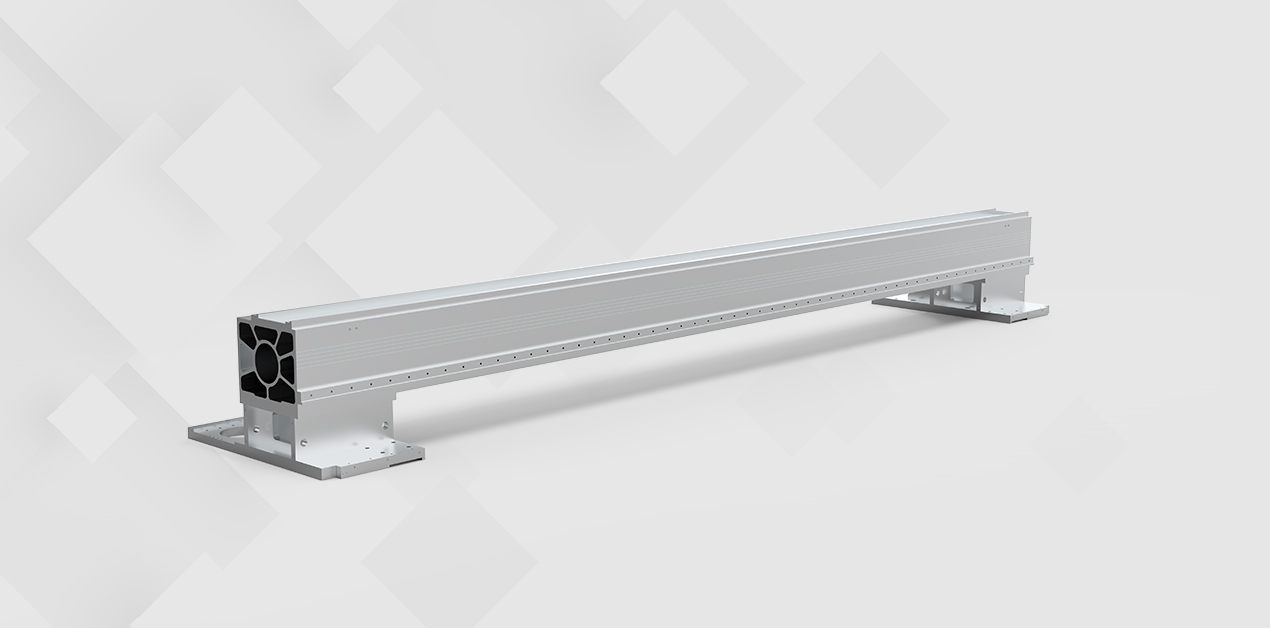

Brand New Cast Aluminum Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

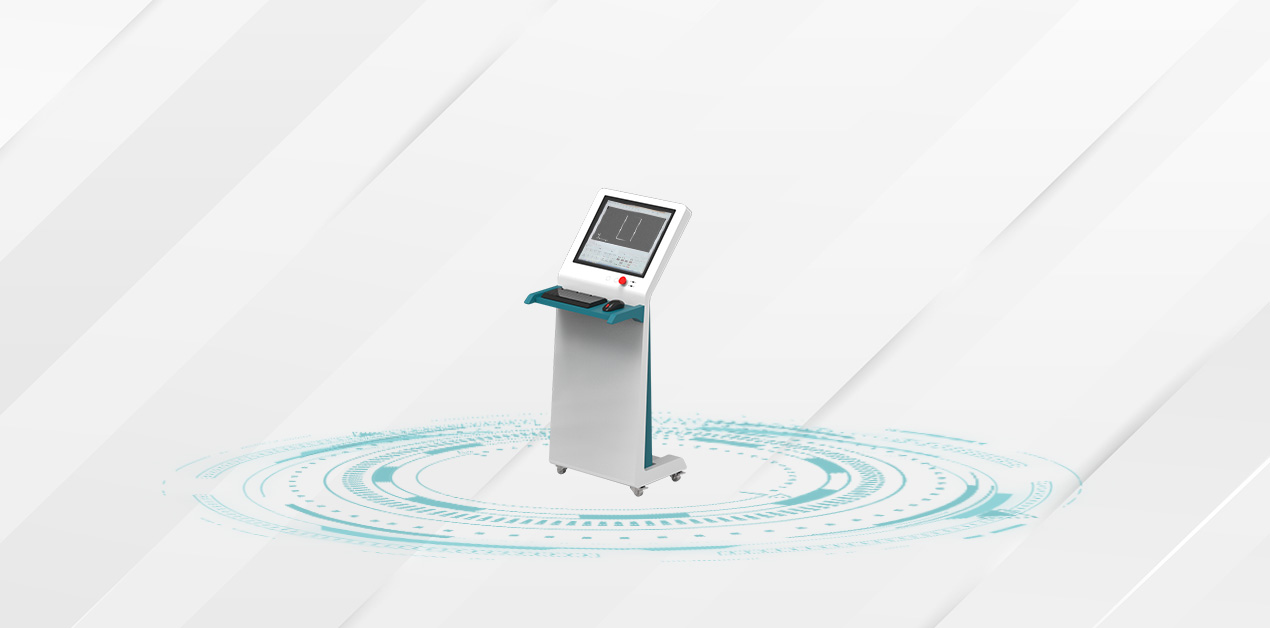

BOCHU SYSTEM

Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.

●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

LX12025F (4)
LX12025F (5)

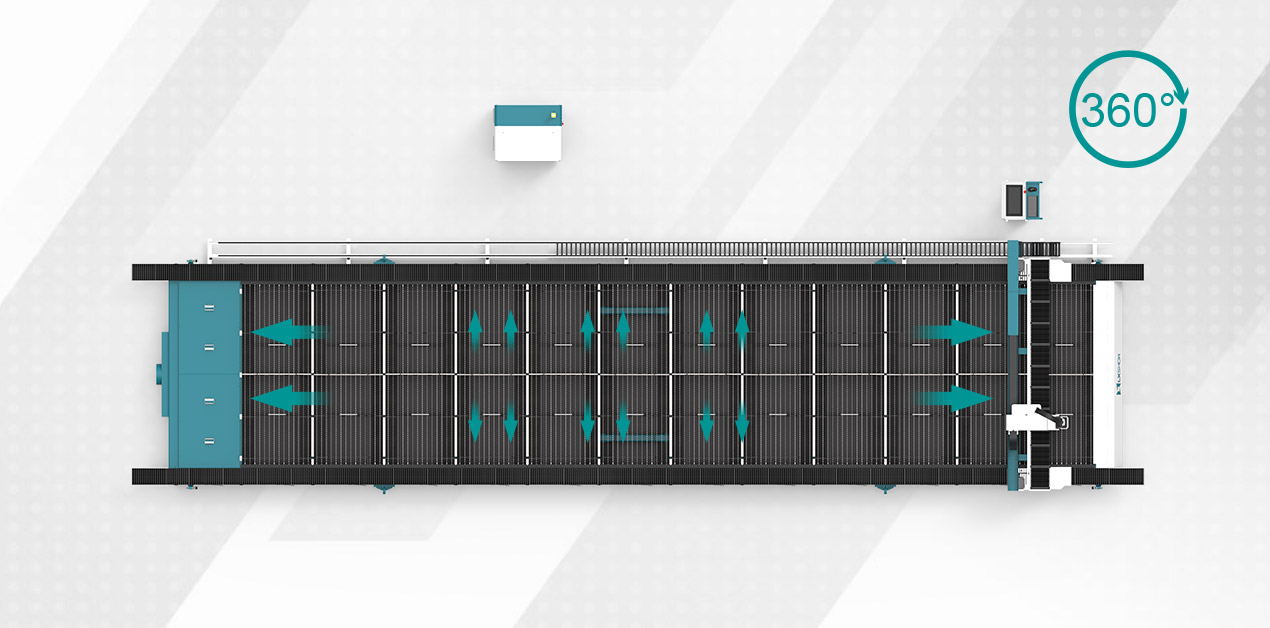

Full coverage, super suction

Adopt the latest cutting-edge tobacco control technology

Each section of the bed has a smoke exhaust device

Powerful negative pressure 360° adsorption

Axial fan wind direction surrounds blowing smoke downward

Full 360° strong adsorption and consistent smoke exhaust

Effectively purify the smoke and dust on the top of the enclosed cutting platform

Improve purification efficiency and reject lens contamination

Net follow-up, wisdom grows by quality

The smoke exhaust device automatically senses the laser cutting position

Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

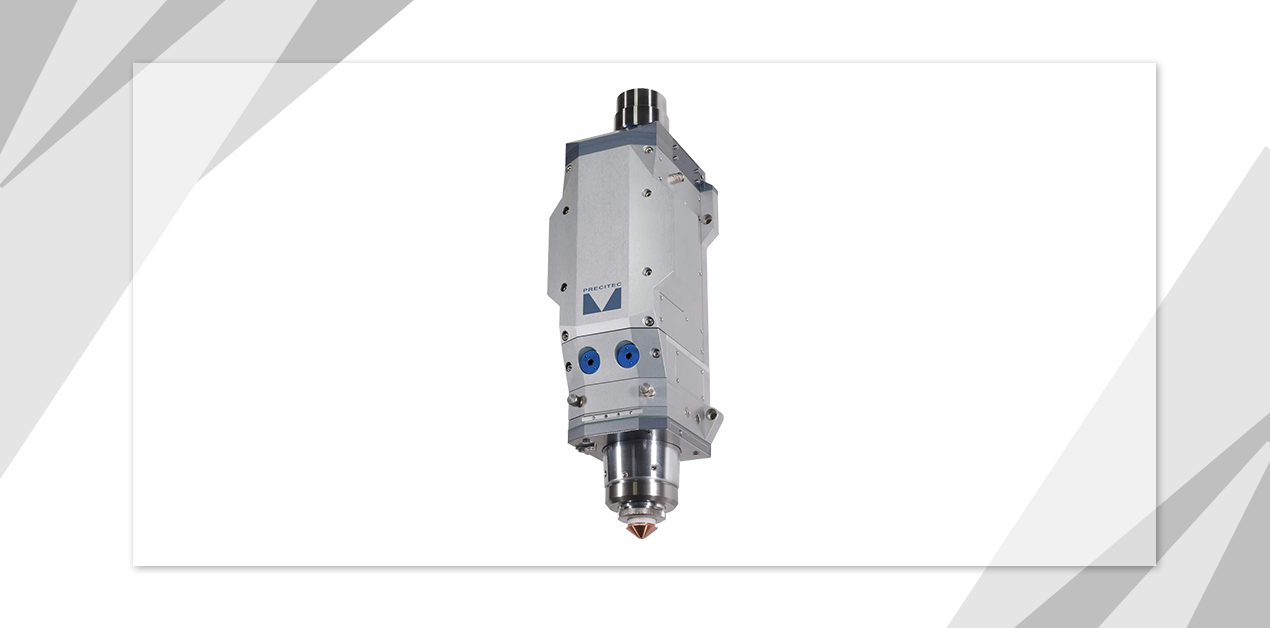

Auto Focus Cutting Head Precitec

• motorized focus position adjustment for automatic machine setup and piercing work
• lightweight and slim design created for fast acceleration and cutting speed
• drift-free, fast-reacting distance measurement
• permanent protective window monitoring
• automated piercing with PierceTec
• water cooling of the sheet metal with CoolTec
• completely dustproof beam path with protective windows
• LED operating status display
• output of all sensor data via WLAN to APP and machine control possible
• pressure monitoring in the nozzle area (gas cutting) and in the head

LX12025F (6)
LX12025F (7)

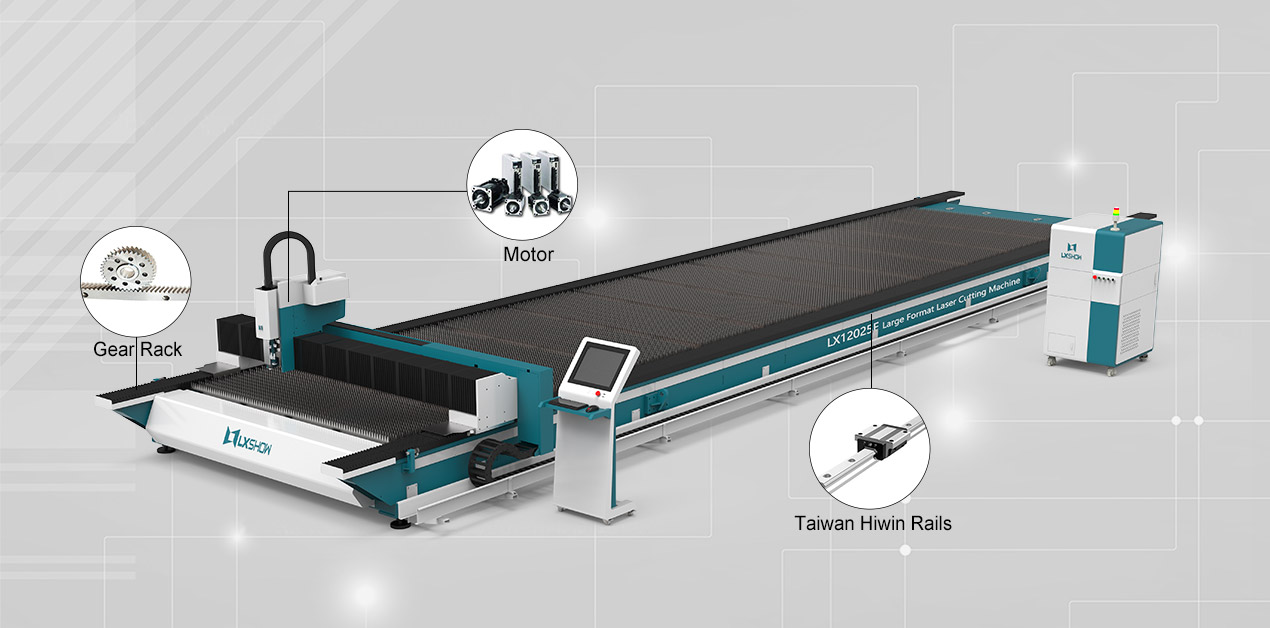

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

FOB Reference Price Range USD:100000-125000
Model Number:LX12025F
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C
Machine Size:15000*4700*1830

Machine Weight:19924.97kg
Brand:
LXSHOW
Warranty:3 years
Shipping:By sea/By land

Machine Model

LX12025F

LX12020F

LX16030F

LX20030F

LX24030F

Working Area

12100*2550

12100*2050

16500*3200

20500*3200

24500*3200

power of Generator

4kw-20kw

X/Y-axis Positioning Accuracy

0.02mm/m

X/Y-axis Repositioning Accuracy

0.01mm/m

X/Y-axis Max. linkage speed

80m/min

LX12025F High Power Sheet Metal Fiber Laser Cutting Machine Application

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
