Wholesale LX123H(12)TIV Four Chuck Metal Tube Laser Cutting Machine for Sale Supplier and Manufacturer

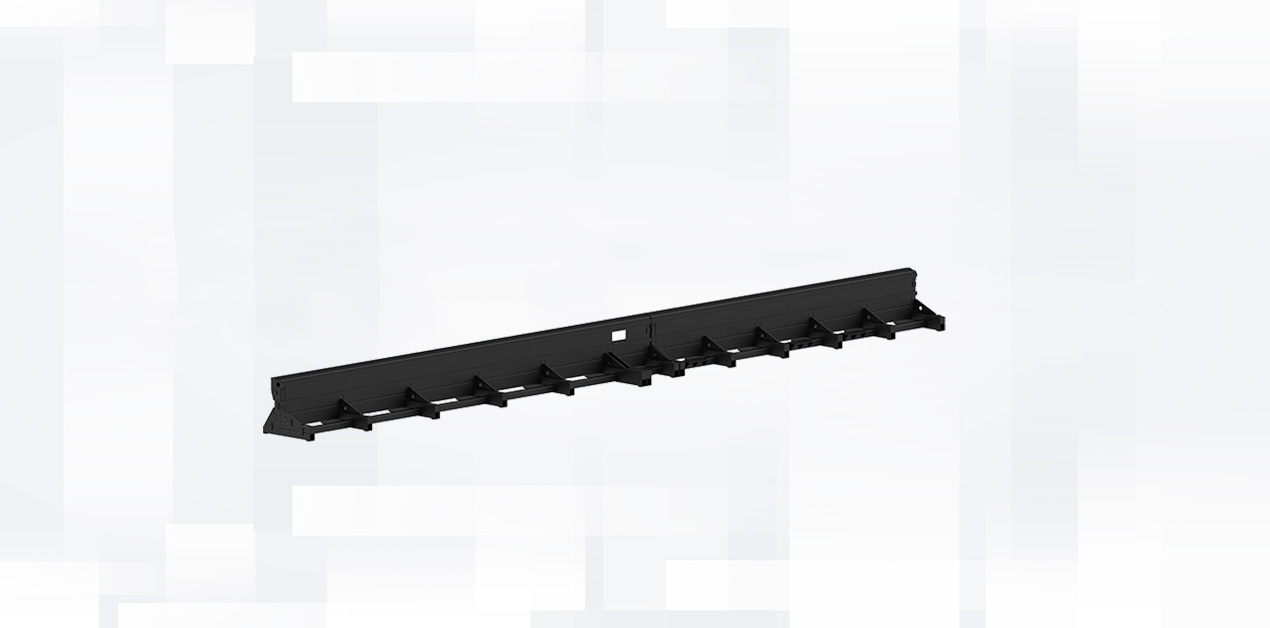

Segmented rectangular laser tube welding bed

•Great rigidity
•High precision
•No deformation during the life cycle
•Welded aluminum chuck plate
•High-precision process molding
•Excellent dynamic performance

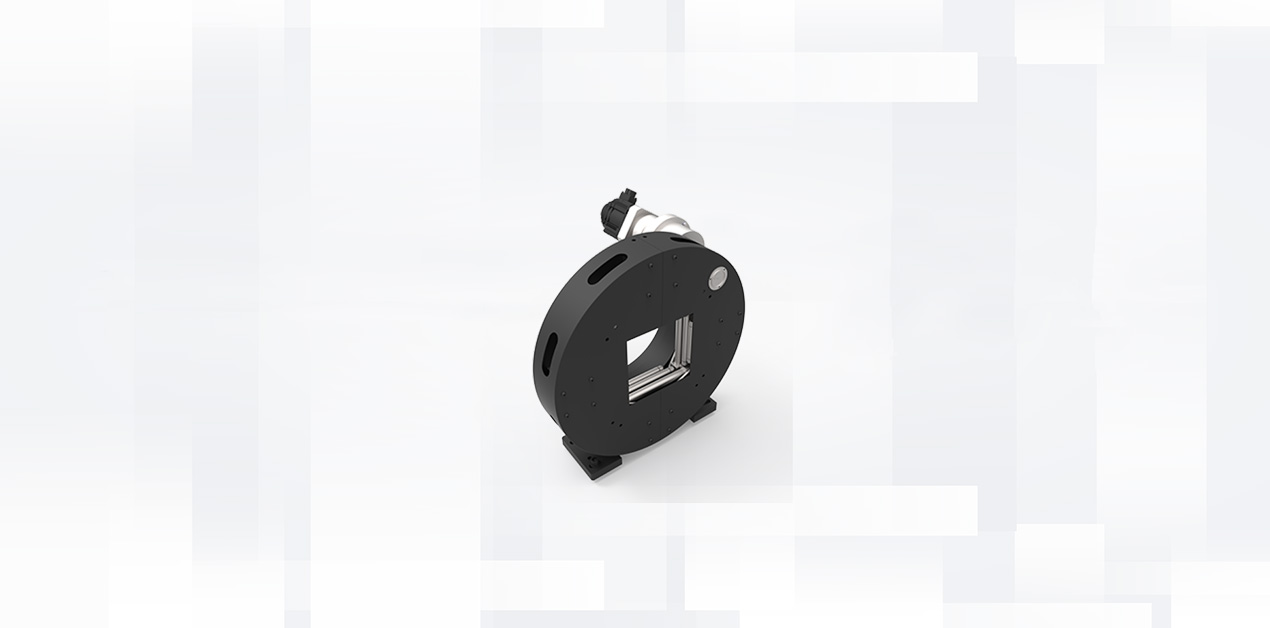

Pneumatic Chuck Holding Device

Pneumatic clamp design on both sides, can automatically adjust the center, adjustable diagonal range 20-220mm (320/350) optional

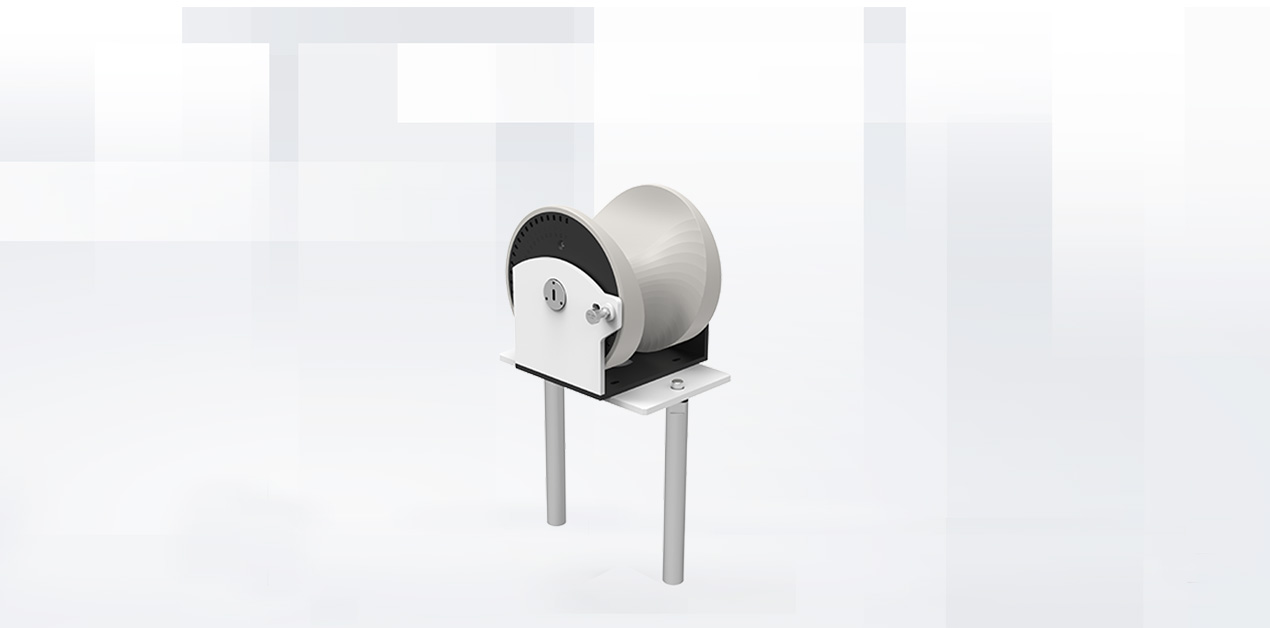

Segmented automatic support installation design

Adopt intelligent tube support design to solve the deformation problem in the process of cutting long tubes

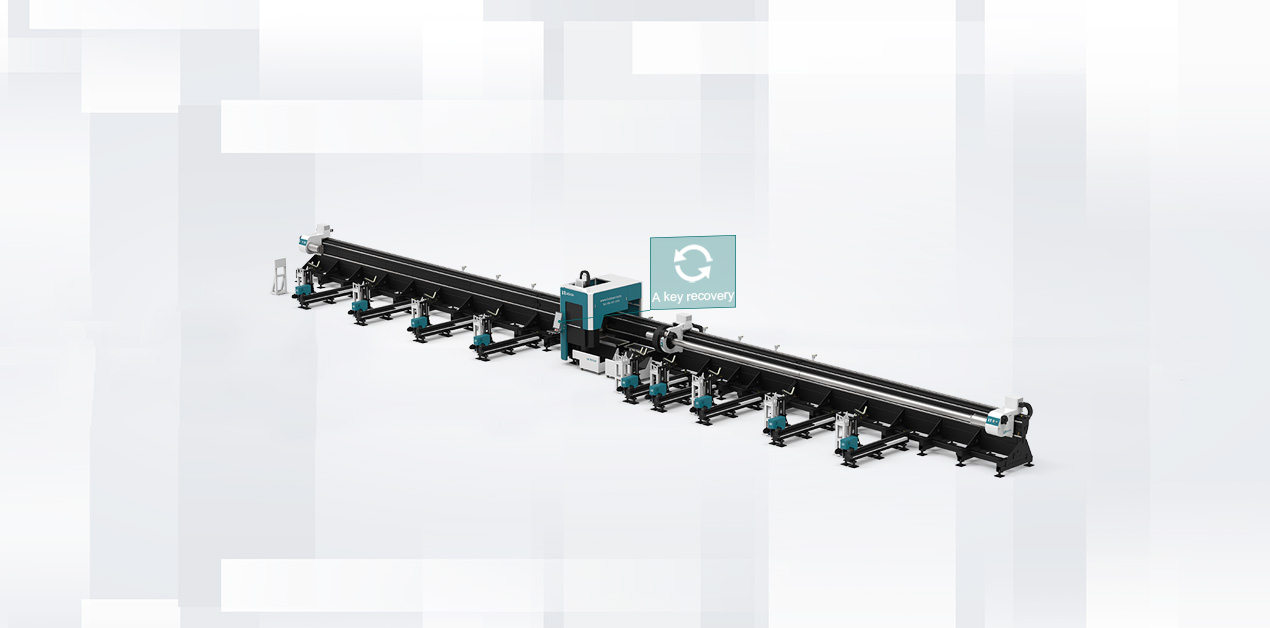

Servo motor

The system is equipped with a servo motor, and it does not need to be reset when it is turned on. If the power is cut off, the cutting operation can be resumed with one button.

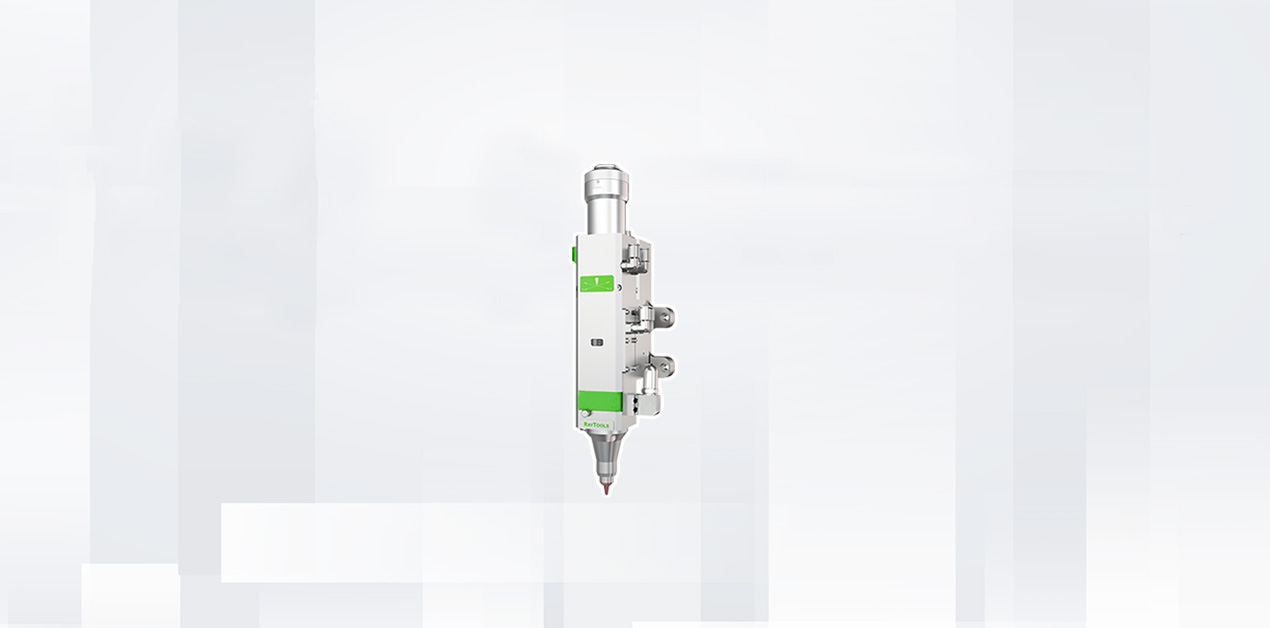

Intelligent Auto Focus

·Efficient Cooling
Both the collimating lens and the focusing lens group are cooling structures, and the cooling air nozzle is added at the same time, which effectively protects the nozzle and ceramic body and prolongs the working time.
·Chasing Aperture
Through the aperture of 35 mm, the interference of stray light is effectively reduced.
·Auto focus
Auto focus, reduce human interference, focus speed 10m/min, repeatability 50 microns 25mm carbon steel plate pre-punching time <3s@3000w, greatly improving cutting efficiency.

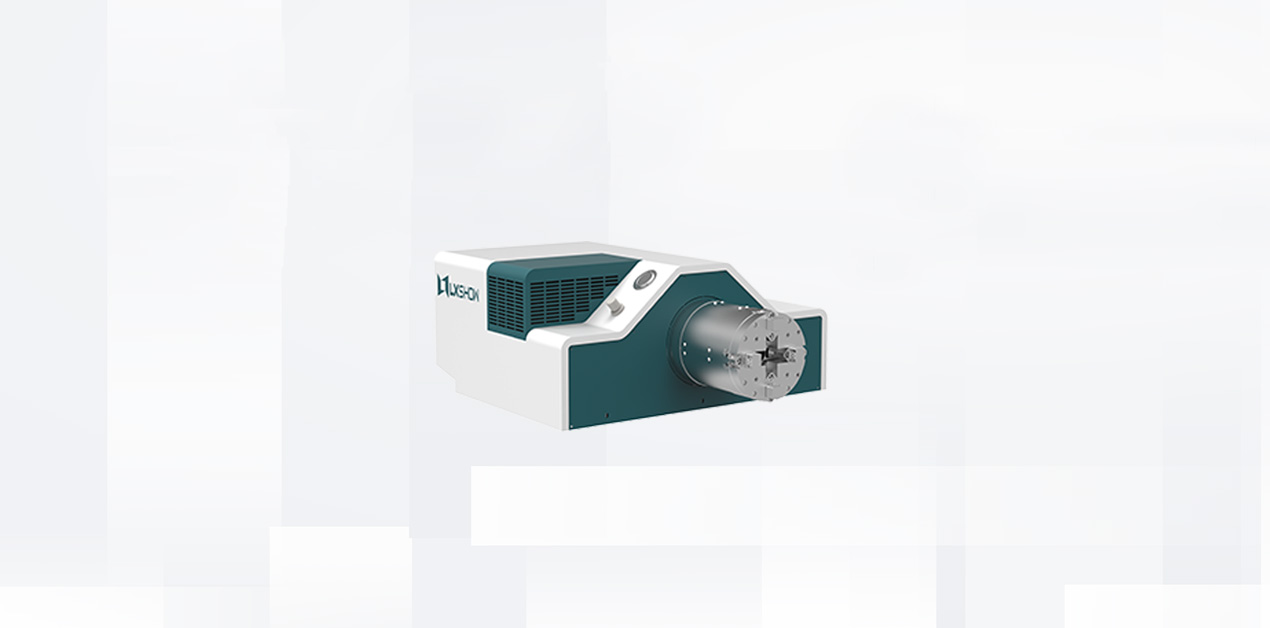

Professional fixture design

·Professional fixture design
·Automatic pneumatic chuck, adjustable and stable, with wider clamping range and greater clamping force.
·Non-destructive pipe clamping, fast and automatic centering clamping of pipes, more stable performance.
·The chuck size is smaller, the moment of inertia is low, and the dynamic performance is strong.
·Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency.
·Long working life and high working reliability.
