LX3015DHT Metal Sheet and Tube Fiber Laser Cutting Machine stainless steel Carbon Steel 1000w 2000w 3000W 4000W

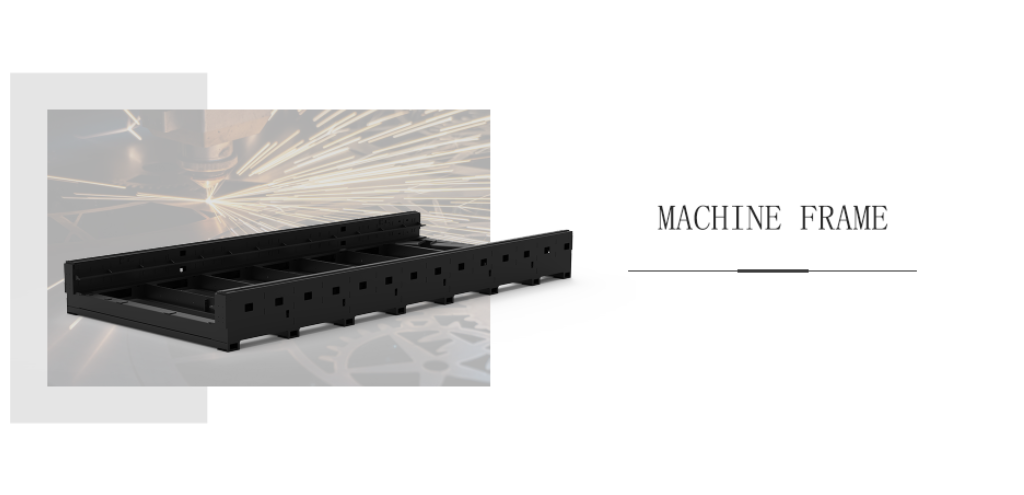

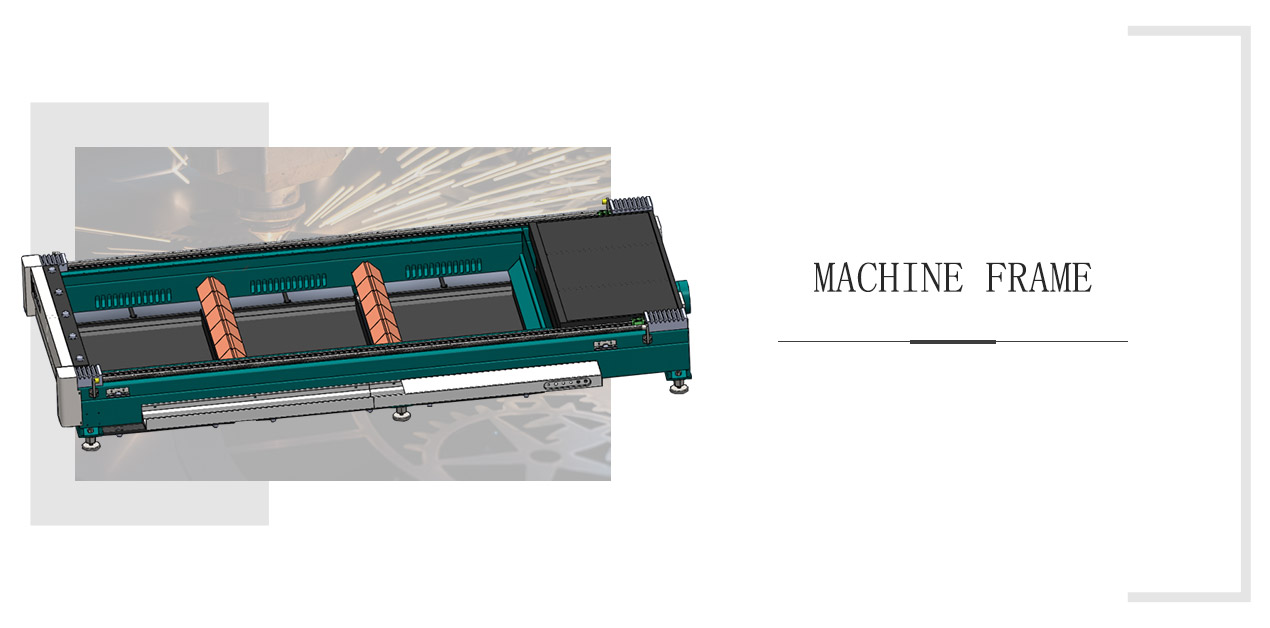

Heavy duty

Heavy duty tube welding bed, with heavy weight, low center of gravity, convenient feeding metal materials and stable operation.

The bed is protected by fire-resistant bricks to prevent the bed from being deformed by heat.

Machine-Frame-2

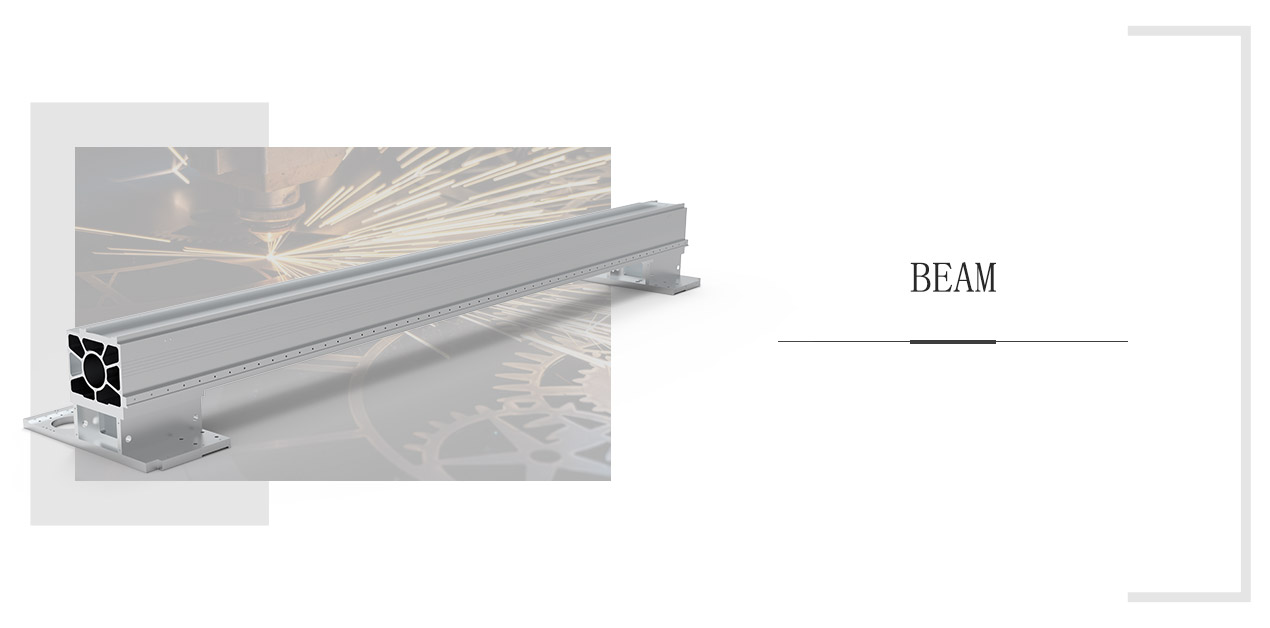

beam

Adopted the integrated aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam.

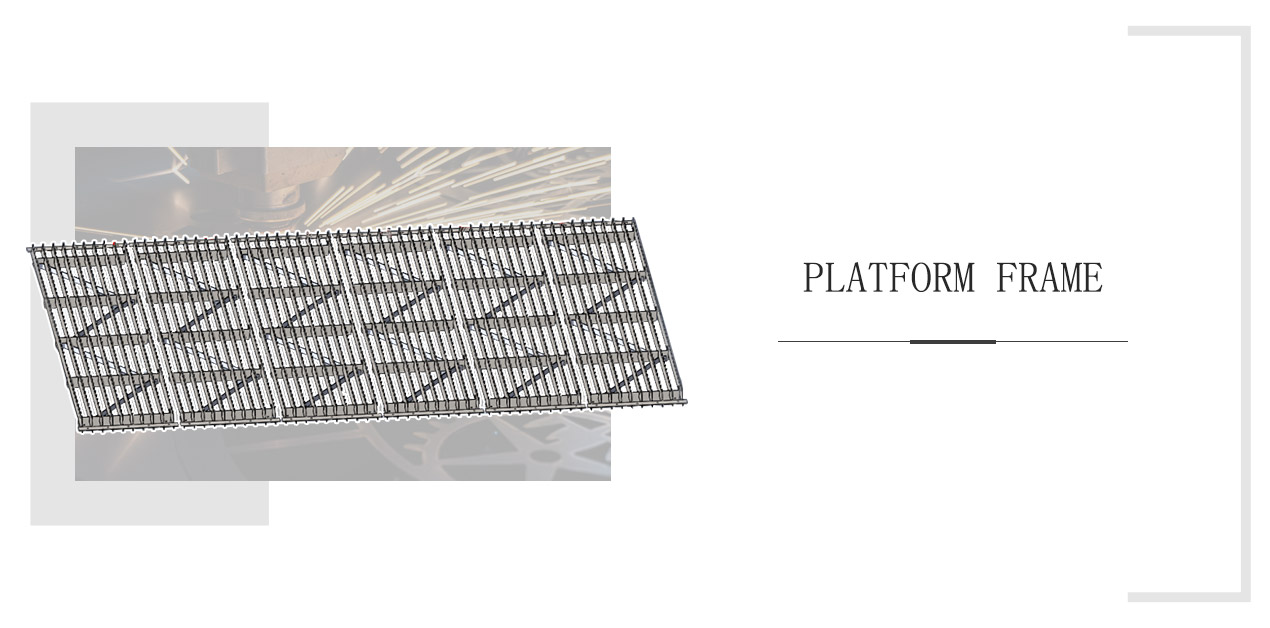

The platform frame adopts a grouped design to improve the overall load-bearing capacity.

platform-frame

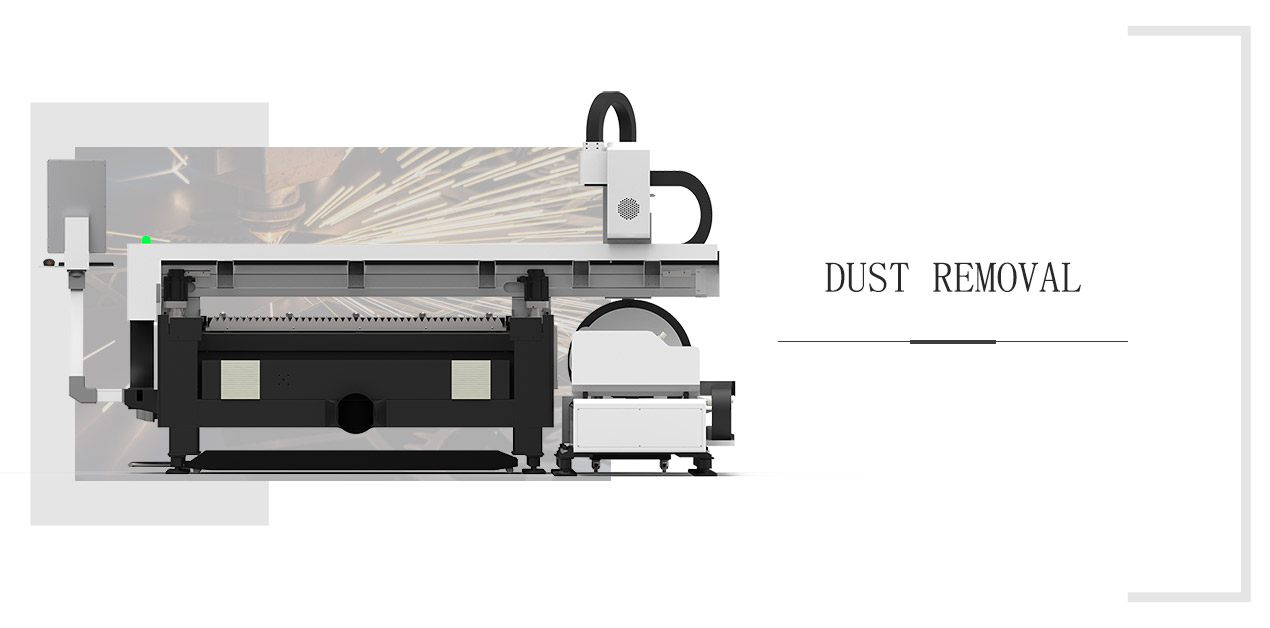

dust-removal

The diameter 220mm large dust removal duct ensures the dust removal effect.

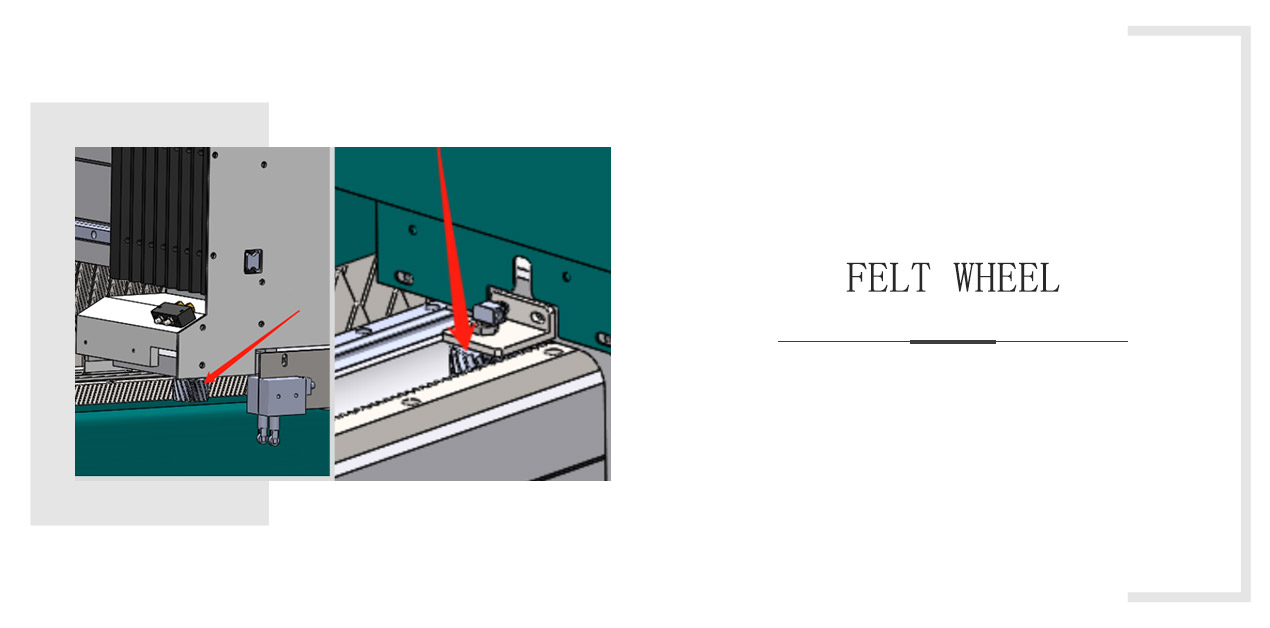

Gear is equipped with felt wheel automatic lubrication as standard, which can fully lubricate the gear, improve gear’s service life and prevent the accumulation of lubrication oil, which may cause fire hazards.

felt-wheel

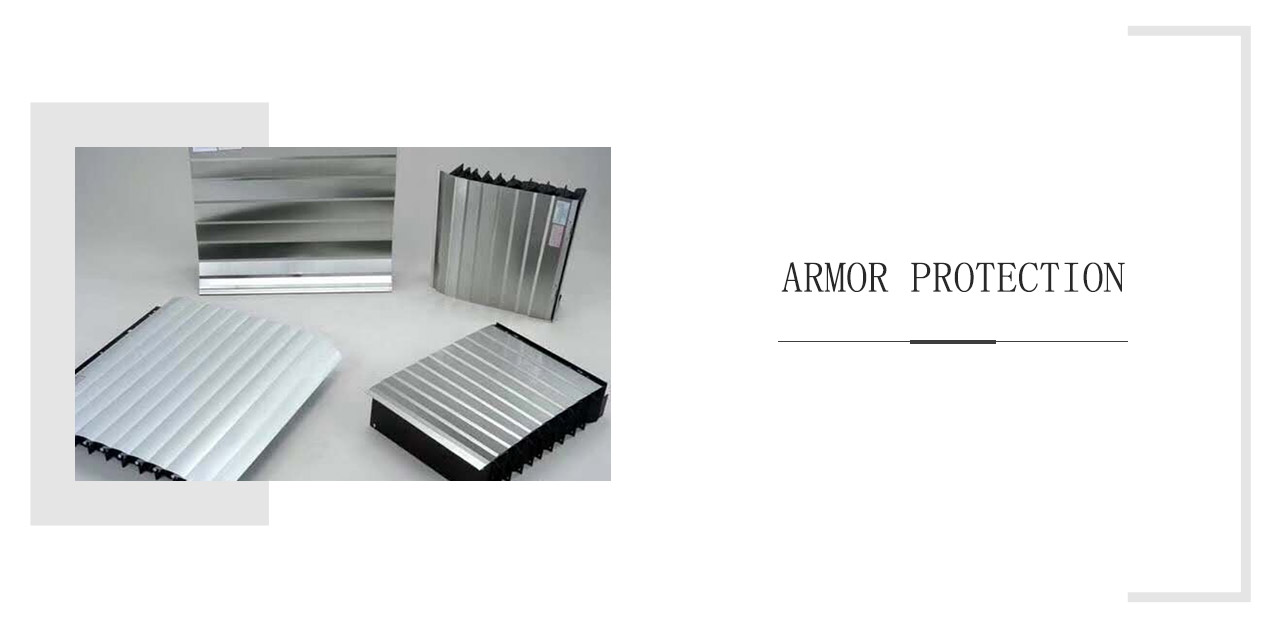

armor-protection

The Y-axis cover is equipped with stainless steel armor protection as standard to prevent burn and improve the service life of the organ cover.

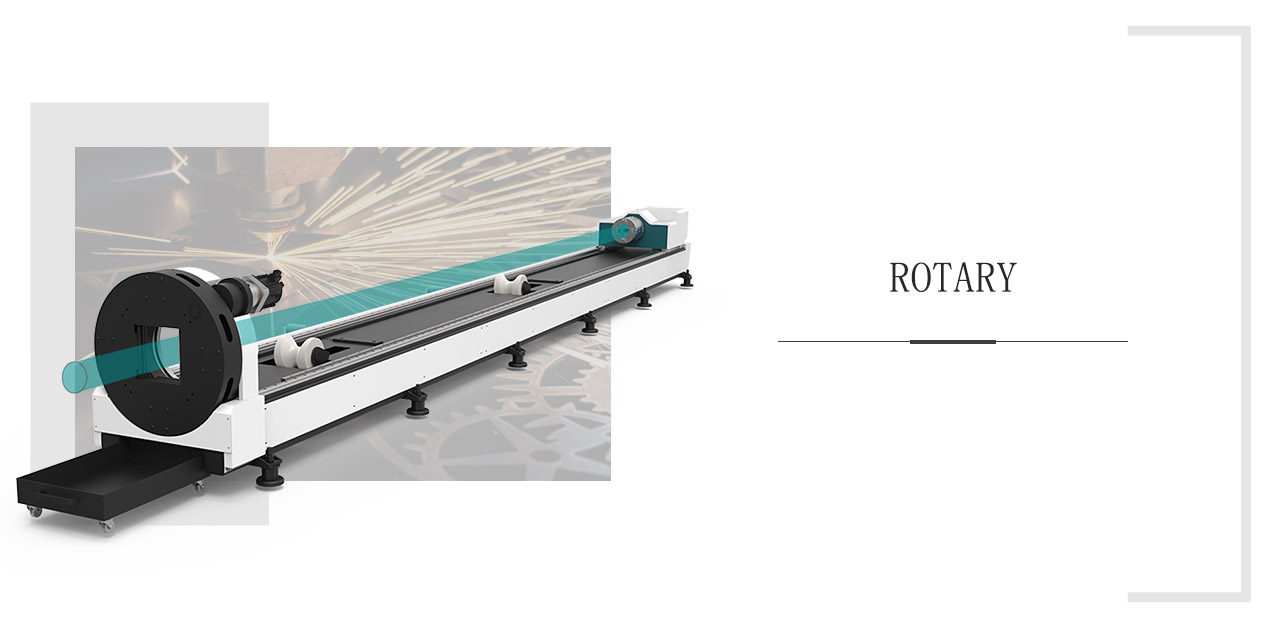

Rotary Length: 6m standard,8m and other size can be customized.
Rotary Diameter: 160/220mm is standard. Other size can be customized.
Chuck: Both pneumatic control

Rotary

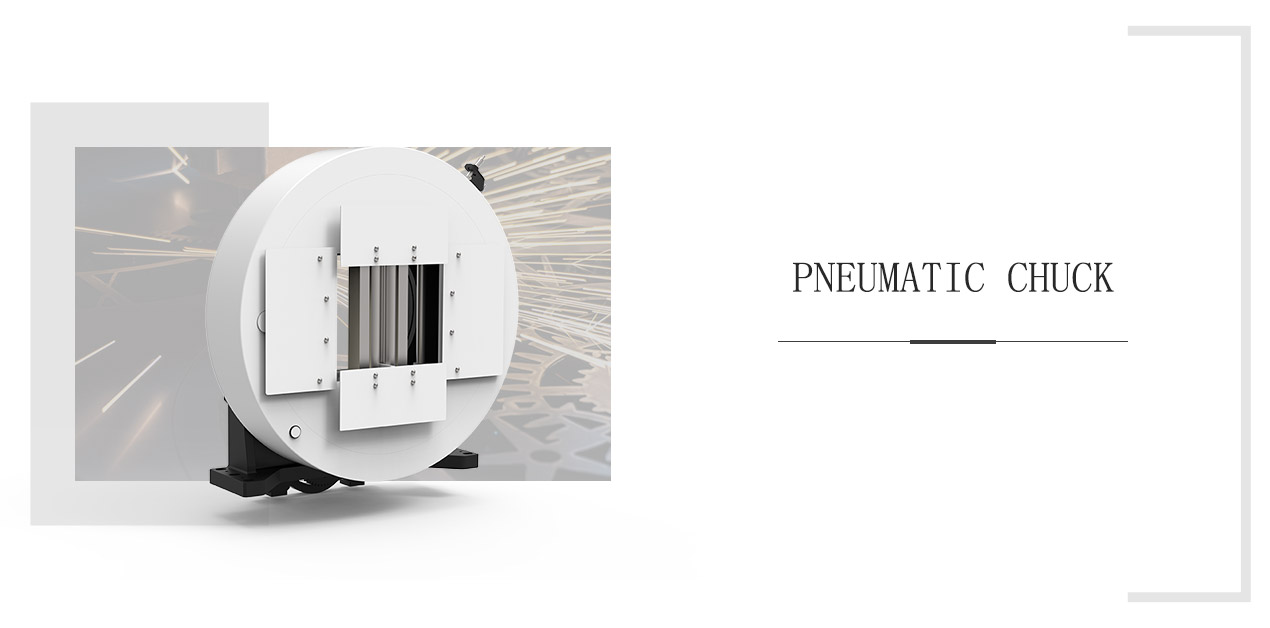

Pneumatic-Chuck

Pneumatic Chuck Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

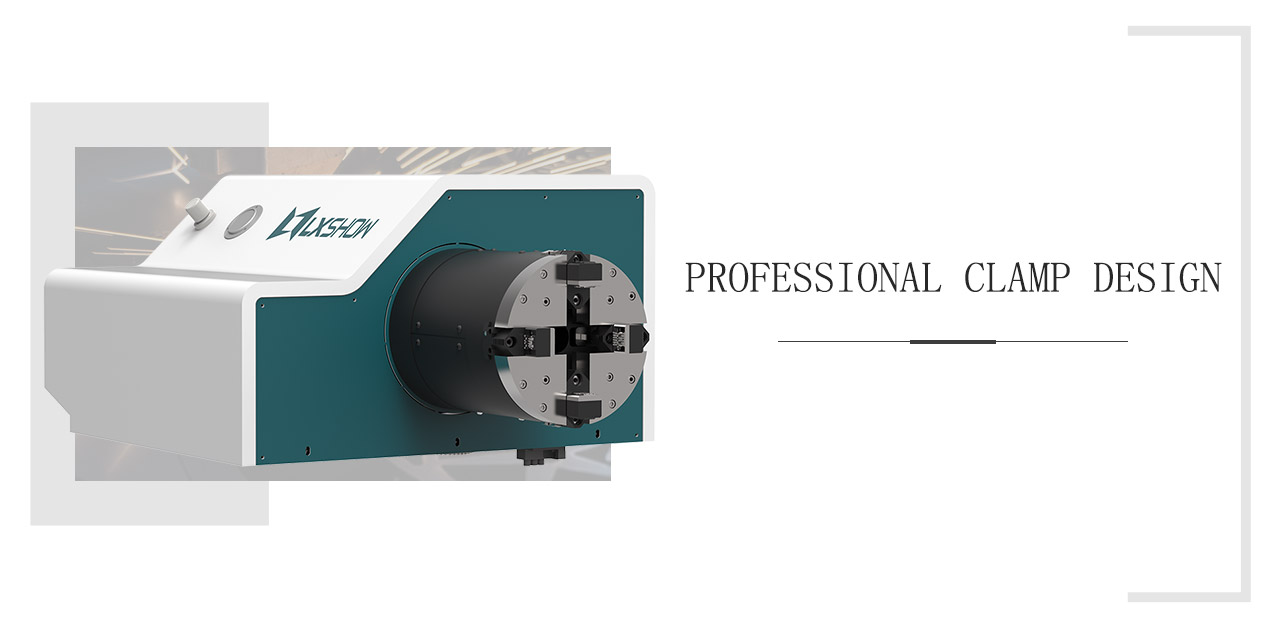

Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

Professional-Clamp-Design
Support-Installation

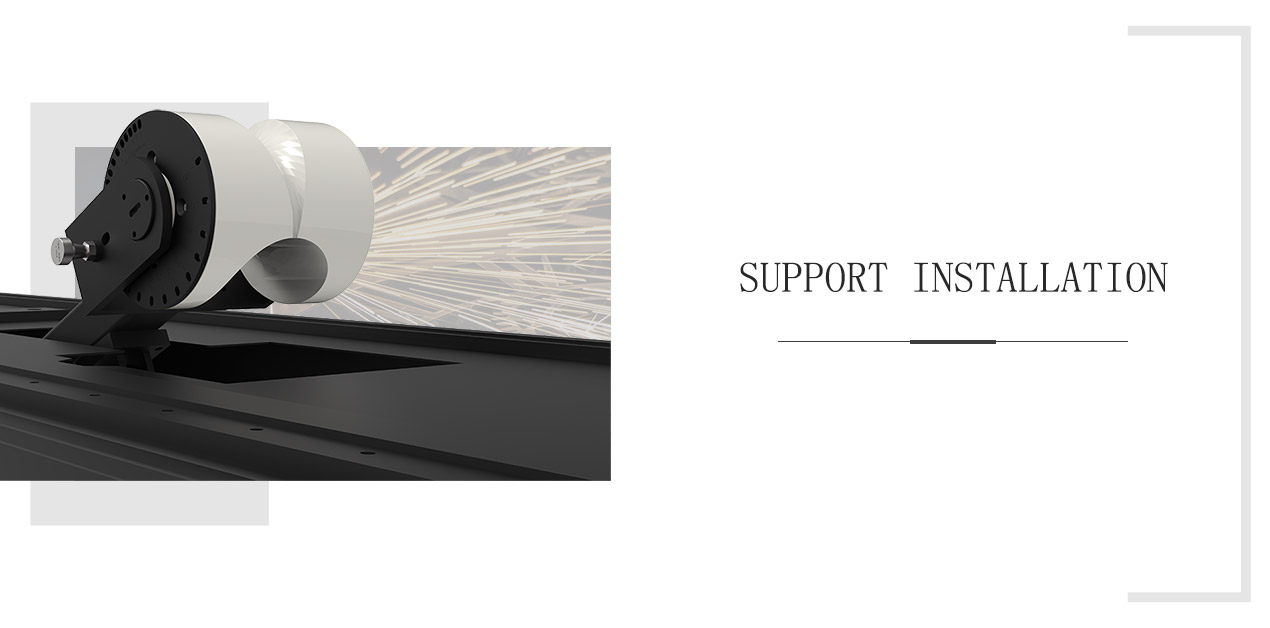

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

Model Number:LX3015DHT
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size:8145*4771*2005mm(About)
Rotary size:8000*1600*1150mm

Machine size(without rotary):4160*2200*1980mm
Machine weight:6390.95KG(About)
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Machine Model

LX3015DHT

Power of Generator

1000/1500/2000/3000/4000/6000W(optional)

Dimension

8145*4771*2005mm

Working Area

1500*3000mm

Repeated Positioning Accuracy

±0.02mm

Max Running Speed

120m/min

Max Acceleration

1.5G

Specified Voltage And Frequency

380V 50/60HZ



LX3015DHT best cheapest metal sheet plate and pipe fiber laser cutting machine Application

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Titanium, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc
