LX3015ET Rotary Exchange Table Metal Plate and Tube Cnc fiber laser cutting machine 3000W 4000W 6000W 12000W

X3015ETPC3
X3015ETPC1
X3015ETPC2
X3015ET-3
X3015ET-2
X3015ET-1
LX3015ET Rotary Exchange Table Metal Plate and Tube Cnc fiber laser cutting machine 3000W 4000W 6000W 12000W

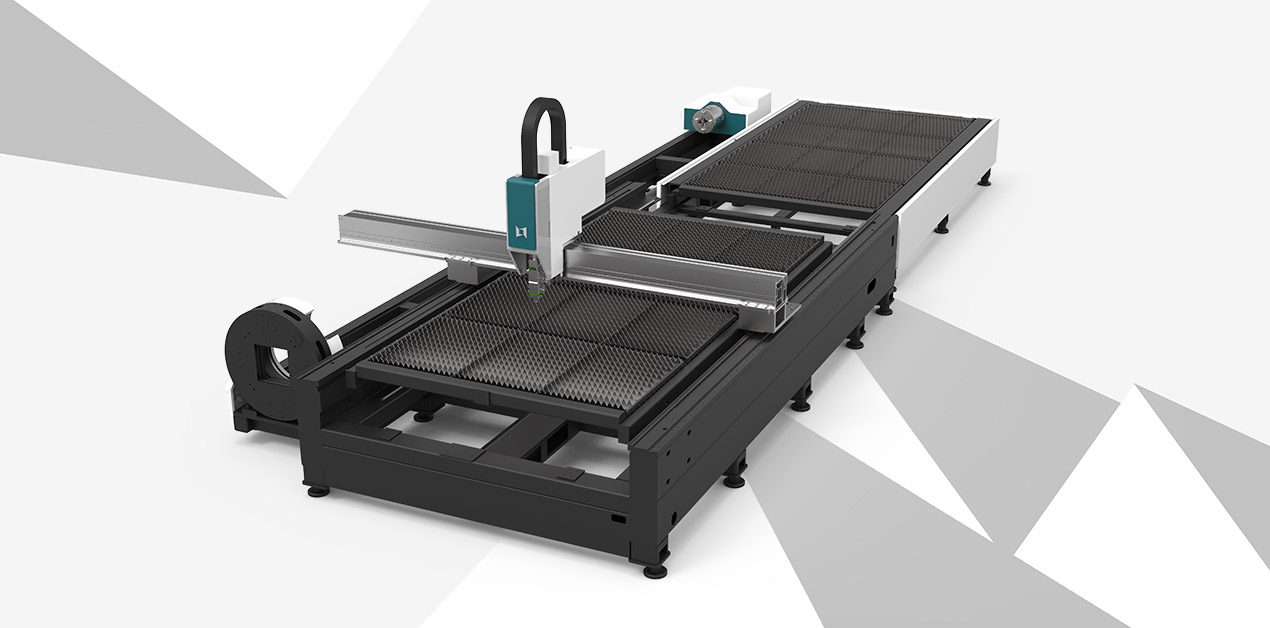

DUAL SWITCH PLATFORM

* Quick exchange: System selection can be exchanged without manual exchange, improving work efficiency.
* Operational safety: With high precision CNC, the whole communication will be displayed on the PLC touch screen.
* Cutting stability: The platform adopts taper pin positioning with high precision.

JHT
HL

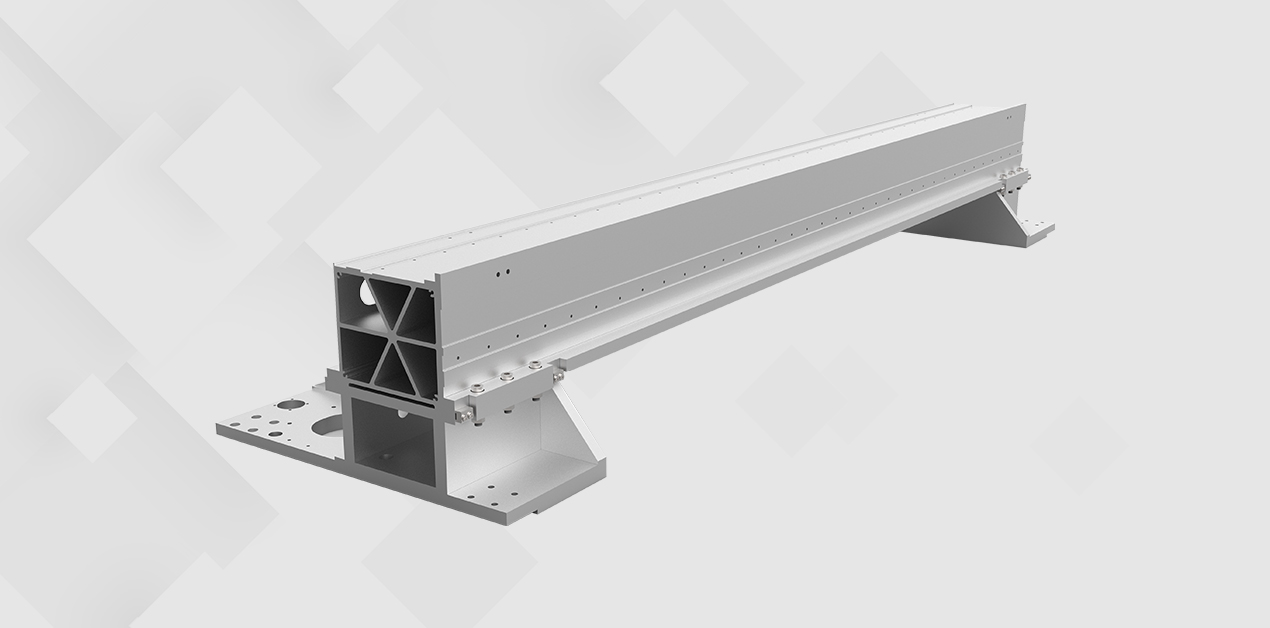

THE 4TH GENERATION AVIATION ALUMINUM BEAM

Select 6 series aviation aluminum alloy, light-weight and good dynamic performance of beam, Honeycomb compressive structure design in accordance with aerospacecraft design standards, Extrusion molding process adopted, no air or sand hole, high strength.

XSQ

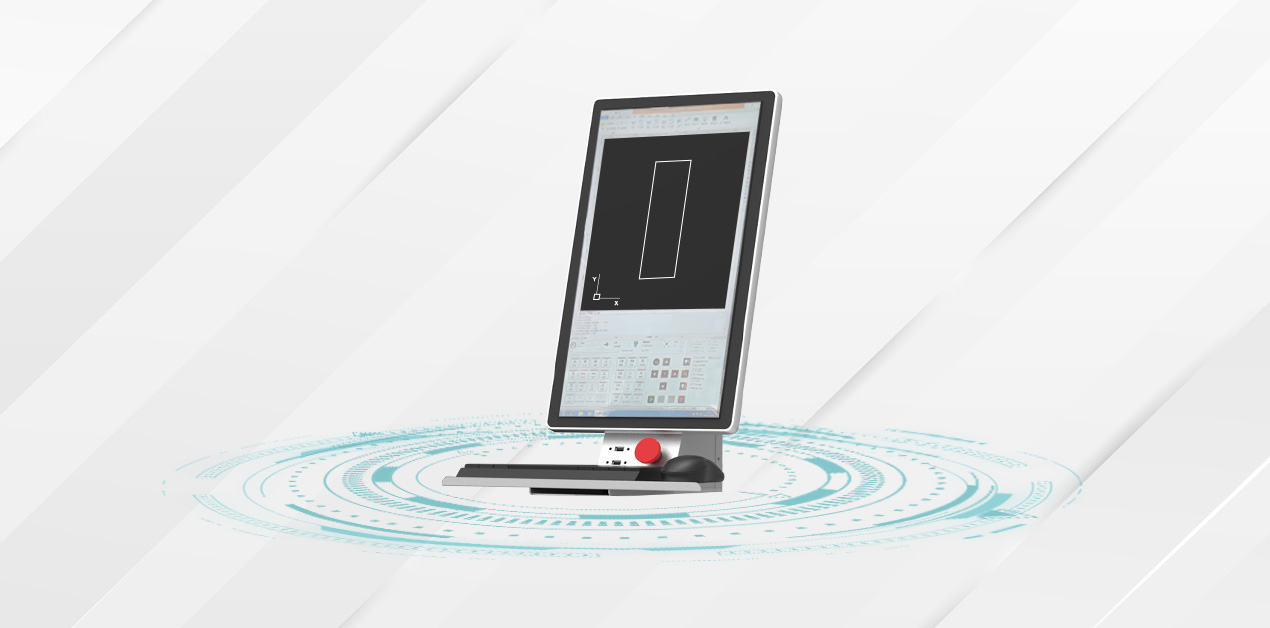

BOCHU SYSTEM

Easy to operate and get started faster
Compatible with multiple graphic files, incl. DXF DWG, PLT and NC codes
Built-in nesting software saves labor
System supported languages: English, Russian, Korean, Simplified Chinese, Traditional Chinese

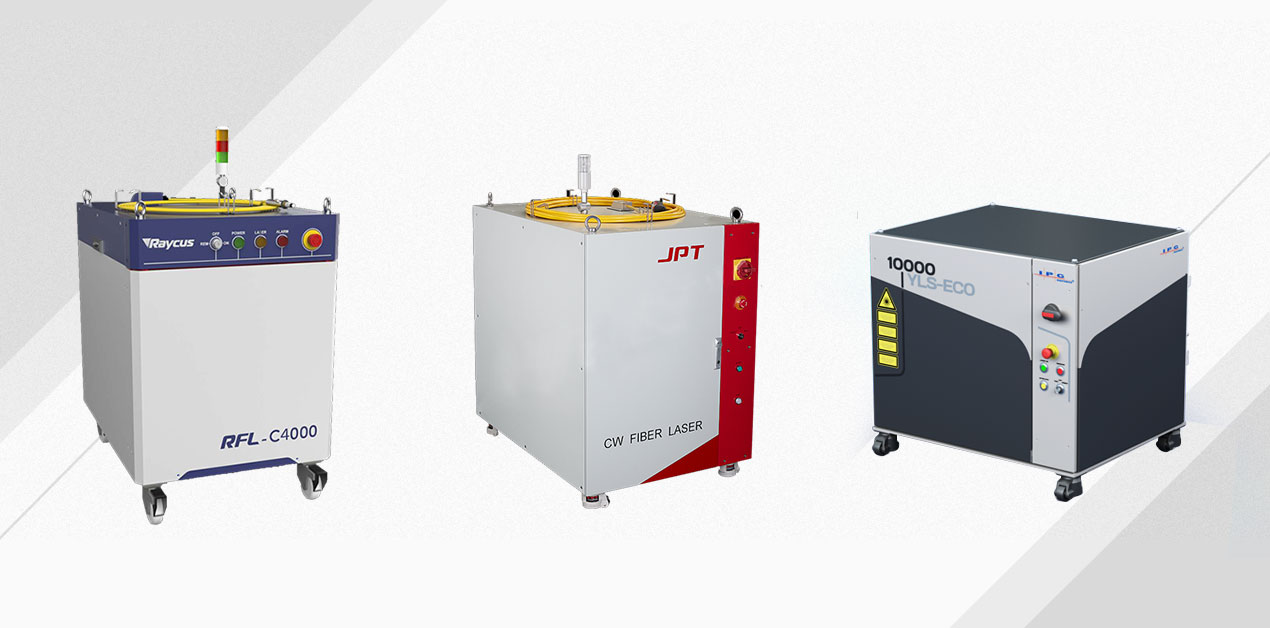

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

FSQ
QGT

INTELLIGENT AUTOFOCUS

Modular design for easy maintenance. Double water cooling circuit. Auto-focus, reduce human intervention, improve piercing and cutting efficiency. Cover glass (top, middle and bottom) to protect the collimating and focusing lenses. IP65 dustproof, patented cover glass cover. All-round dustproof. Modular design for easy maintenance.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

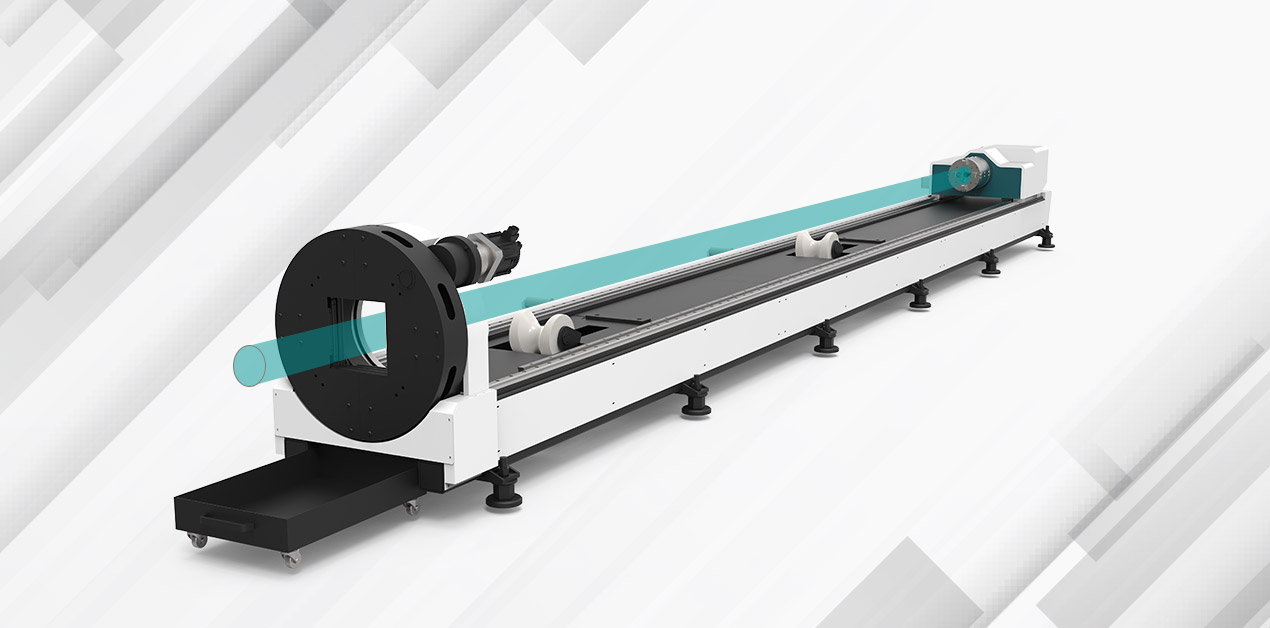

FULL-AUTOMATIC DOUBLE PNEUMATIC CHUCKS

The chucks are 3 times faster than electric chucks due to one-key clamping and auto centering. With large and constant clamping force, heavy tubes will be clamping stably. Two rows of rollers are adopted for a wide range of clamping and high cutting precision.

Rotary Length: 6m standard,8m and other size can be customized.

Rotary Diameter: 160/220mm is standard. Other size can be customized.

Chuck: Both pneumatic control

xz

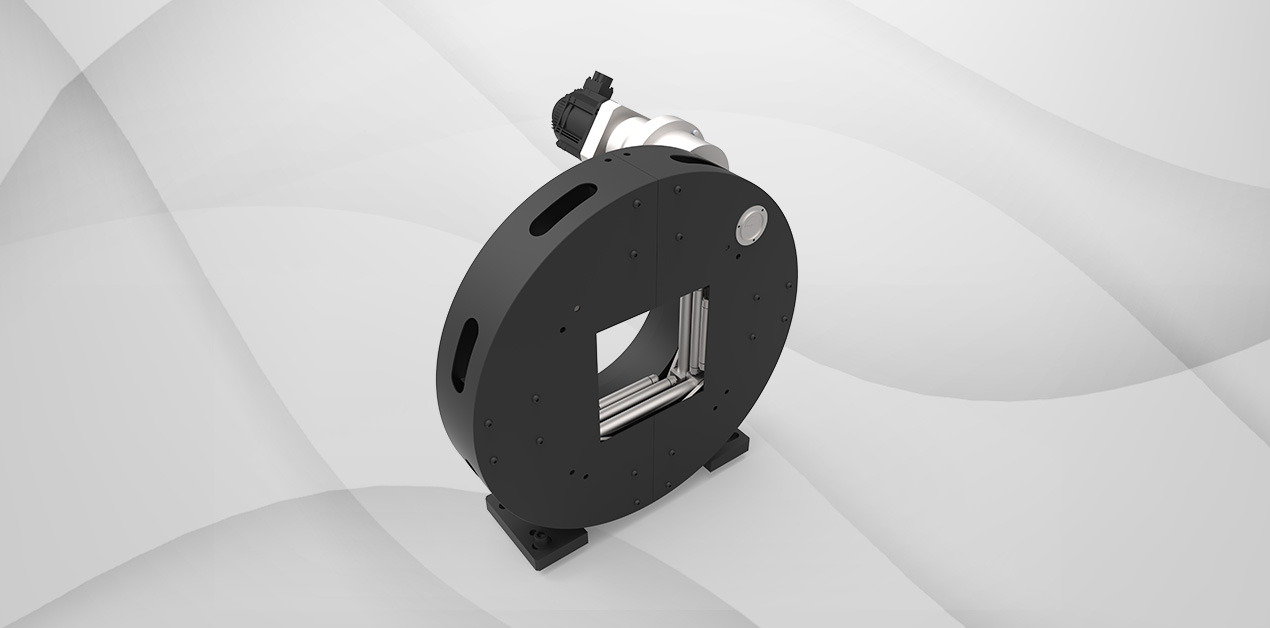

PNEUMATIC CHUCK CLAMPING DESIGN

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

KP

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

ZCJ

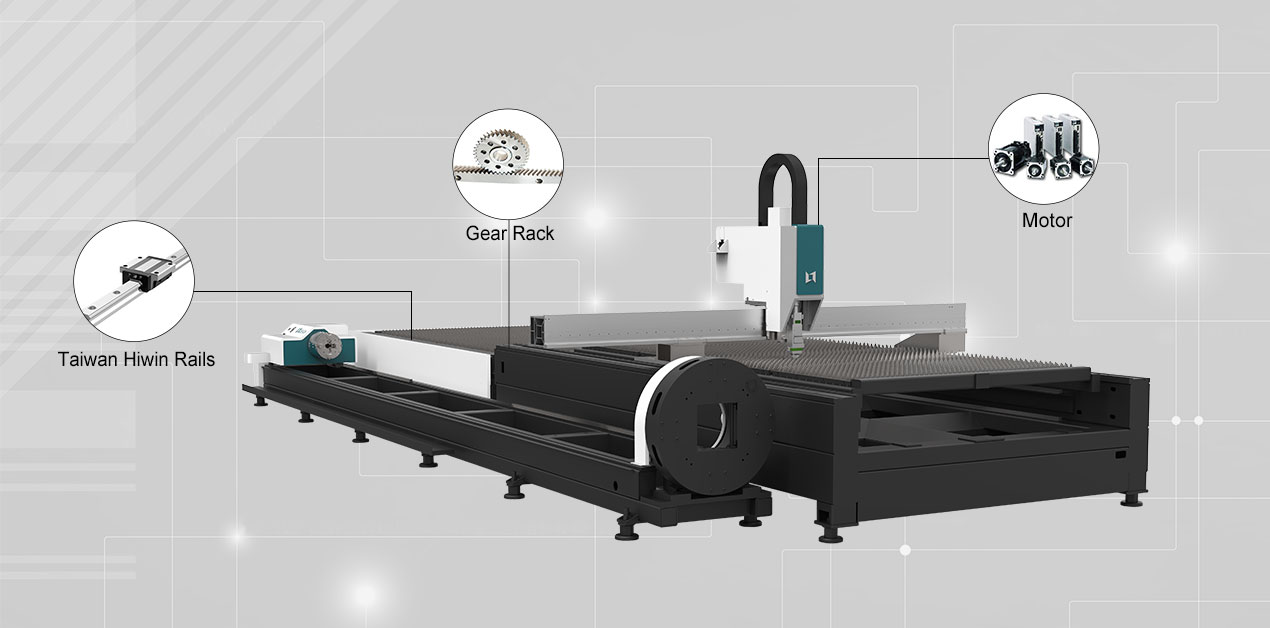

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

CDFS

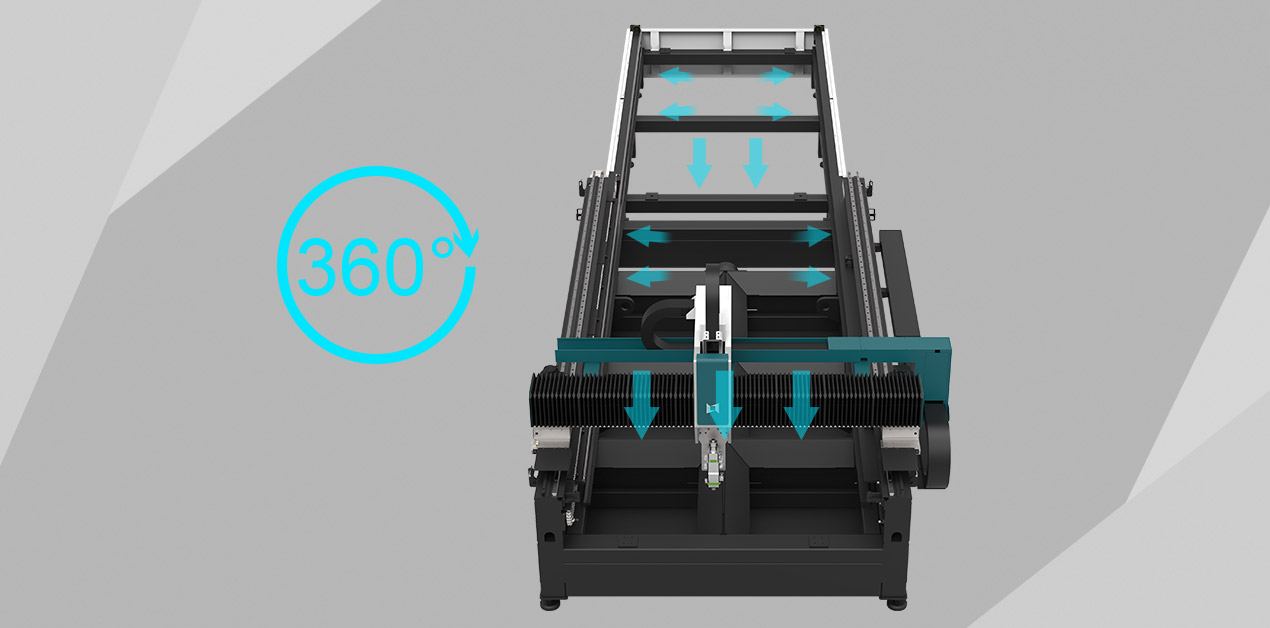

FULL COVERAGE, SUPER SUCTION

Adopt the latest cutting-edge tobacco control technology, Each section of the bed has a smoke exhaust device

Net follow-up, wisdom grows by quality, The smoke exhaust device automatically senses the laser cutting position, Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

CY

Model Number: LX3015/4015/6015/4020/6020/6025/8025ET
Lead time: 15-25 working days(About)
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: (About)
Exchange table Machine size: 5200*3000*2400mm

Water chiller +Controller: 1830*920*2110mm
Machine weight: 8000KG(About)
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model LX3015/4015/6015/4020/6020/6025/8025ET
Power of Generator 3000/4000/6000/8000/12000(optional)
Dimension Exchange table Machine size: 5200*3000*2400mm

Water chiller  +Controller: 1830*920*2110mm (About)

Working Area 1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy ±0.02mm
Max Running Speed 120m/min
Max Acceleration 1.5G
Specified Voltage And Frequency 380V 50/60HZ

LX3015ET aluminum copper stainless steel carbon steel metal sheet and pipe fiber optic laser cutting machine Application

Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

2 Sheet & tube metal laser cutting machine
