LX3015FC 2024 New Standards Affordable Laser Cutting Machine

LX3015FC

LX3015FC

LX3015FC 2024 New Standards Affordable Laser Cutting Machine

LX3015FC

LX3015FC 2024 New Standards Affordable Laser Cutting Machine

LX3015FC

LX3015FC 2024 New Standards Affordable Laser Cutting Machine

LX3015FC

LX3015FC 2024 New Standards Affordable Laser Cutting Machine

LX3015FC

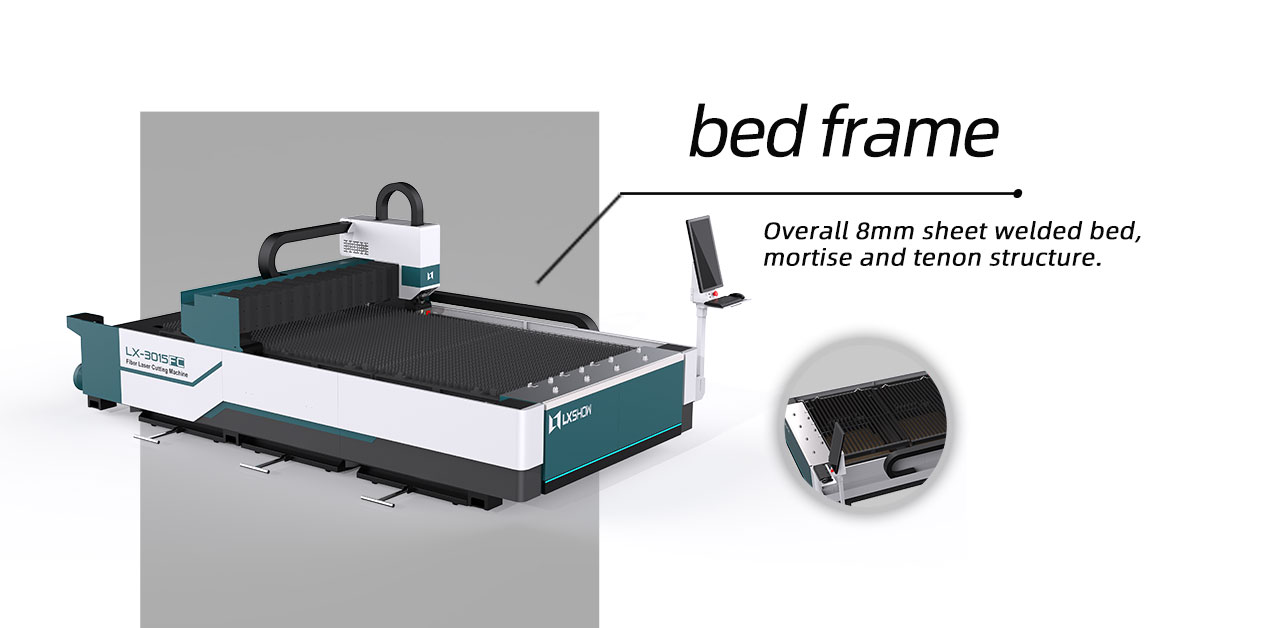

Machine Bed

• The machine bed is mainly of the mortise and tenon structure for enhanced rigidity,stability and durability.The mortise and tenon joint features the advantages of easy assembly and reliable durability.
• The machine bed is welded by the 8mm thick metal plate for greater laser cutting stability,making it tougher and stronger than the 6mm tube welded bed.

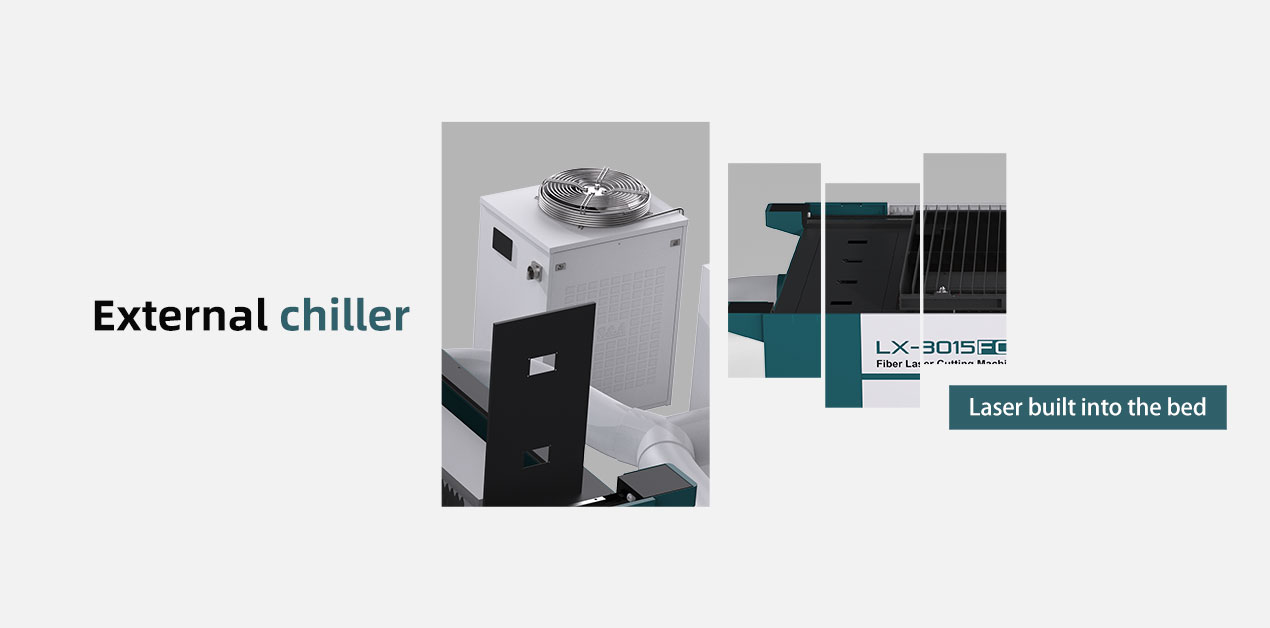

External Chiller

The 1KW~3KW machine is equipped with a built-in generator and an external chiller.

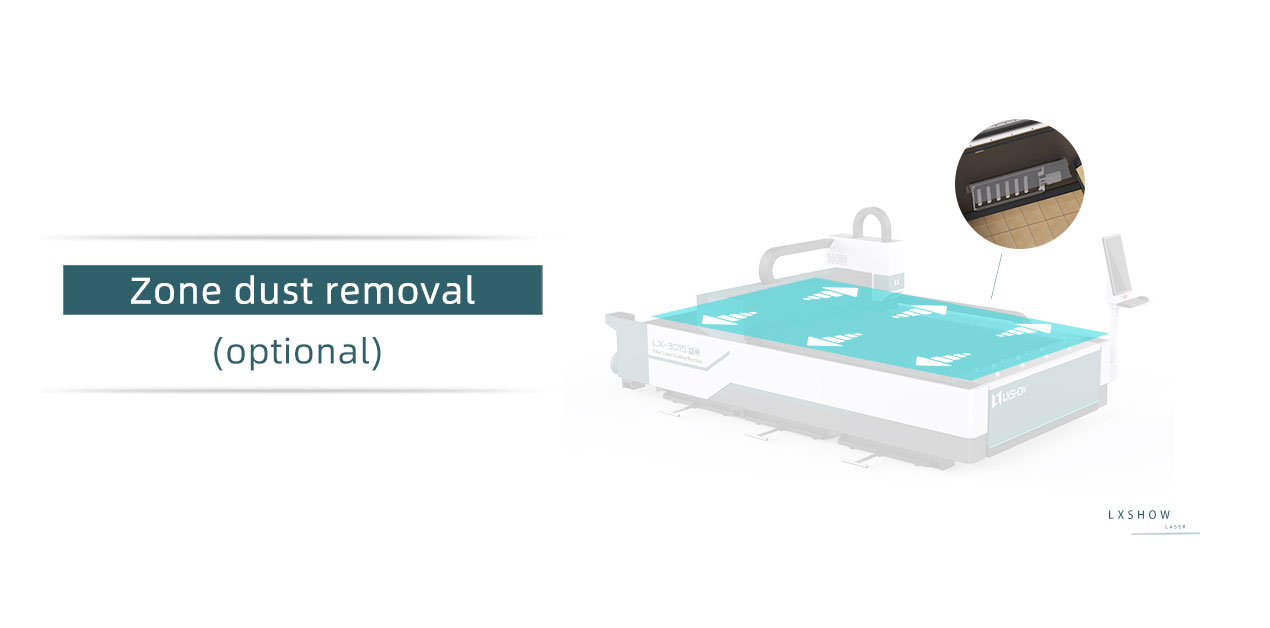

Zone Dust Removal(Optional)

The zone dust removal system is configured as optional.

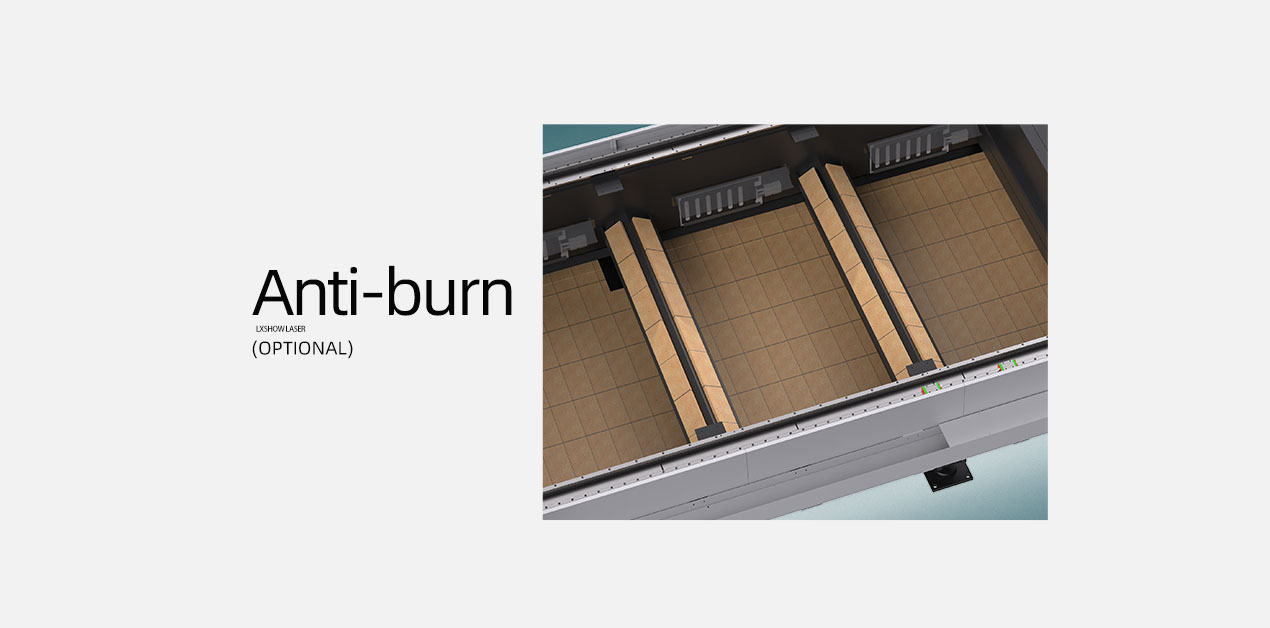

Anti-burn Module(Optional)

The anti-burn modules are available as optional accessories.

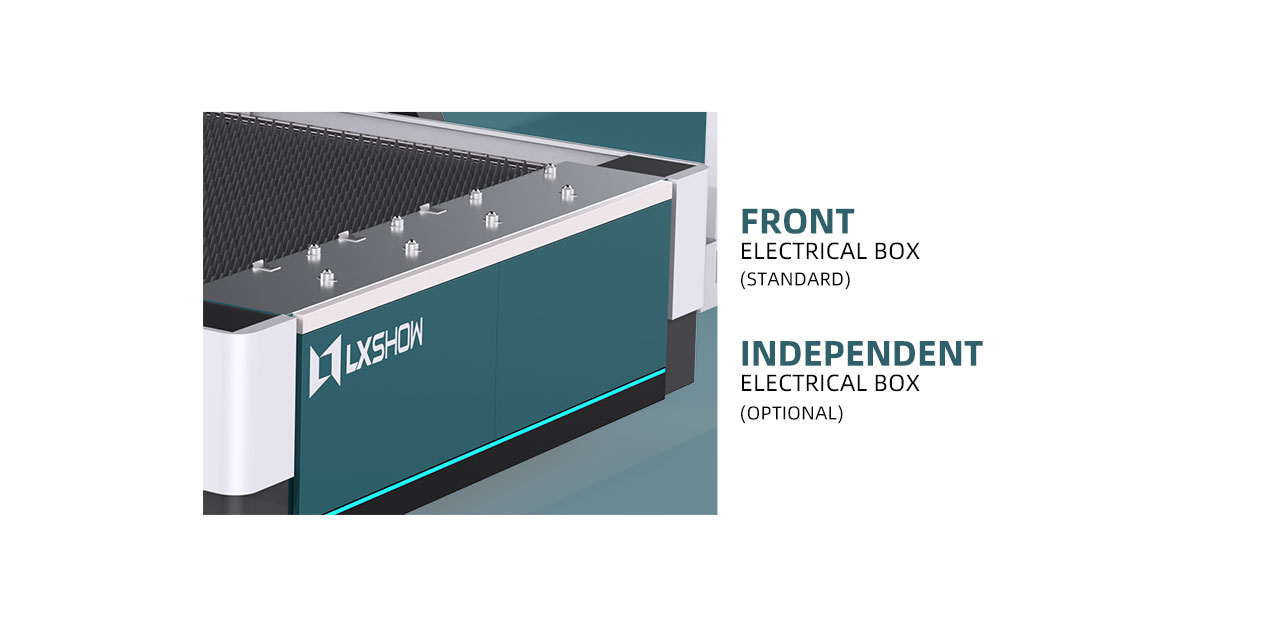

Electrical Box

Front-facing electrical box(standard);

Independent electrical box(optional);

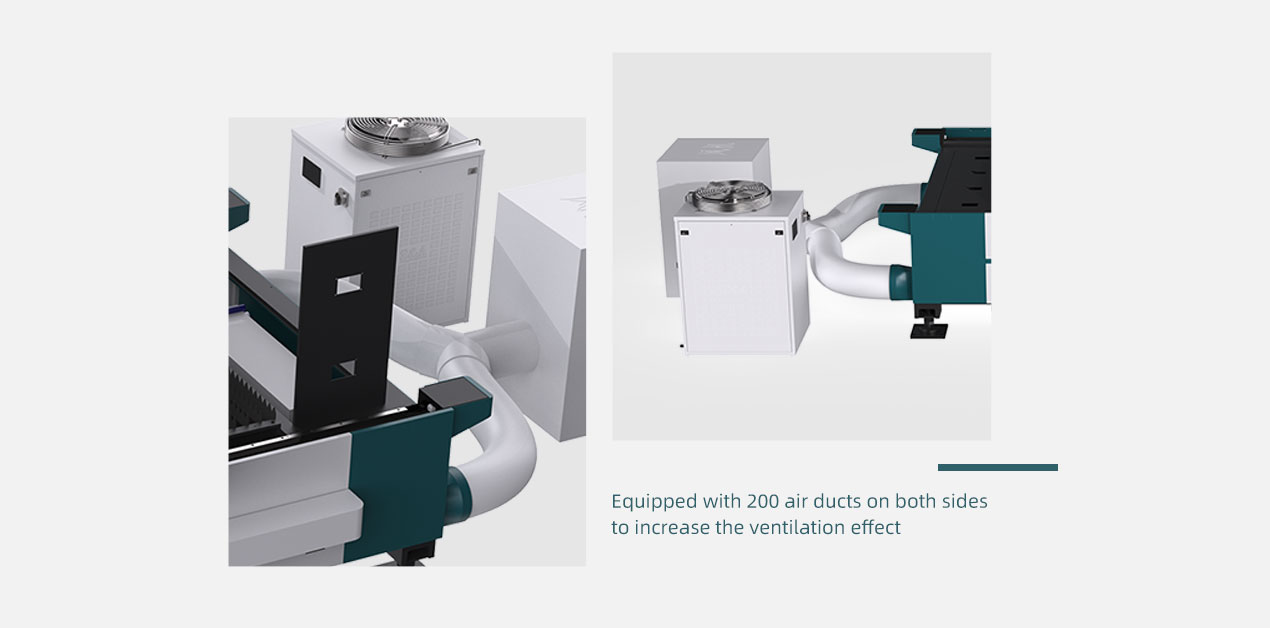

Ventilation

LX3015FC is equipped with 200mm diameter air duct on both sides for better ventilation performance.

Machine Description:

Compared with other models of laser cutting sheet metal machines,LX3015FC affordable laser cutting machine comes with new features,including machine bed,dust removal system,ventilation system.It comes equipped with the standard laser power ranging from 1KW to 12KW .We offer some optional configurations for LX3015FC to fit your needs,including zone dust removal,anti-burn modules and a 12KW laser power.Built with new standards by LXSHOW,this new model delivers greater stability,reliability and efficiency.

Standard Parameter:

Model	LX3015FC
Working Area	1500*3000mm
Laser Power	1.5KW (Optional Power:1-12kw)
Laser Generator	Raycus/MAX/JPT/IPG/Nlight
Laser Wave Length	1064nm
Working Table	Sawtooth
Maximum Idle Running Speed	120m/min
Maximum acceleration	1.5G
Position Accuracy	±0.02mm/m
Repeat Positional Accuracy	±0.01mm
Cutting Thickness	≤20mm Carbon steel; ≤10mm Stainless steel
Control System	Weihong
Position Type	red dot
Power Consumption	≤21 KW
Working Voltage	380V /50Hz
Auxiliary Gas	oxygen,nitrogen,air
Fiber laser cutting head	Raytools BM110
Cooling System	S&A/Tongfei/Hanli industrial water chiller

Laser Cutting Materials:

Stainless steel,Carbon steel,Alloy steel,Aluminum,Brass

Industries and Sectors:

Aerospace,Aviation, Sheet metal fabrication, kitchenware manufacturing, advertisement, fitness equipment, etc.

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

FAQ

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: Payment terms?
A:TT/West Union/Payple/LC/Cash and so on.

Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.

Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
