LX3015H Full Cover Exchange Table Fiber Laser Metal Cutting Machine 2000W 4000W 6000W 8000W

LX3015H Full Cover Exchange Table Fiber Laser Metal Cutting Machine 2000W 4000W 6000W 8000W
3015H (1)

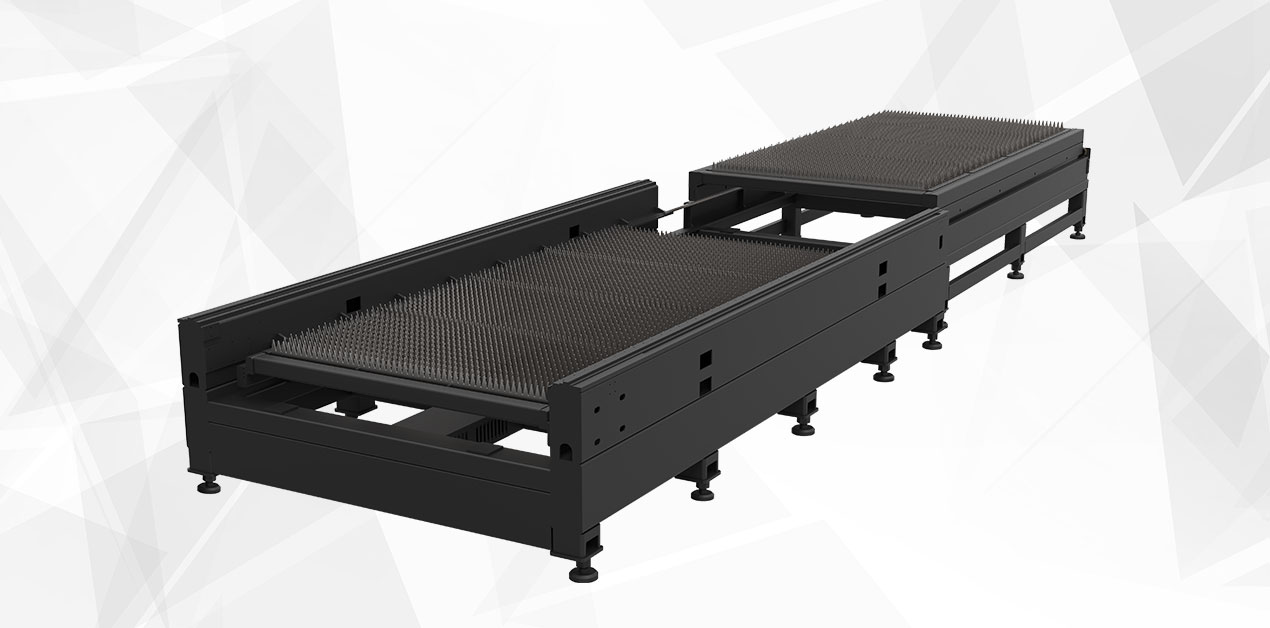

Exchange Table

• It adopts an up and down exchange platform;

• The converter is responsible for controlling the exchanging motor;

• The machine is able to finish the platform exchanging within 15s.

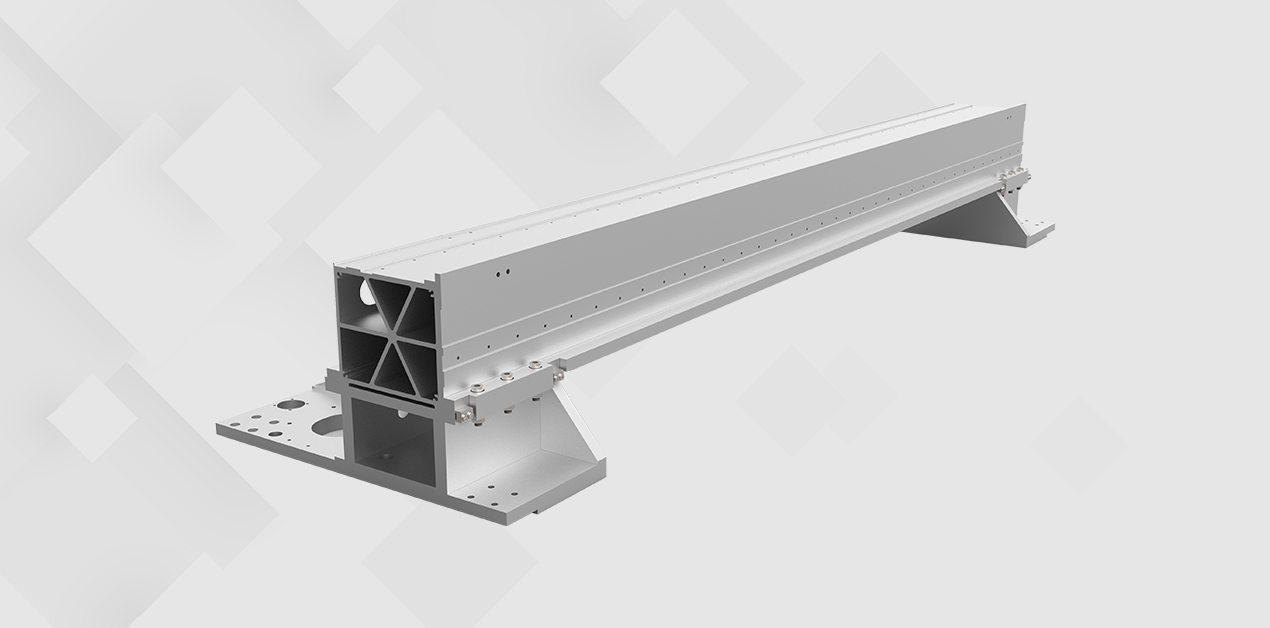

Brand New Cast Aluminum Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3015H (2)
3015H (3)

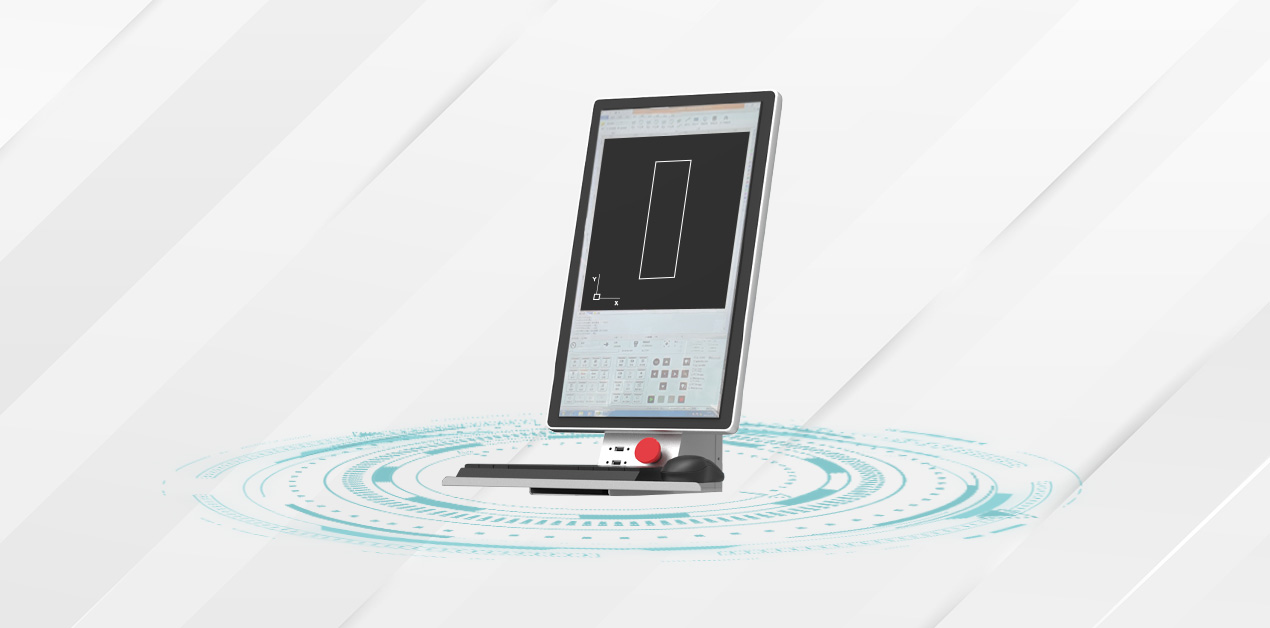

●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force


The high efficiency cooling:Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture:Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

3015H (5)

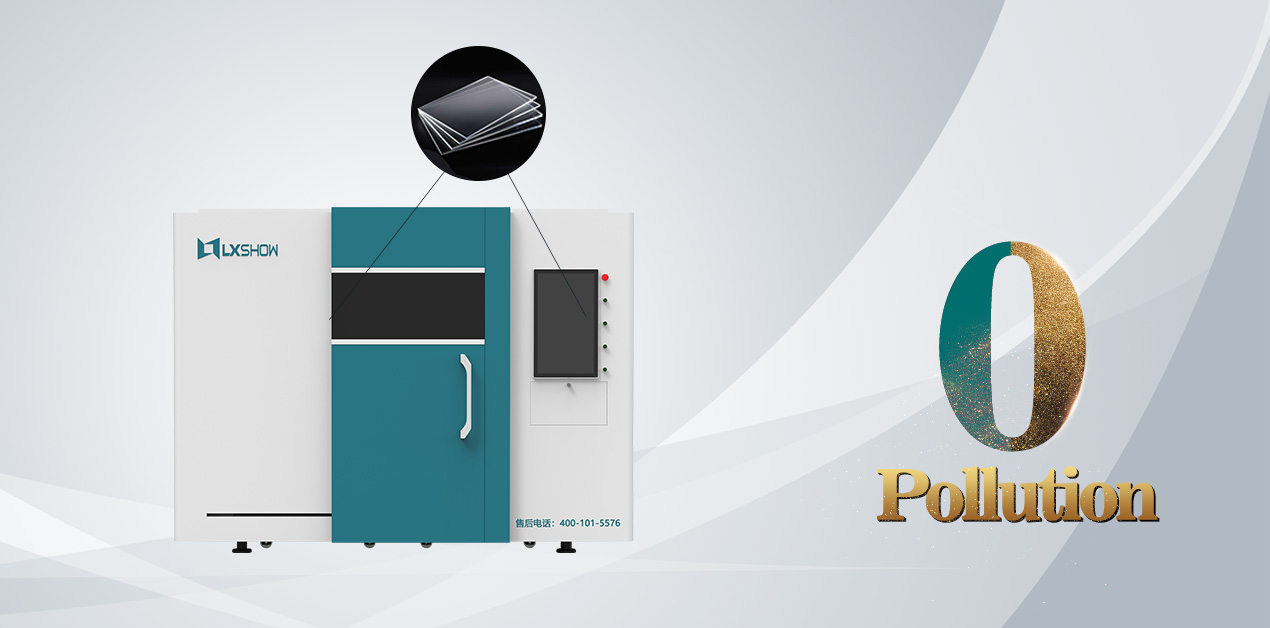

Safety and Environment Protection

· With a fully enclosed design;

· The observation window adopts an European CE Standard laser protective glass;

· The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

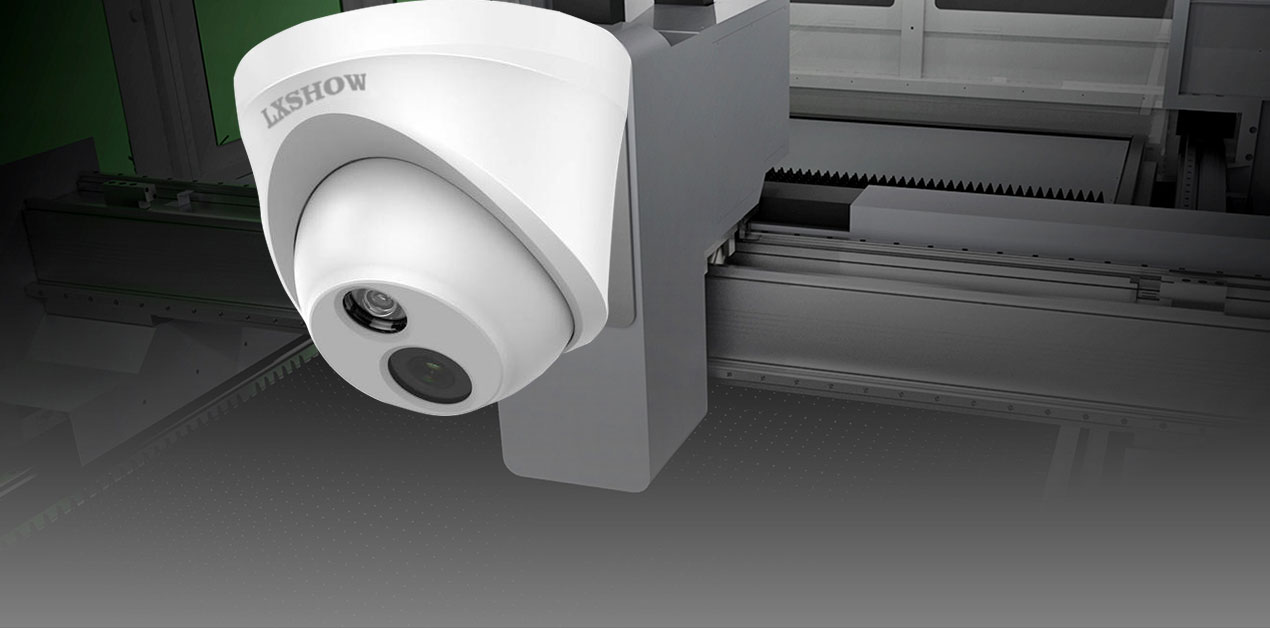

Monitoring system

Real-time observe the machine running through the panel

3015H (6)
3015H (7)

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

Model Number: LX3015H
Lead time: 20-40 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C

Warranty: 3 years
Shipping: By sea/By land

Machine Model


Power of Generator




Working Area

1500*3000mm(Other size can be customized)

Repeated Positioning Accuracy


Max Running Speed


Max Acceleration


Specified Voltage And Frequency

380V   50/60HZ

LX3015H Full Cover Exchange Table Fiber Laser Metal Cutting Machine Application

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
