Parameter

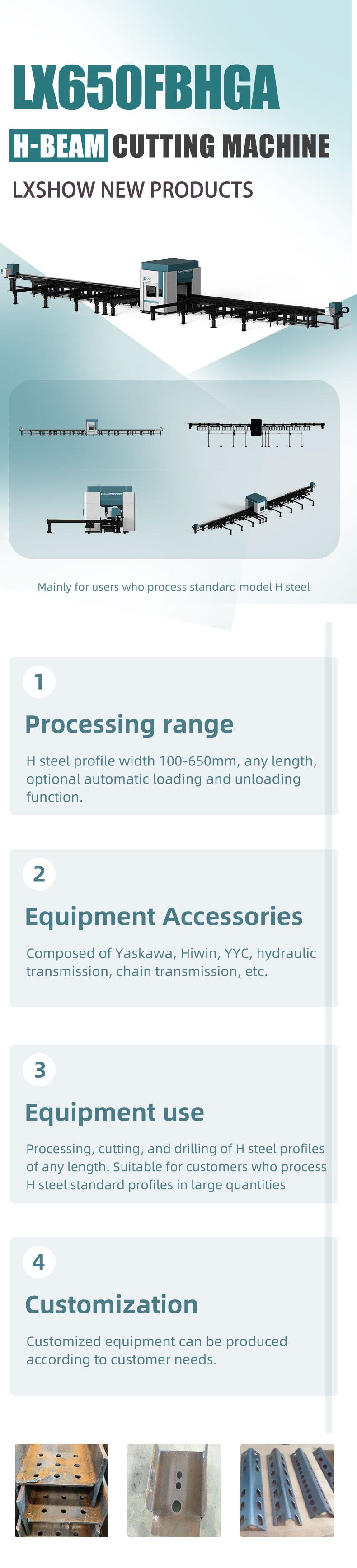

| LX650FBHGA H steel laser cutting machine configuration | |||||
| Configuration/function | Component | Specification | Brand | Optional | |
| Configuration | Machine bed | Tube welding | LXSHOW | ||
| Sheet metal | Surround | LXSHOW | |||
| System | Bochu | ||||
| Rail | X:30 Y:30 Z:25 | Hiwin | J&T、Hiwin | ||
| Motor | 2kw 1.3KW | Yaskawa | Inovance、Yaskawa | ||
| Laser head | BC-axis+BLT461T | Boci | |||
| Laser generator | Raycus MAX ... | ||||
| Automatic | 12m | LXSHOW | Recommended based on customer needs | ||
| Automatic delivery | Length range 1-12m | LXSHOW | Recommended based on customer needs | ||
| Water chiller | Hanli/S&A | Recommended based on customer needs | |||
| Stabilizer | Recommended based on customer needs | ||||
| Function | X/Y/Z Equipment stroke | 12000mm/12000m/340mm | |||
| Cutting workpiece range | 100*100mm-650*300mm | ||||
| Maximum load | 2500KG | ||||
| Repeat positioning accuracy | ±0.1mm | ||||
| Empty running speed | 40m/min | ||||
| Price | W(prototype) | ||||
