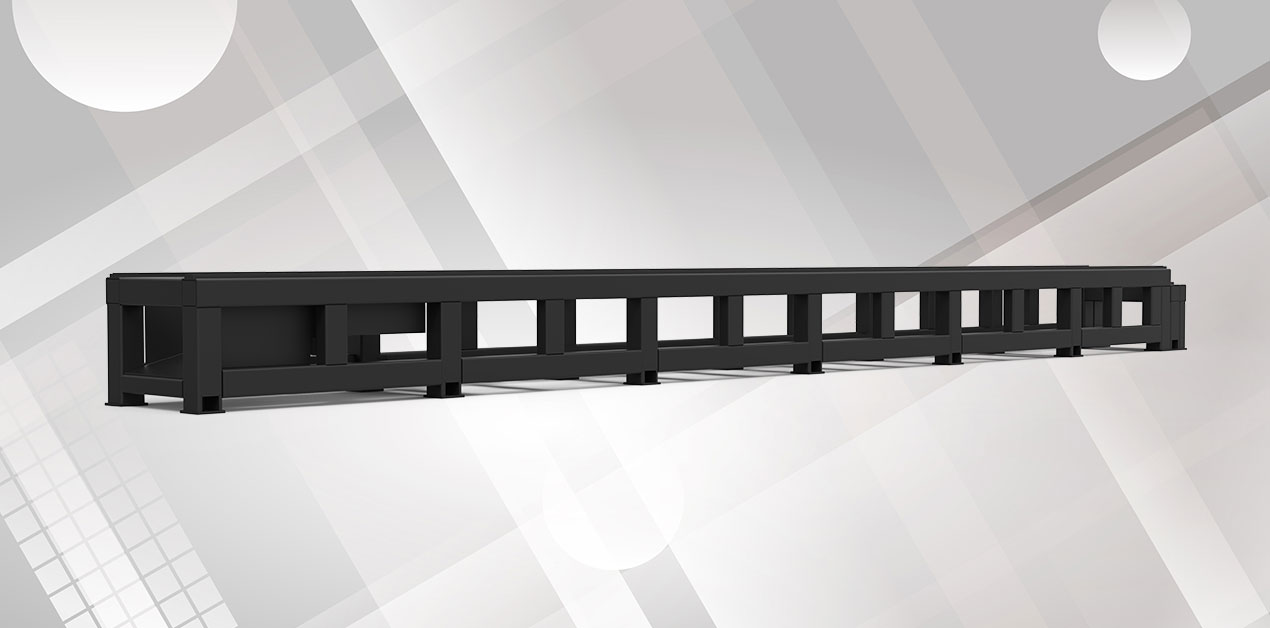

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.
Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide raiso as to effectively avoid the deformation of the bed.

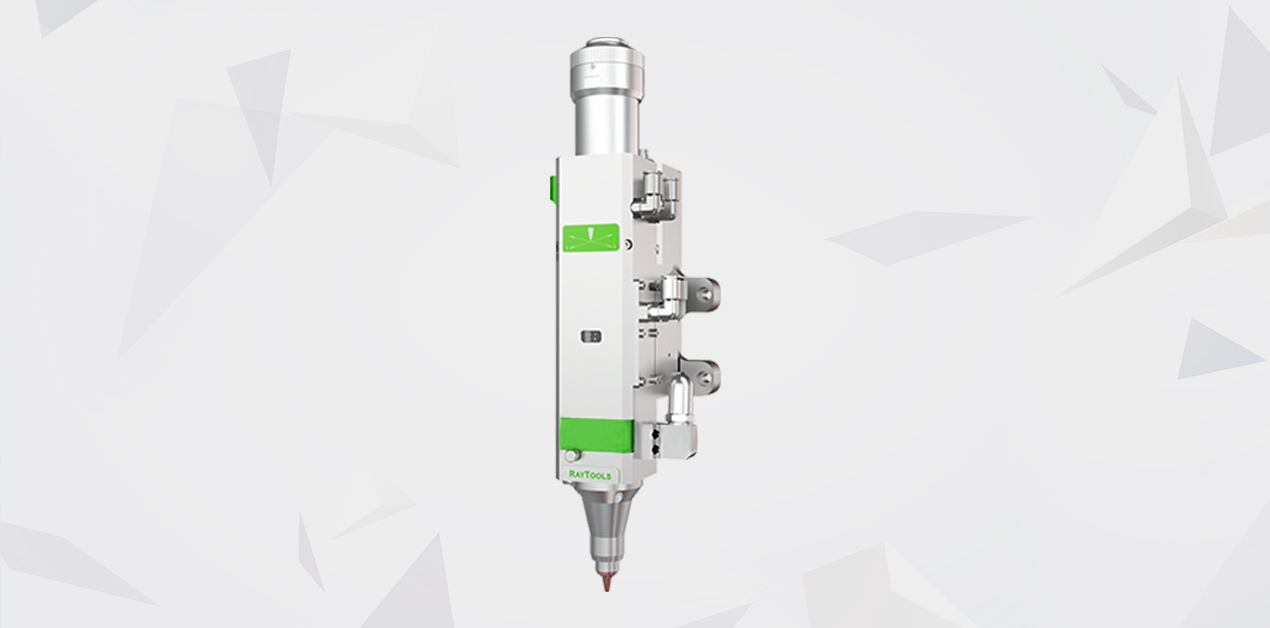

The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.
The lifetime of the generator (theoretical value) is 10,00000 hours. The machine works 8 hours a day and it can last about 33 years.

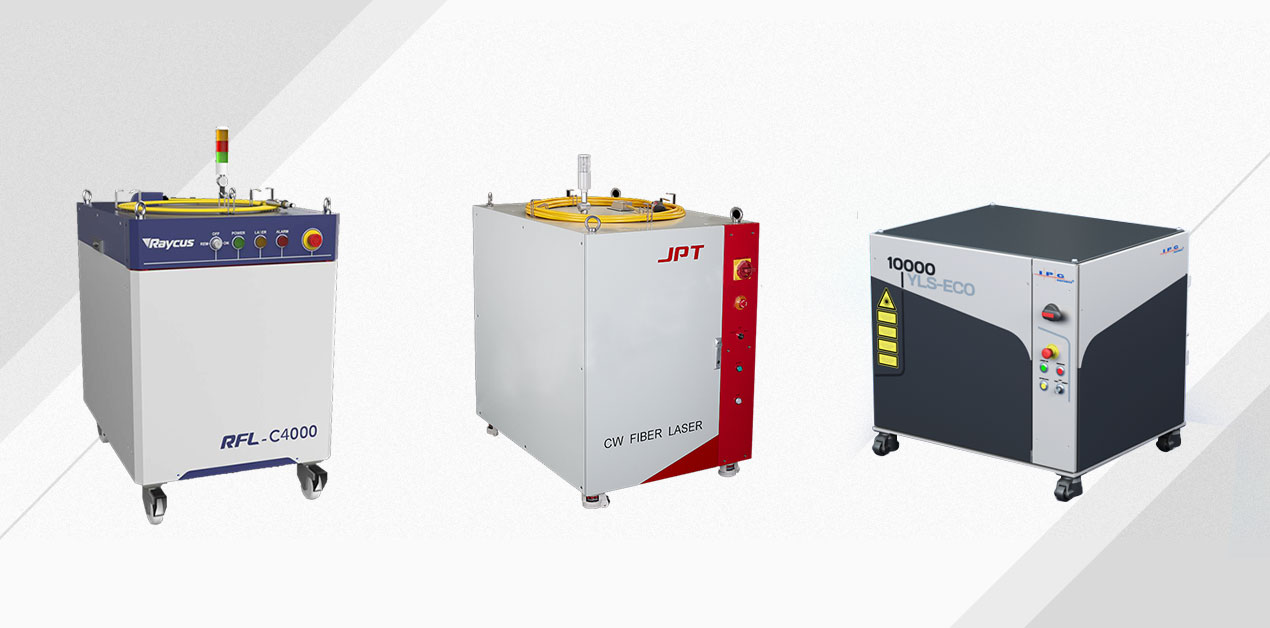

Generator Brand: JPT/Raycus/IPG/MAX/Nlight
Supported languages: English, Russian, Korean, Simplified Chinese, Traditional Chinese

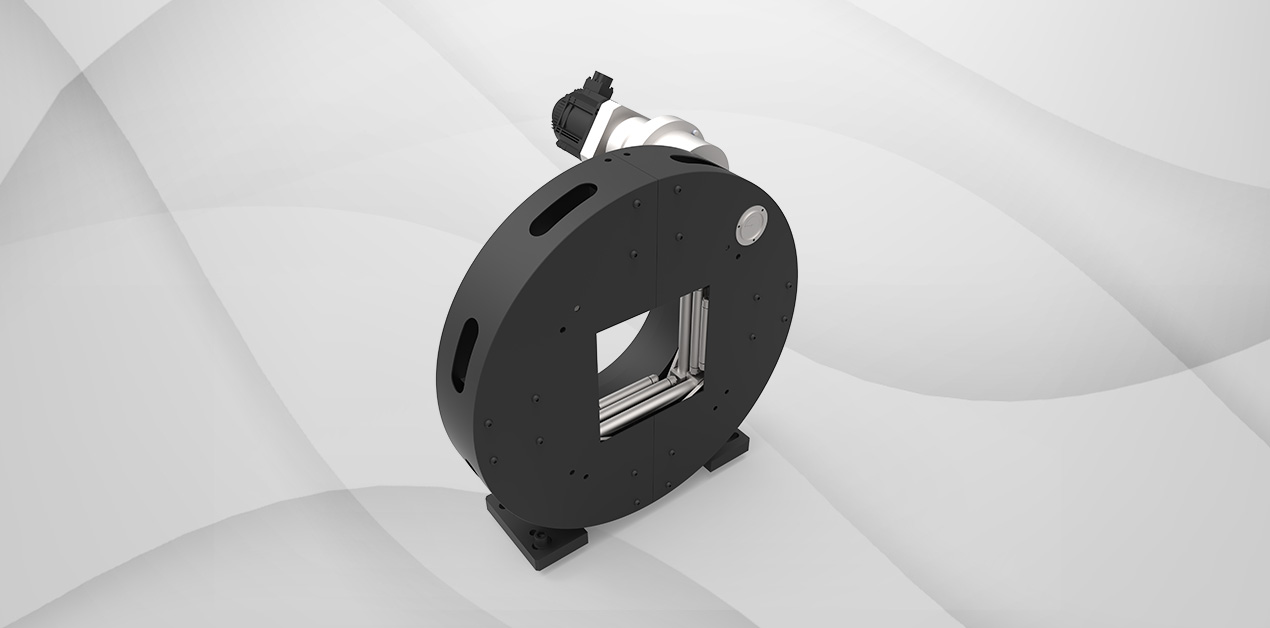

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

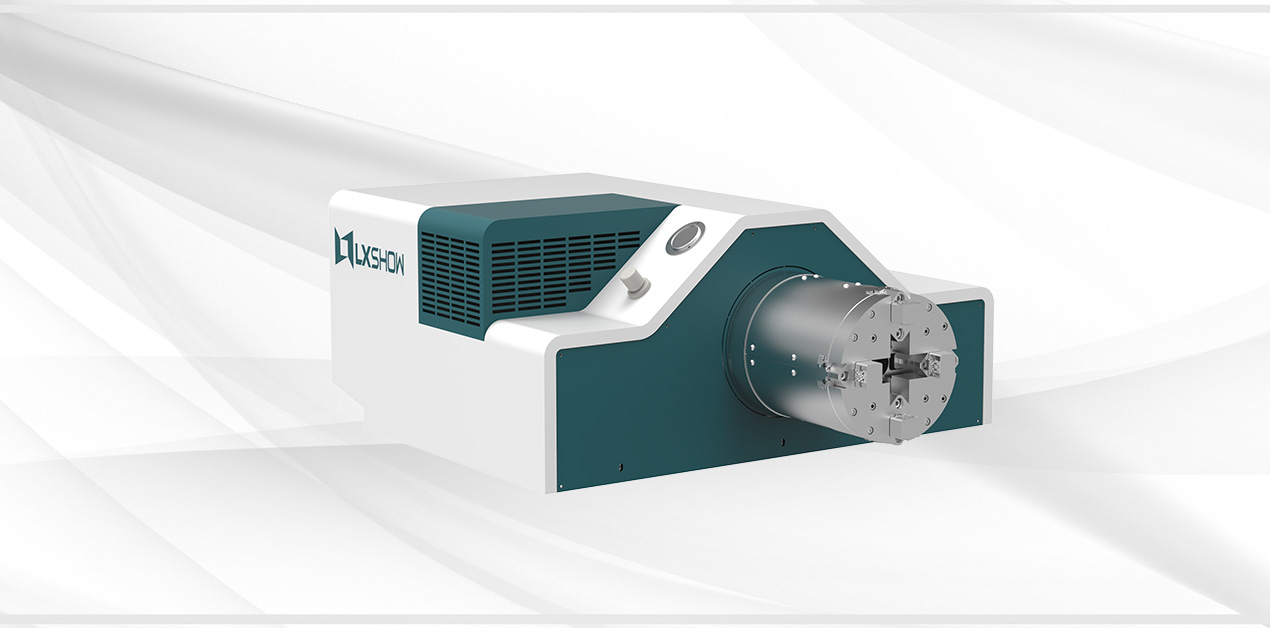

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

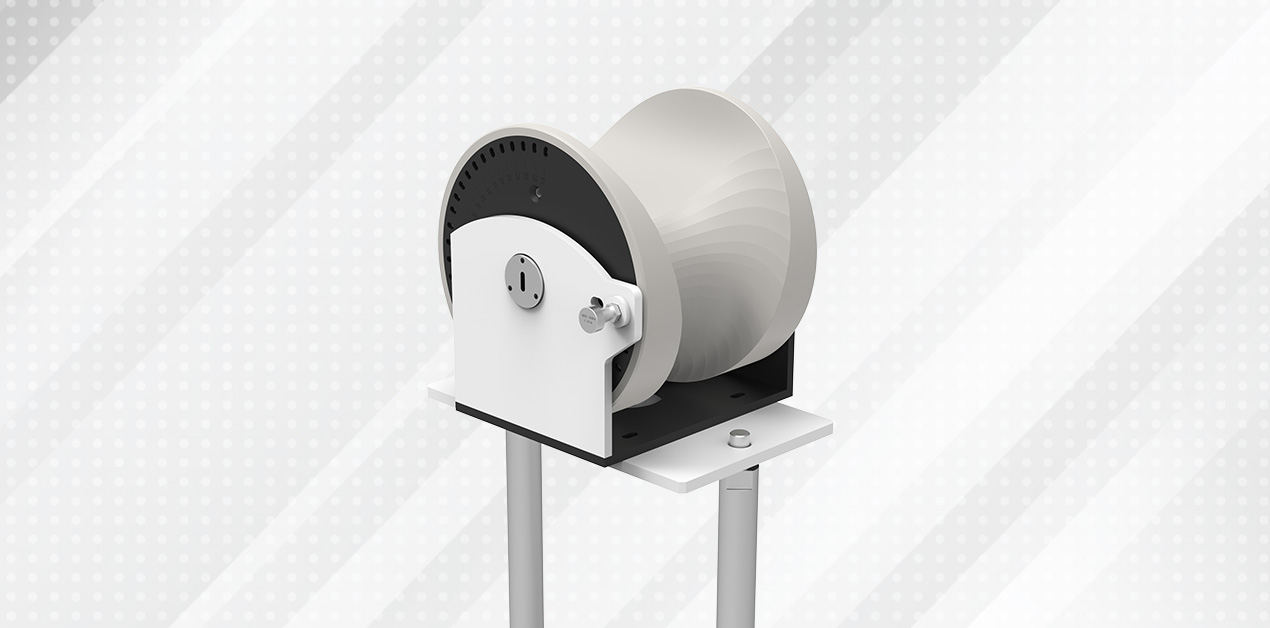

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

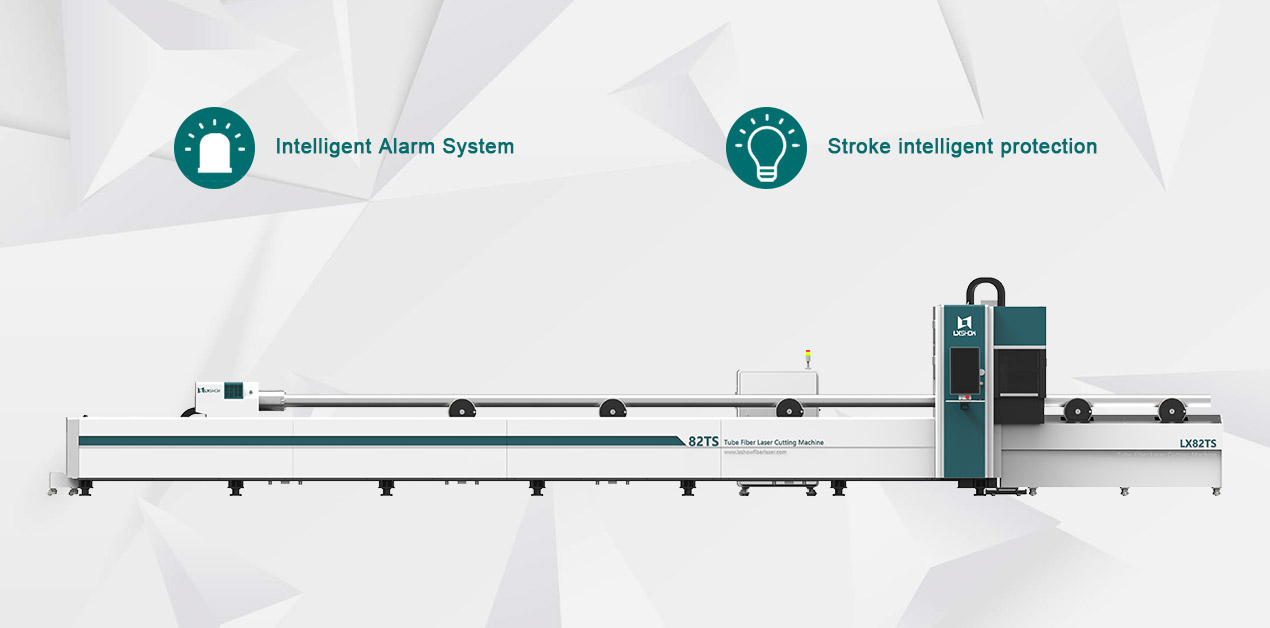

The system can detect machine anomalies in advance and reduce potential safety hazards.
Smart trip protection: Detect the working process of the cutting head, timely feedback the risk and terminate the operation. Fixed limit double protection to reduce operational risks.

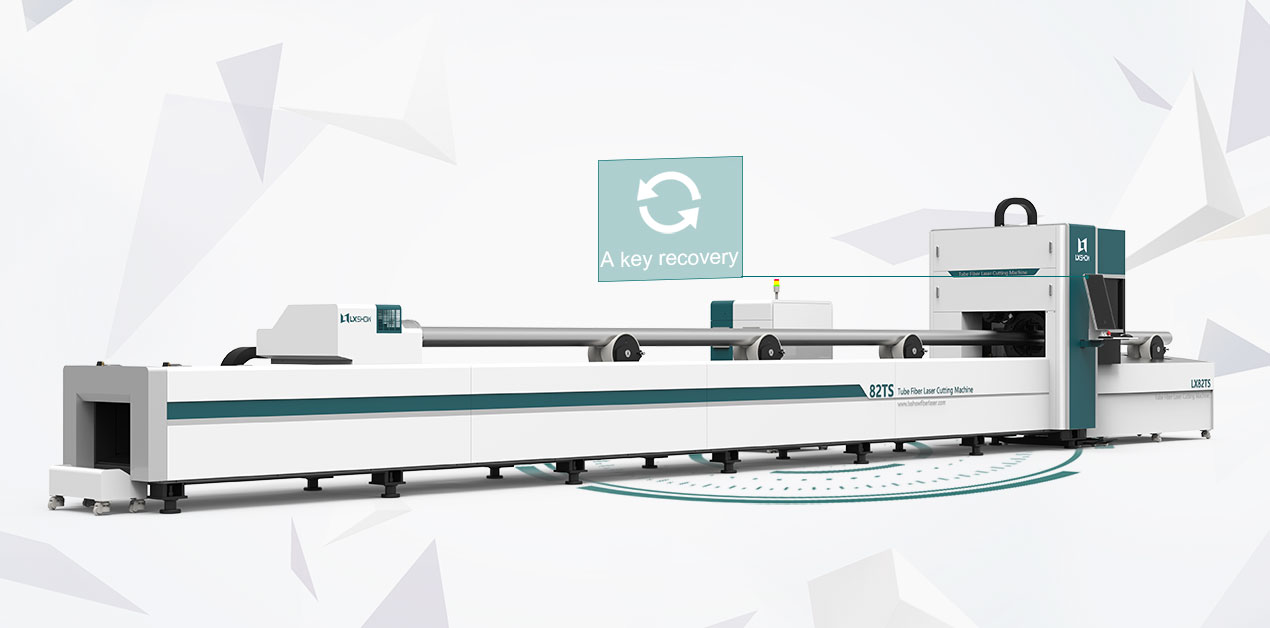

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Model Number: LX82TS(LX62TS optional)
Lead time: 10-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 11340*1560*1615mm (About)
Machine weight: 8000KG
Warranty: 3 years
Shipping: By sea/By land
|Power of Generator||1000/1500/2000/3000/4000/6000（optional）|
|Clamping Range||Φ20-Φ220mm(320/350mm can be customized)|
|Repeated Positioning Accuracy||±0.02mm|
|Specified Voltage And Frequency||380V 50/60HZ|
Application materials: Mainly used for cutting Fiber laser metal cutting machine is suitable for cutting stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized pipe, aluminum, copper, brass, bronze, titanium and other metals.
Application industry: Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
