LX9TQ Cheapest Front Pull Type Metal Steel Tube Pipe Fiber Laser Cutting machine 1KW 1.5KW 2KW 3KW

fiber laser tube cutting machine
laser pipe cutting machine
tube laser cutting machine price
laser tube cutter for sale
metal tube laser cutting machine
cnc laser pipe cutting machine
LX9TQ Cheapest Front Pull Type Metal Steel Tube Pipe Fiber Laser Cutting machine 1KW 1.5KW 2KW 3KW
laser pipe cutting machine

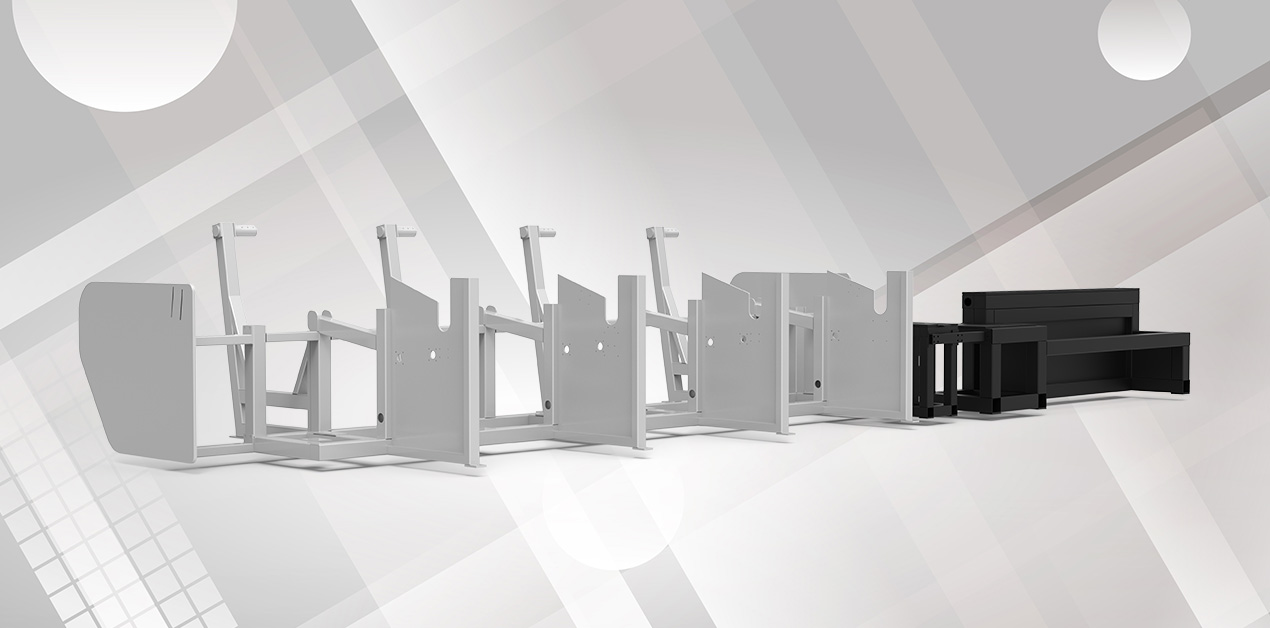

The Segmented Rectangle Laser Tube Welded Bed

Good rigidity, high precision, no deformation during the life cycle;

Welded aluminum collet board, formed through high precision process.

Good weight and good dynamic performance

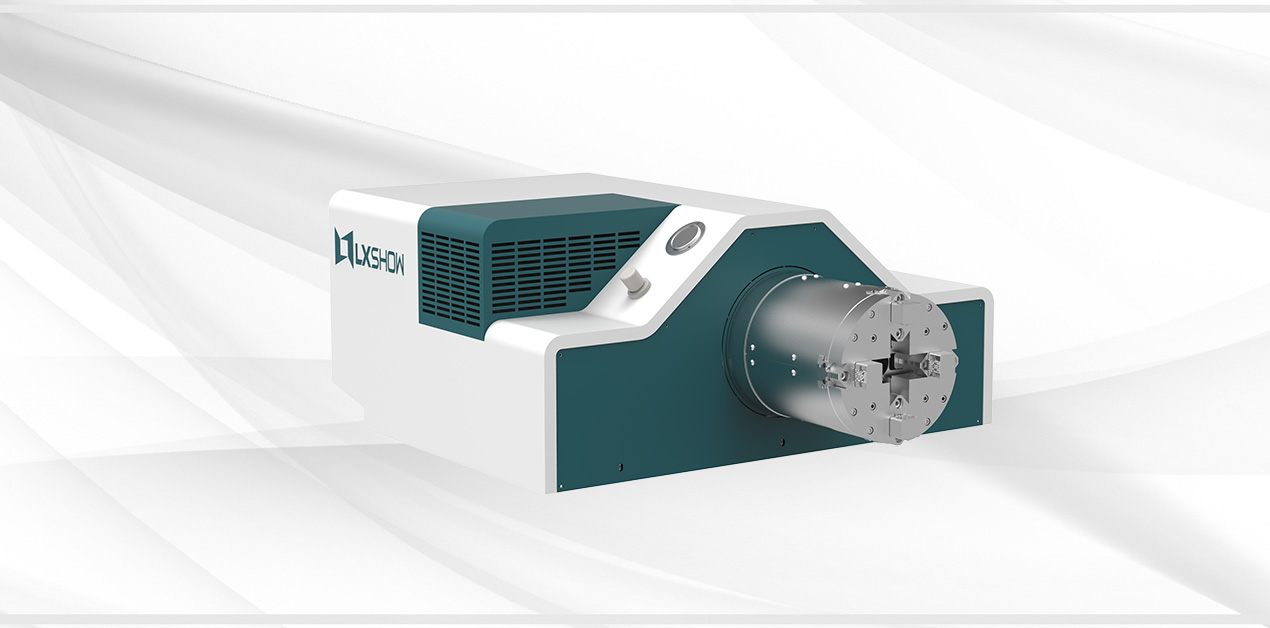

Pneumatic Chunk Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.

The diagonal adjustable range is 20-220mm(320/350 is optional)

fiber laser tube cutting machine
laser tube cutter for sale

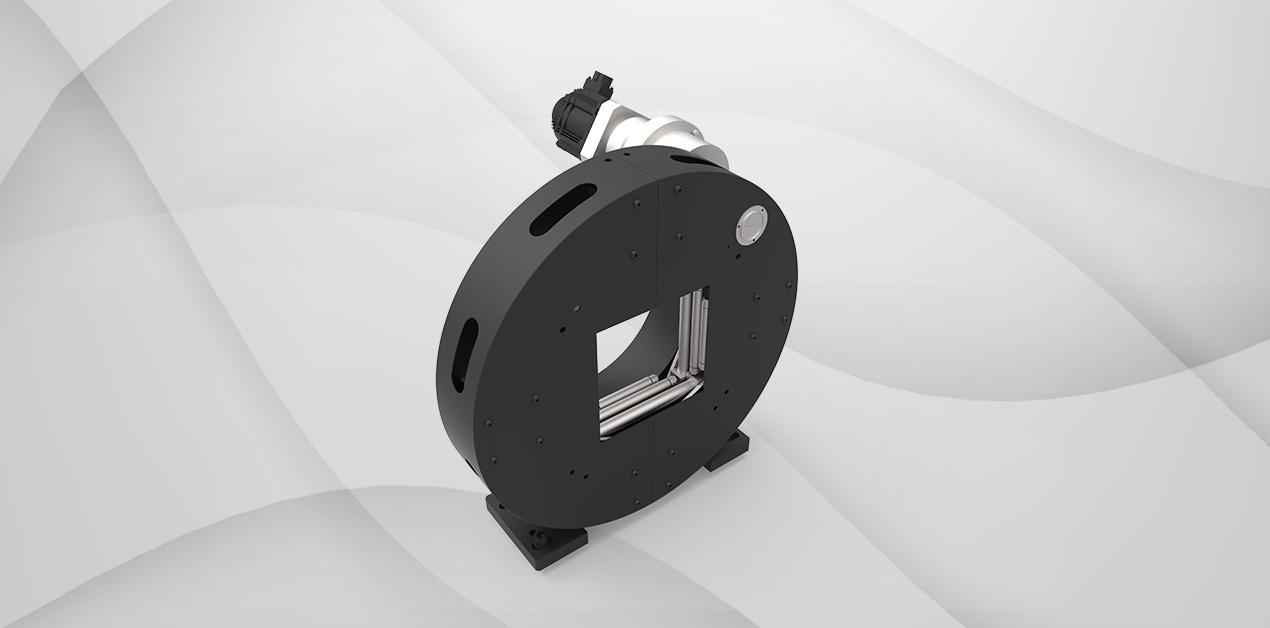

Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger.

Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability

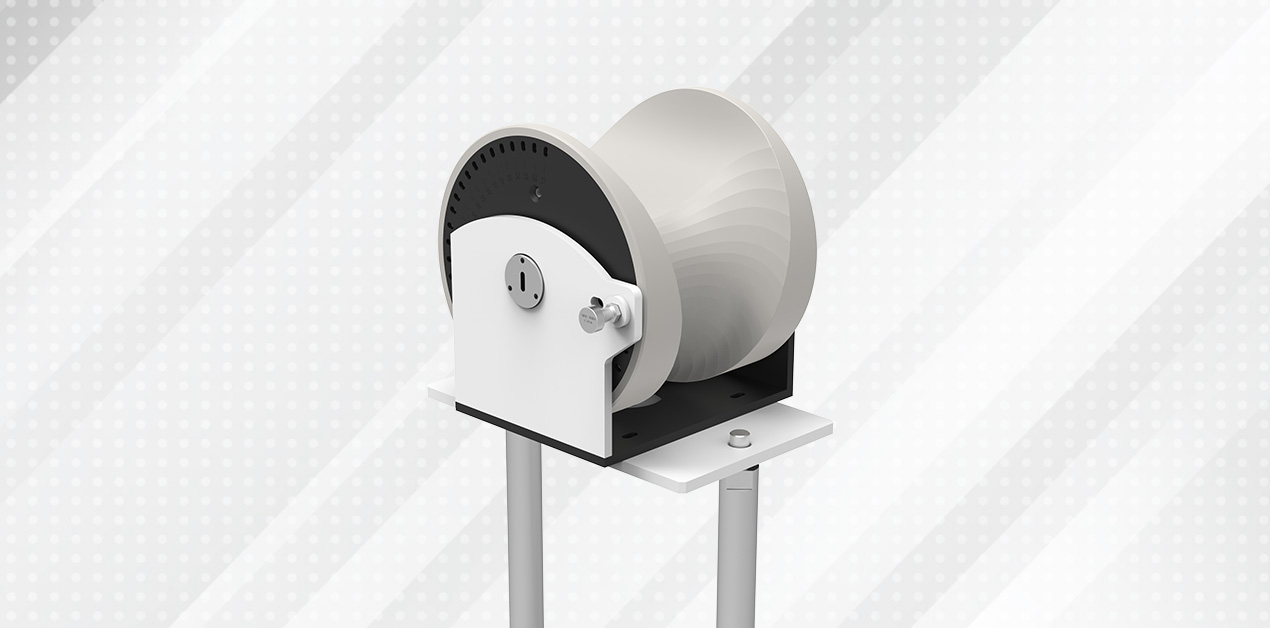

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation
problems in the process of long tube cutting

tube laser cutting machine price
tube laser cutting machine

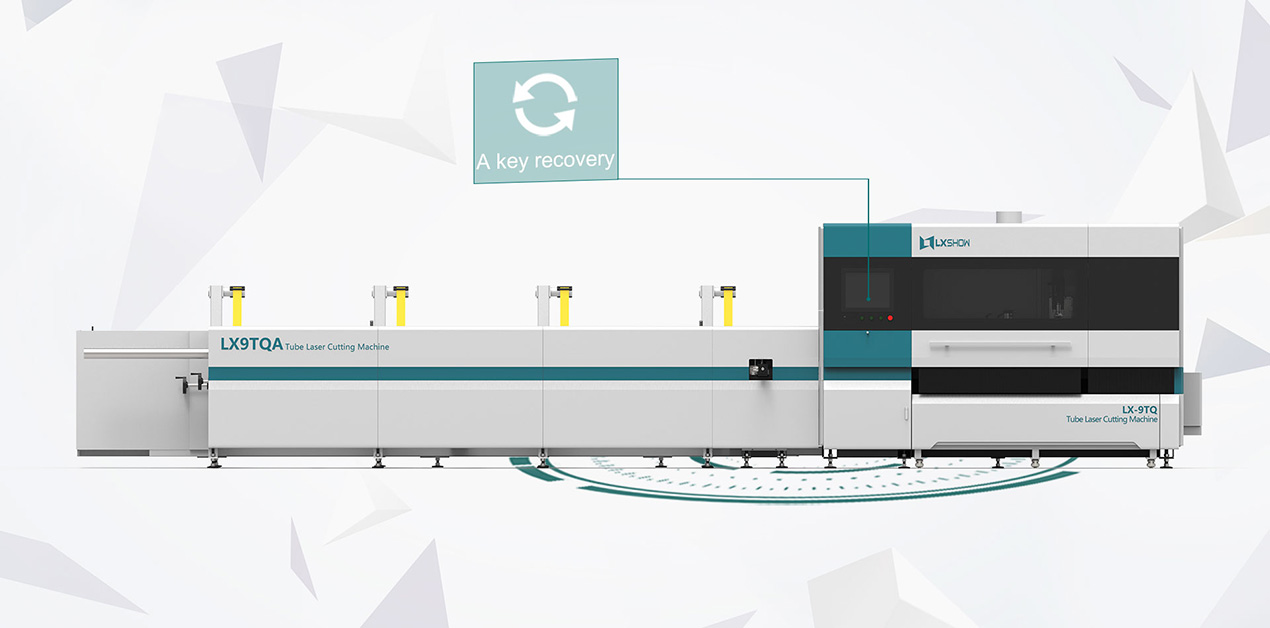

The Absolute Value Servo Motor

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation

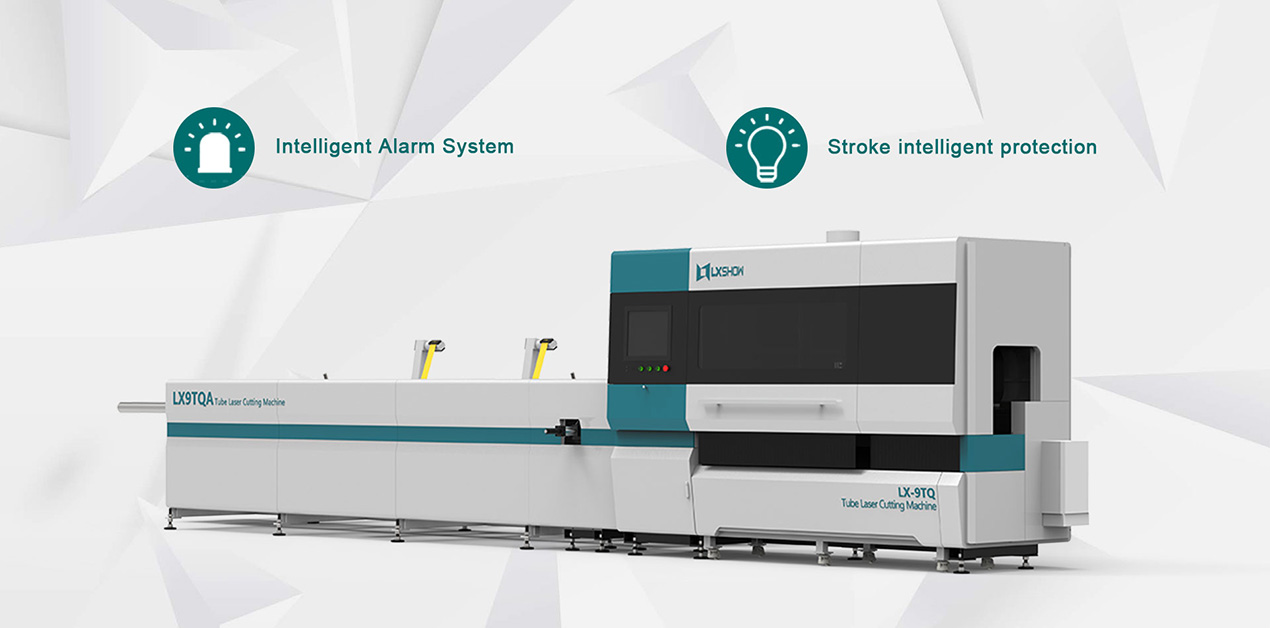

Intelligent Alarm System

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

tube laser cutting

Stroke intelligent protection

Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

tube laser cutting machine

FOB Reference Price Range USD: 10000-50000
Model Number:LX9TQ
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.

Machine Size:(About)1000*2600*1500mm (Only machine main parts)
Machine weight:1000KG(Only machine main parts)
Warranty:3 years
Shipping:By sea/By land



Laser Power


Length of laser wave


Type of Laser

Single mode

photoelectric conversion efficiency


Work Mode

Continuous light

Power range


Power Unstabilit


Transmission fiber core


Length of Fiber


Cooling way

Water cooling

Water chiller model


Cooling water temperature



AC 220V±10% AC380±10%50/60Hz

 Temperature of work environment


 Humidity of work environment


LX9TQ Cheapest Front Pull Type Metal Steel Tube Pipe Fiber Laser Cutting machine Application

Application Materials:

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe,  Titanium Pipe, Metal Tube, Metal Pipe, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
