Symmetrical Three-roll Plate Rolling Machine for Sale

Symmetrical Three-roll Plate Rolling Machine for Sale (3)
Symmetrical Three-roll Plate Rolling Machine for Sale (1)
Symmetrical Three-roll Plate Rolling Machine for Sale (2)
Symmetrical Three-roll Plate Rolling Machine for Sale (3)
Symmetrical Three-roll Plate Rolling Machine for Sale (1)
Symmetrical Three-roll Plate Rolling Machine for Sale (2)
Symmetrical Three-roll Plate Rolling Machine for Sale

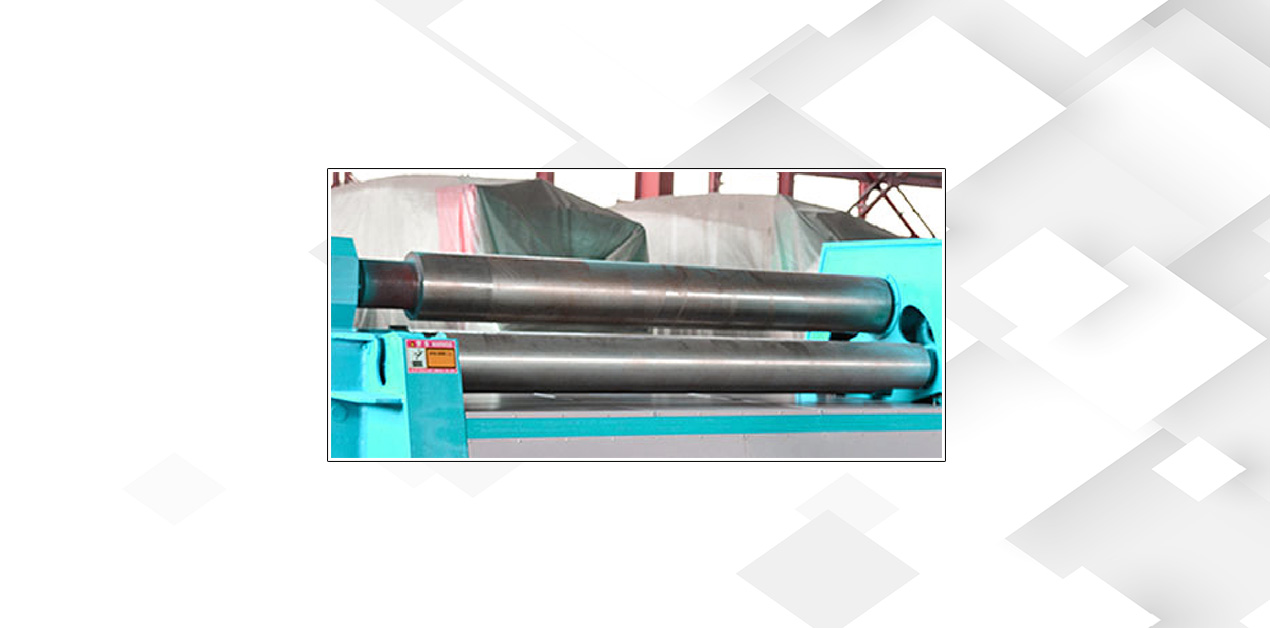

work roll

Work roll(45#steel)

The up and down roll movement of the work roll completes the coiling action.

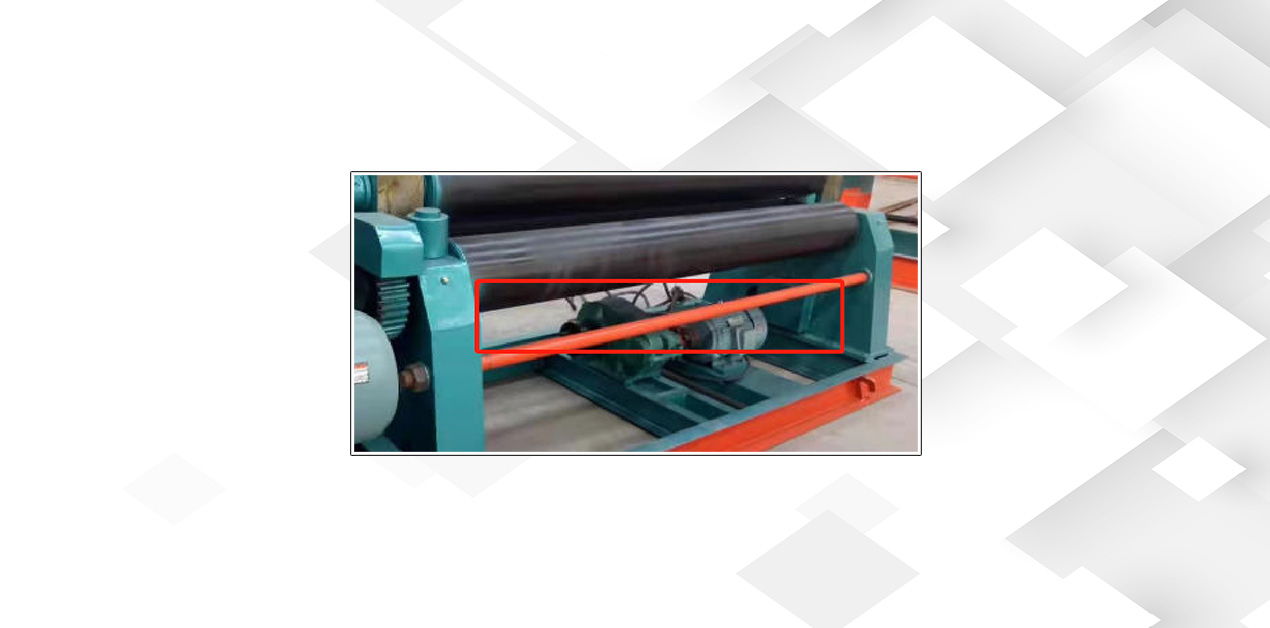

Screw

• The screw height adjustment mechanism is a mechanism that can adjust the height through a screw.

• The mechanism is composed of a screw and a nut. By rotating the screw, the nut is driven to move up and down, so as to realize the height adjustment of the working surface such as the workbench.

screw
Electrical components

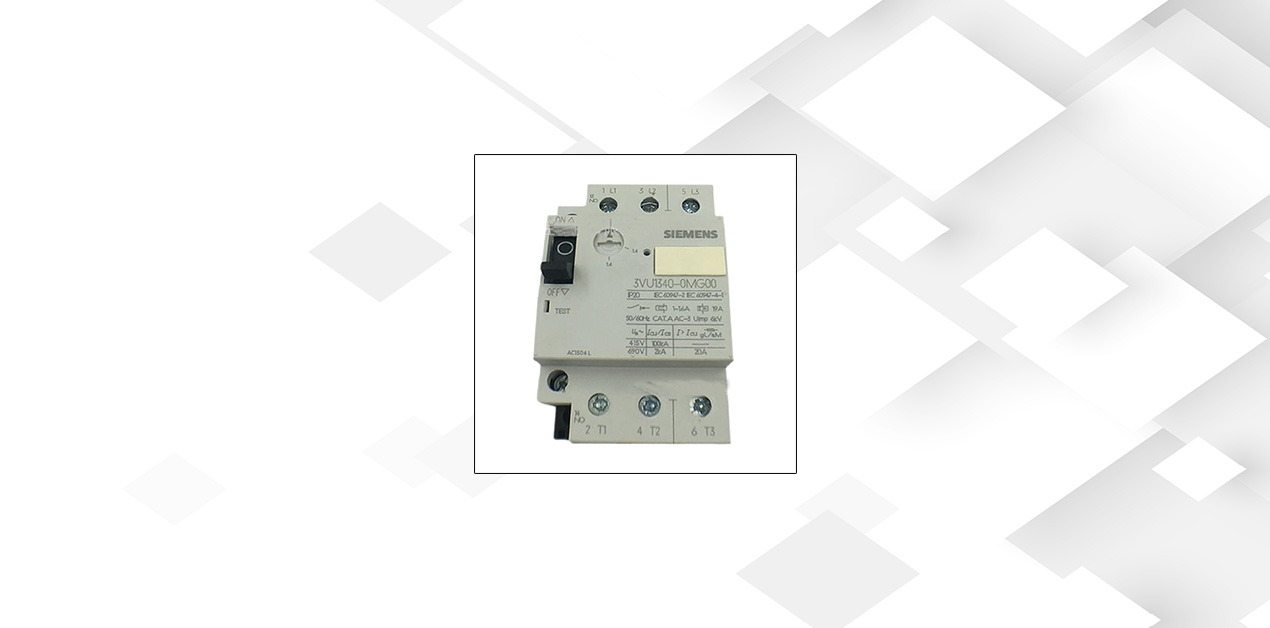

Electrical components

• Electrical components are famous Siemens brands, which is popular in market.

• Stable work ability.

Lifting worm assembly

Lifting freely, flexible operation performance

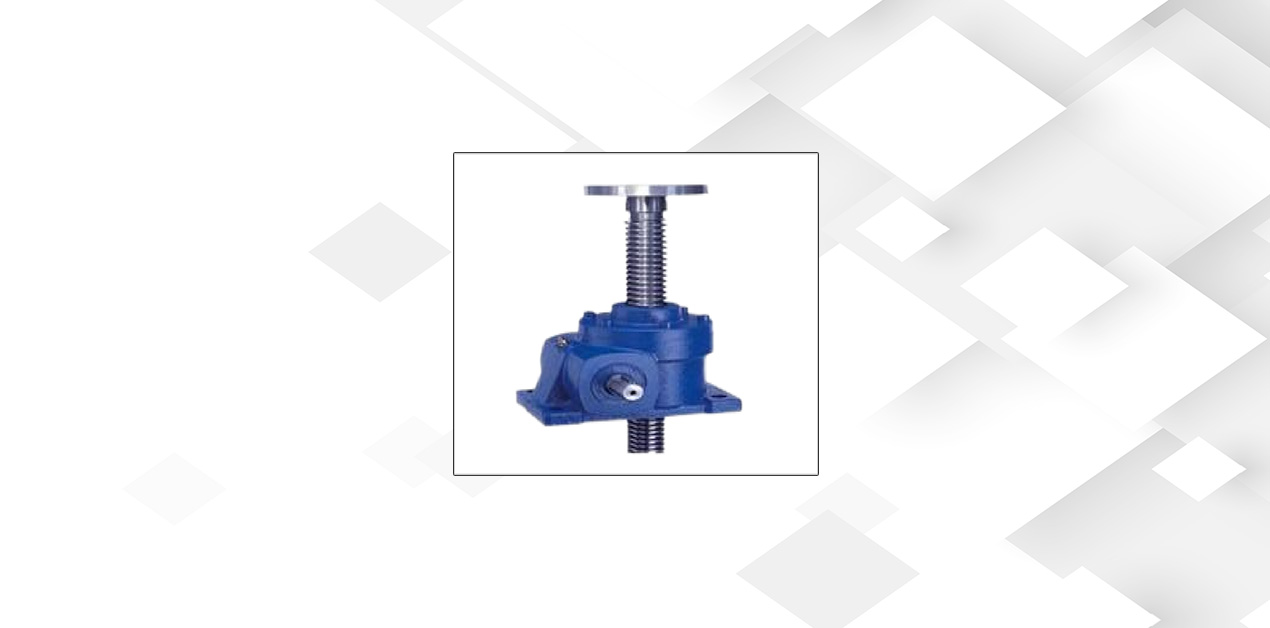

Lifting worm assembly
hydraulic pump

Rolling machine hydraulic system

Stand-alone system,easy maintenance(For hydraulic plate rolling machines)

Brand:Japan NOK

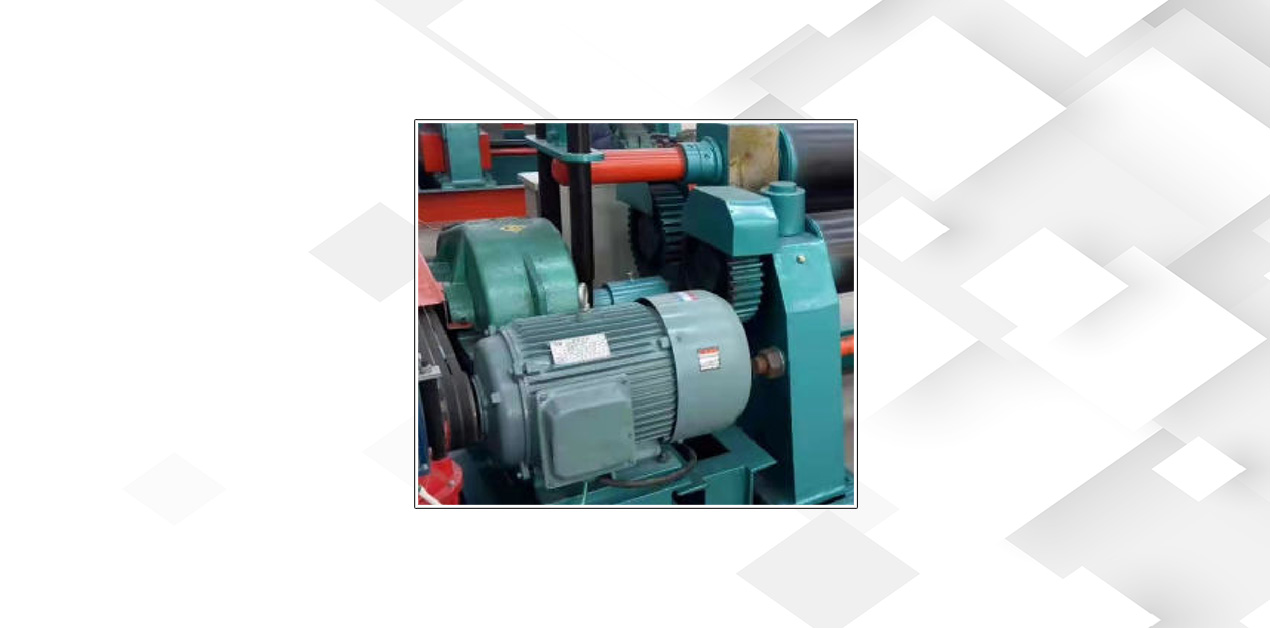

Main motor

Easy installation, easy adjustment, excellent performance, complete solutions.

main motor
reducer

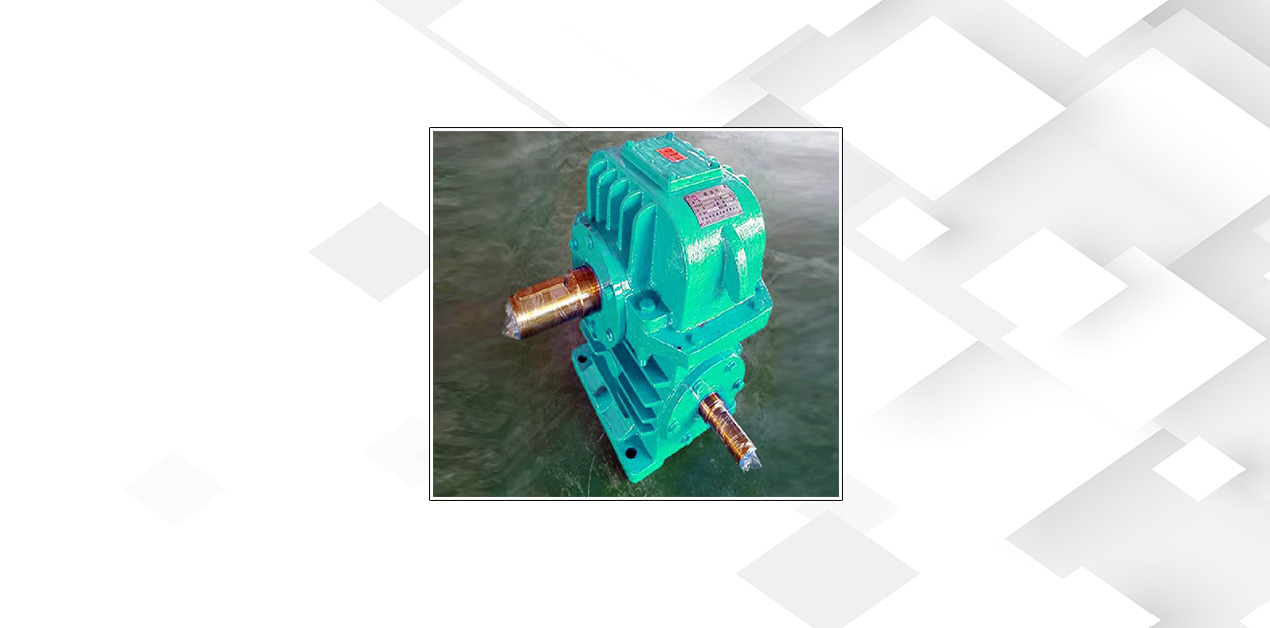

Reducer

The lowest backlash.

The maximum output torque.

The highest torsion rigidity.

High efficiency high quality low noise, lift time lubrication.

High precision, long life.

Hydraulic pump

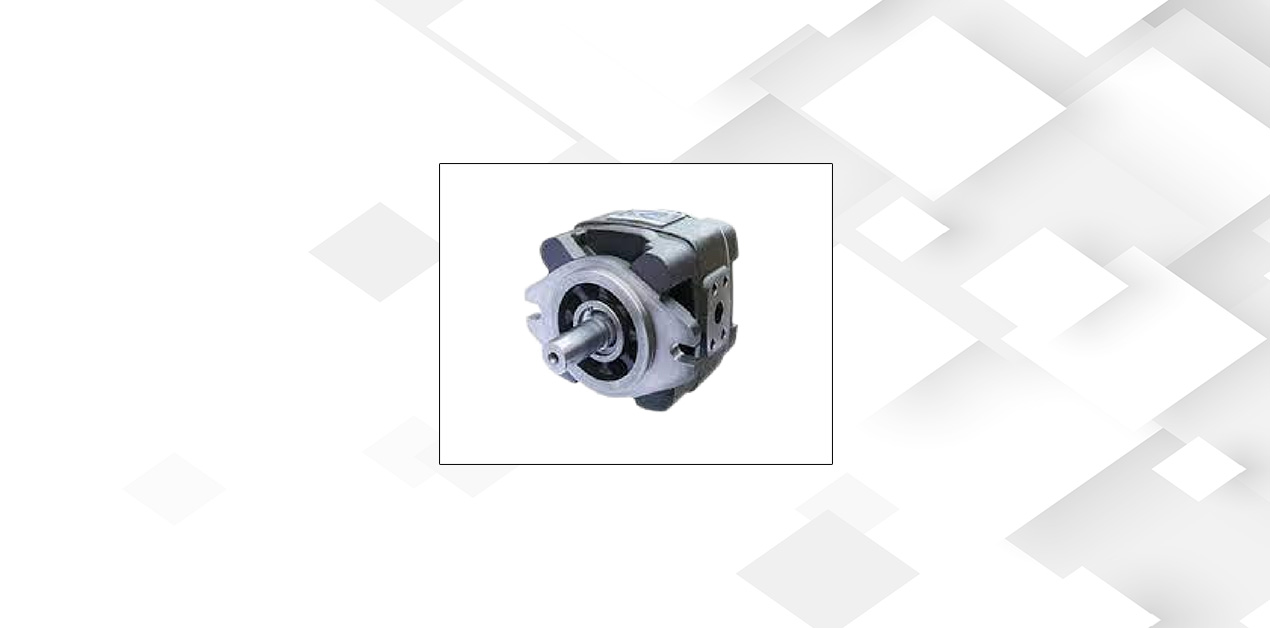

hydraulic pump
cylinder

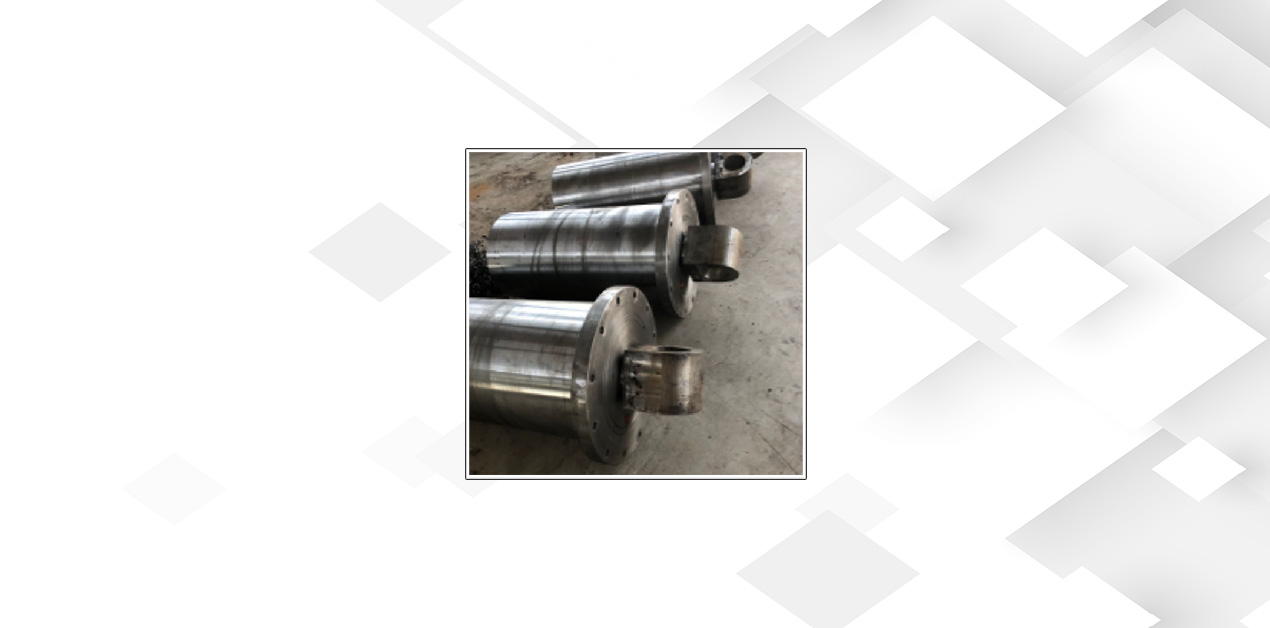

Cylinder

3 roller bending machine parameters

Model number: W11-16×2500

Leading time:15-20 work days

Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C

Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Specifications W11-16×2500
Structure type Symmetrical upward adjustment three-roll plate bending machine
Work roll material Solid round 45#steel

(high frequency quenching treatment)

Maximum width 2500mm
Roller working length 2550mm
Maximum Coil Thickness 16 mm
Plate Yield Limit 245Mpa
Upper roll diameter 250mm (45# steel, surface heat treatment)
Bottom roll diameter 200mm (45# steel, surface heat treatment)
Main motor power 15kW
Reducer JZQ400
Lift motor power 5.5kW
Auxiliary reducer JZQ250
Dimensions 4.15×1.50×1.45m



Symmetrical Three-roll Plate Rolling Machine consumable parts

1.Turbine shaft: using life more than 3 years

2.Wear-resistant sleeve for shaft head:using life about 3 years

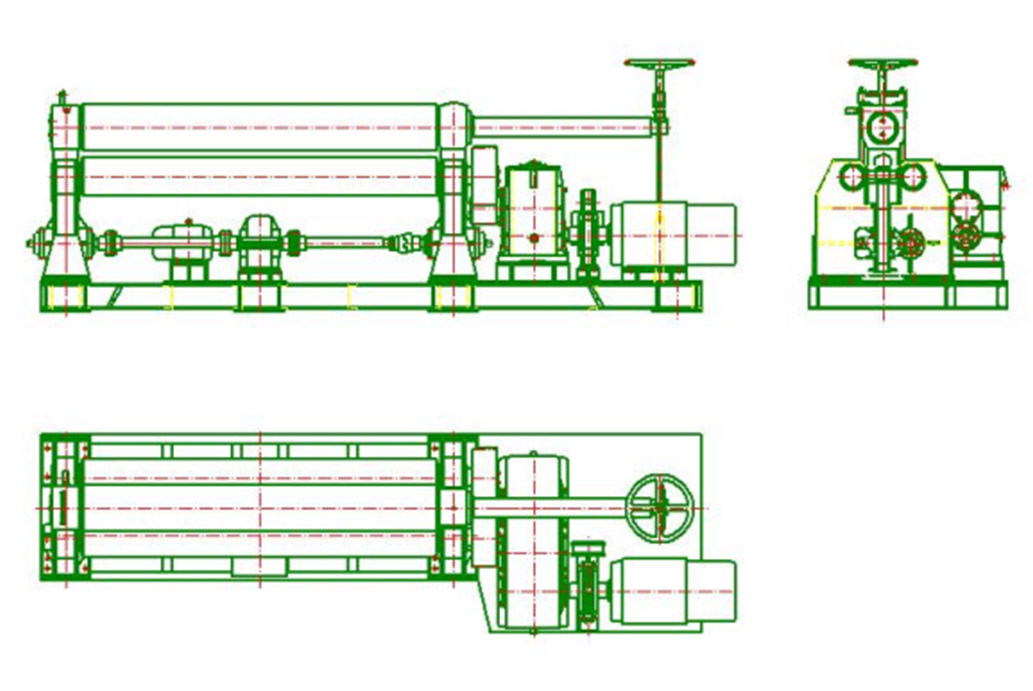

Symmetrical 3 roller bending machine diagram

Symmetrical 3 roller bending machine diagram



Applicable materials

Carbon steel, stainless steel, aluminum, copper, high carbon steel and other metals.



Application industry

As a mature mechanical processing equipment, the plate rolling machine has been widely used in steel, construction, shipbuilding, automobile manufacturing, machinery manufacturing, power equipment manufacturing, pressure vessels, energy industry, and even aerospace and other fields.

Application industry

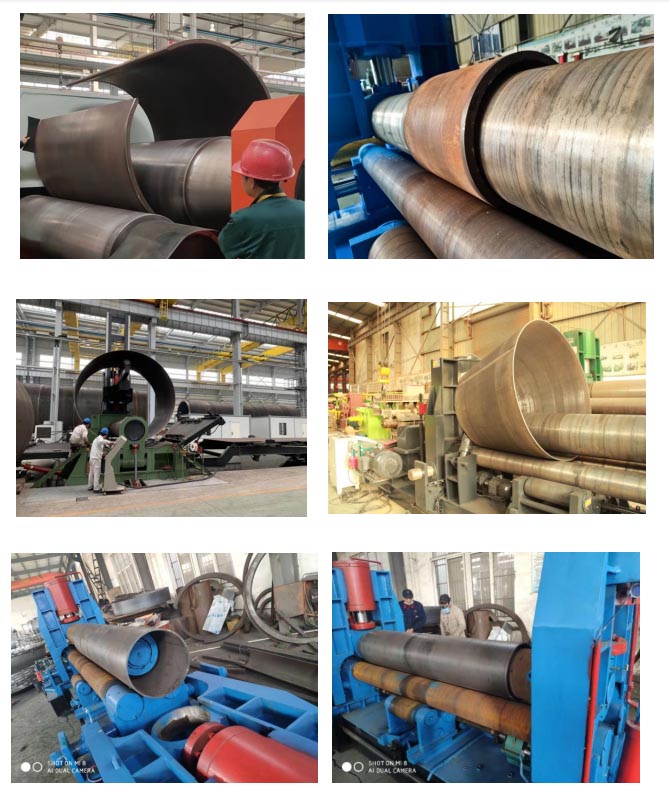

Plate rolling machine sample display

sample display

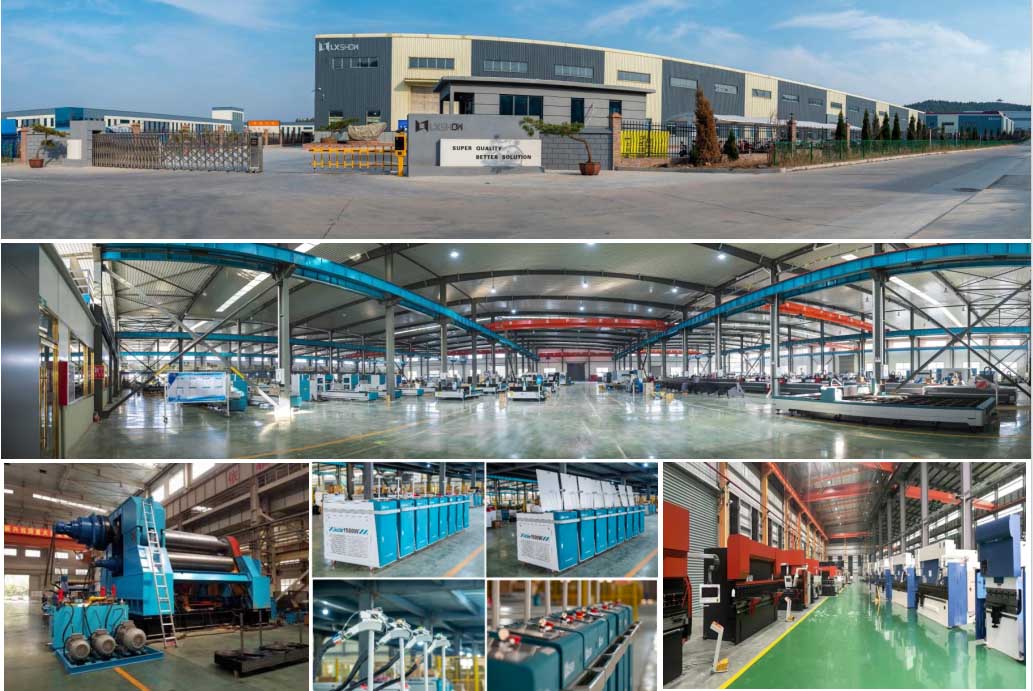

LXSHOW Factory display

Factory display
