WE67K-160T4000 Hot Sale High Quality CNC Bending Equipment for Sheet Metal

WE67K-160T4000

WE67K-160T4000 Hot Sale High Quality CNC Bending Equipment for Sheet Metal

WE67K-160T4000

WE67K-160T4000 Hot Sale High Quality CNC Bending Equipment for Sheet Metal

WE67K-160T4000

WE67K-160T4000 Hot Sale High Quality CNC Bending Equipment for Sheet Metal

WE67K-160T4000

WE67K-160T4000 Hot Sale High Quality CNC Bending Equipment for Sheet Metal

WE67K-160T4000

WE67K-160T4000 Hot Sale High Quality CNC Bending Equipment for Sheet Metal

WE67K-160T4000

Features

•Complete steel-welded structure, with sufficient strength and rigidity;
•Hydraulic down-stroke structure, reliable and smooth;
•Mechanical stop unit, synchronous torque, and high precision;
•The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;
•Upper tool with tension compensating mechanism, In order to guarantee high precision of bending

CNC System

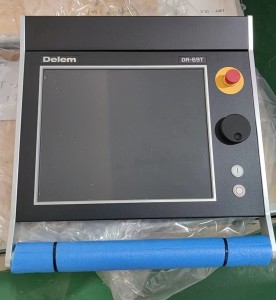

-The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile than ever.

Upper Tool Fast Clamp

·Upper tool clamping device is fast clamp

Multi-V Bottom Die Clamping(option)

·Multi-V bottom die with different openings

Backgauge

·Ball screw/liner guide are high precision

Front Support

·Aluminium alloy material platform ,attractive appearance,
And decrease scratch of workpicec.

Optional Crowning Compensation for Worktable

· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
·The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

Quick Change Bottomm Die

·Adopt 2-v quick change clamping for bottom die

Lasersafe Safety Guard

·Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module
· Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers；three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.

Mechanical Servo Bending Help

· When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.
· Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning
·Support platform can be brush or stainless steel tube ,according to workpiece size,two supports linkage movement or seperate movement can be chosed.

Main Technical Parameters

Machine model		WE67K-160T4000
Nominal Pressure		1600 kN
Bending length		4000 mm
Distance between columns		3200 mm
Throat Depth		320 mm
Opening Height		400 mm
Slide running condition	moving journey/stroke	200mm
	fast down speed	180mm/s
	return speed	110mm/s
	working speed	10mm/s
Slide running precision	Position accuracy	±0.03mm
Slide running precision	Repeat Position accuracy	±0.02mm
Main motor power	Power	11 KW
Main motor power	rotate speed	1440r/min
Operate system	Model	KT15
Oil Pump	Model	USA sunny
Bending precision	angle	±30
Bending precision	straightness	±0.7mm/m
Voltage		220/380/420/660V

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

FAQ

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you.

Q: How about warranty?

A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be

changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.

Q: Do you have any other machine style?

A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.
