3015FL CNC Fully Automatic Assembly Line Coil Stainless Steel Metal Laser Cutting Machine with Leveling Feeding Cutting

LX3015FL

LX3015FL

3015FL CNC Fully Automatic Assembly Line Coil Stainless Steel Metal Laser Cutting Machine with Leveling Feeding Cutting

LX3015FL

3015FL CNC Fully Automatic Assembly Line Coil Stainless Steel Metal Laser Cutting Machine with Leveling Feeding Cutting

LX3015FL

3015FL CNC Fully Automatic Assembly Line Coil Stainless Steel Metal Laser Cutting Machine with Leveling Feeding Cutting

LX3015FL

3015FL CNC Fully Automatic Assembly Line Coil Stainless Steel Metal Laser Cutting Machine with Leveling Feeding Cutting

LX3015FL

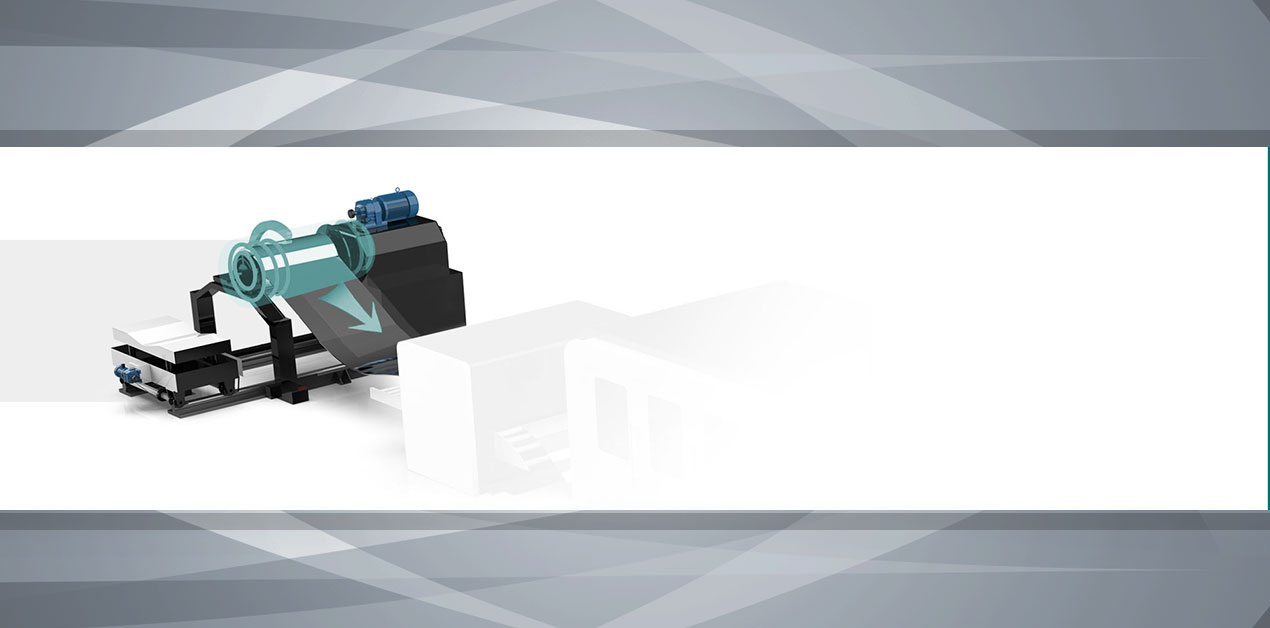

Decoiler

LX3015FL coil fed laser cutting machine combines a decoiling system that processes the coils from 600mm up to 1250mm in width.It can also operate 10000kg materials.

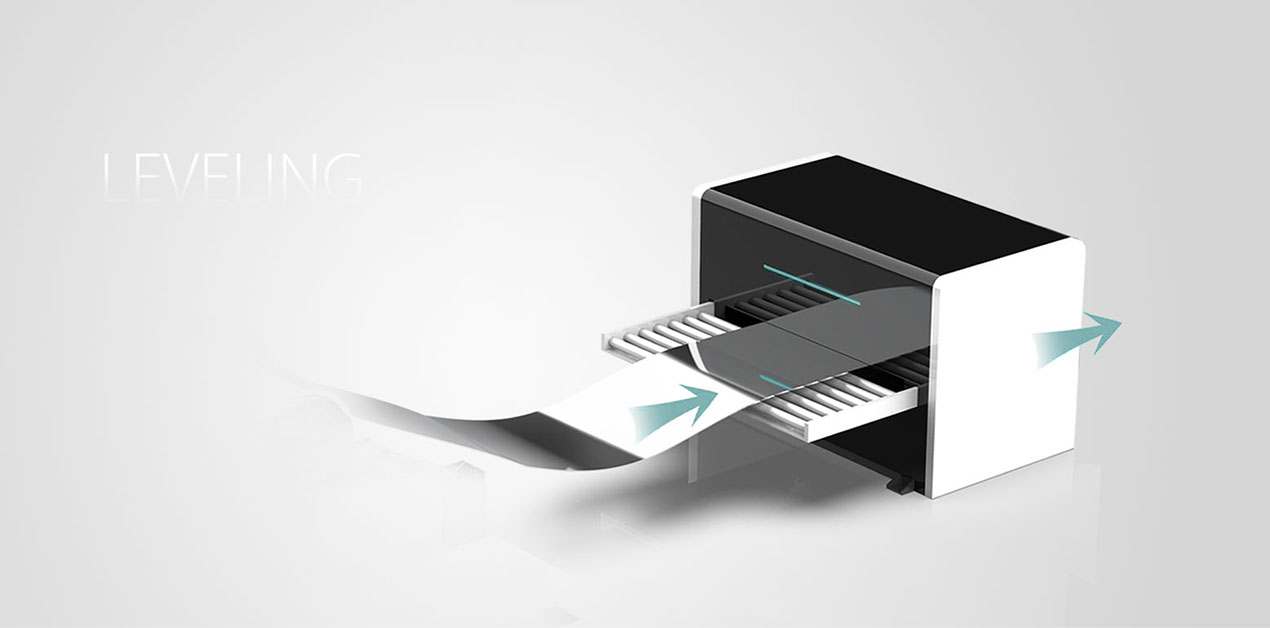

Straightener

The leveling feeder straightens the material,with the adjustment accuracy of correction amount of ±0.01mm

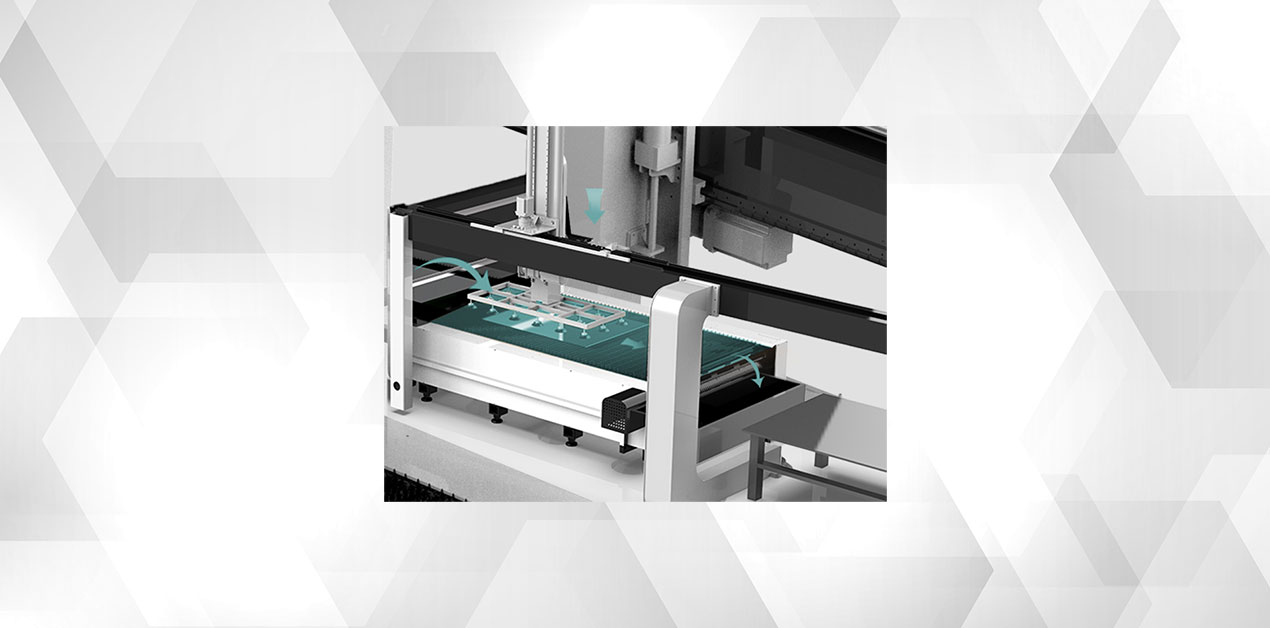

Automatic unloading system

The unloading device,equipped with a vacuum chuck, allows for automatic unloading and stacking of finished products,which can ensure reduced labor and increased efficiency.

Parameter

Model Number:LX3015FL
Lead time:15-35 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size:(5480+8034)*4850*(2650+300)mm(About)

Machine weight: 10000KG
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Power of Generator	3000W (Optional powers: 1000W, 1500W, 2000W, 3000W, 4000W)
Working Area	3050*1530mm
Laser Generator	Raycus
Laser Wave Length	1064nm
Working Table	Sawteeth
Maximum Idle Running Speed	120m/min
Maximum acceleration	1.5G
Positioning Accuracy	±0.02mm/m
Repeated Positioning Accuracy	±0.01mm
Cutting Thickness	Carbon steel:≤22mm;Stainless steel:≤10mm
Control System	Weihong
Position Type	Red dot
Power Consumption	≤21KW
Working Voltage	380V/50Hz
Auxiliary Gas	Oxygen,nitrogen,air
Working life of fiber module	More than 100000 hours
Cutting head	Ospri laser head LC40SL
Cooling system	S&A/Tongfei/Hanli industrial water chiller
Decoil and Flattener speed	8-15m/min
Roller quality	13 pieces
Uncoiling thickness	0.5-1.5mm SS;0.5-3.5mm Aluminum,galvanized
Material width	0-1500mm
Material Diameter	470-530mm/570-630mm
Rated Load	8T
Work Environment	0-45℃，Moisture 45-85%

Factory

Our Service

Customer Visit

Off-line Activity

FAQ

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: Payment terms?
A:TT/West Union/Payple/LC/Cash and so on.

Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.

Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
