CNC 4 Roll Plate Rolling Machine for Sale
four rolls1
working roll

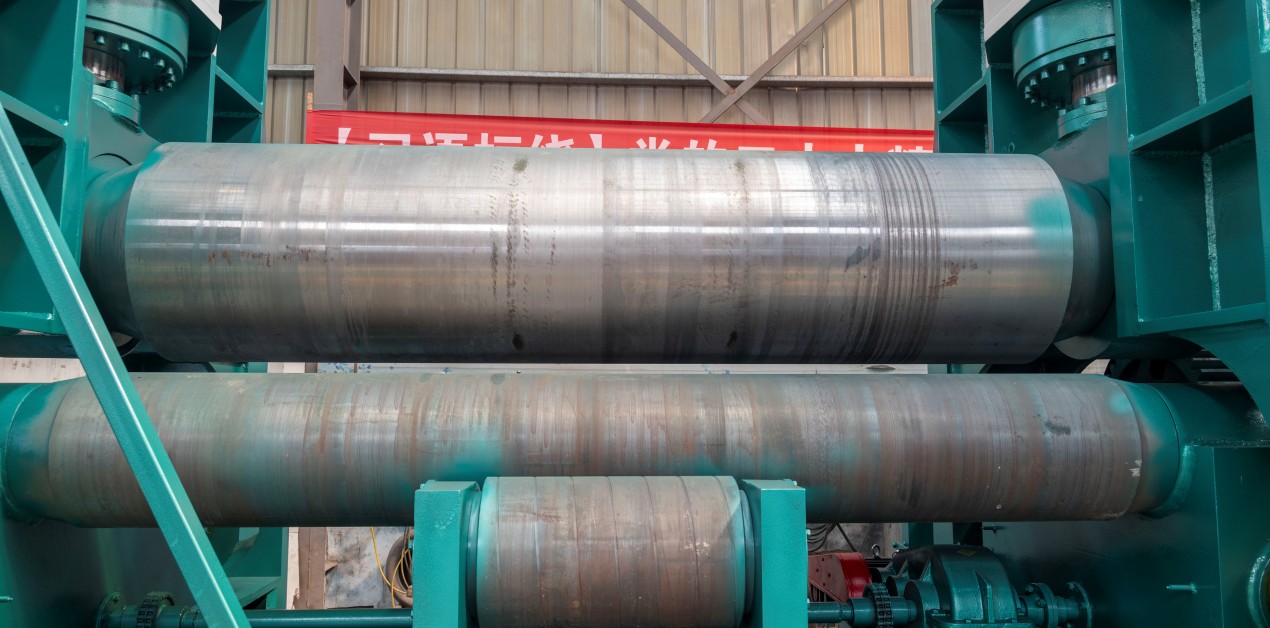

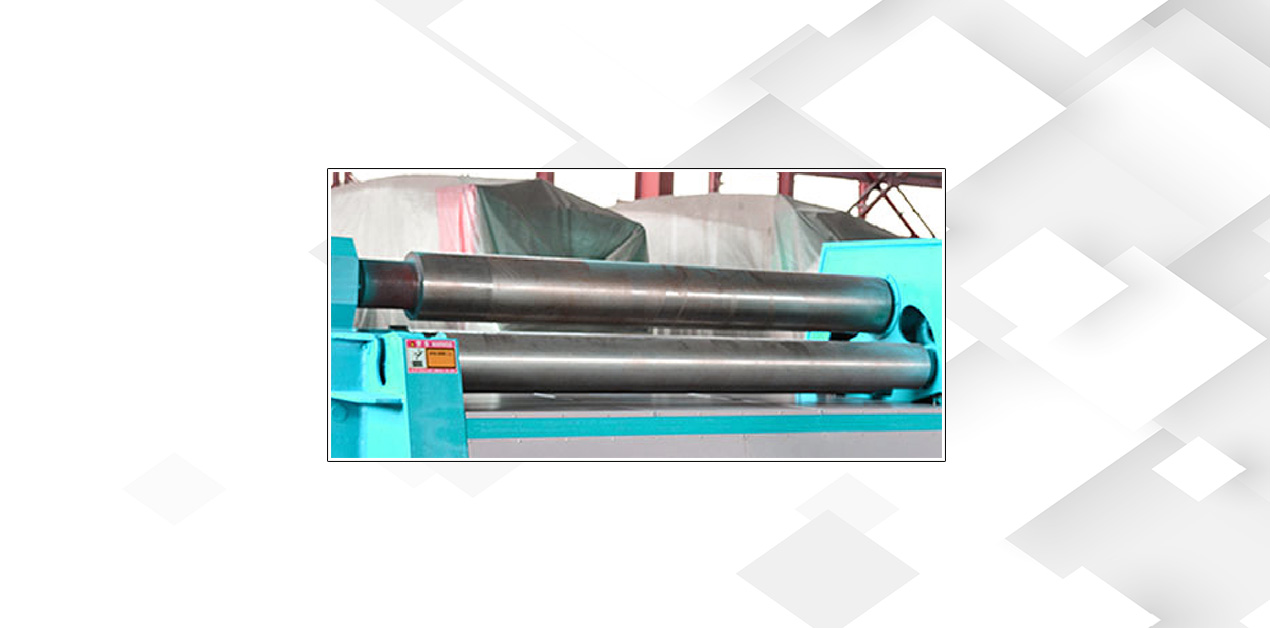

Working rolls:

Working rolls are the main components of the plate rolling machines.When the hydraulic and mechanical force works on the rolls,the sheets and plates can be bent to curved shapes.

Worm wheel:

The worm wheel is used to drive the rolling reel to rotate faster,greatly affecting the rolling efficiency.

working rolls2
motor

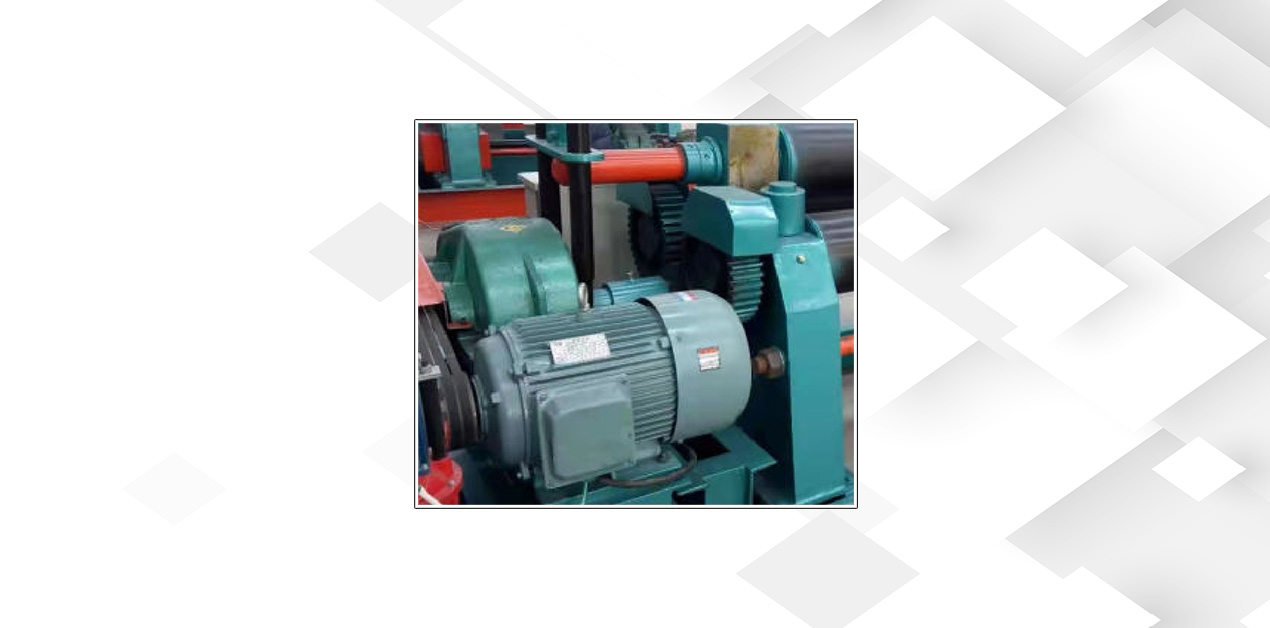

Motor:

The motor is the main part that drives the upper and lower rolls to work.

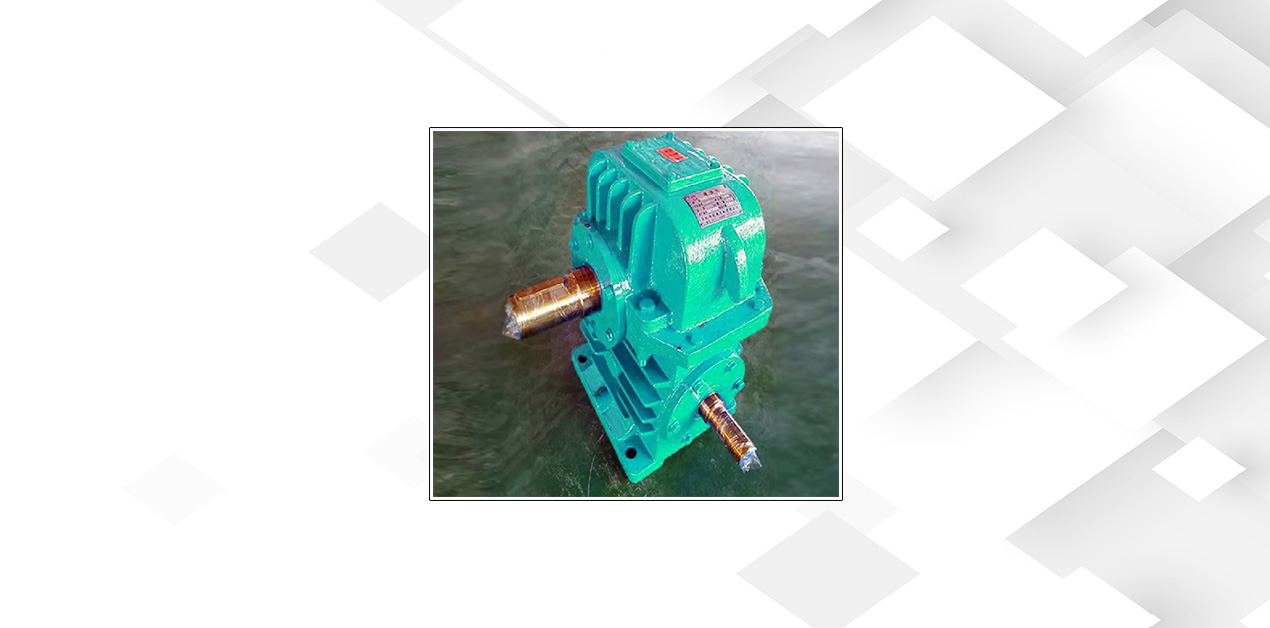

Reducer:

The reducer connects with rolls from the upper and lower position to deliver torque.It helps to maintain constant acceleration and torque.

reducer4

Machine Description:

A plate rolling machine is a machine that can roll metal plates&sheets into circular, curved shapes.It has been used a many industries and there are three types of rolling machines from LXSHOW,including mechanical,hydraulic and four rolls.

A rolling machine works by using rolls to bend the plates and sheets into the desirable shapes.The mechanical force and hydraulic force work on the rolls to bend the material into oval,curved and other shapes.

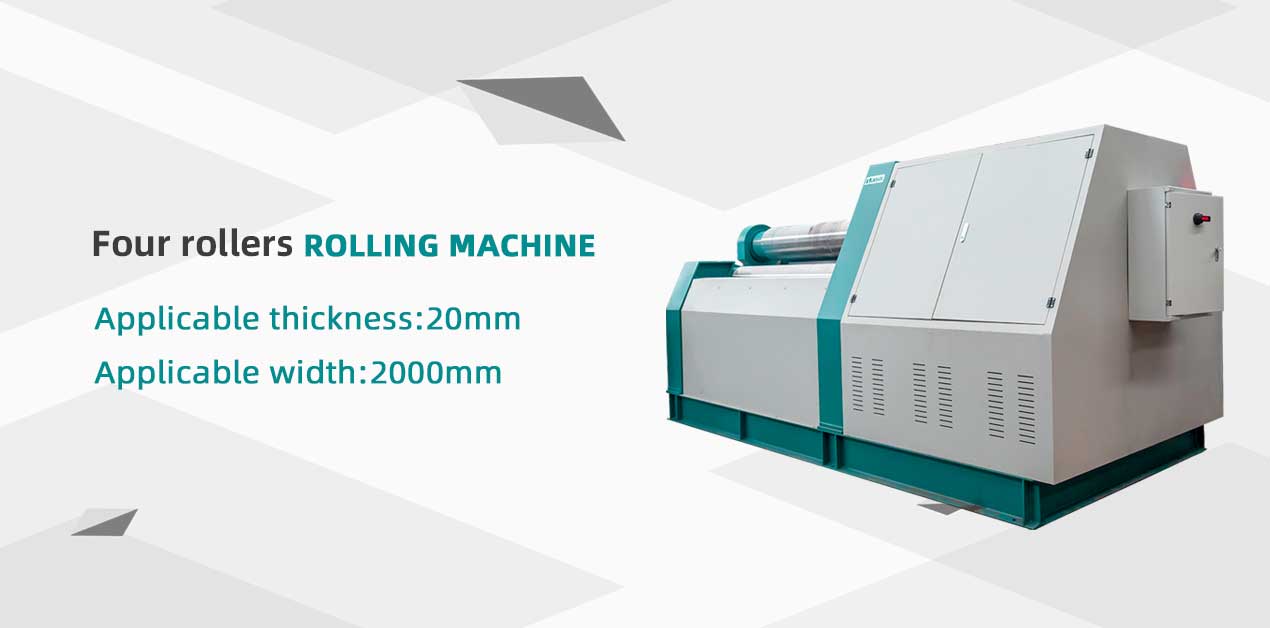

The four-roll plate rolling machine has two rolls in the upper and lower position respectively.

The upper rolls of the 4 roll plate rolling machine are the main drive.The reducer,cross slide coupling are connected with the upper rolls,providing torque for the rolling.The lower rolls are responsible for the vertical movement to clamp the plates.

Advantages of 4 Roll Plate Rolling Machine:Four Rolls VS Three Rolls

Compared with three-roll plate rolling machine,the four-roll model,mainly driven by the hydraulics, offers greater efficiency and accuracy.This expains the lower prices of three-roll model.If a higher machining standard is required,the four-roll plate rolling machine is more recommended.

In addition,3 roll plate rolling machines require manual unloading of the finished workpiece while the 4 roll plate rolling machines offer a more convenient unloading which is mainly controlled by the button.Thus,they are more safe and convenient than the three-roll models.

Materials Suitable for Plate Rolling Machine:

Carbon steel,stainless steel,aluminum,copper,high-carbon steel and other metals

Applications of 4 Roll Plate Rolling Machine:

The plate rolling machines have been used in industries, such as automotive, construction, shipbuilding,home appliance.

1.Construction:

The plate rolling machines are often used to bend roofs,walls and ceilings and other metal plates.

2.Automotive:

The plate rolling machines are widely used for fabricating the automotive parts.

3.Home appliance:

The plate rolling machines are commonly used to work on the metal covers of some home appliances.

After-Sales Service:

For the plate rolling machines,we offer a three-year warranty and 2-day training.

Contact us to find more now!
