LXW-1000/1500/2000W Handheld Fiber Laser Welding Machine Equipped with Robot Arm

laser welding machine
fiber laser welding
handheld laser welder
laser welder
laser welding
laser weld
LXW-1000/1500/2000W Handheld Fiber Laser Welding Machine Equipped with Robot Arm
hj

HANDHELD LASER WELDING MACHINE FEATURES

1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.

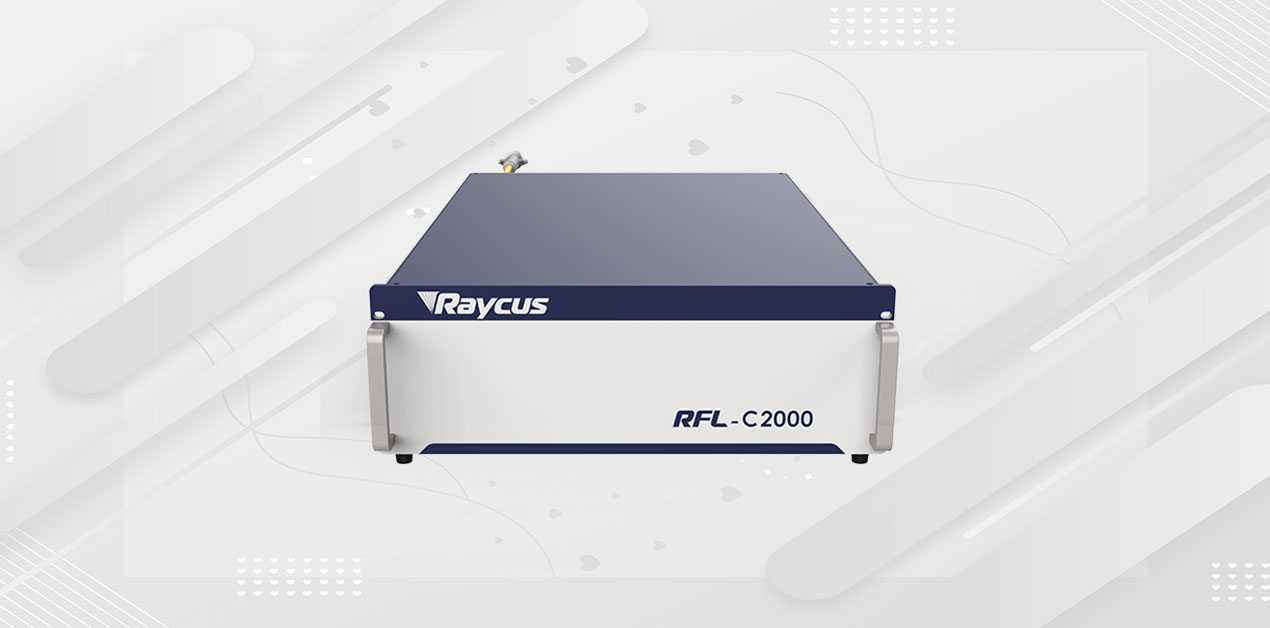

Laser brand: Raycus/MAXIJPT
Laser power: 1000/1500/2000W/3000W as your requirements

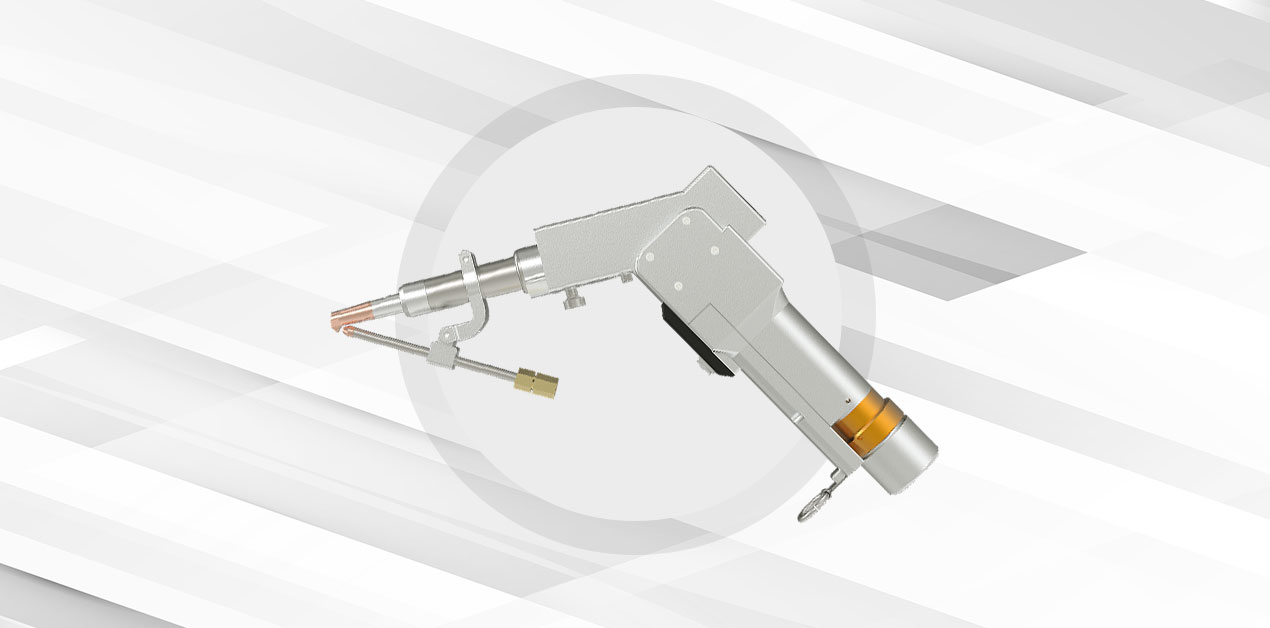

SWING LASER WELDING HEAD

• Hand-held welding head, easy to operate with one hand, comfortable to hold, light and flexible.
• Beautiful welding seam, no deformation: After the laser beam is focused, the obtained spot is larger, the welding seam width is smaller, the heat affected zone is small, and the deformation is small, and there is no need to reprocess after welding.
• It can be widely used in metal equipment processing, and the welding process is far superior to traditional argon arc welding and electric welding.

t
Control

The welding seam of the laser welding machine is more beautiful, the operation is simple, the welding speed is fast, and there are no consumables. It can be widely used in the welding of stainless steel, carbon steel, iron and other metal materials.

Control buttons and screens:Convenience cooperation. The intelligent system has stable performance and simple operation, and is suitable for processing a variety of metal materials.

Model Number: LXW-1000/1500/2000W
Lead time: 5-10 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 1150*760*1370mm

Machine weight: 275KG
Brand: LXSHOW
Warranty: 2 years
Shipping: By sea/By air/By Railway

Model LXW-1000/1500/2000W
Laser power 1000/1500/2000W
Center wavelength  1070+-5nm
Laser frequency  50Hz-5KHz
Work patterns  Continuous
Electricity demand  AC220V
Output fiber length  5/10/15m (Optional)
Cooling method  Water Cooling
Dimensions  1150*760*1370mm
Weight  275kg(About)
Cooling water temperature  5-45℃
Average consumed power  2500/2800/3500/4000W
Laser Energy Stability  <2%
Air humidity 10-90%

Application

Laser welding machine is suitable for welding of stainless steel, iron, carbon steel, galvanized sheet, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
