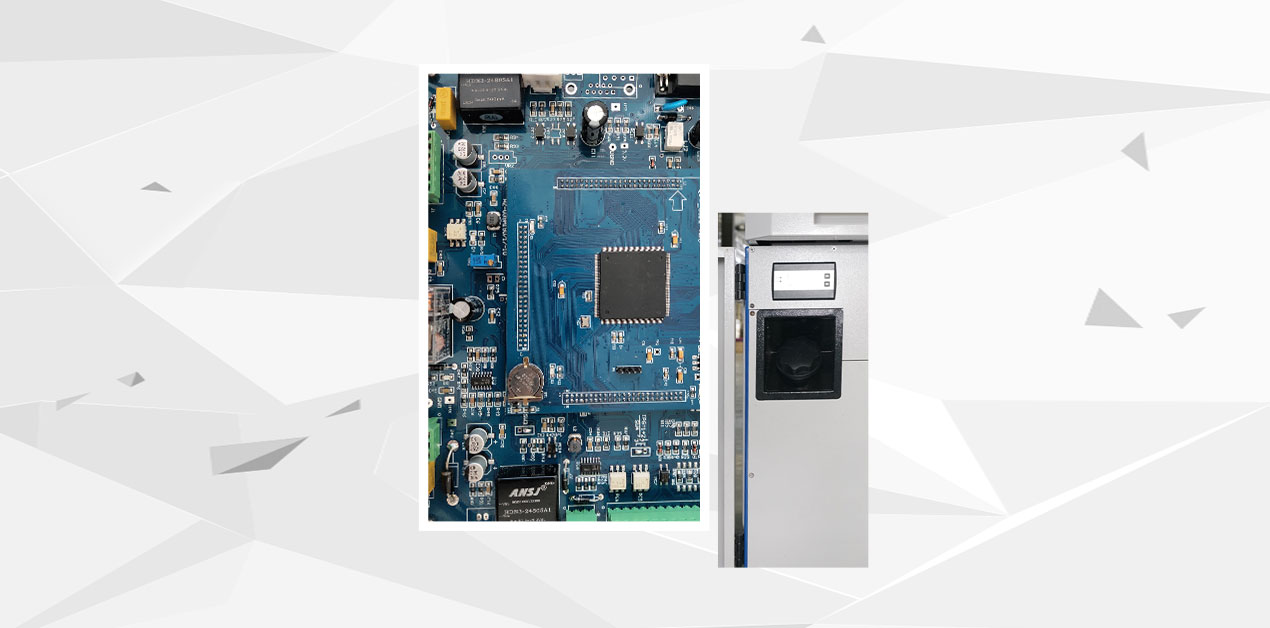

HW control system
usually coperate with laser head

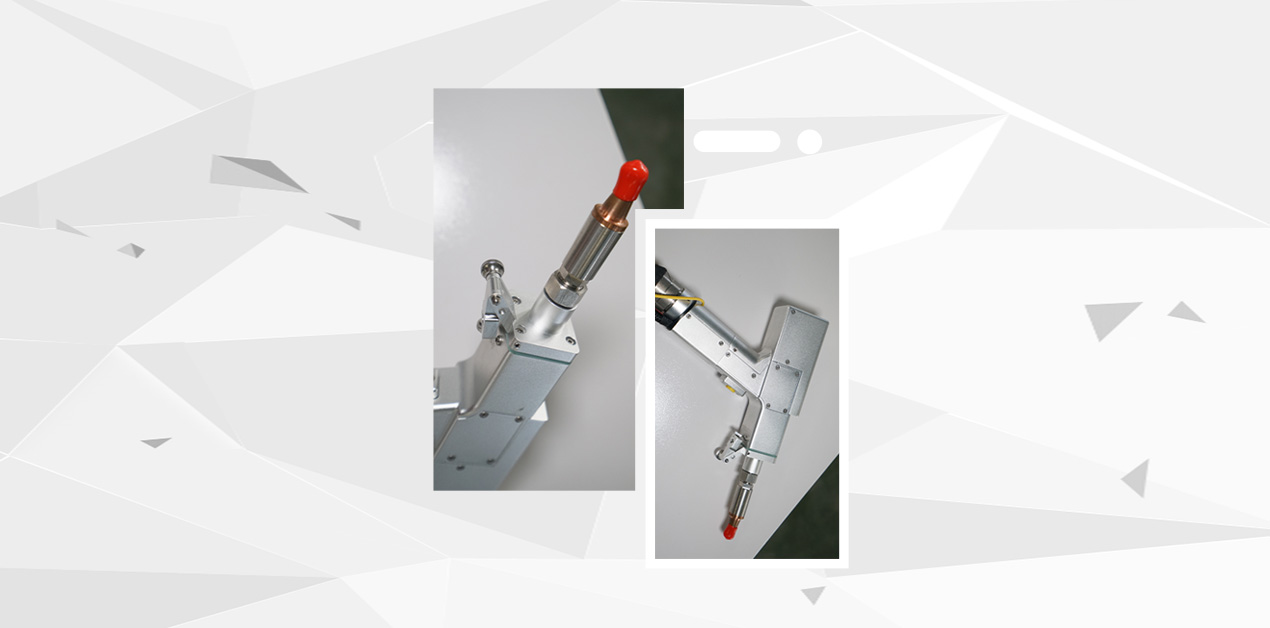

Handheld Laser Welding Head
• Hand-held welding head, easy to operate with one hand, comfortable to hold, light and flexible.
• Beautiful welding seam, no deformation: After the laser beam is focused, the obtained spot is larger, the welding seam width is smaller, the heat affected zone is small, and the deformation is small, and there is no need to reprocess after welding.
• It can be widely used in metal equipment processing, and the welding process is far superior to traditional argon arc welding and electric welding.

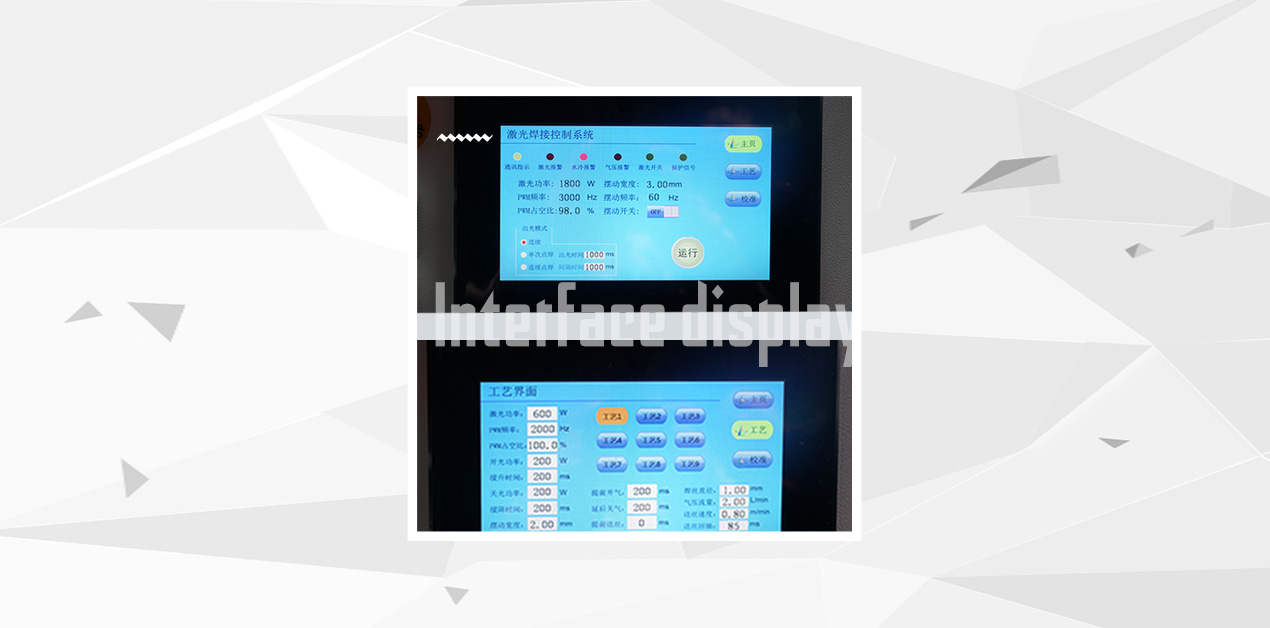

Control Buttons And Screens
Convenience cooperation. The intelligent system has stable performance and simple operation, and is suitable for processing a variety of metal materials.

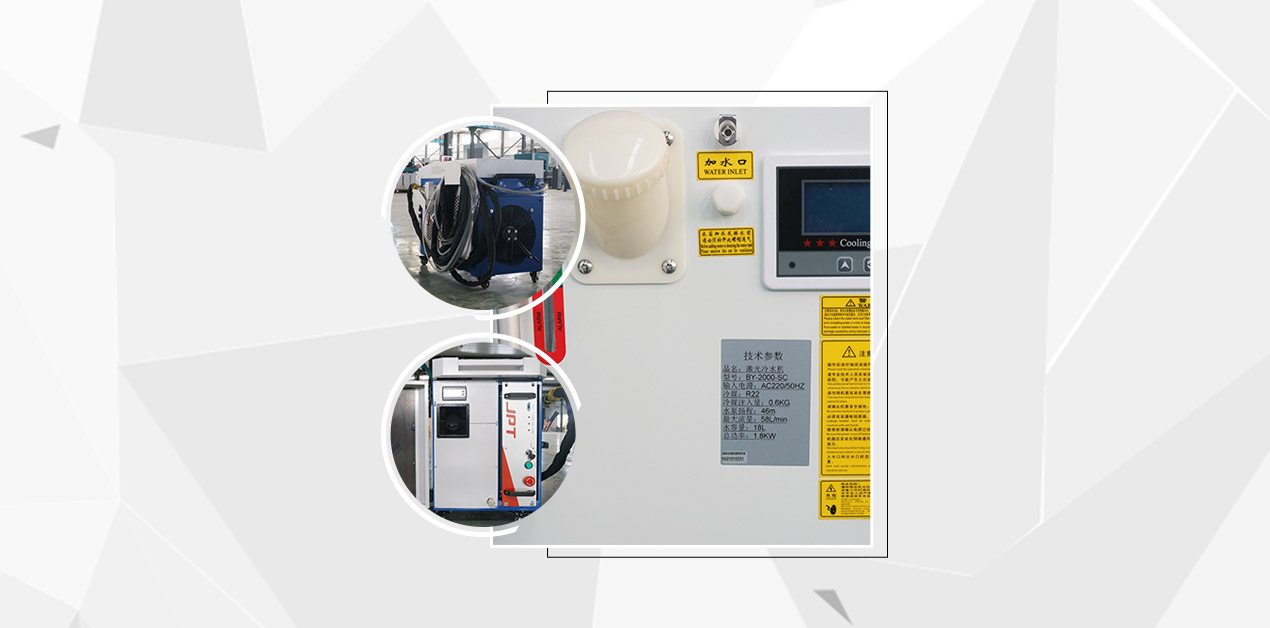

The Main Features of Water Chiller
Gurantee work fluently, With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; high temperature / low temperature alarm;
Model Number: LXW-1500W
Lead time: 5-10 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 1150*760*1370mm
Machine weight: 275KG
Brand: LXSHOW
Warranty: 2 years
Shipping: By sea/By air/By Railway
| Model | LXW-1500W |
| Laser power | 1000/1500W |
| Center wavelength | 1070+-5nm |
| Laser frequency | 50Hz-5KHz |
| Work patterns | Continuous |
| Electricity demand | AC220V |
| Output fiber length | 5/10/15m (Optional) |
| Cooling method | Water Cooling |
| Dimensions | 1150*760*1370mm |
| Weight | 275kg(About) |
| Cooling water temperature | 5-45℃ |
| Average power | 2500/2800/3500/4000W |
| Laser Energy Stability | <2% |
| Air humidity | 10-90% |
Application
Laser welding machine is suitable for welding of stainless steel, iron, carbon steel, galvanized sheet, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
