LXW-1500W Reci Laser welding machine

1
2
3
1
2
3
LXW-1500W Reci Laser welding machine

Application

MACHINE MODEL

QUANTITY (SET)

PRICE (USD)

Warranty

LXW

Reci :FOB:QINGDAO

1

******

2 years

Machine body

New design of our company
CE standard Heavy duty machine frame

Controller

Reci controllerLED touch panelMother language customized

Reci laser gun

Laser system

Fiber laser source Reci 1500W

Cooling system

Air cooling system

Other important parts

France Schneider Electric DeviceWire feederOutput cable length: 10m

Consumable parts

10xProtective lens10xWelding nozzles

Service

Manual +Video2-year warrantyOversea service

24 hours online service

Dimension (L*W*H)mm

800x750x900mm

N.W/Kg

65KG

CBM(m3)/set

1CBM

G.W(kg)

75KG

Packing

Plywood package

Delivery time

5-10 work days

Payment

Alibaba Trade Assurance, T/T, Western Union, L/C
1

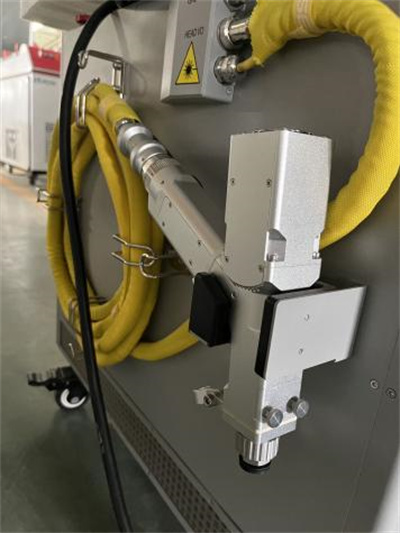

Reci laser gun

•Easy to operate
•High working efficiency
•Consumables easily change

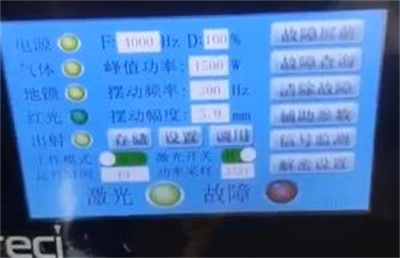

Reci control system


•LED touch screen, easy to operate
•Recommend parameters, easy to set
•Language customized

2
3

Reci laser source

·China famous laser source brand
·Stable quality

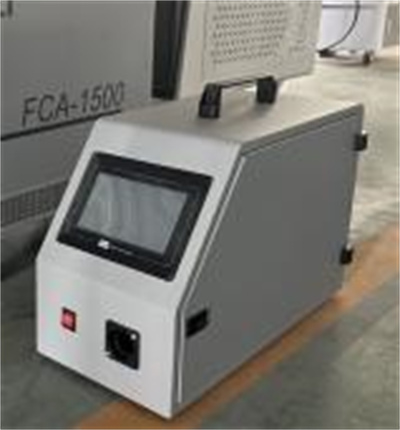

Wire feeder


Used to reach a better welding effect

4

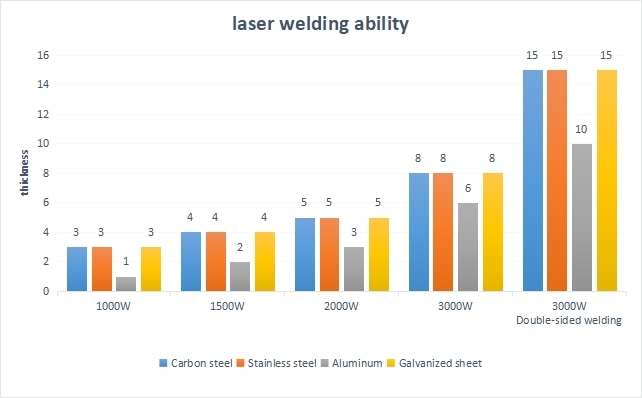

Laser Welding Ability

5

Parameter

Model

LXW

Laser source

Reci

Working life of fiber module

More than 100,000 hours

Laser machine controller

Reci

Wobble welding head

Single wobble

Supply voltage

Single-phase 220V±10%, 50/60Hz AC

Machine power consumption

11.5Kw(including chiller)

Setting up the environment

Flat, no vibration, no impact

Working temperature

0°C~40°C

Working environment humidity

≤80%

Power adjustment range (%)

10-100 (gradient adjustable)

Laser Source Repeat frequency (KHz)

1000-5000 (gradient adjustable)

Beam quality

1.3m2

Laser wavelength

1070nm

Focal length (mm)

150

Cooling method

Air cooling

Size

800x750x900mm

Weight

65kg

Fiber length

10 meters

Welding head weight

1.5Kg

Scanning/Swing frequency

20-150Hz

Mobile mode

Handheld

Auxiliary gas

99.99% argon or nitrogen

Auto wire feeder

Included

Spot adjusting range

0-5mm

Repeating Precision

0.01mm

Sample and application

This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.Single-wire welding is recommended for materials less than 2mm thick. If the weld seam is wider than 2mm and the welding height is better, double-wire welding is recommended. 3000 power double-wire is recommended for ≥5 thickness.

6

After Service

1.The warranty of the machine is 2 years. (Excluding wearing parts).The time is from machine finished date told by Party B.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.Specialized after-sales service group 24 hours online each day, to provide free technical support by email, whatsapp, wechat and so on.
5.Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it.
6.Providing technical services door to the door: we have professional engineers to offer machine installation commissioning and maintenance if customers pay ticket and related charges(accommodation problem) .(5 days training are free and overtime is 100 USD/Day)
7.About installation, because we ship the machine by a full container we won't disassemble too much parts, the main parts that need to connect is laser source, water chiller and controller. We have detailed manual and videos, if you don't understand, our after-sales service man can guide you hand by hand, video call is available.
