LXW-Fully Surrounded Flat Metal Laser Welding Machine

1920x771-焊接-1
1920x771-焊接-2
1920x771-焊接-3
950x917-焊接-1
950x917-焊接-2
950x917-焊接-3
LXW-Fully Surrounded Flat Metal Laser Welding Machine
hj

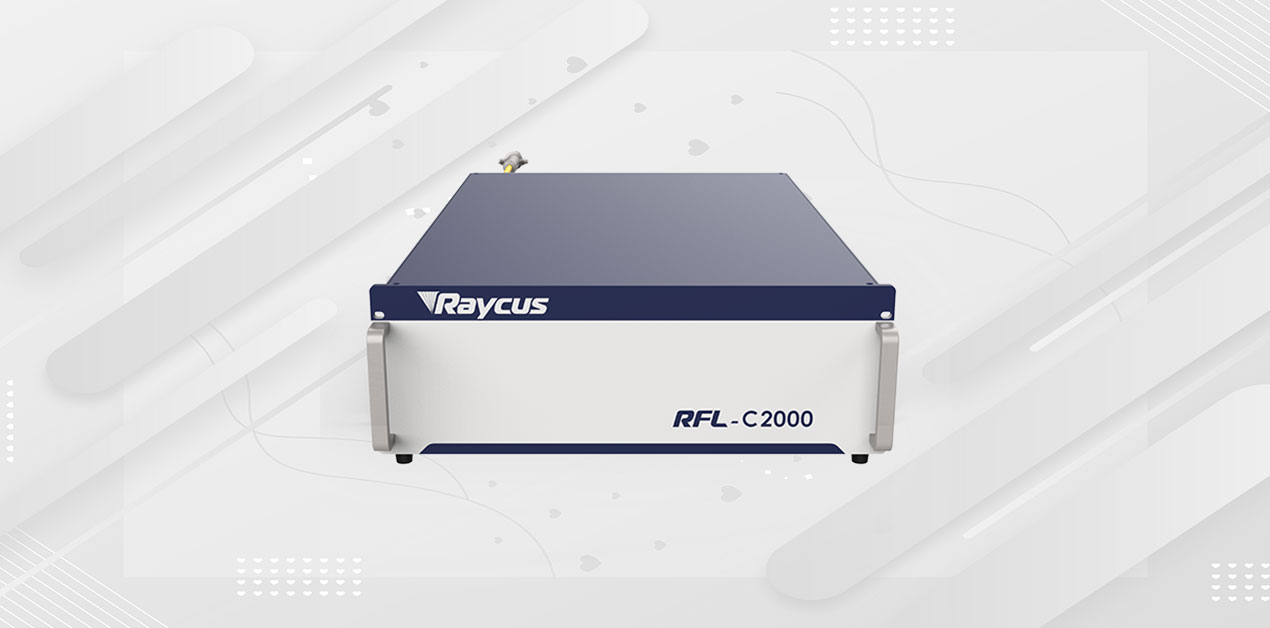

Laser brand: Raycus/MAXIJPT

Laser power: 1000/1500/2000W as your requirements

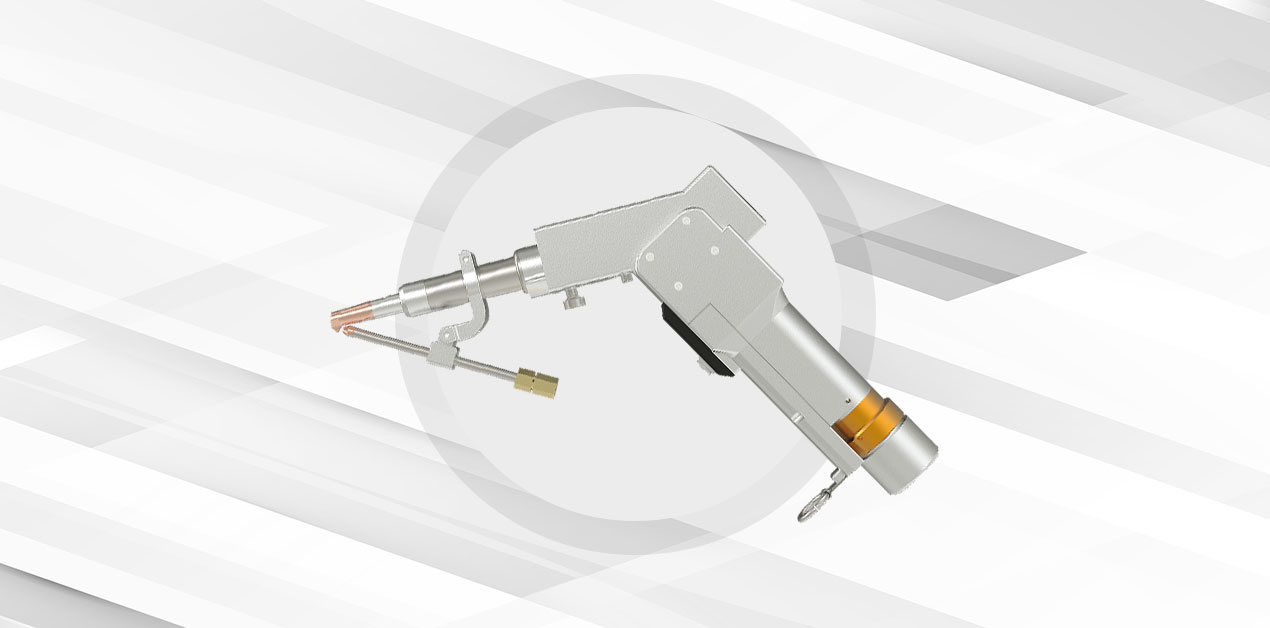

SWING LASER WELDING HEAD

• Hand-held welding head, easy to operate with one hand, comfortable to hold, light and flexible.
• Beautiful welding seam, no deformation: After the laser beam is focused, the obtained spot is larger, the welding seam width is smaller, the heat affected zone is small, and the deformation is small, and there is no need to reprocess after welding.
• It can be widely used in metal equipment processing, and the welding process is far superior to traditional argon arc welding and electric welding.

t

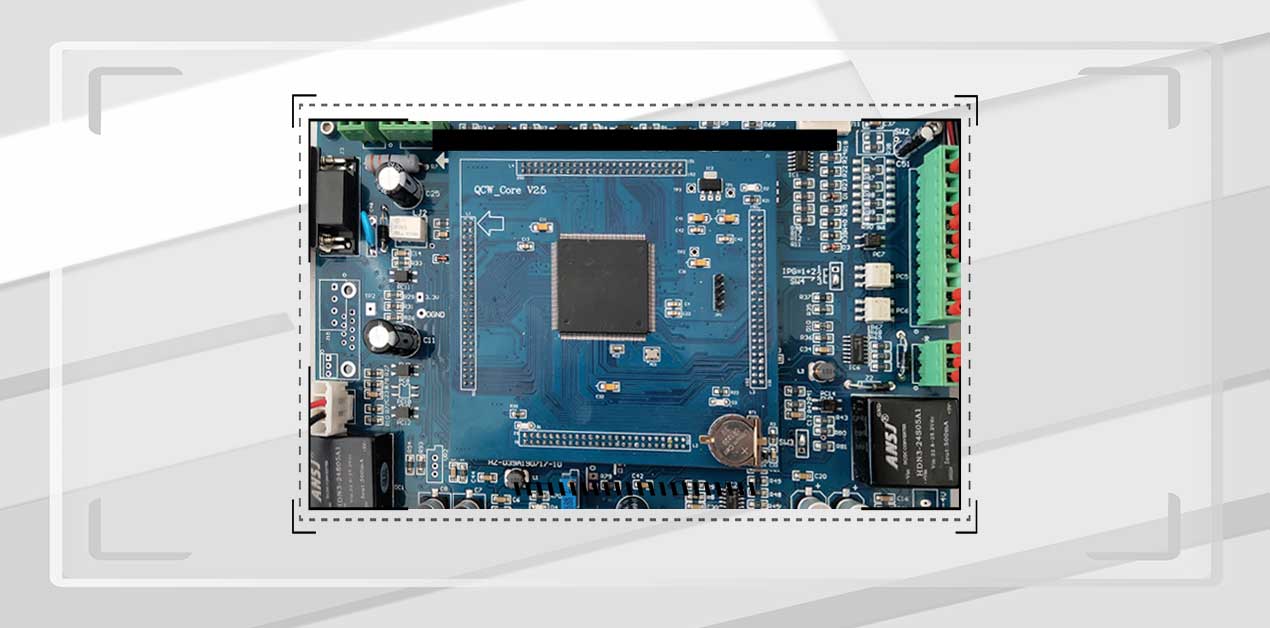

Control

SWING LASER WELDING HEAD

Hanwei Controller + Welding head(Au3tech/WSX/QiLin ENV8 controller + Welding head optional).

Intelligent system, stable performance, simple operation, suitable for different kinds of metal processing.

It supports modular, individual, automated and informative solutions.

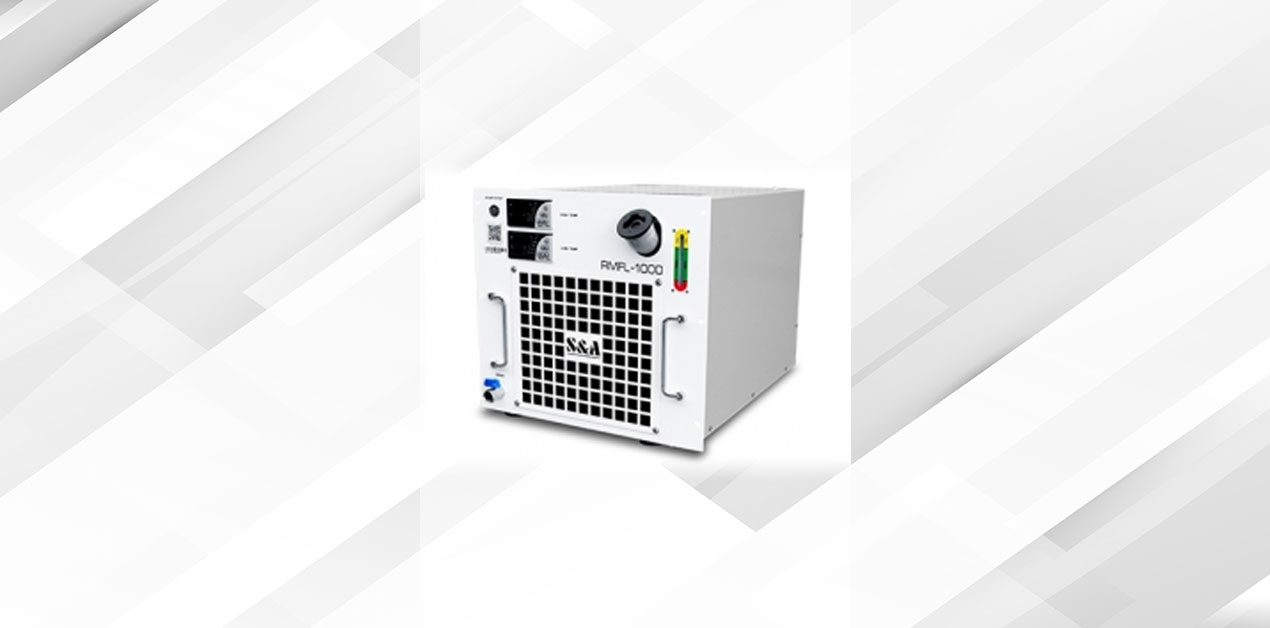

THE MAIN FEATURES OF WATER CHILLER

1. The temperature control accuracy can reach ±1℃;
2. Environmentally friendly refrigerant can be selected;
3. There are two temperature control modes, suitable for different occasions; there are various settings and fault display functions;
4. Dual independent temperature control modes meet the different cooling needs of lasers and welding heads;

lsj

Model Number: LXW-1000/1500/2000W
Lead time: 5-10 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: 1150*760*1370mm

Machine weight: 275KG
Brand: LXSHOW
Warranty: 2 years
Shipping: By sea/By air/By Railway

Model LXW-1000/1500/2000W
Laser power 1000/1500/2000W
Center wavelength 1070+-5nm
Laser frequency 50Hz-5KHz
Work patterns Continuous
Electricity demand AC220V
Output fiber length 5/10/15m (Optional)
Cooling method Water Cooling
Dimensions 1150*760*1370mm
Weight 275kg(About)
Cooling water temperature 5-45℃
Average power 2500/2800/3500/4000W
Laser Energy Stability <2%
Air humidity 10-90%

Application

Laser welding machine is suitable for welding of stainless steel, iron, carbon steel, galvanized sheet, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
