LX3015PTW cheap cnc exchange table rotary metal tube and plate fiber laser cutting machine copper iron aluminum for sale

LX3015PTWPC2
LX3015PTWPC1
LX3015PTWPC3
LX3015PTW-2
LX3015PTW-1
LX3015PTW-3
LX3015PTW cheap cnc exchange table rotary metal tube and plate fiber laser cutting machine copper iron aluminum for sale
hl

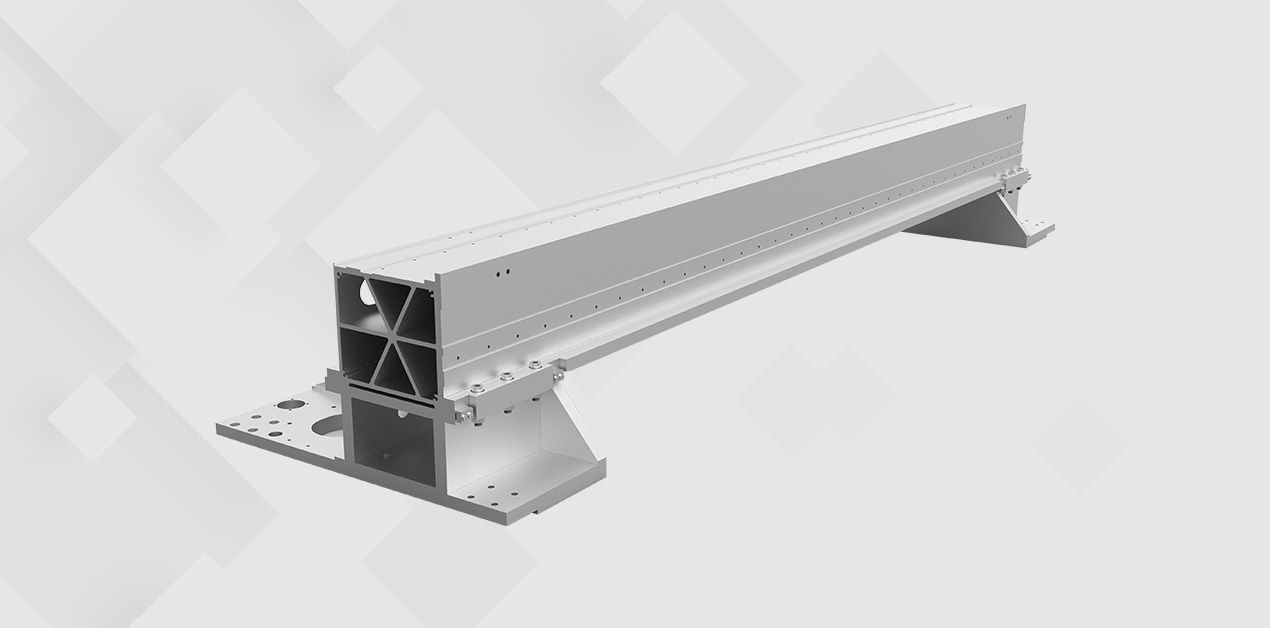

THE 4TH GENERATION AVIATION ALUMINUM BEAM

Select 6 series aviation aluminum alloy, light-weight and good dynamic performance of beam

Honeycomb compressive structure design in accordance with aerospacecraft design standards

Extrusion molding process adopted, no air or sand hole, high strength

STEEL PLATE WELD MACHINE FRAME

It is welded by heavy steel plate, the current mainstream bed structure, high stability; Effect force annealing treatment, high mechanical strength, not easy to deform; Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed; The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

Exchange Table
It adopts an up and down exchange platform; The converter is responsible for controlling the exchanging motor; The machine is able to finish the platform exchanging within 15s.

jht
xsq

BOCHU SYSTEM

Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Russian, Korean, Simplified Chinese, Traditional Chinese

●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

INTELLIGENT AUTOFOCUS

The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time. Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life. Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns. High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

qgt
fsq

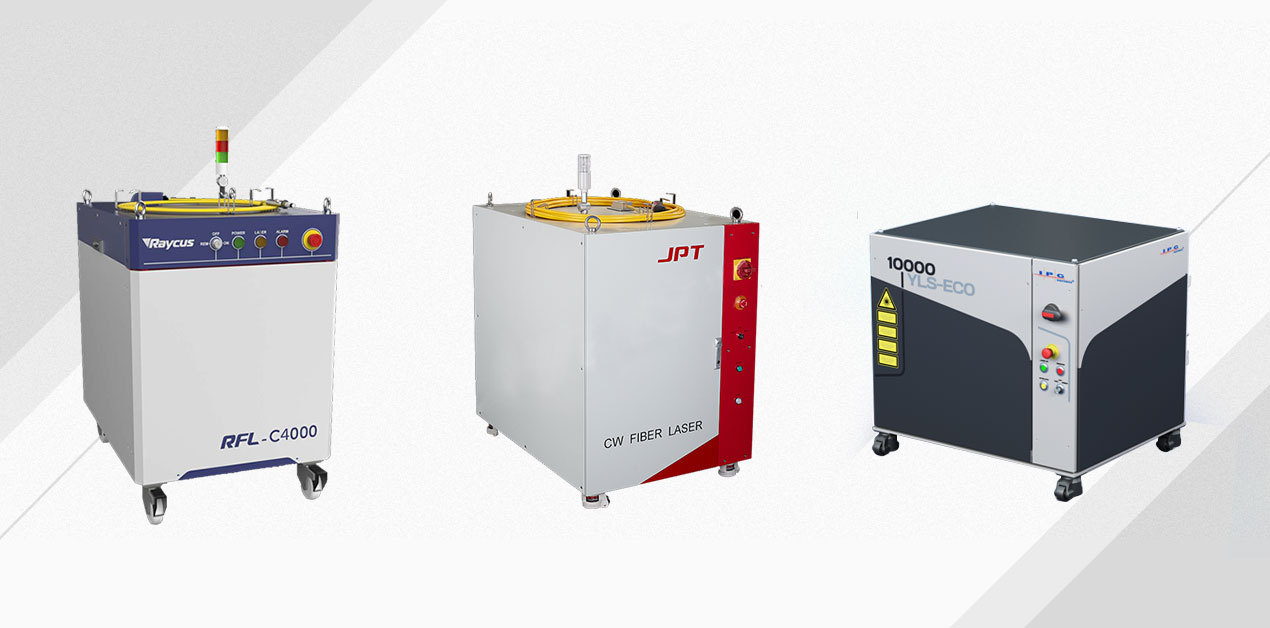

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

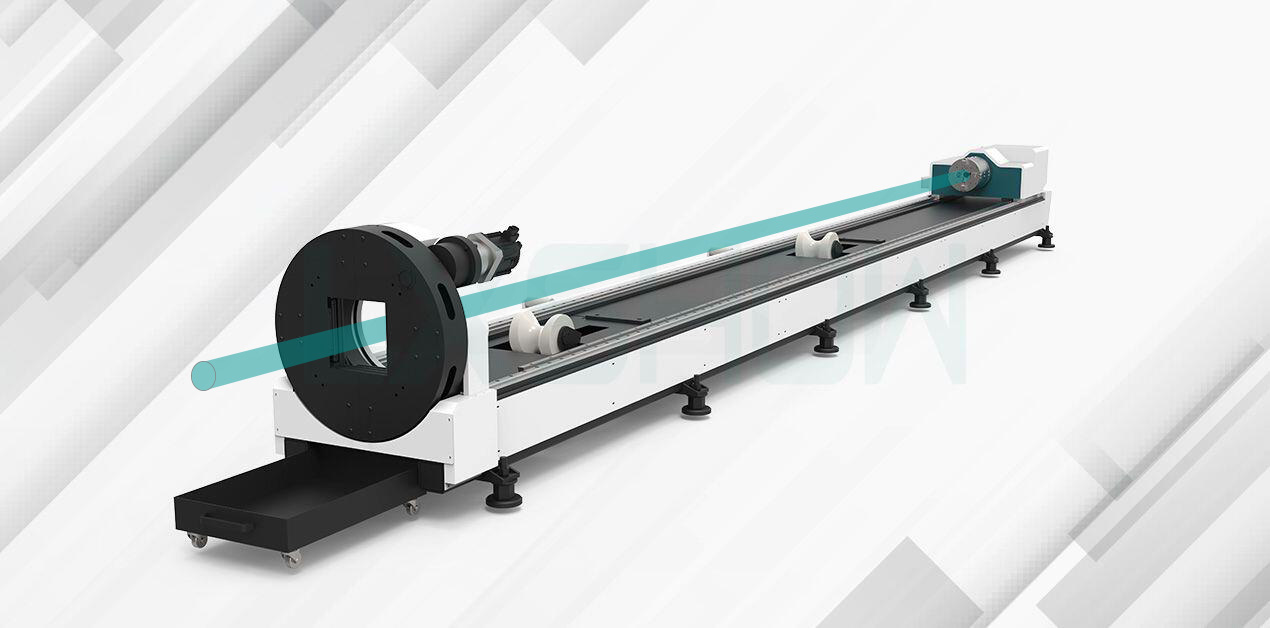

FULL-AUTOMATIC DOUBLE PNEUMATIC CHUCKS

The chucks are 3 times faster than electric chucks due to one-key clamping and auto centering. With large and constant clamping force, heavy tubes will be clamping stably. Two rows of rollers are adopted for a wide range of clamping and high cutting precision.

Rotary Length: 6m standard,8m and other size can be customized.

Rotary Diameter: 160/220mm is standard. Other size can be customized.

Chuck: Both pneumatic control

xz
kp

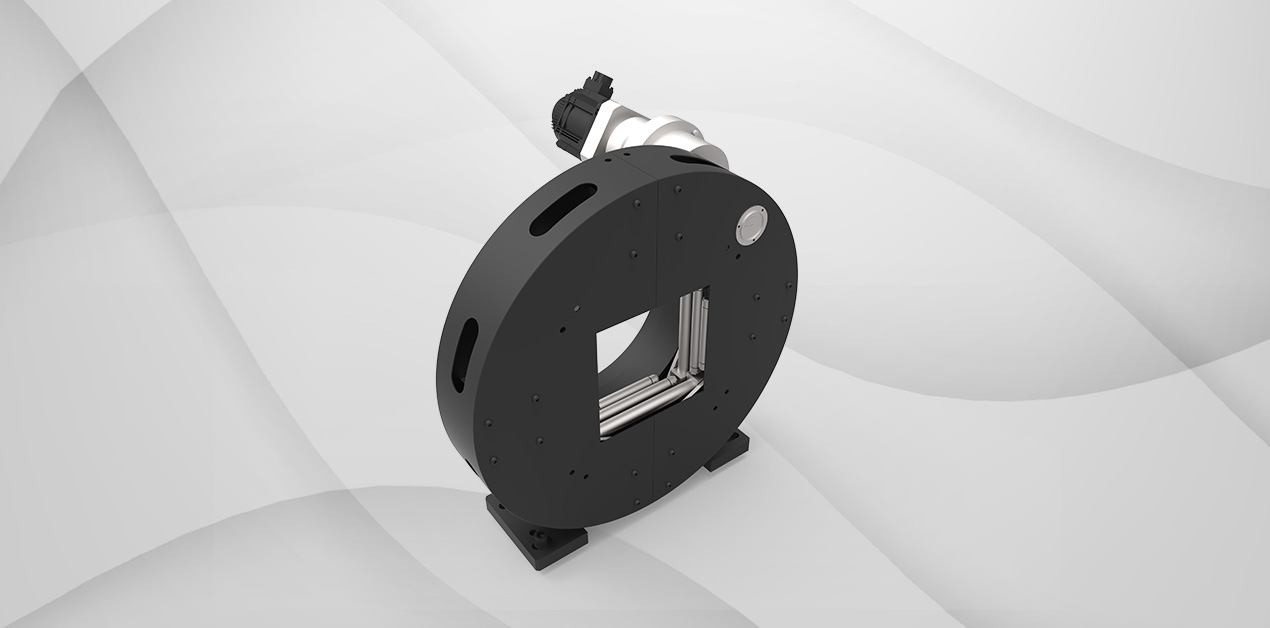

PNEUMATIC CHUCK CLAMPING DESIGN

Both sides of the ratary are designed with pneumatic clamps, which can be automatically adjusted. Diagonal adjustable range 20-220mm (320/350 optional)

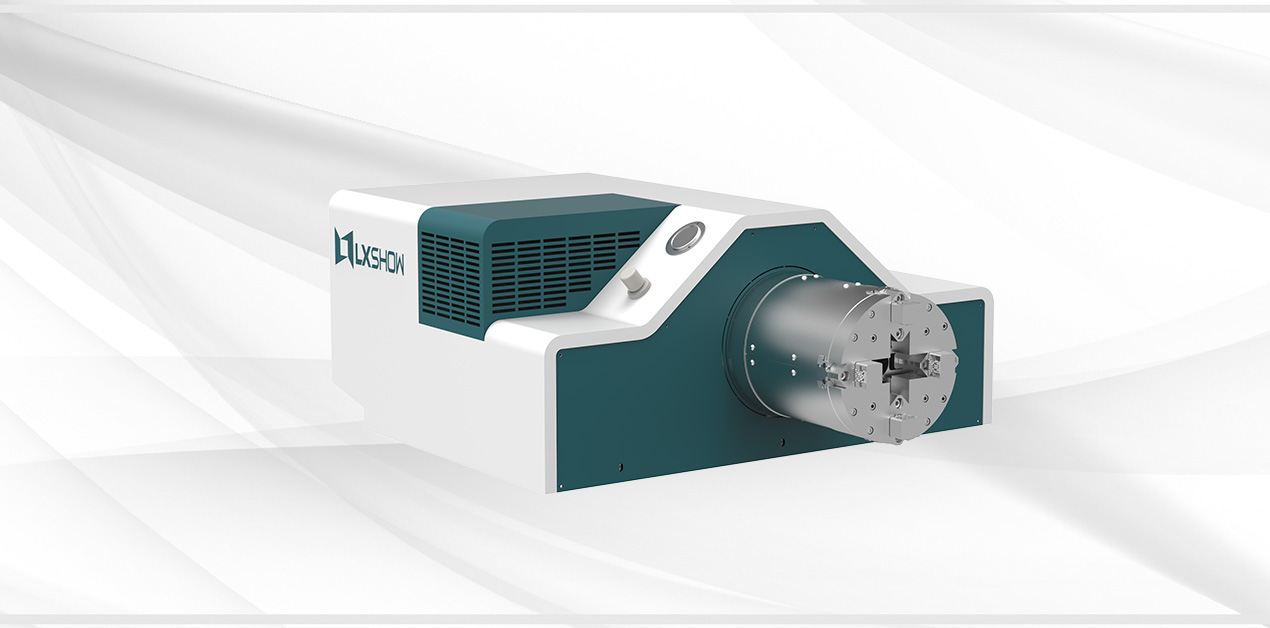

PROFESSIONAL CLAMP DESIGN

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

kz
zcj

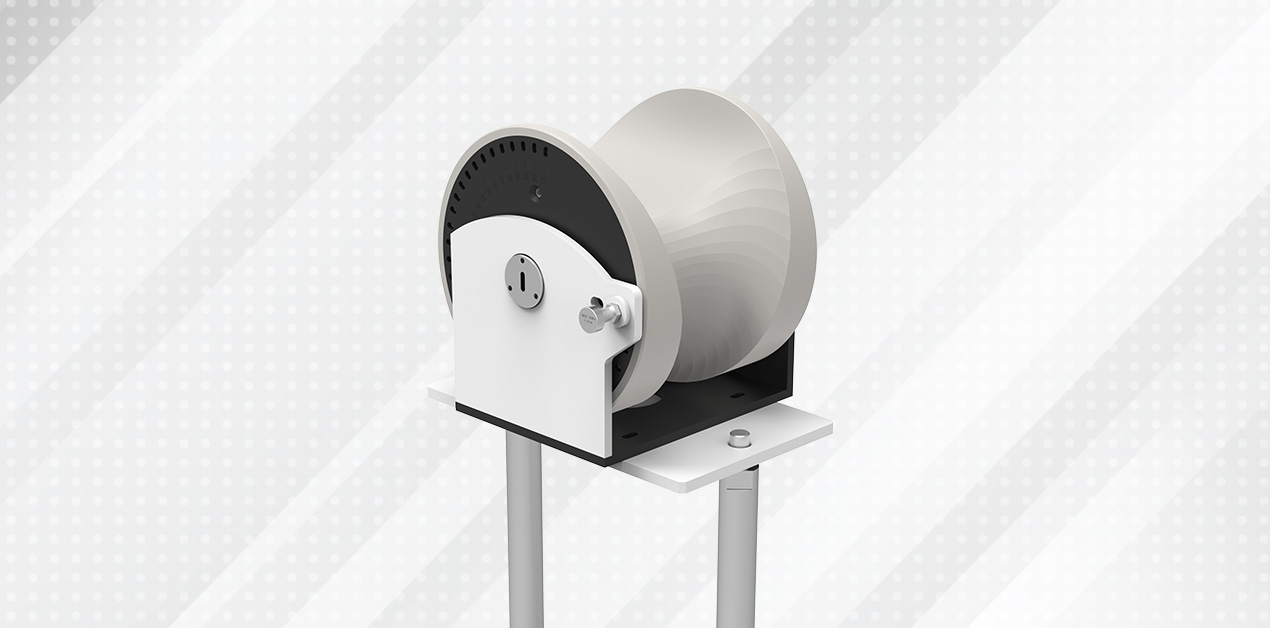

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

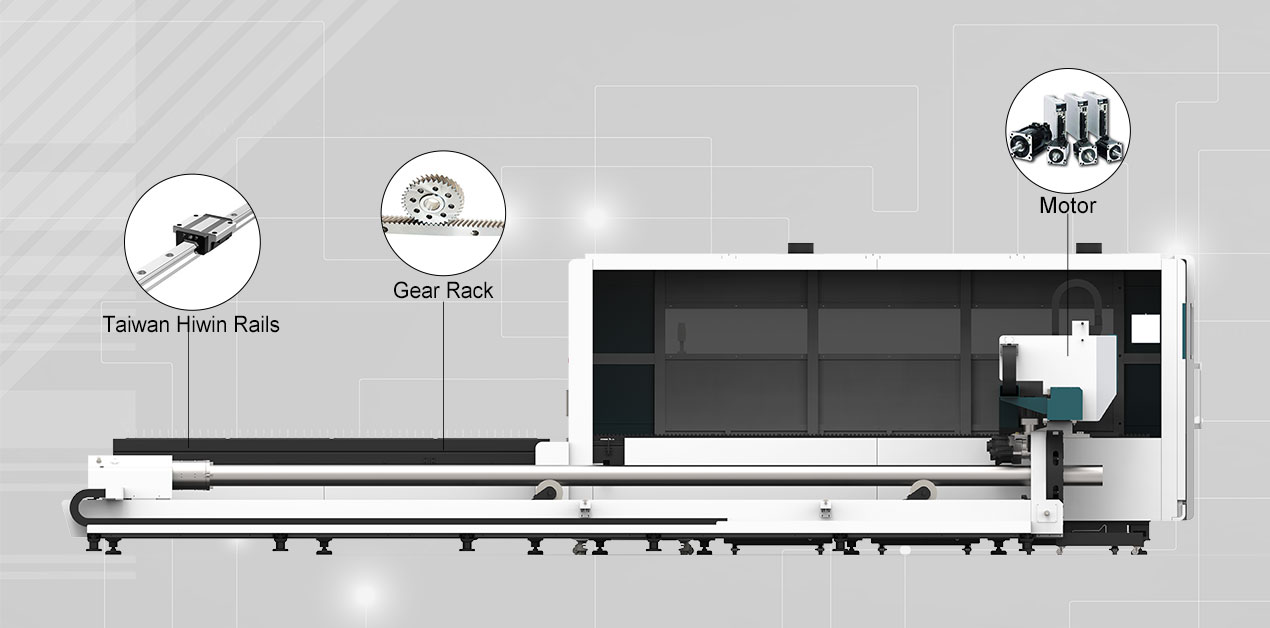

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

cdfs
jk

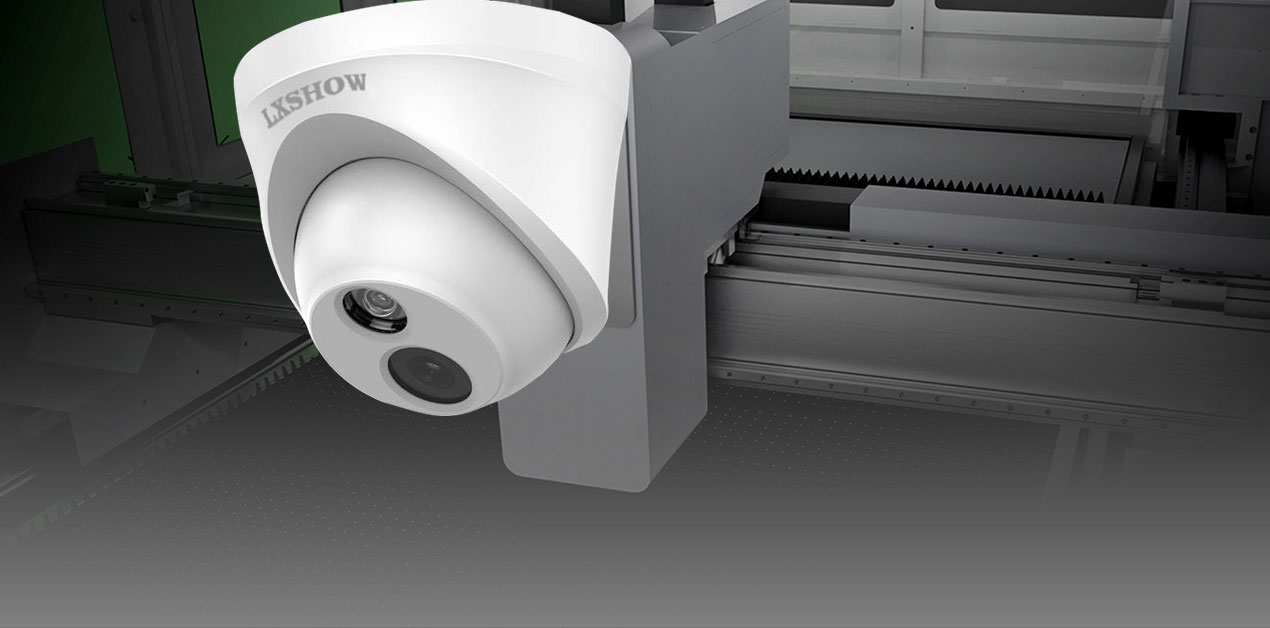

MONITORING SYSTEM

Real-time observe the machine running through the panel

FOB Reference Price Range USD: 20000-50000
Model Number: LX3015/4015/6015/4020/6020/6025/8025PT
Lead time: 15-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: (About)

Exchange table Machine size: 5200*3000*2400mm
Water chiller +Controller: 1830*920*2110mm
Machine weight: 8000KG(About)
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model LX3015PTW(4015/6015/4020/6020/6025/8025/10025 optional)
Power of Generator 3000-20000W
Dimension 4967*8817*2440
Working Area 1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy ±0.02mm
Max Running Speed 120m/min
Max Acceleration 1.5G
Specified Voltage And Frequency 380V 50/60HZ

LX3015PTW iron cnc exchange table rotary metal tube and plate fiber laser cutting machine Application

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

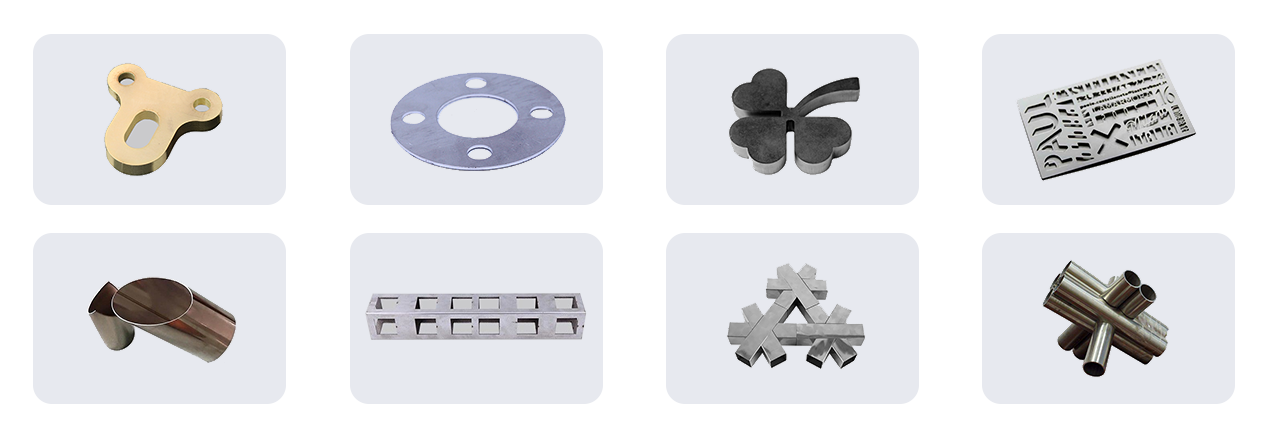

2 Sheet & tube metal laser cutting machine
