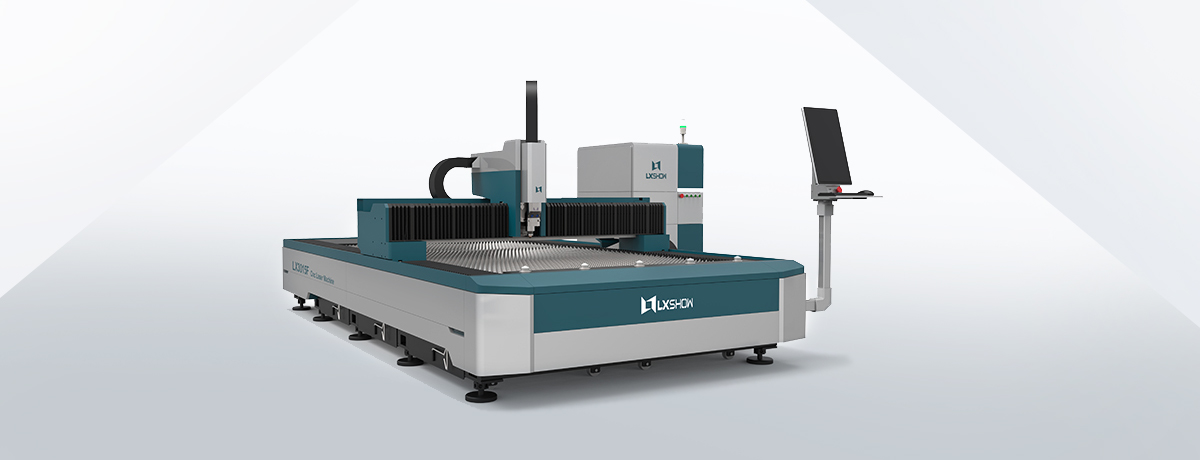

LX3015F Best Sheet Metal CNC Fiber Laser Cutting Machine 2000W 3000W 4000W 6000W Copper Carbon Steel Stainless Steel

FURTHER UPGRADED, MORE FASTER

Max. no-load speed 120m/min, max. acceleration 1.2G, 40% faster than 2nd generation, accelerate from 0m/min to 100m/min in 3.2s.

3015F
hl

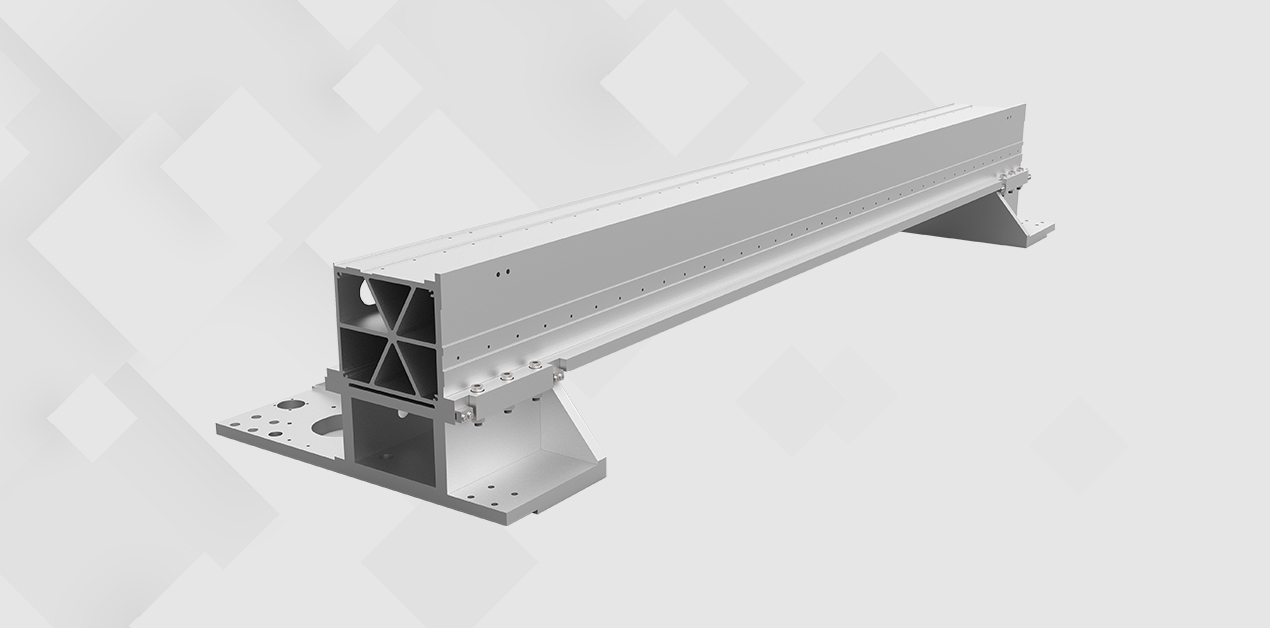

THE 4TH GENERATION AVIATION ALUMINUM BEAM

Select 6 series aviation aluminum alloy, light-weight and good dynamic performance of beam

Honeycomb compressive structure design in accordance with aerospacecraft design standards

Extrusion molding process adopted, no air or sand hole, high strength

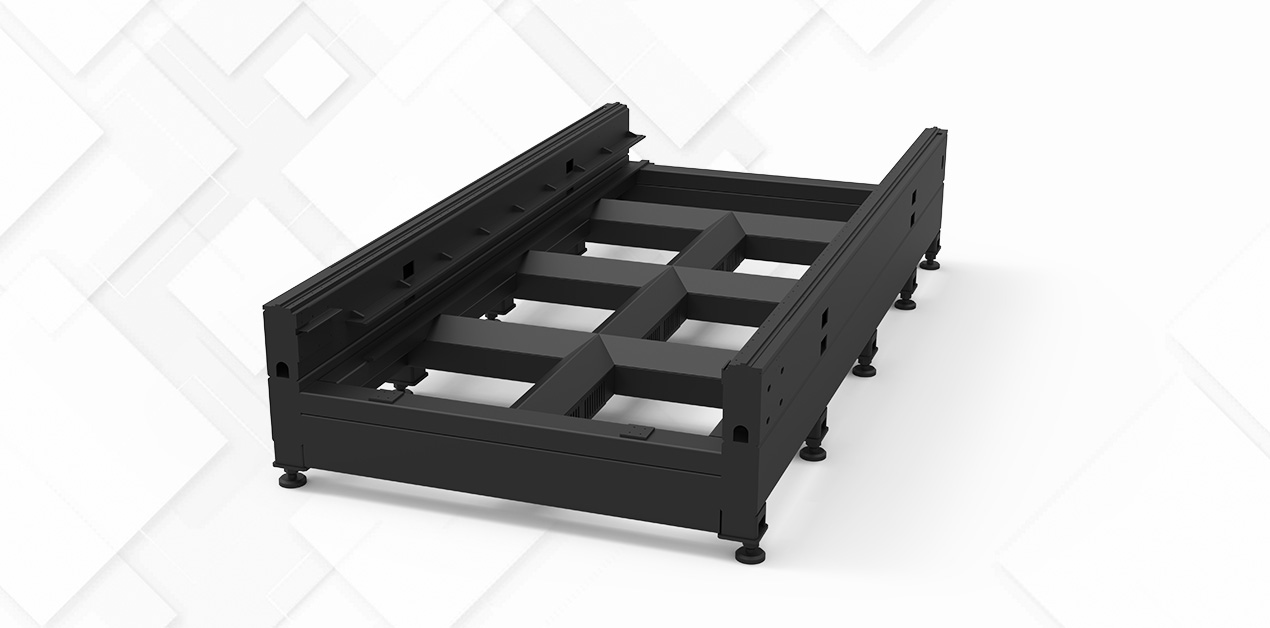

STEEL PLATE WELD MACHINE FRAME

It is welded by heavy steel plate, the current mainstream bed structure, high stability;

Effect force annealing treatment, high mechanical strength, not easy to deform;

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

cs
xsq

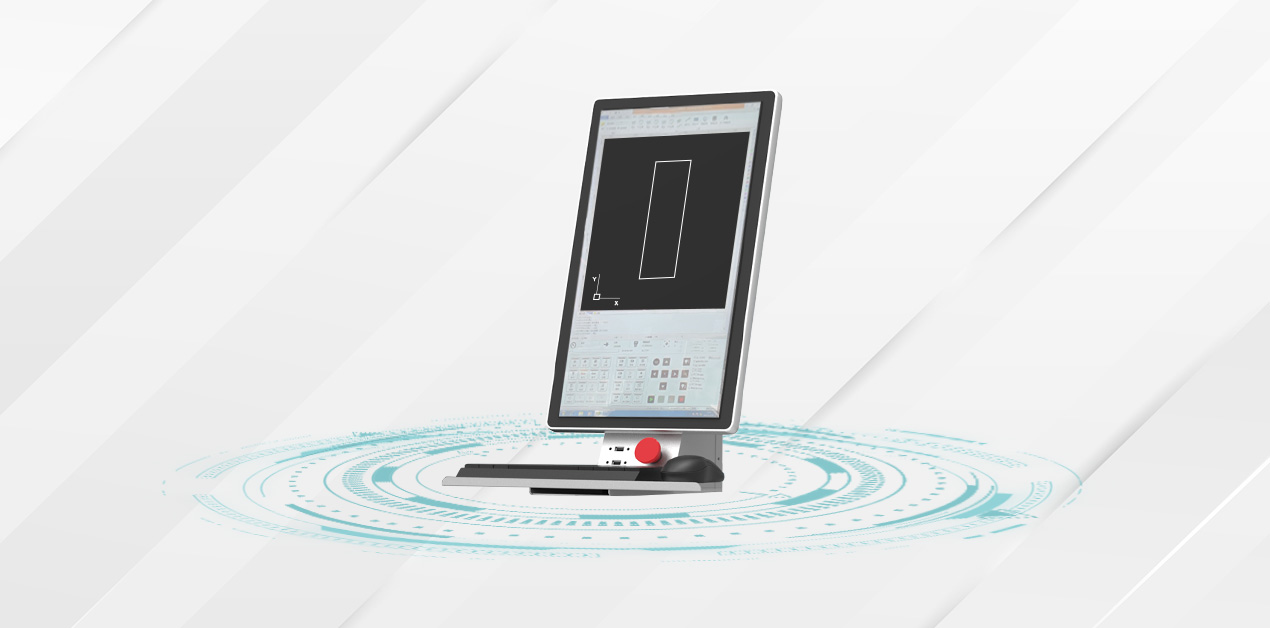

BOCHU SYSTEM

Easyto operate evenby green hands, Match with 20000 process data on its graphical programming interface, Compatible with multile graphic files, incl. DXF DWG, PLT and NC code, Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts, Support language: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, traditional Chinese.

●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

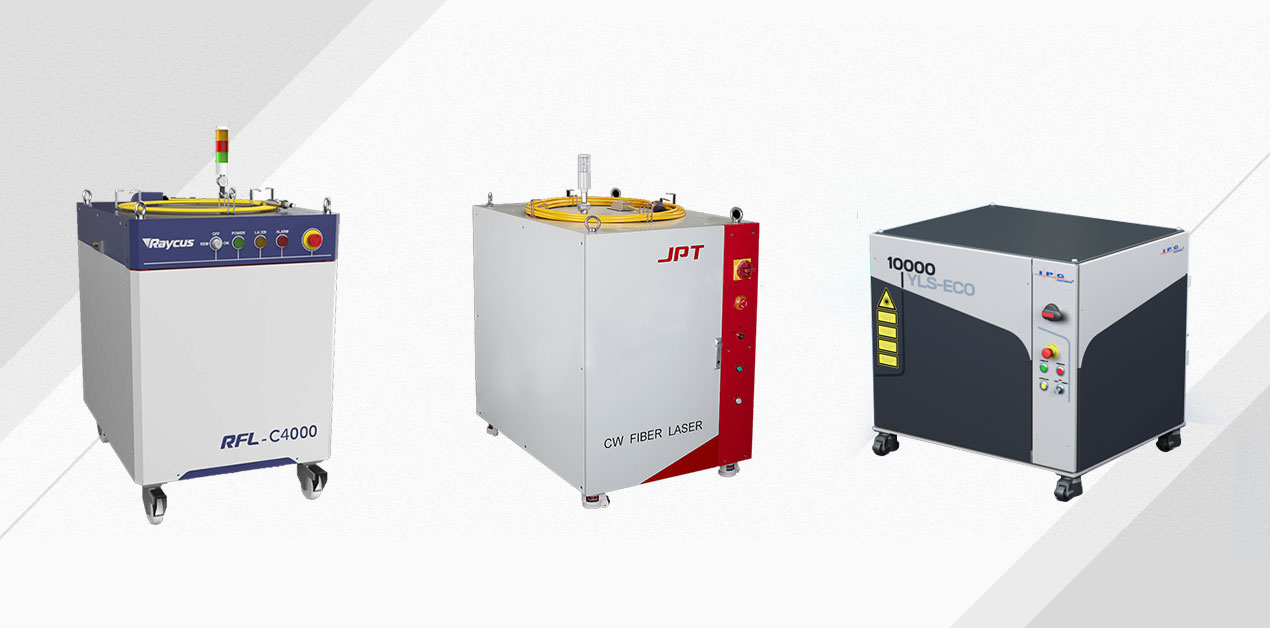

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

fsq
qgt

INTELLIGENT AUTOFOCUS

The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

cdfs

INDEPENDENT CONTROL CABINET

Dust-proof

All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

kzg

Model Number:LX3015F
Lead time:10-15 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size:4800*2600*1860mm (About)

Machine weight:4000KG
Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Machine Model LX3015F
Power of Generator 2000W-6000Woptional
Dimension 4800*2600*1860mm
Working Area 1500*3000mm
Repeated Positioning Accuracy ±0.02mm
Max Running Speed 120m/min
Max Acceleration 1.5G
Specified Voltage And Frequency 380V 50/60HZ

LX3015F 2000W 4000W 6000W 1200W CNC OPTICAL METAL SHEET PLATE FIBER LASER CUTTING MACHINE APPLICATION

Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
