LX6025F Sheet Plate Fiber Laser Cutting Metal Machine Price 4000W 6000W 8000W 12000W
sheet metal cutting machine

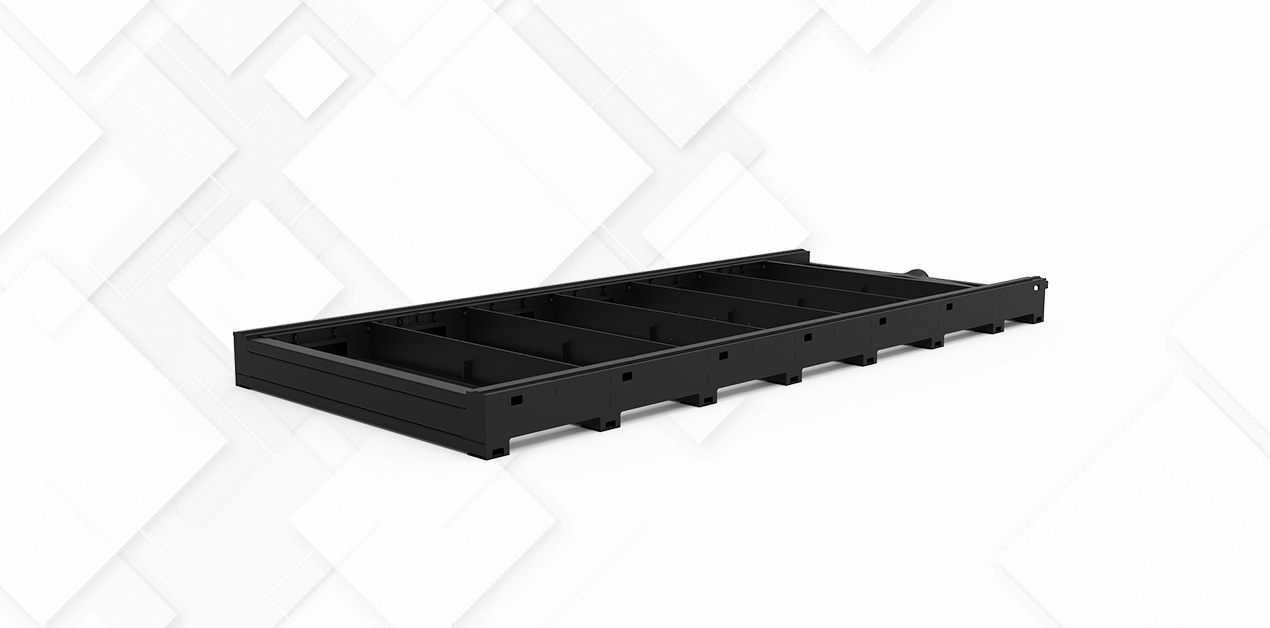

Steel Plate Weld Machine Frame

It is welded by heavy steel plate, the current mainstream bed structure, high stability;

Effect force annealing treatment, high mechanical strength, not easy to deform;

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

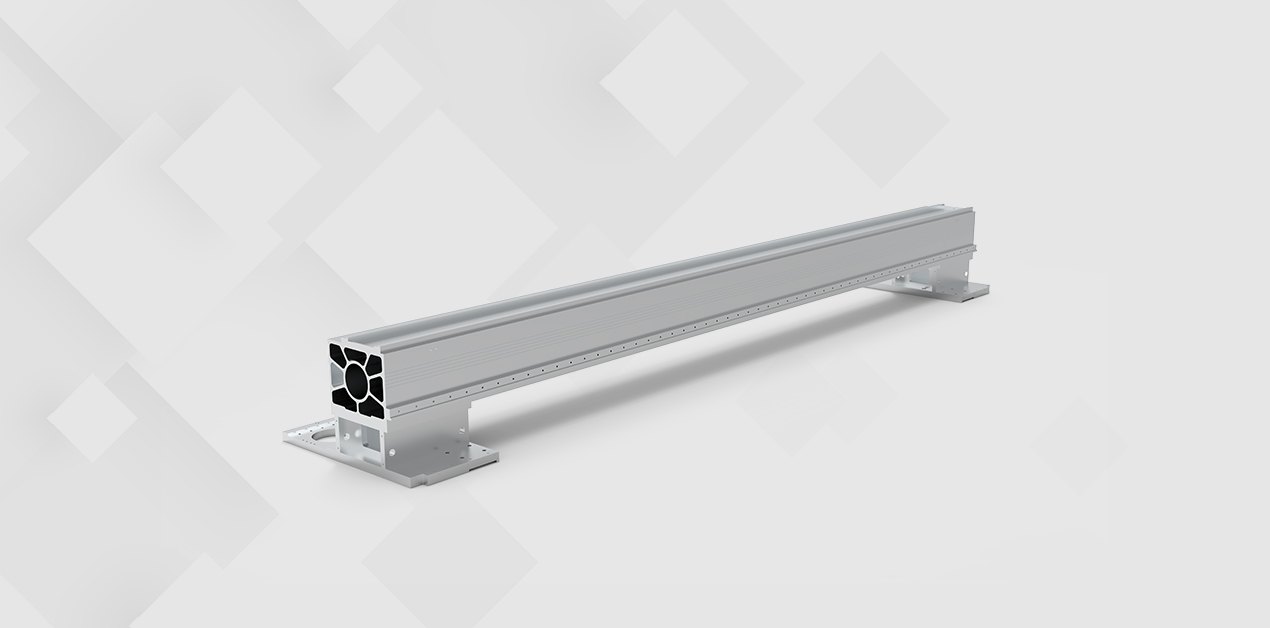

Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

laser cutter stainless steel
laser cutter price

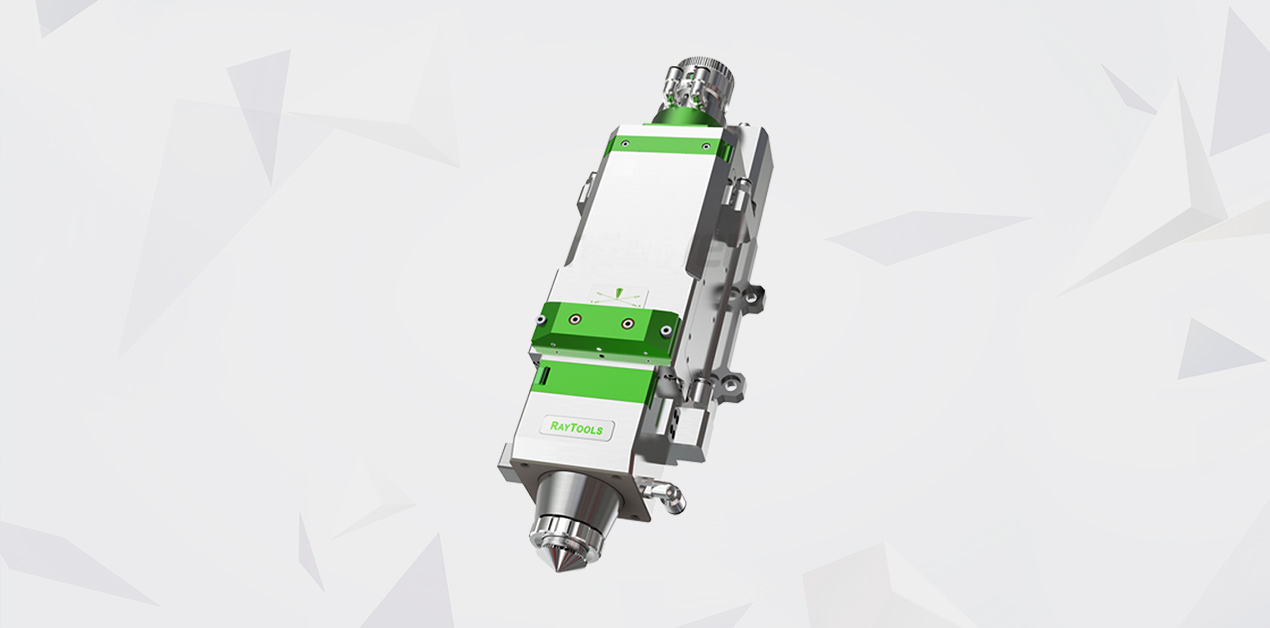

Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency

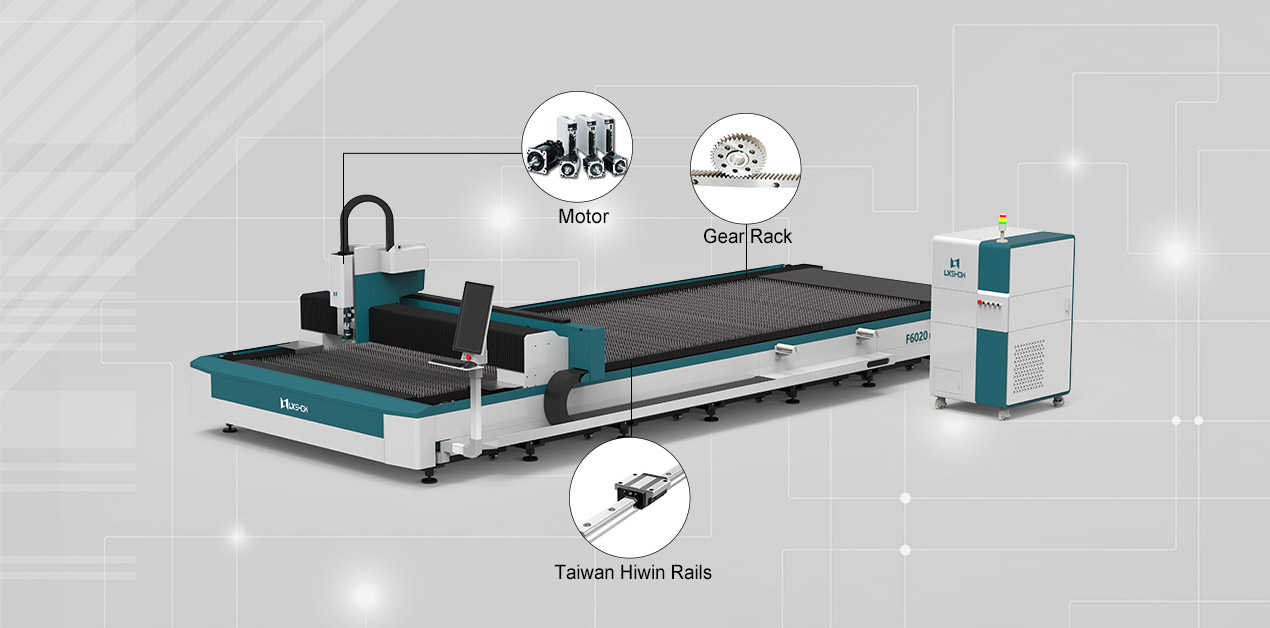

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years

metal sheet laser cutter
metal laser cutter near me

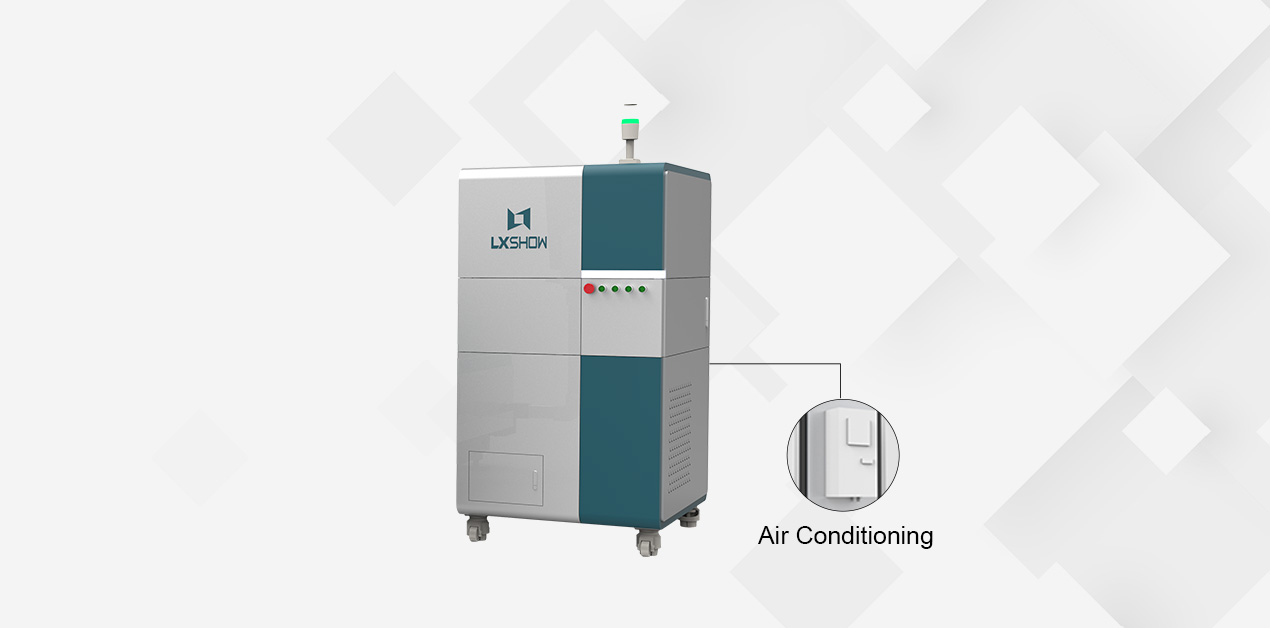

Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

Model Number: LX6025F
Lead time: 20-40 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C

Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model

LX6025F

Power of Generator

2000-20000W

Dimension

7345*4810*1832mm

Working Area

6100*2550mm(Other size can be customized )

Repeated Positioning Accuracy

±0.02mm

Max Running Speed

120m/min

Max Acceleration

1.5G

Specified Voltage And Frequency

380V 50/60HZ

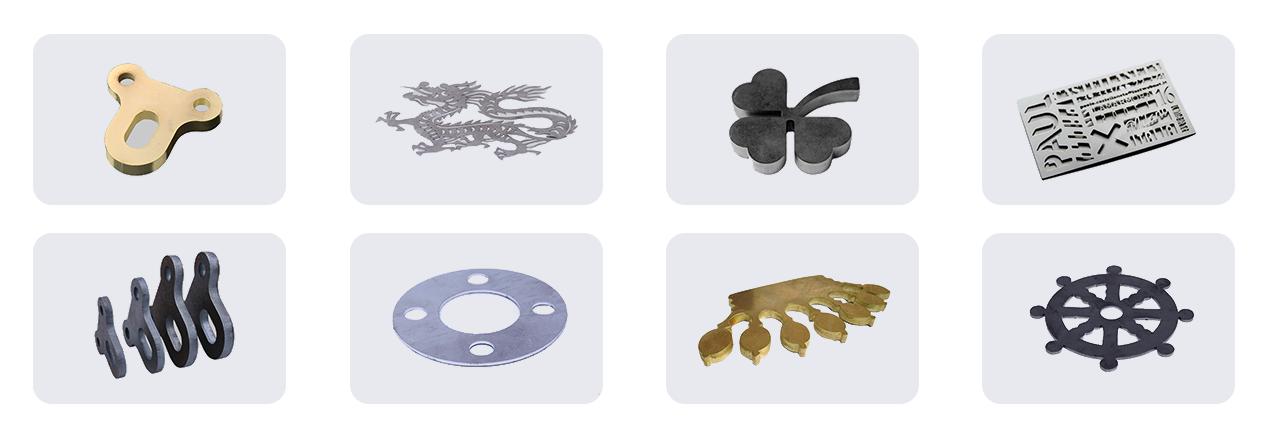

LX6025F Sheet Metal Plate Fiber Laser Cutting Machine Application

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Application
