LX3015PT metal sheet and tube fiber laser cutter with exchange table full cover rotary 3kw 4kw 6kw 8kw 10kw 12kw

3015PTPC3
3015PTPC2
3015PTPC1
3015PT-3
3015PT-2
3015PT-1
LX3015PT metal sheet and tube fiber laser cutter with exchange table full cover rotary 3kw 4kw 6kw 8kw 10kw 12kw

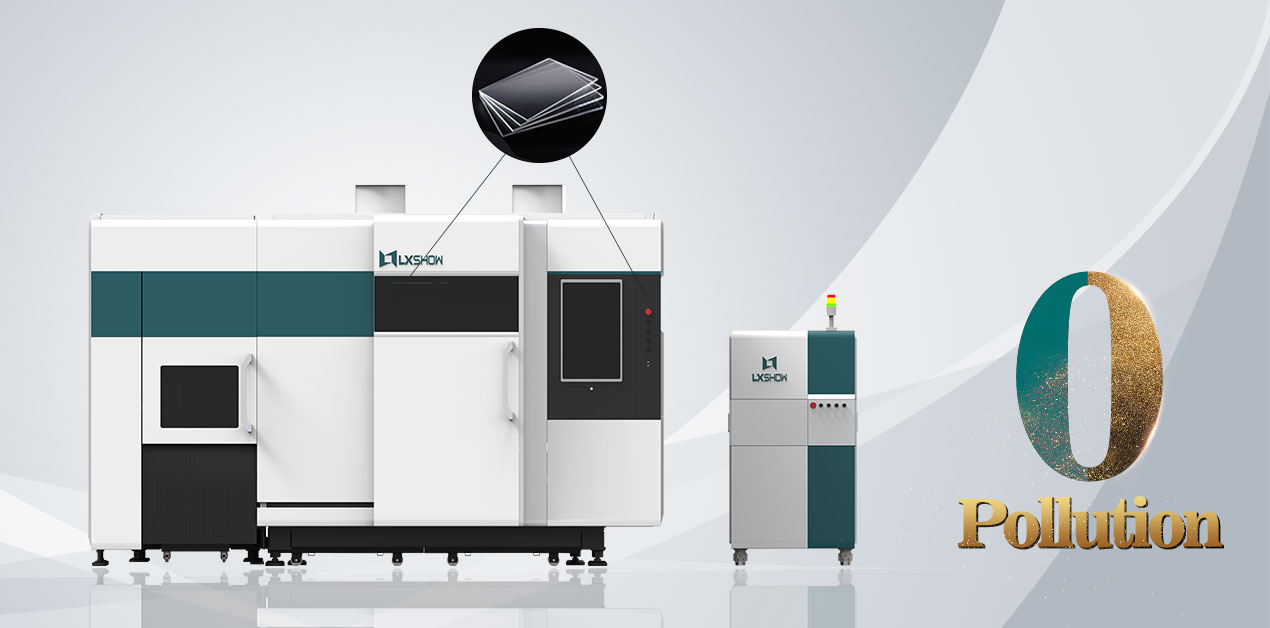

SAFETY AND ENVIRONMENT PROTECTION

With a fully enclosed design;

The observation window adopts an European CE Standard laser protective glass;

The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

bhbl
jht

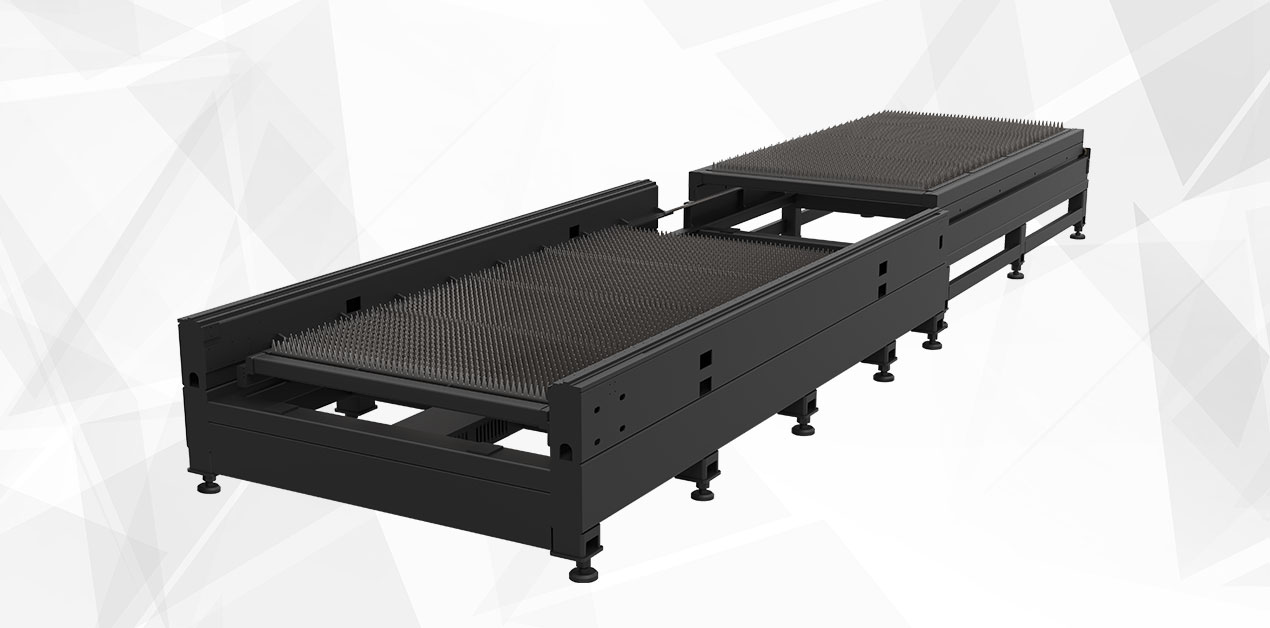

EXCHANGE TABLE

It adopts an up and down exchange platform;
The converter is responsible for controlling the exchanging motor;
The machine is able to finish the platform exchanging within 15s.

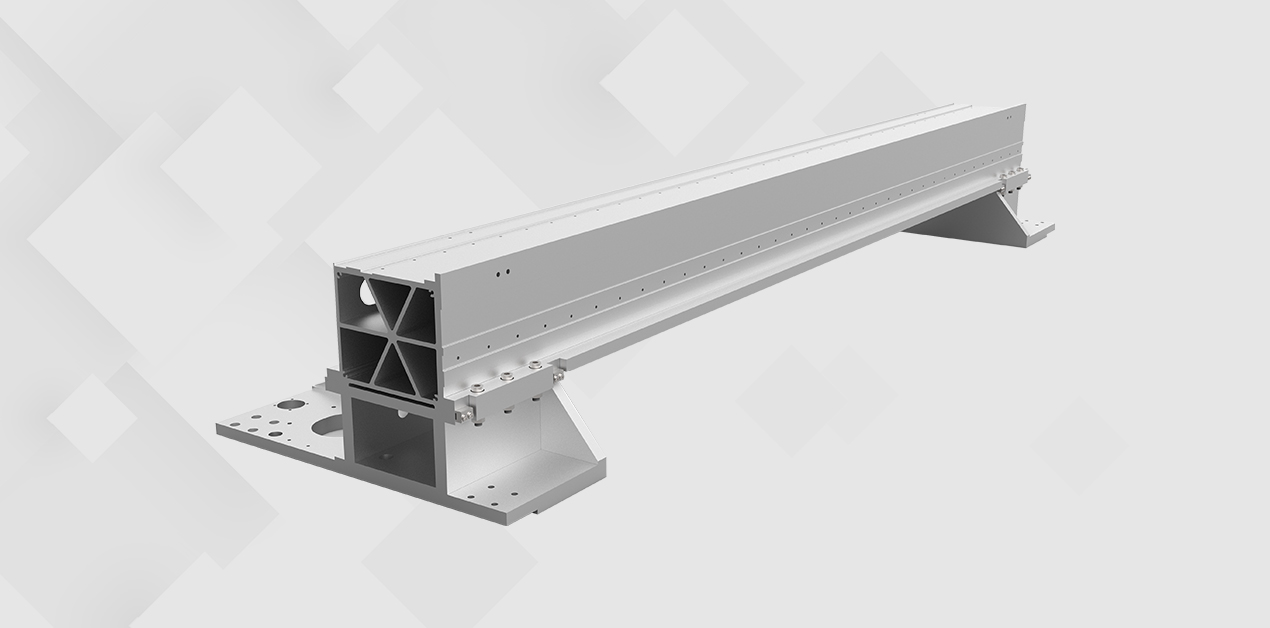

THE 4TH GENERATION AVIATION ALUMINUM BEAM

Integral cast aluminum beam, light weight, high strength, no deformation.

Honeycomb compressive structure design in accordance with aerospacecraft design standards

The lightweight gantry ensures that the metal laser cutting machine has a high moving speed, good dynamic performance, and improved processing efficiency.

hl
xsq

BOCHU SYSTEM

● Easy operation, easy to use
● Can be compatible with multiple graphic files, incl. DXF DWG, PLT and NC codes
● Supported languages: English, Russian, Korean, Simplified Chinese, Traditional Chinese
● Built-in nesting software saves labor.

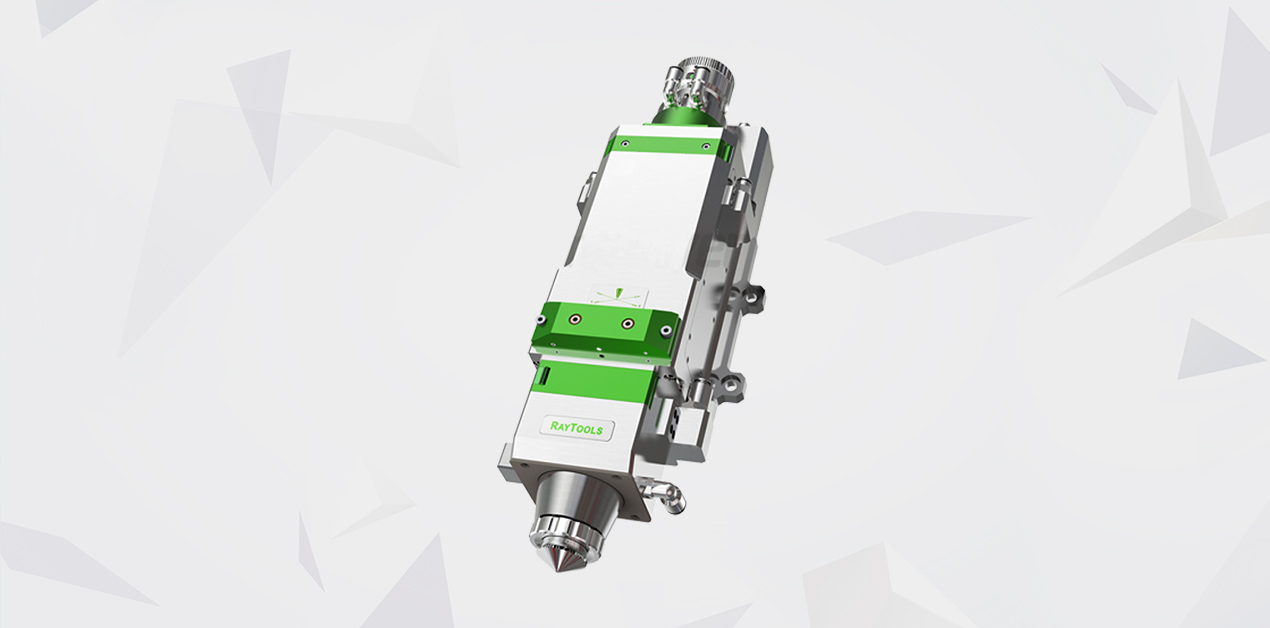

INTELLIGENT AUTOFOCUS

Autofocus, active obstacle avoidance, automatic cooling down, Cut medium-to-thin, thick, ultra-thick sheets stably even in batch cutting, Cut sheets at higher efficiency and save gas consumption, Give early warning if abnormal, Simple to maintain at lower costs.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

qgt
fsq

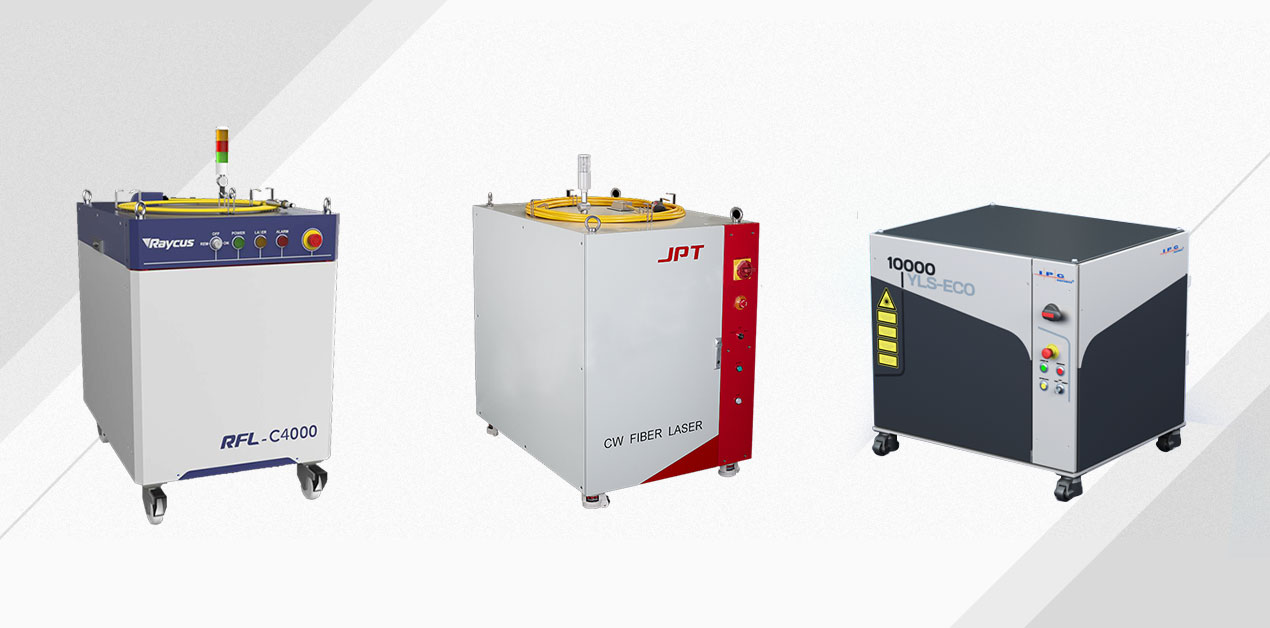

GENERATOR USING LIFE

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

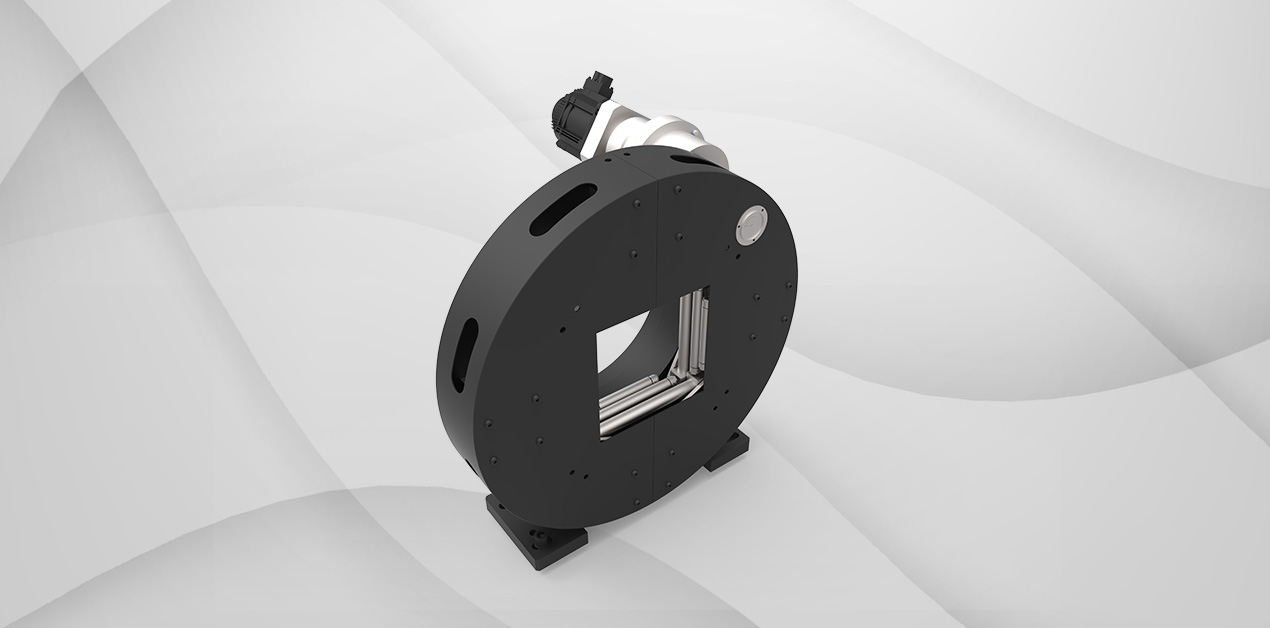

PNEUMATIC CHUCK
CLAMPING DESIGN

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

kp
kz

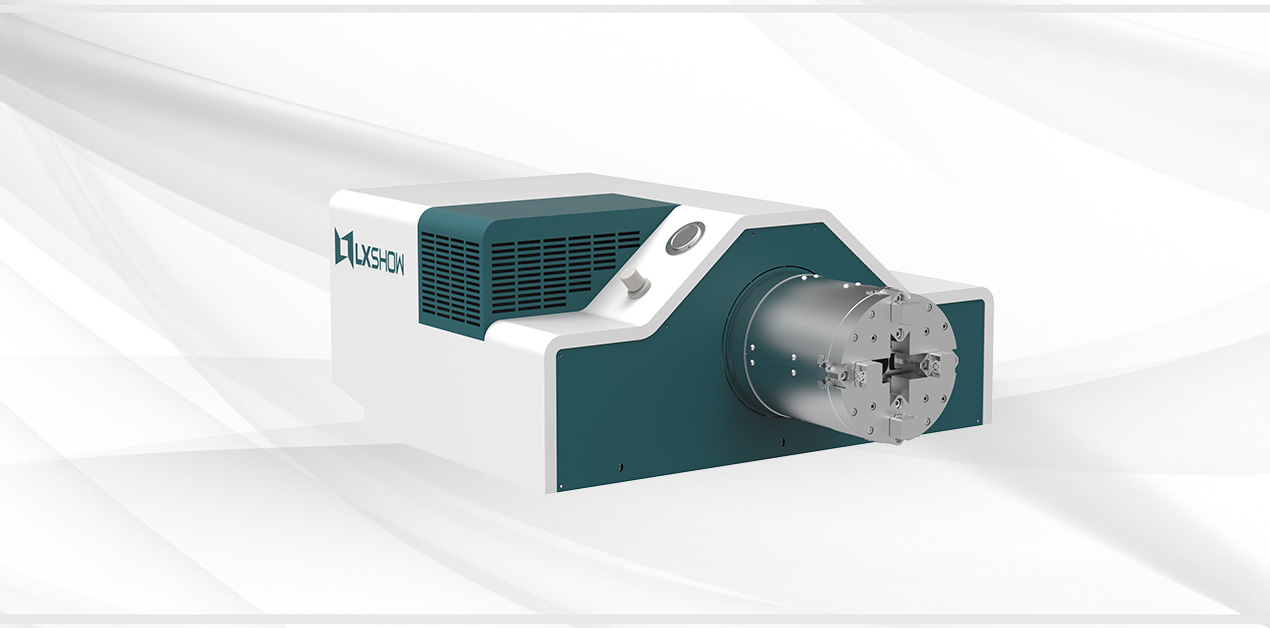

PROFESSIONAL CLAMP DESIGN

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

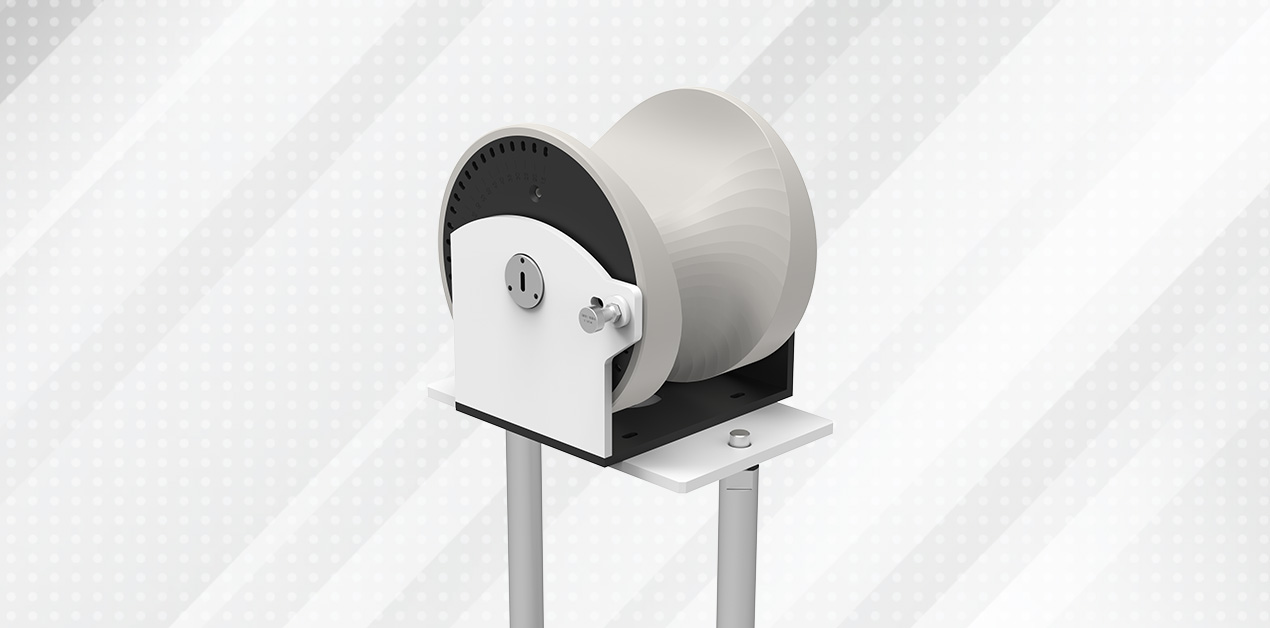

SEGMENTED AUTOMATIC SUPPORT INSTALLATION

The rotary is equipped with an intelligent support frame, which makes the cutting of long tubes more efficient and without deformation.

zcj
cdfs

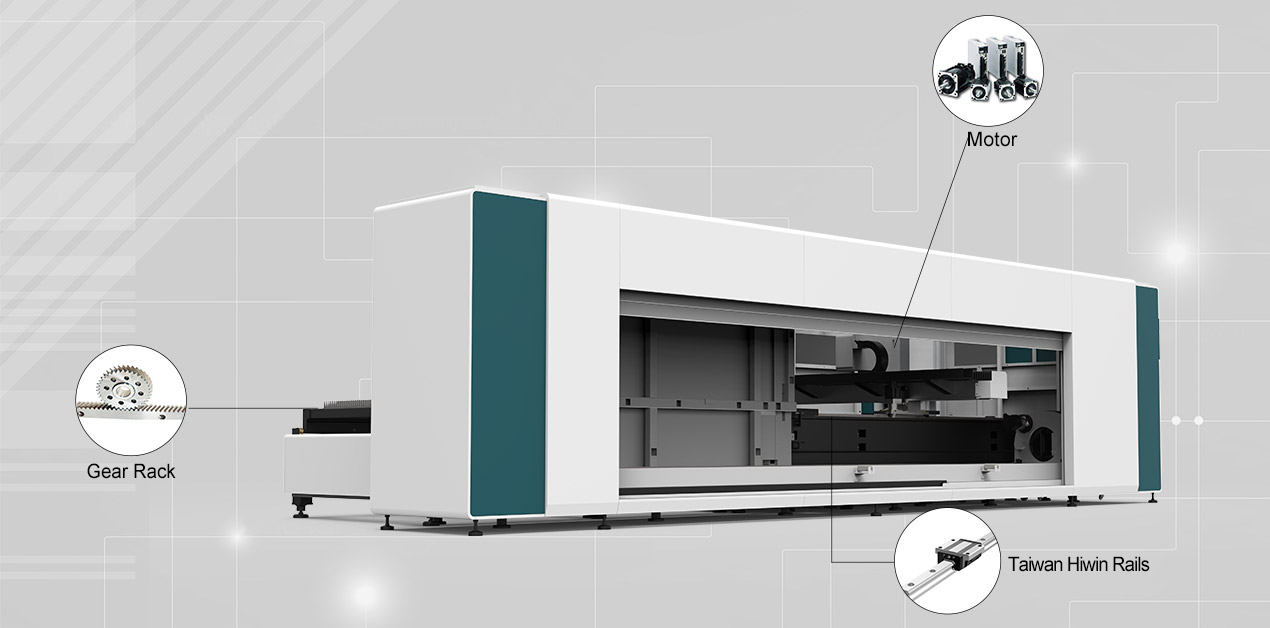

TRANSMISSION AND PRECISION

LXSHOW fiber laser cutting machine is equipped with Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G.

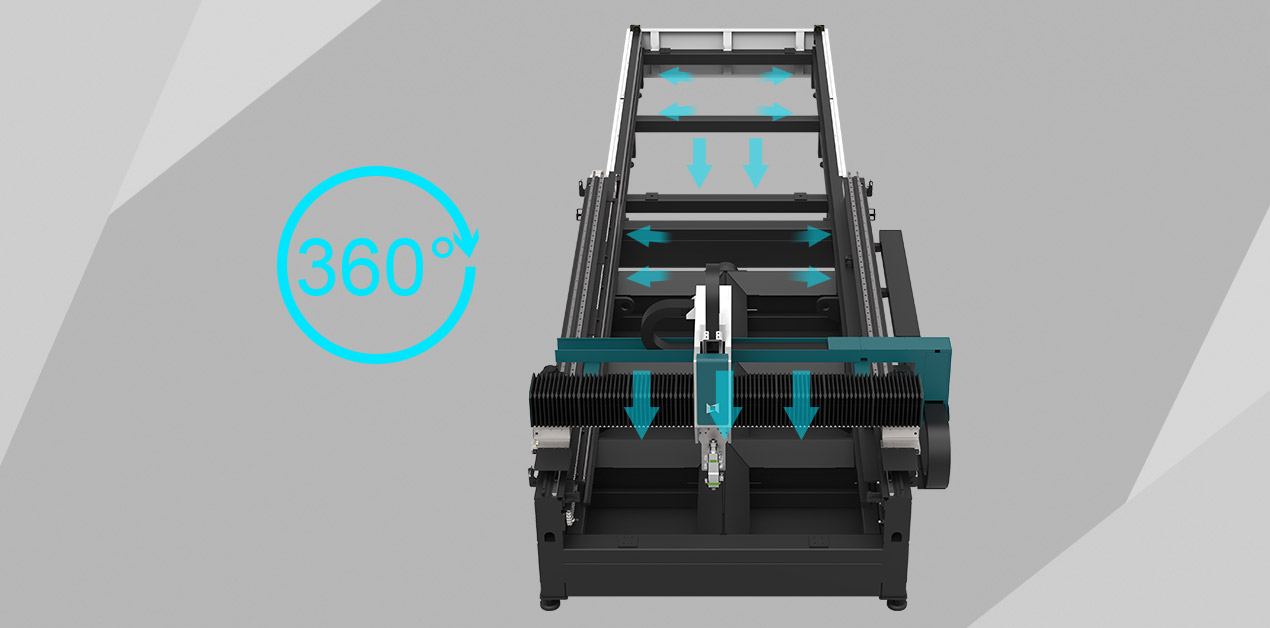

FULL COVERAGE, SUPER SUCTION

Adopt the latest cutting-edge tobacco control technology, Each section of the bed has a smoke exhaust device

Powerful negative pressure 360° adsorption, Axial fan wind direction surrounds blowing smoke downward, Full 360° strong adsorption and consistent smoke exhaust, Effectively purify the smoke and dust on the top of the enclosed cutting platform, Improve purification efficiency and reject lens contamination.

Net follow-up, wisdom grows by quality, The smoke exhaust device automatically senses the laser cutting position, Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

cy
jk

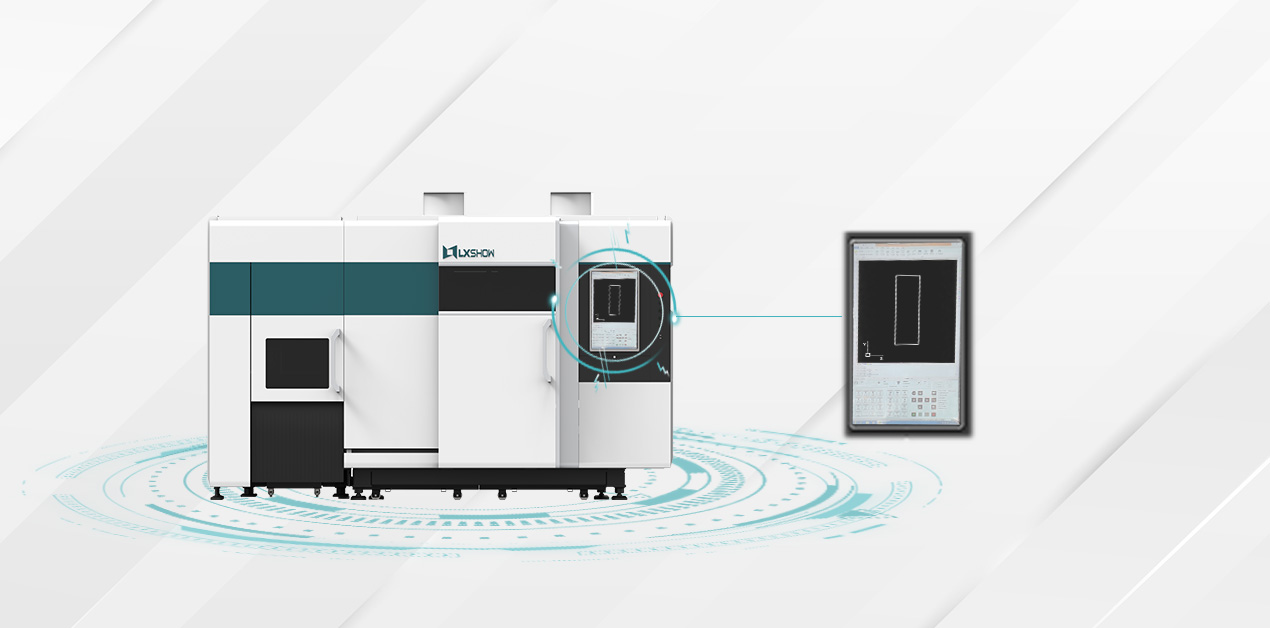

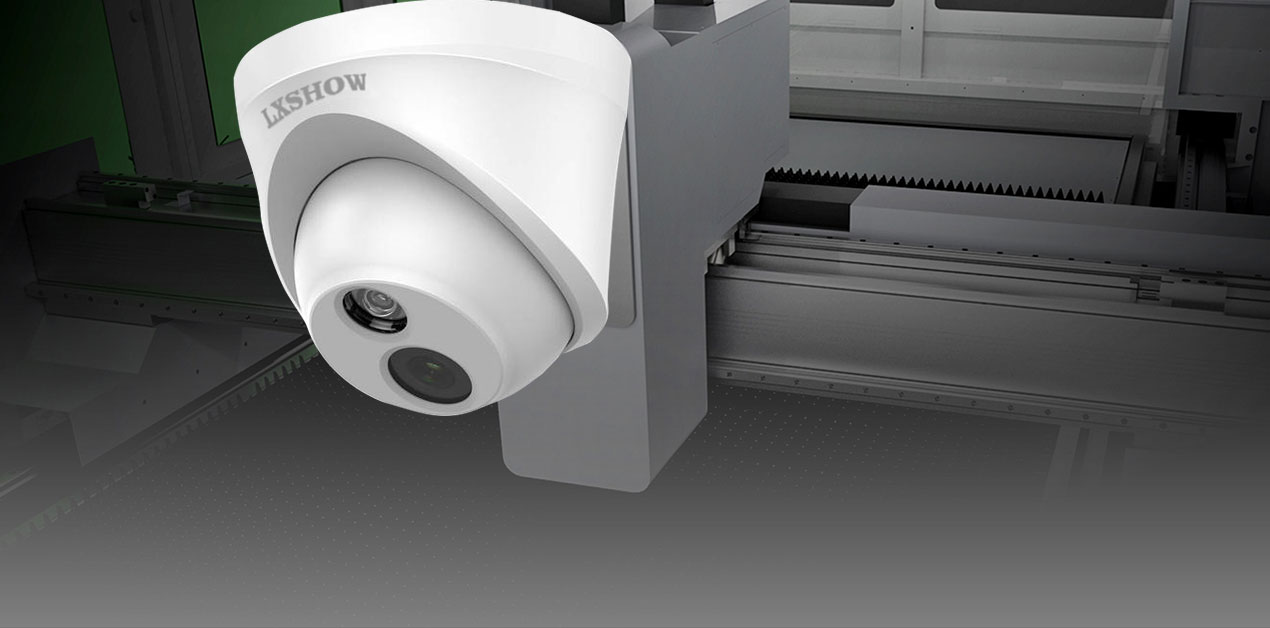

MONITORING SYSTEM

Real-time observe the machine running through the panel

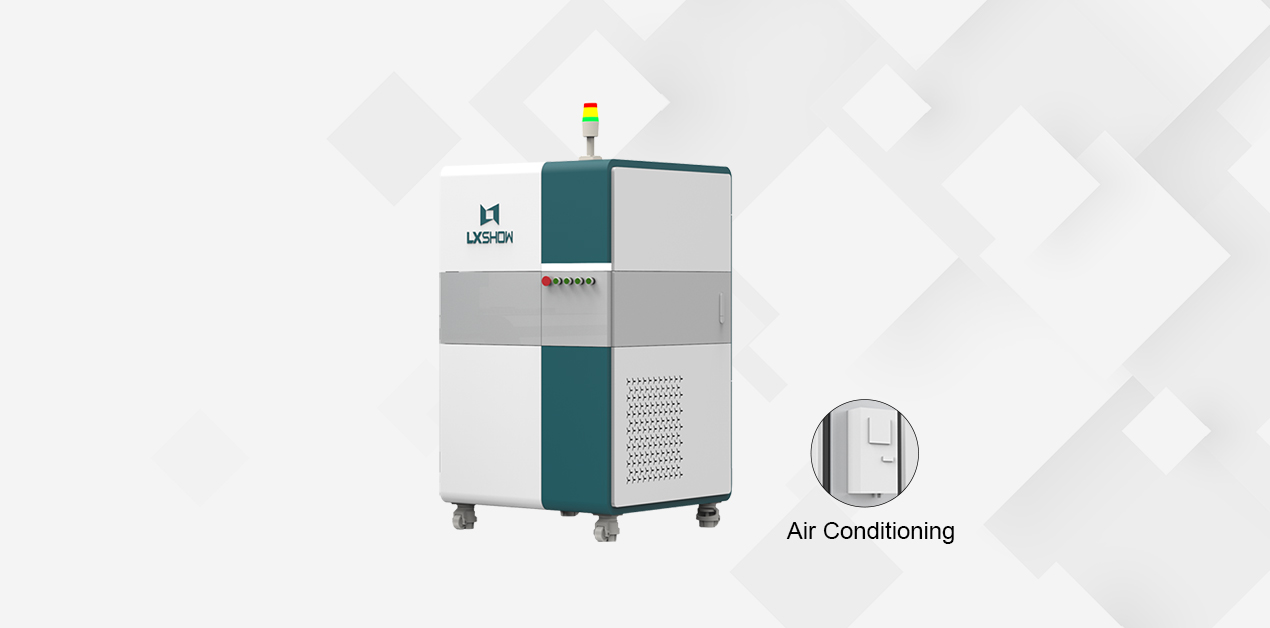

INDEPENDENT CONTROL CABINET

Dust-proof

•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat

•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.

kzg
3015PT

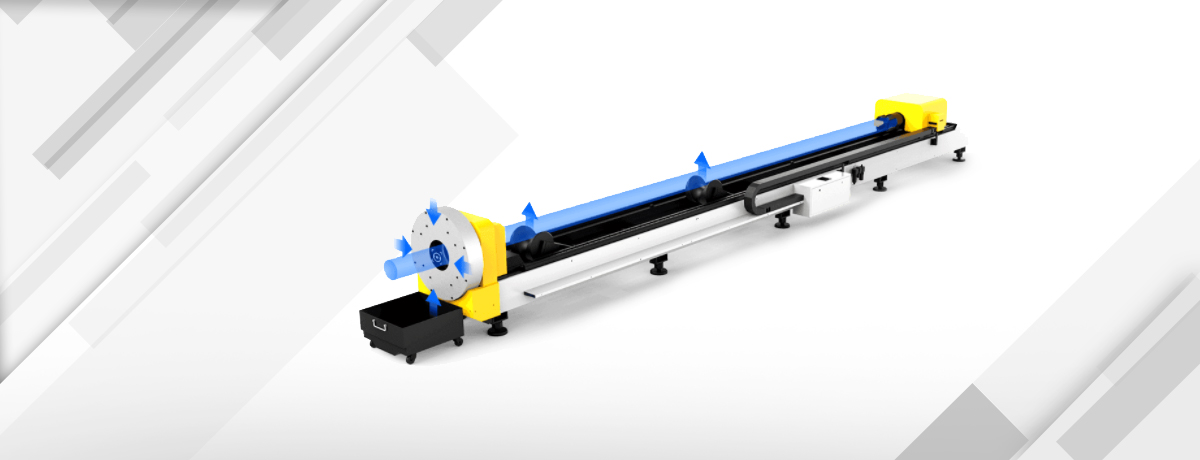

FULL-AUTOMATIC DOUBLE PNEUMATIC CHUCKS

Chuck: Both pneumatic control, Pneumatic chucks are 3 times faster than electric chucks thanks to one-button clamping and auto-centering. The clamping force is large and constant, which can hold heavy pipes stably.

Rotary length: standard 6m, 8m, other sizes can be customized.

Rotary diameter: 160/220mm is standard. Other sizes can be customized.

Model Number: LX3015/4015/6015/4020/6020/6025/8025PT
Lead time: 15-25 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: (About)
Exchange table Machine size: 5200*3000*2400mm

Water chiller +Controller: 1830*920*2110mm
Machine weight: 8000KG(About)
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model LX3015/4015/6015/4020/6020/6025/8025PT
Power of Generator 3000/4000/6000/8000/12000(optional)
Dimension Exchange table Machine size:

5200*3000*2400mm

Water chiller +Controller:

1830*920*2110mm

(About)

Working Area 1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy ±0.02mm
Max Running Speed 120m/min
Max Acceleration 1.5G
Specified Voltage And Frequency 380V 50/60HZ

LX3015PT carbon steel stainless steel sheet plate fiber laser cut metal machine 3kw 4kw 6kw 10kw 12kw Application

Application Materials

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

2 Sheet & tube metal laser cutting machine
