LX4020H Full Cover Exchange Table Fiber Laser Metal Cutting Machine 2000W 4000W 6000W 8000W

4020-1
4020-2
4020-3
4020-s2
4020-s3
4024-s1
1

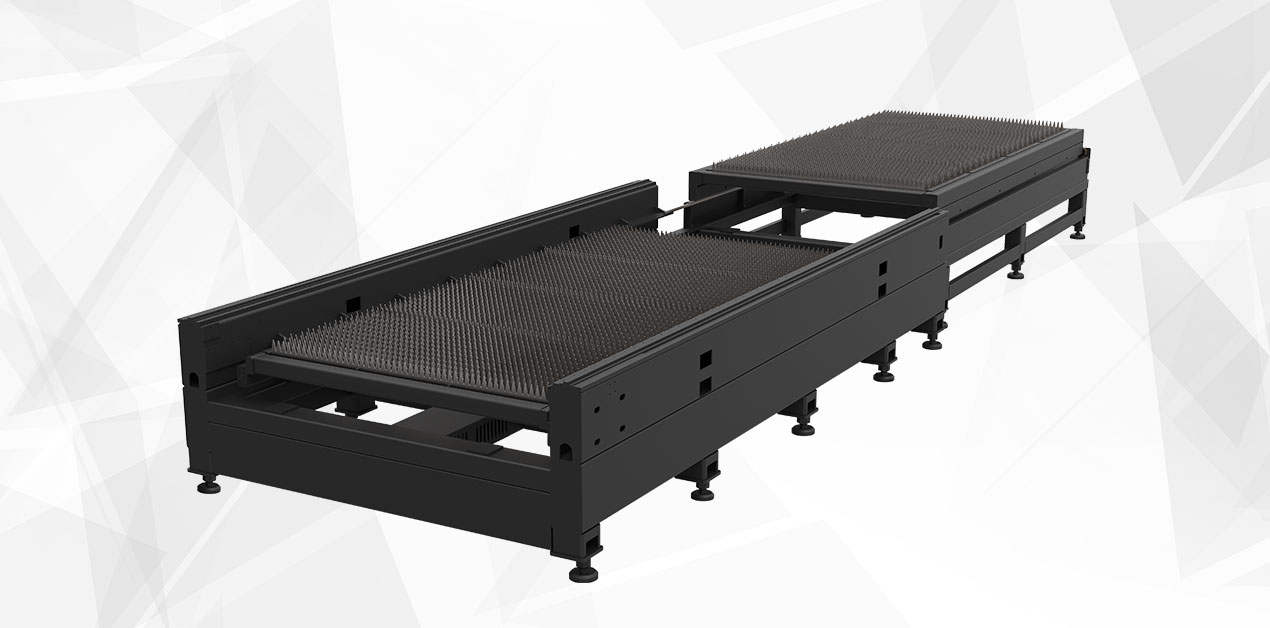

Exchange Table

• It adopts an up and down exchange platform;
• The converter is responsible for controlling the exchanging motor;
• The machine is able to finish the platform exchanging within 15s

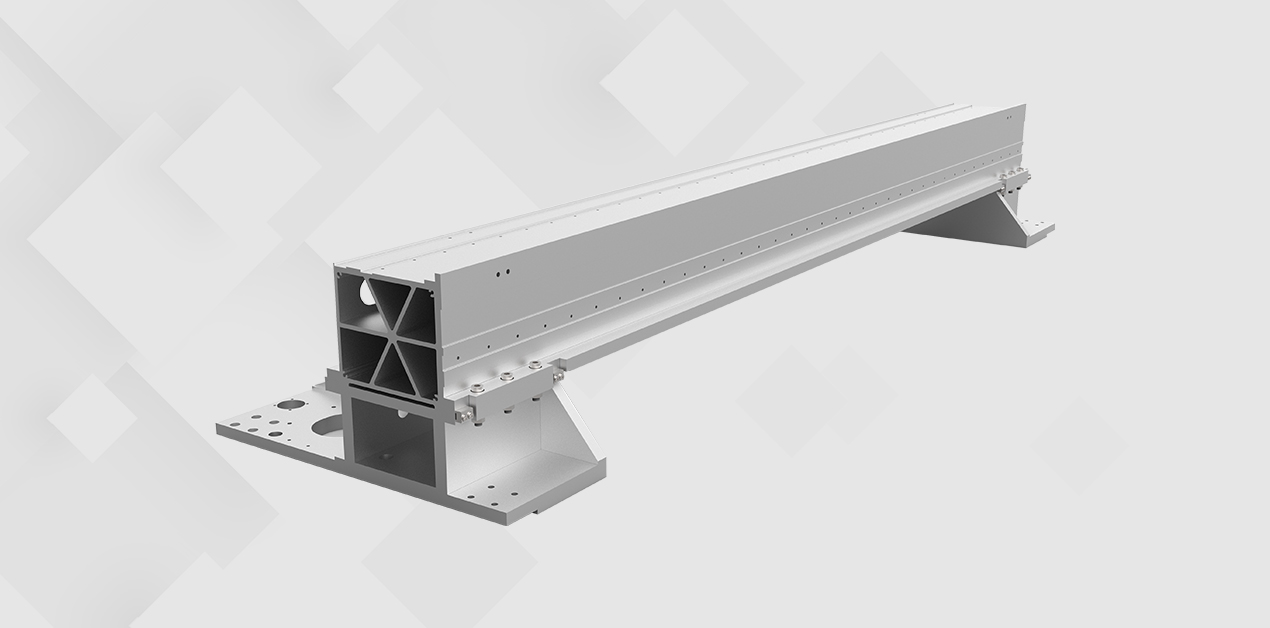

Brand New Cast Aluminum Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

2
3

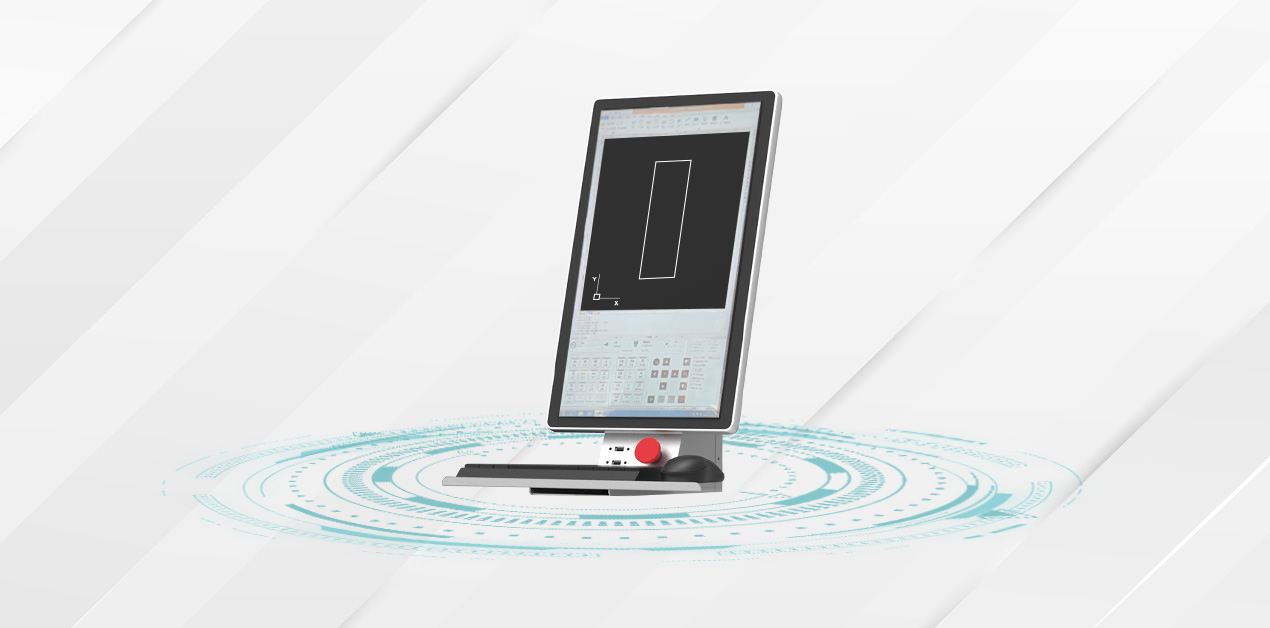

BOCHU SYSTEM

●New man-machine interaction pattern
●Flexible/batch processingmode
●Uitra-high-speed scanning & ctting with micro-connection
●Real-ime monitoring of core components
●Active reminder of machine maintenance
●Bult-in nesting software, save labor force

INTELLIGENT AUTOFOCUS

The high efficiency cooling:Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

4
5

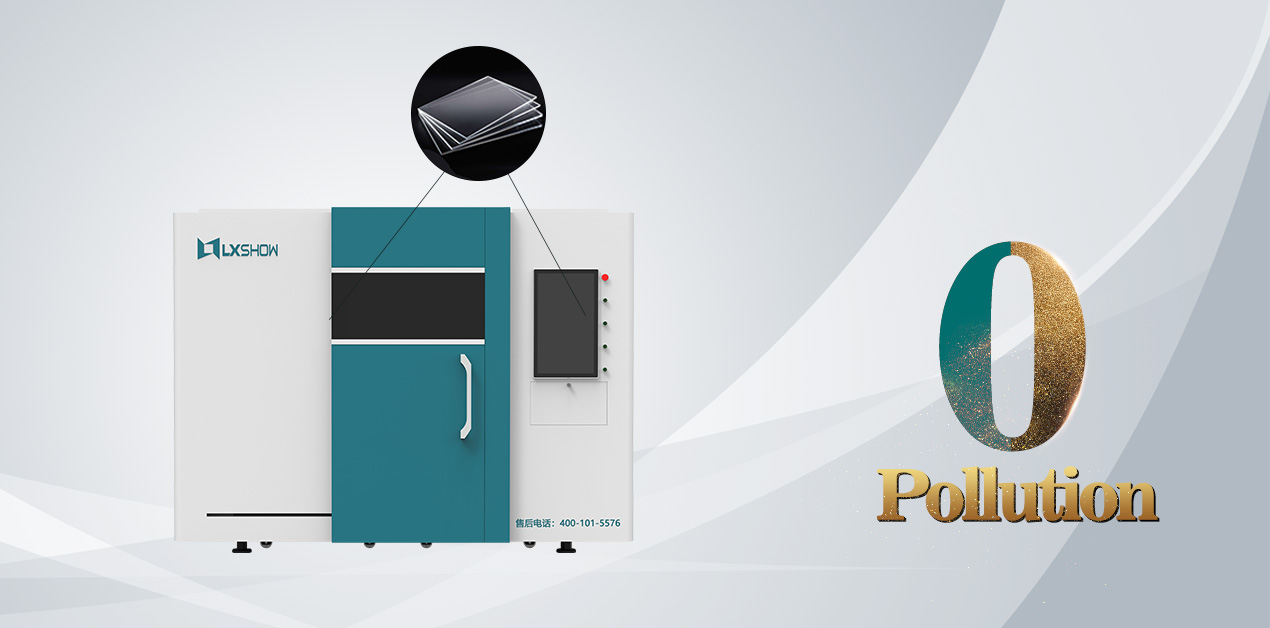

Safety and Environment Protection

· With a fully enclosed design;
· The observation window adopts an European CE Standard laser protective glass;
· The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

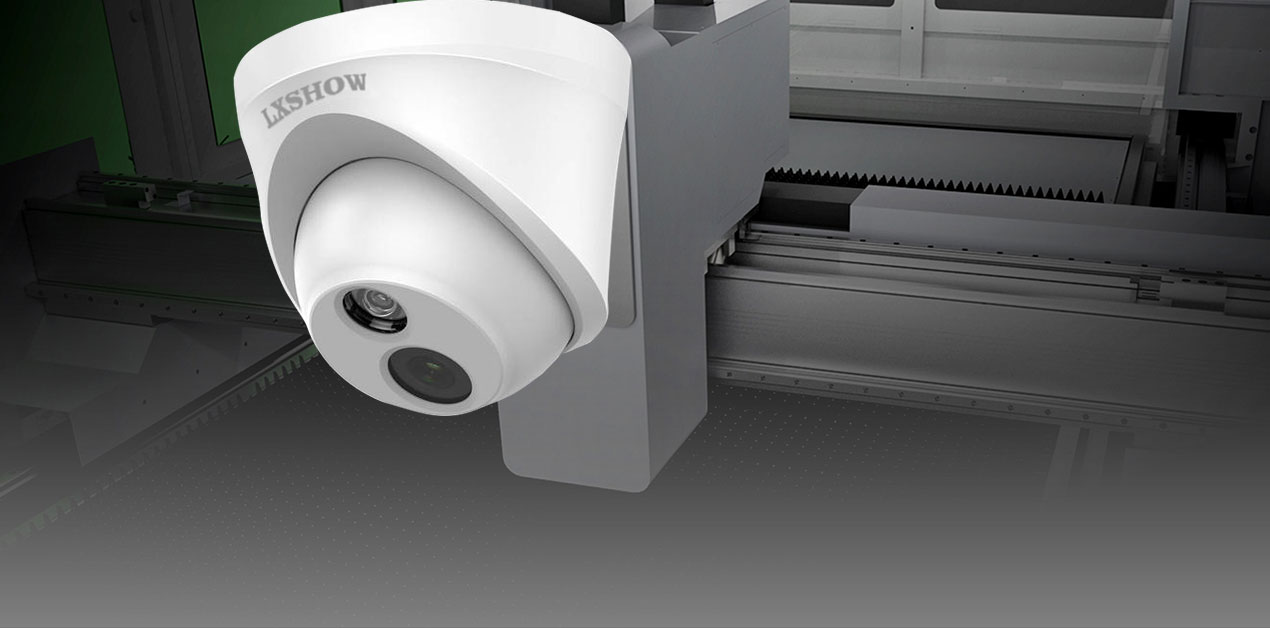

Monitoring system

Real-time observe the machine running through the panel

6
7

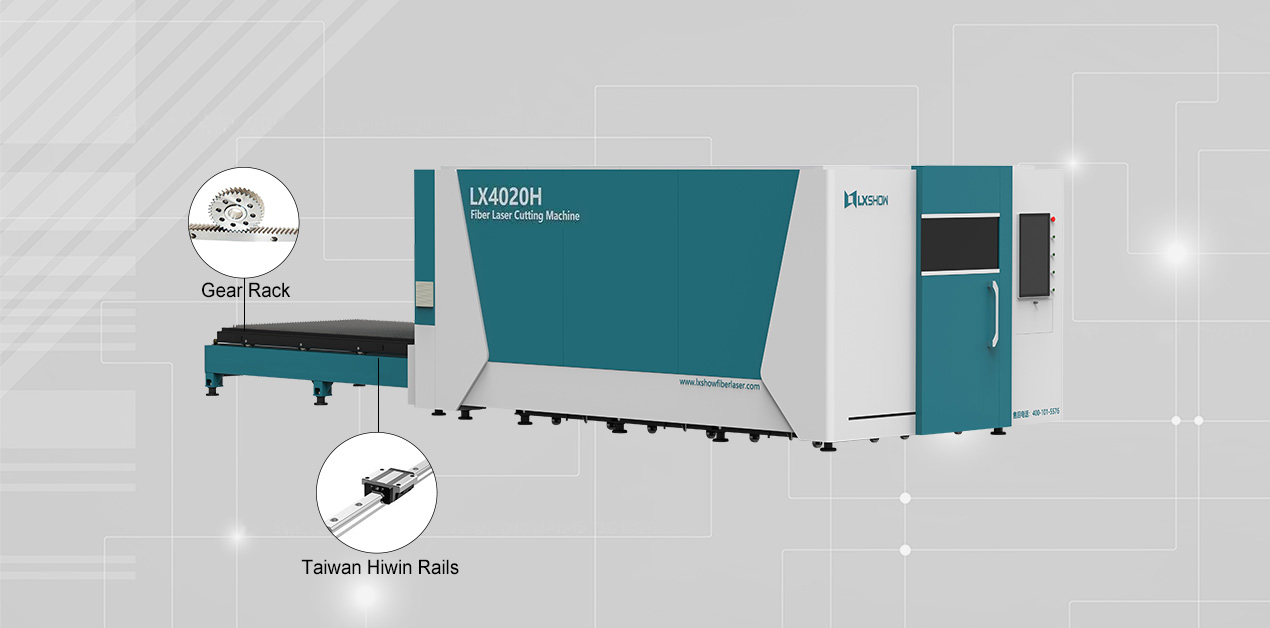

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

Model Number:LX4020H
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.

Brand:LXSHOW
Warranty:3 years
Shipping:By sea/By land

Machine Model

LX4020H

Power of Generator

6KW

Dimension

5900*3050*2100

Working Area

4000*2000mm

Repeated Positioning Accuracy

±0.01mm

Max Running Speed

120m/min

Max Acceleration

1.5G

Specified Voltage And Frequency

380V 50HZ
