LX83THA Automatic Loading and Unloading CNC Fiber Laser Tube Cutting Machine for Metal

LX83THAPC3
LX83THAPC2
LX83THAPC1
LX83THA--3
LX83THA--2
LX83THA--1
LX83THA Automatic Loading and Unloading CNC Fiber Laser Tube Cutting Machine for Metal

1.Semi-enclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers

2.Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking

3.The front end of the machine is surrounded by design to improve the dust removal effect

ys
ys2

BOCHU SYSTEM

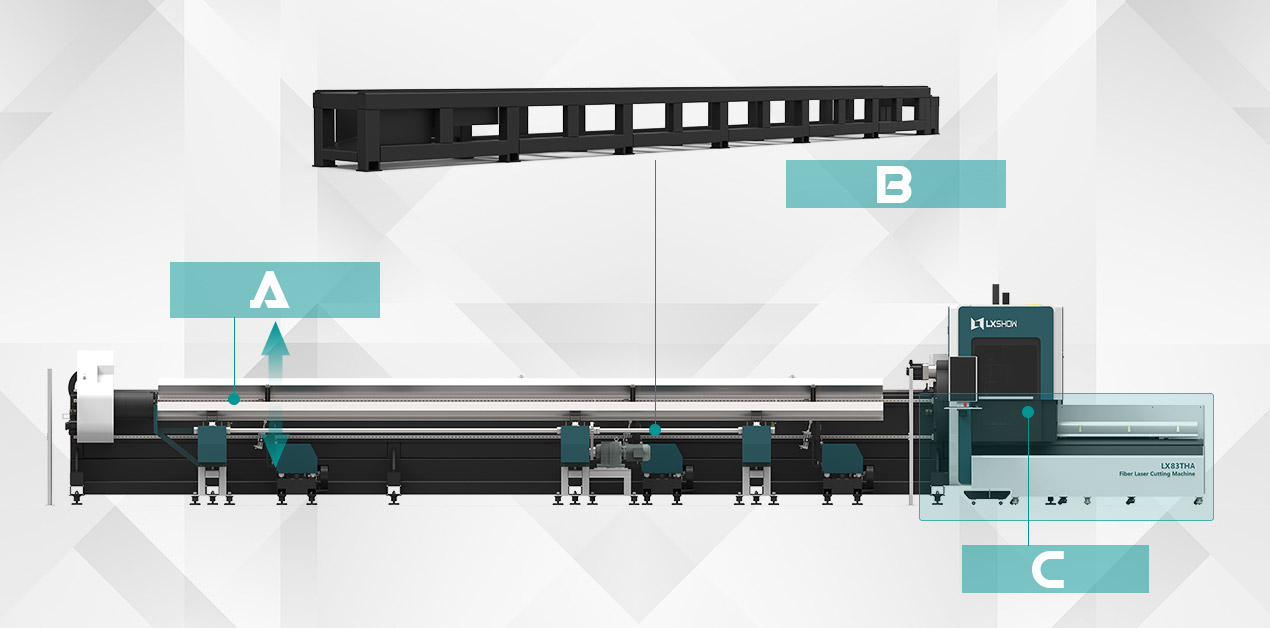

Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing. The rear chuck equipped with a waste collection system.

Follow-up support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation. The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.

The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G

SEGMENTED RECTANGULAR LASER TUBE WELDING MACHINE

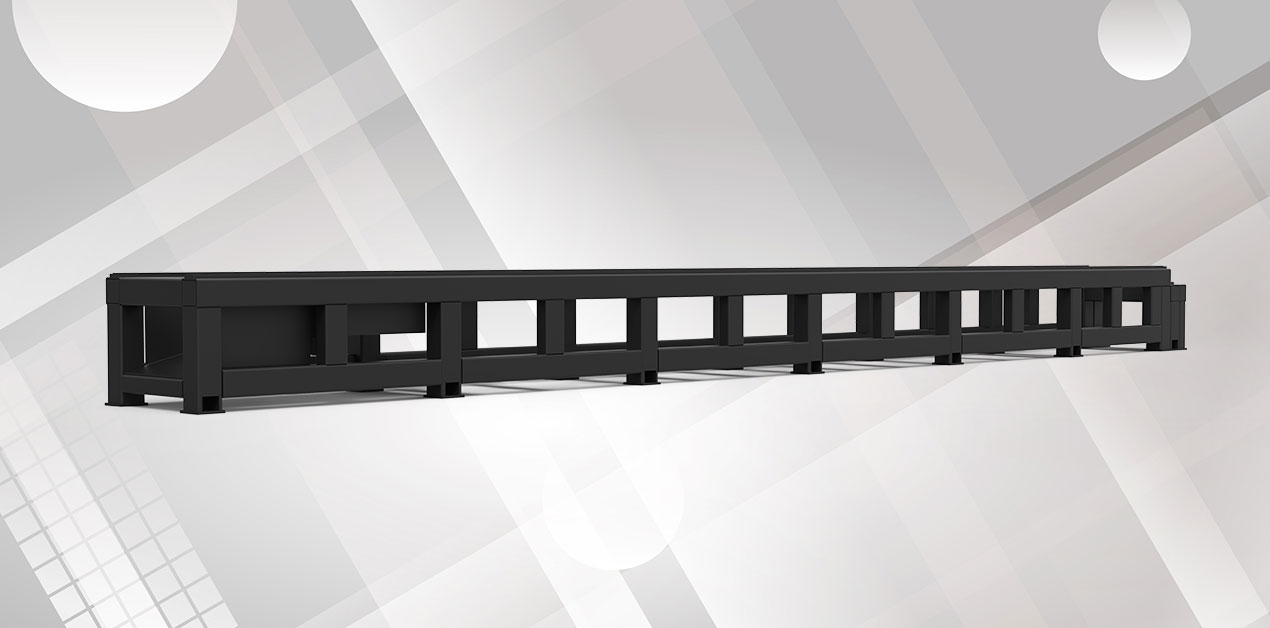

The overall rigidity is extremely strong, the load-bearing is uniform, the performance is stable, and it is not easy to deform; Shaped by high precision process. Good weight and good dynamics.

cs
xsq

BOCHU SYSTEM

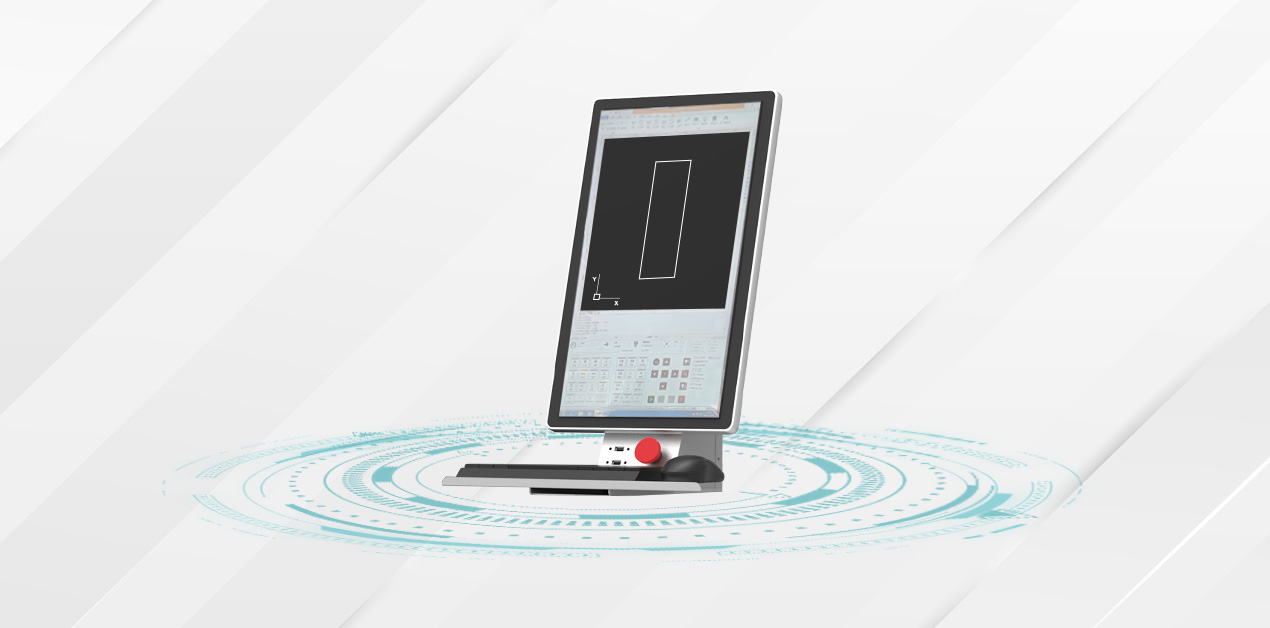

● The operation is simple and convenient.
● Compatible with multile graphic files, incl. DXF DWG, PLT and NC code
● Uitra-high-speed scanning & ctting with micro-connection
● Support language: English, Russian, Korean, Simplified Chinese, Traditional Chinese

INTELLIGENT AUTOFOCUS

BM109 autofocus cutting tube fiber cutting head. Equipped with slender TRA components and slender nozzles, it can adapt to any complex pipe cutting product conditions.

Users can set fixed and continuous focus through the program to complete rapid perforation and automatic cutting of pipes of different thicknesses and materials; The product is equipped with a D28 compound lens group to integrate the beam, and the optimized optical and water-cooled design enables the laser head to work continuously and stably for a long time.

Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h), you are buying the machine You can buy some consumable parts as an option.

qgt
fsq

GENERATOR USING LIFE

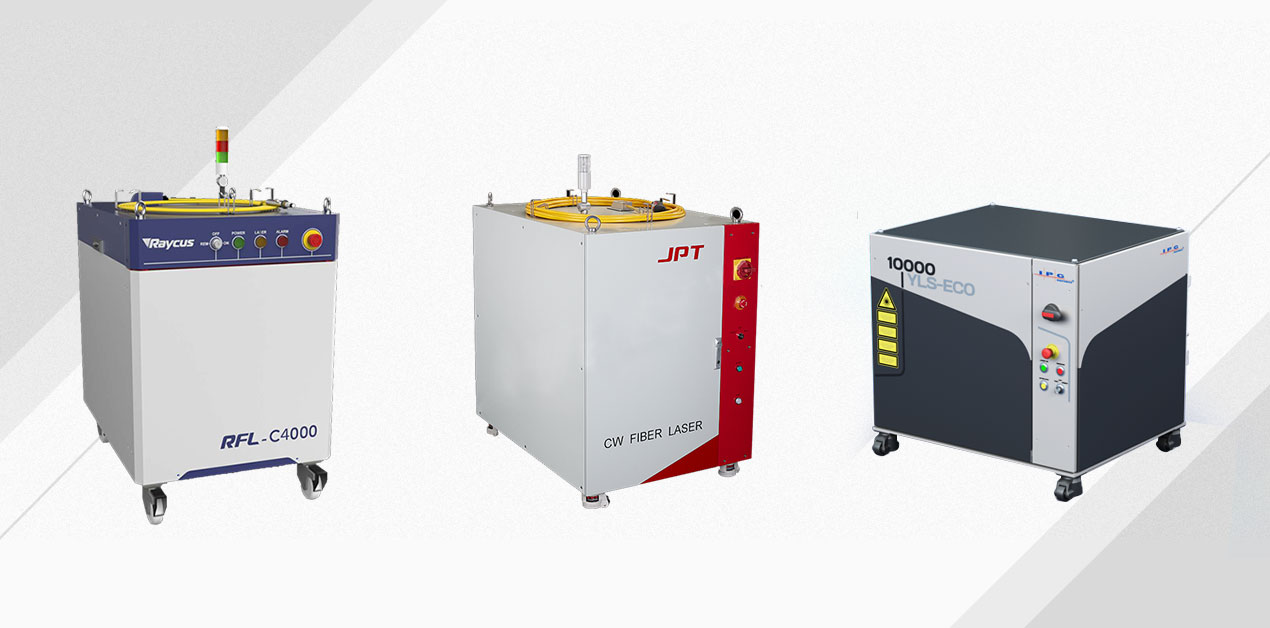

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

Generator Brand: JPT/Raycus/IPG/MAX/Nlight

PNEUMATIC CHUCK
CLAMPING DESIGN

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

kp
3

PROFESSIONAL CLAMP DESIGN

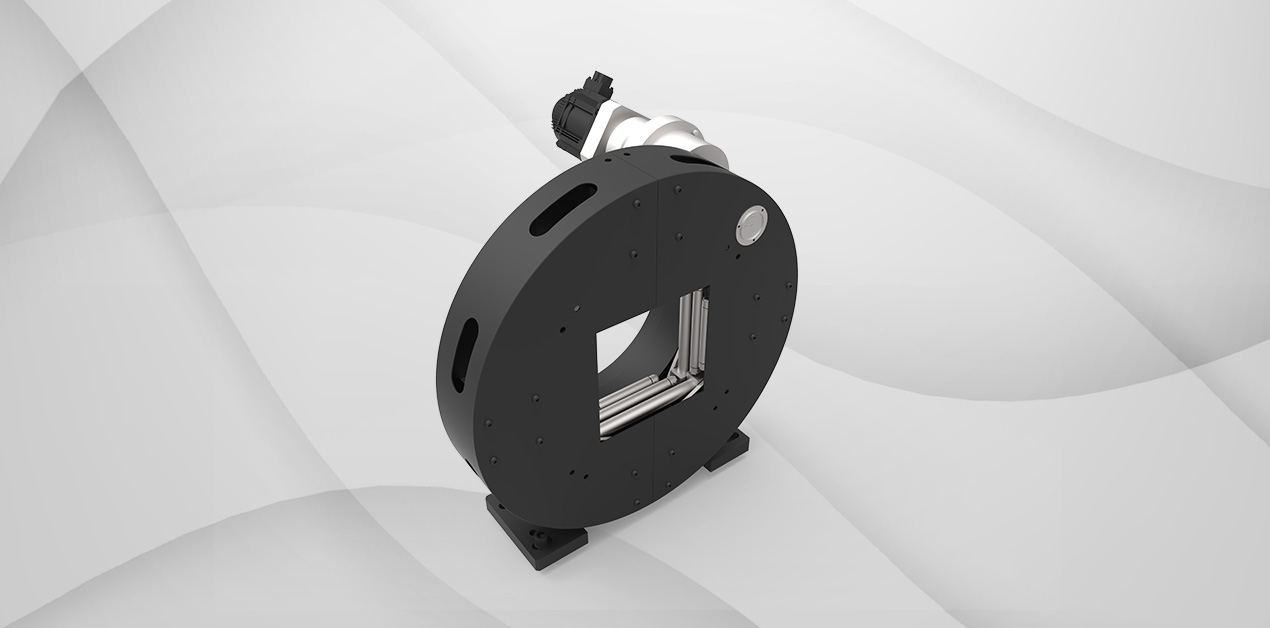

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

zcj
aq

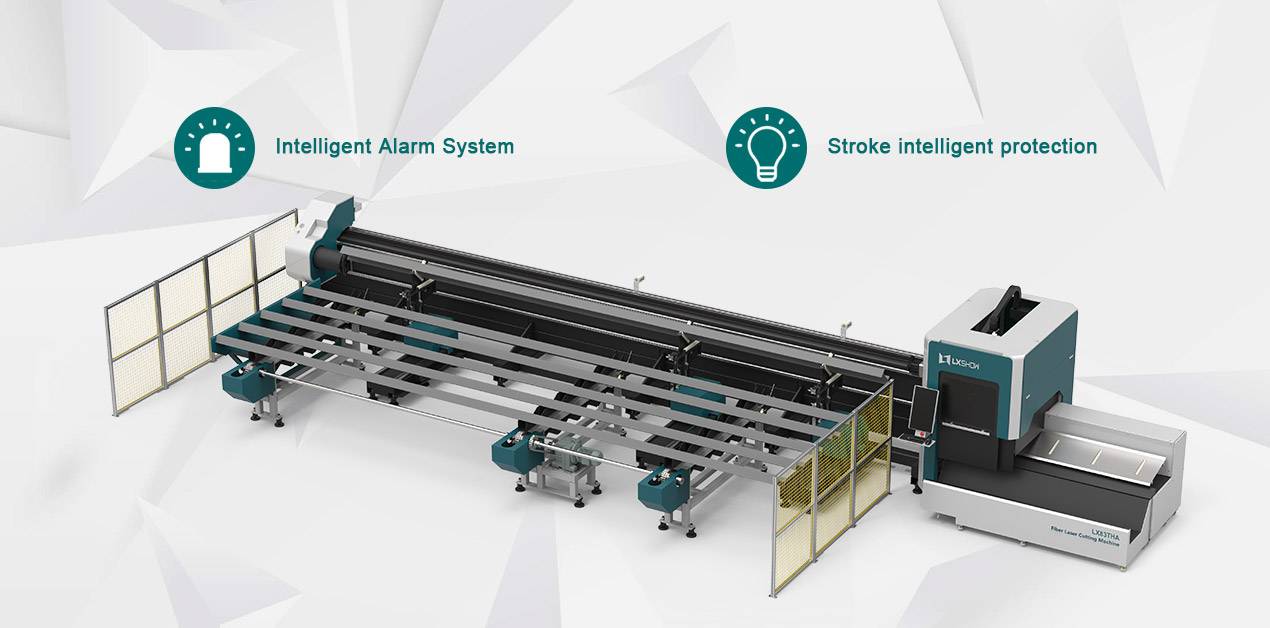

INTELLIGENT ALARM SYSTEM

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

Stroke intelligent protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

THE ABSOLUTE VALUE SERVO MOTOR

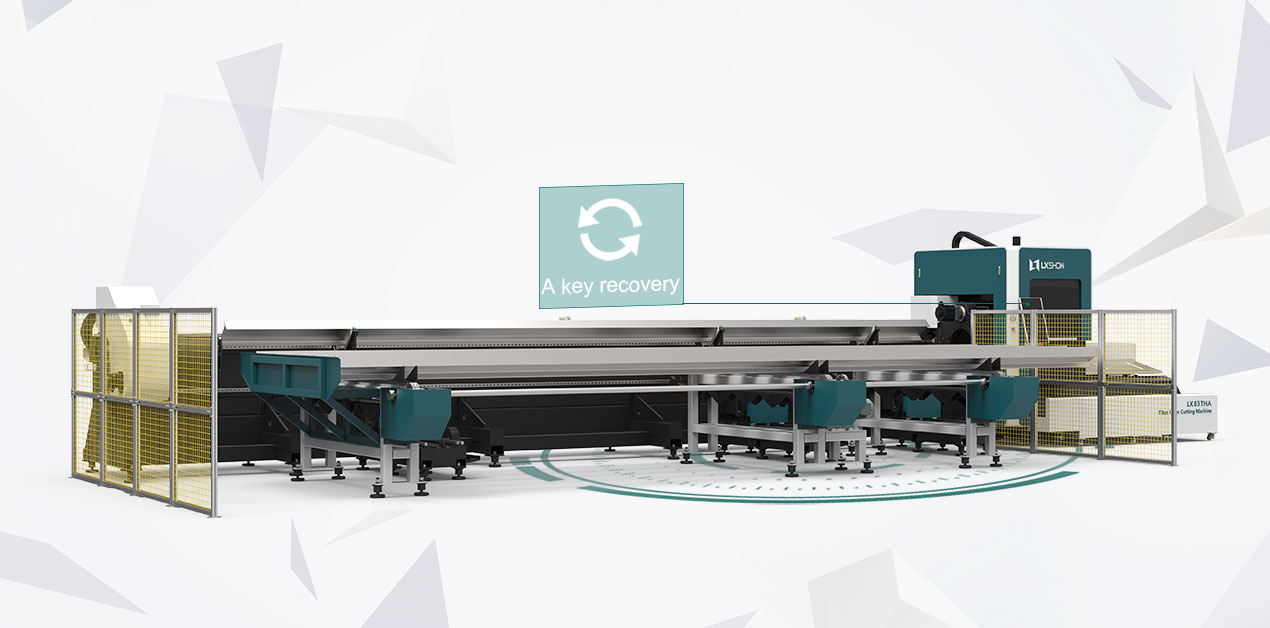

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.

csf
zdsxl

Loading

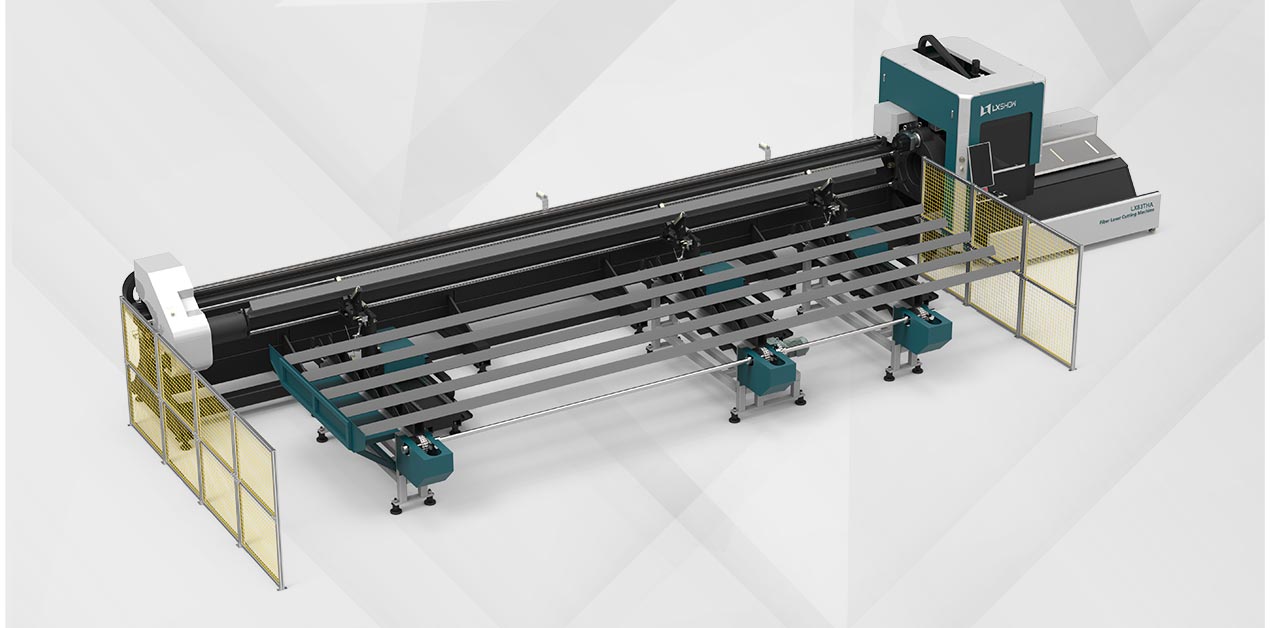

After the whole bundle pipes were put on the feeding device, these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time

Unloading
Finished material is automatically unloaded to the parts silo, double rollers auxiliary support long parts; materials can be automatic prepared during processing time, shorten the feeding time. Automatic unloading, parts and scraps are automatically separated, reducing sorting, saving labor, improving machine production efficiency

Model Number: LX83THA
Lead time: 20-35 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C.
Machine Size: (About)12000*5000*2450mm

Machine weight: 13000KG(About)
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land

Machine Model LX83THA
Power of Generator 1500-6000W
Chuck Front and rear dual pneumatic chucks
Positioning Accuracy 0.03mm
Maximum Speed 70m/min
Chuck speed 80r/min
Applicable pipe specifications  Round tube   20mm-218mm

Square tube   20mm-155mm

Rectangular tube   diagonal<218mm

Tube length 6050mm
Silo load-bearing 3T
Single maximum weight 200kg
Voltage 380V±10%50HZ

LX83THA CNC OPTICAL METAL SHEET PLATE FIBER LASER CUTTING MACHINE APPLICATION

Application materials: Mainly used for cutting Fiber laser metal cutting machine is suitable for cutting stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized pipe, aluminum, copper, brass, bronze, titanium and other metals.
Application industry: Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

3 Fiber laser tube cutting machine
